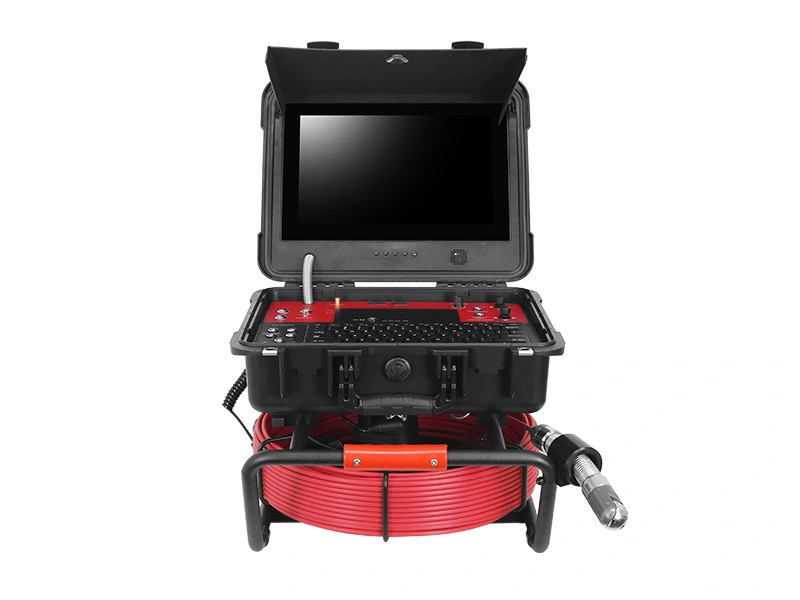

33mm Ultra-Slim AHD Pan-Tilt Rotary Drain Camera System with Manual Focus
Engineered for restricted spaces, this portable 33mm AHD pipe camera delivers exceptional clarity and agile maneuverability. Featuring a motorized pan-tilt rotary head, the system ensures full-coverage, zero-blind-spot surveillance for fast and accurate pipeline diagnostics.
Product Detail
Engineered for restricted spaces, this portable 33mm AHD pipe camera delivers exceptional clarity and agile maneuverability. Featuring a motorized pan-tilt rotary head, the system ensures full-coverage, zero-blind-spot surveillance for fast and accurate pipeline diagnostics.

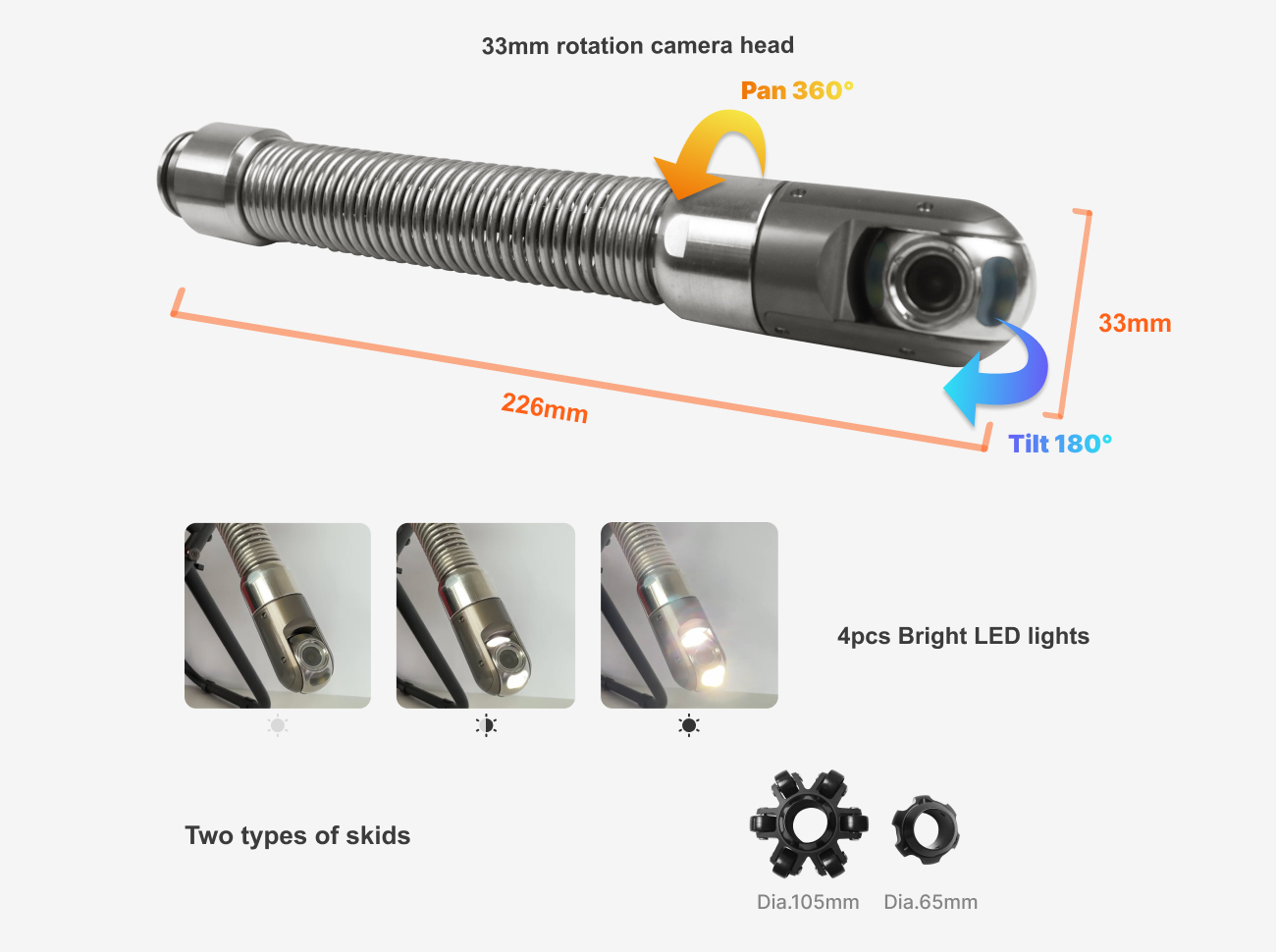

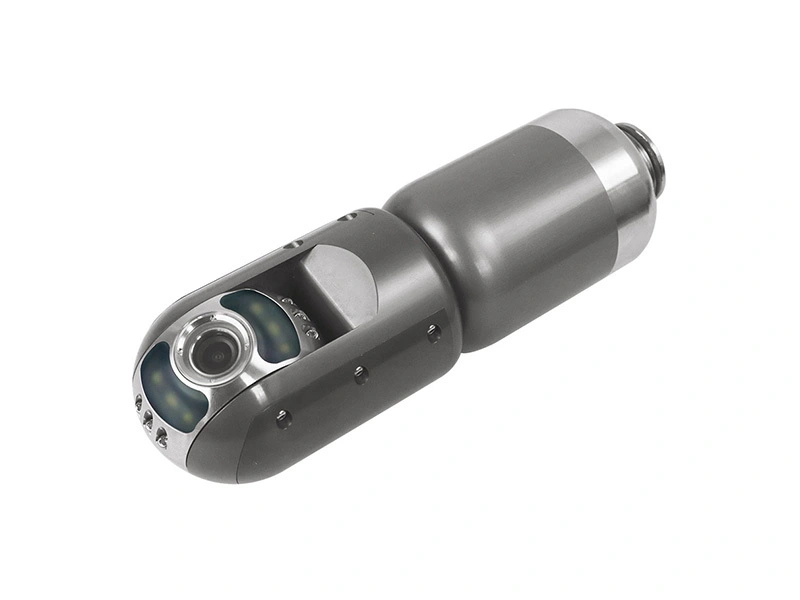

| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS,2.0MP pilex FHD , waterproof IP68 |
| Adjustable focus function |
| 8 inch IPS lcd screen, 1920X1080 resolution |

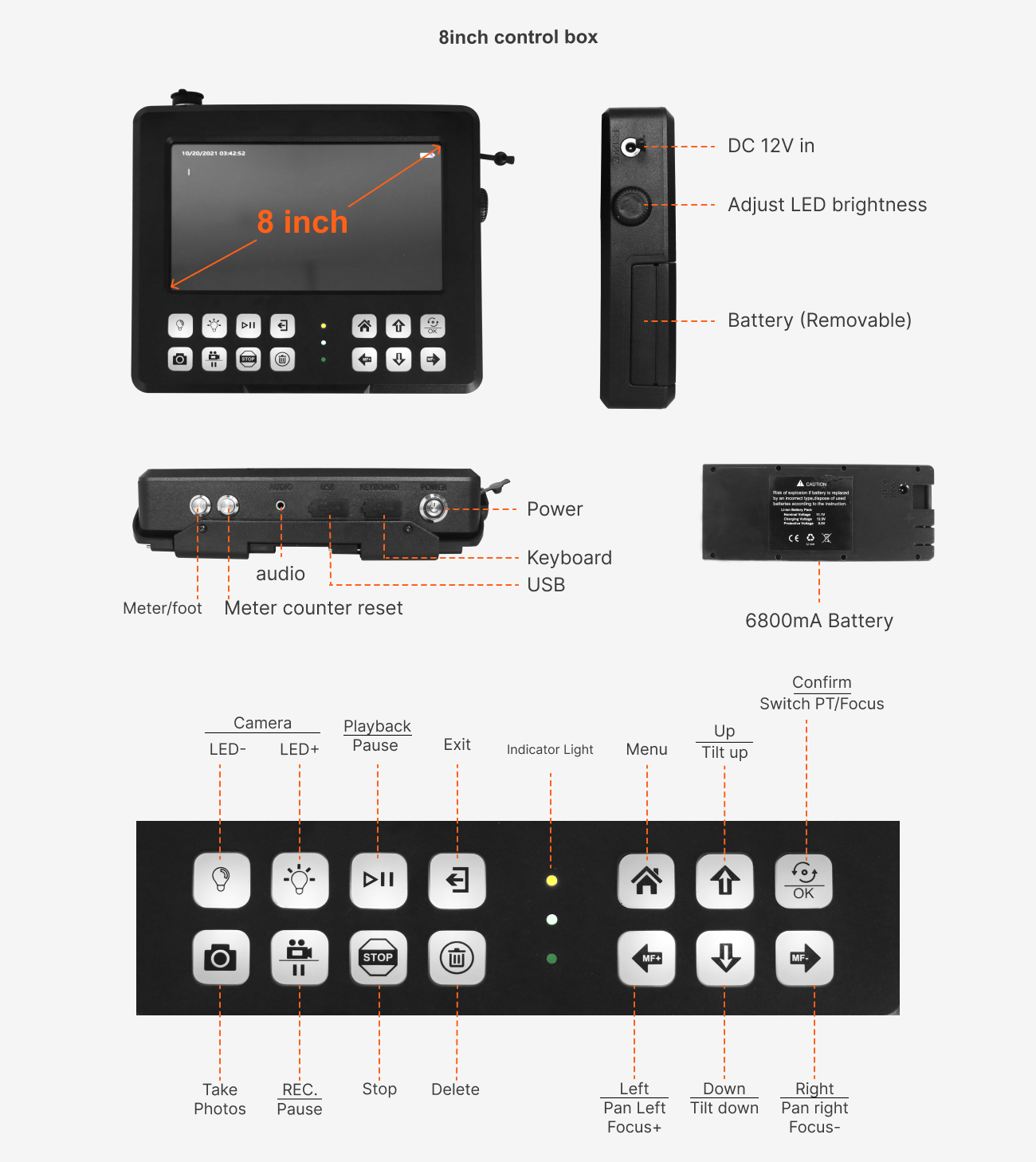

| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 6800mA li-ion battery inside |
|

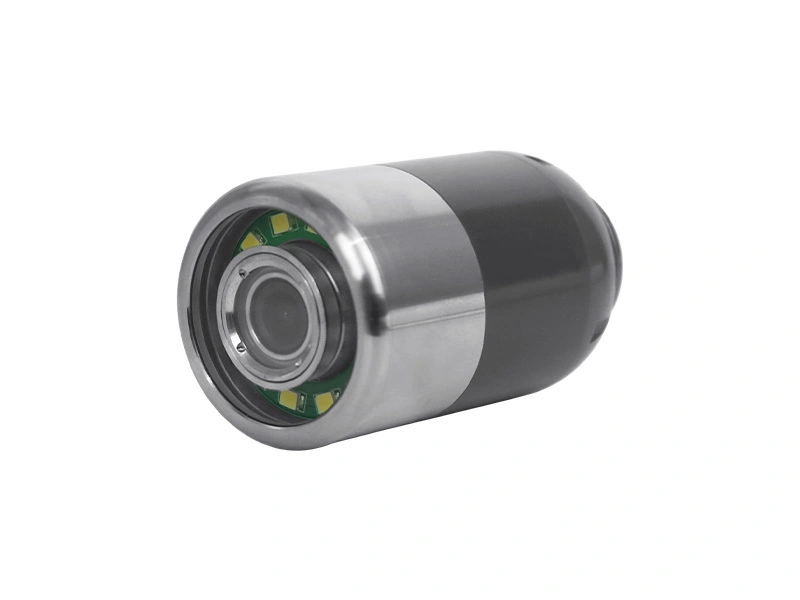

Camera size |
33 x 72mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
Manual focus manually |
|
Rotation range |
Rotation: Pan 360°， Tilt 180° |
|
Light |
4pcs high light LED lighting adjustable |
|
Connector |

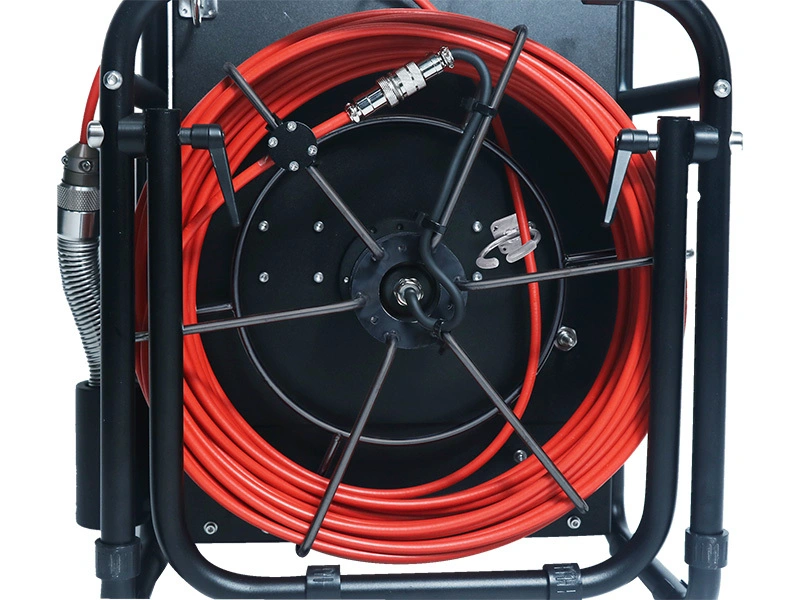

Detachable with aviation plug type connection to Cable Reel |
|
Material |
|

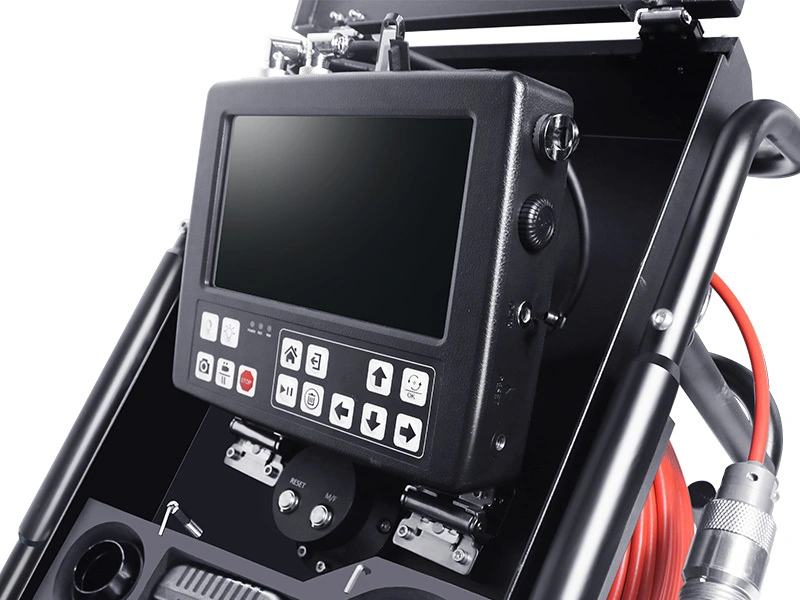

Screen Size |
8"HD IPS LCD Screen, 1980x1080 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
1080P format video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
|
|
Battery |
6800mA rechargeable Li-ion Battery Pack |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
Through WIFI wireless transmit video to Android, Apply OS or MID terminal |
|
Meter counter |
|
|
Material |
|
|
Cable diameter |
|
|
Cable length |
|
|
Electric winding |
|
|
Winding speed |
|
|
Power supply |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
