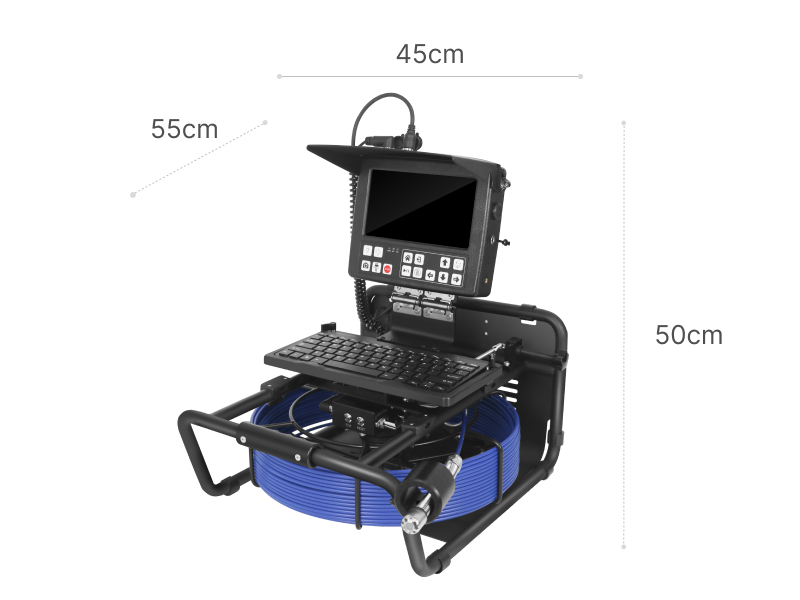

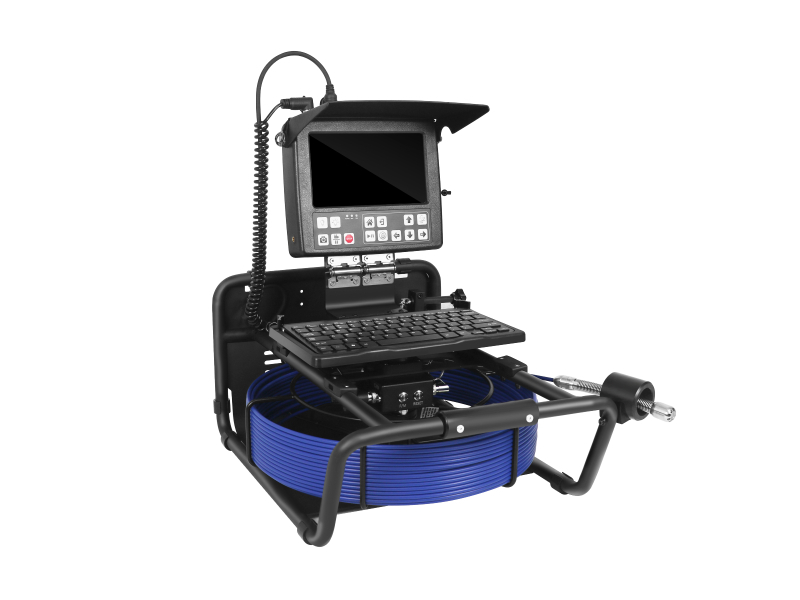

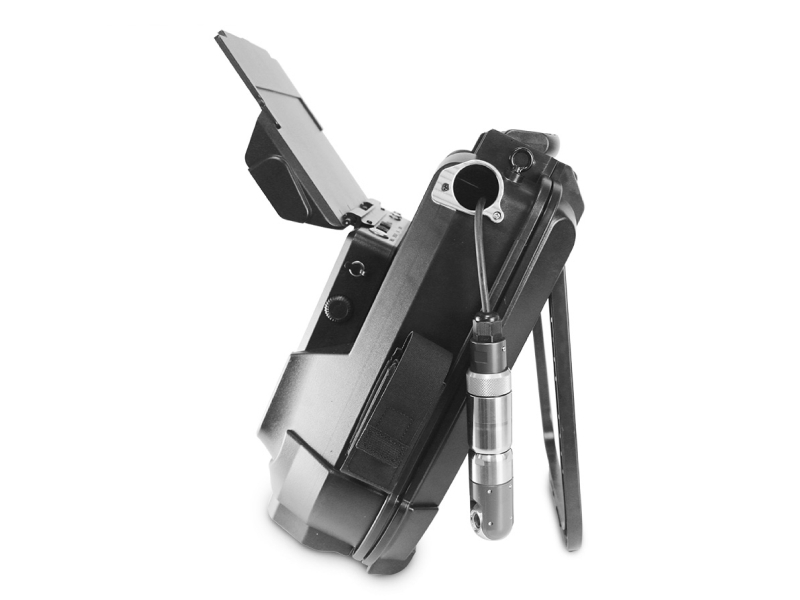

33mm Pan Tilt Portable HD Underwater Inspection Camera System
The 33mm Pan Tilt Portable AHD Underwater Inspection Camera is a compact, high-performance solution engineered for versatile submerged imaging. Equipped with an omnidirectional pan-and-tilt mechanism, this portable device delivers crystal-clear, detailed footage from every angle, making it the ideal tool for demanding underwater inspections and structural assessments.
Product Detail
The 33mm Pan Tilt Portable AHD Underwater Inspection Camera is a compact, high-performance solution engineered for versatile submerged imaging. Equipped with an omnidirectional pan-and-tilt mechanism, this portable device delivers crystal-clear, detailed footage from every angle, making it the ideal tool for demanding underwater inspections and structural assessments.
Overview of 33mm Pan Tilt rotation Camera
| 33mm Pan 360 degree Tilt 180 degree rotation camera |
| 1/3 CMOS, 2.0MP pilex AHD , waterproof IP68 |
| 8 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |

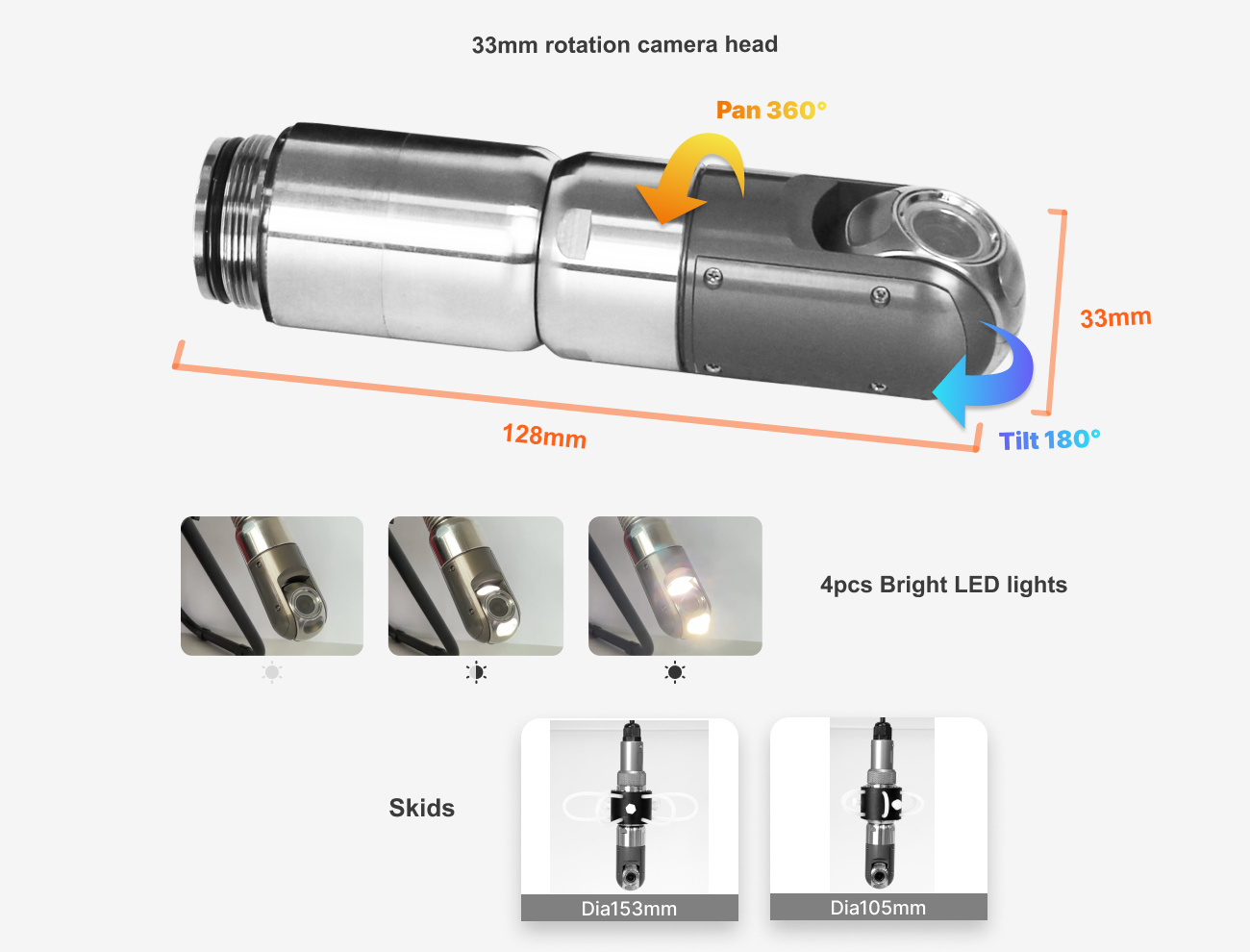

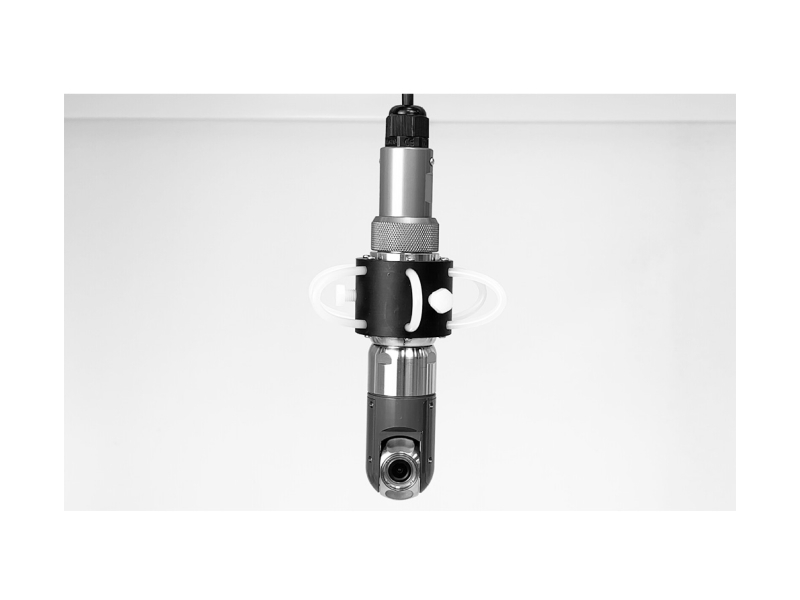

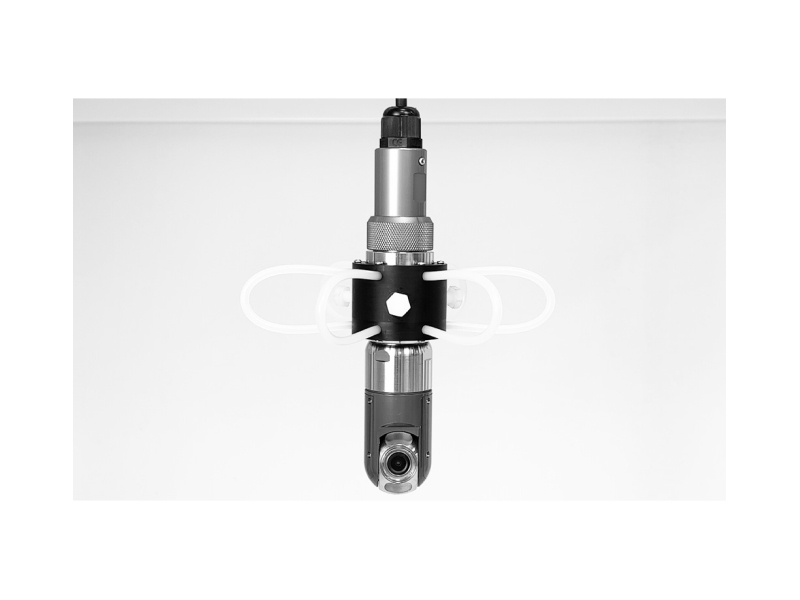

Main Part 1: 33mm Pan 360 degree Tilt 180 degree rotation camera head
|
Camera size |
33mm x 128mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
4pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
/ |

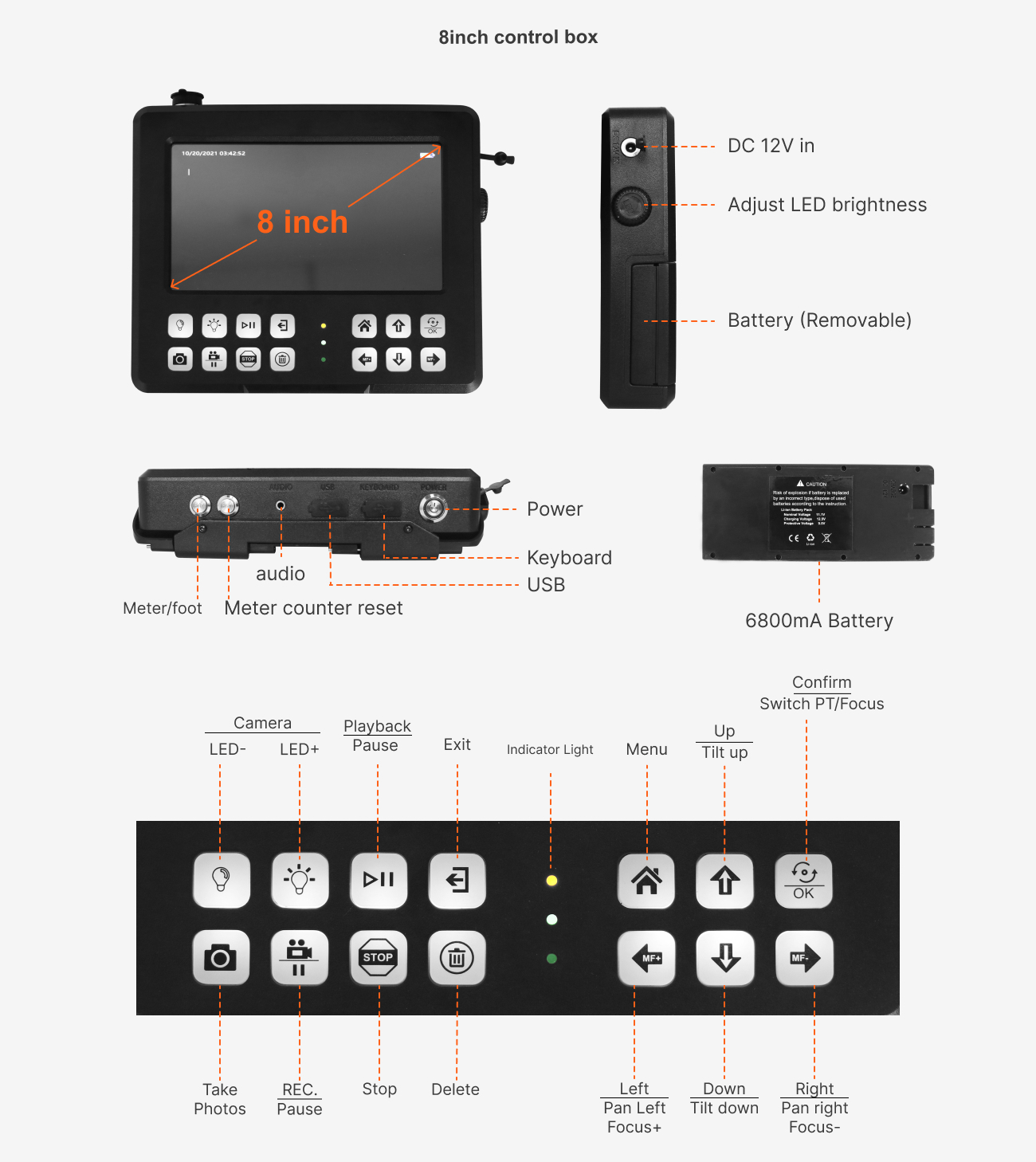

Main Part 2: DVR control unit
|
Screen Size |
8"HD IPS LCD Screen,1980*1080 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
/ |
|
Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack/ Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

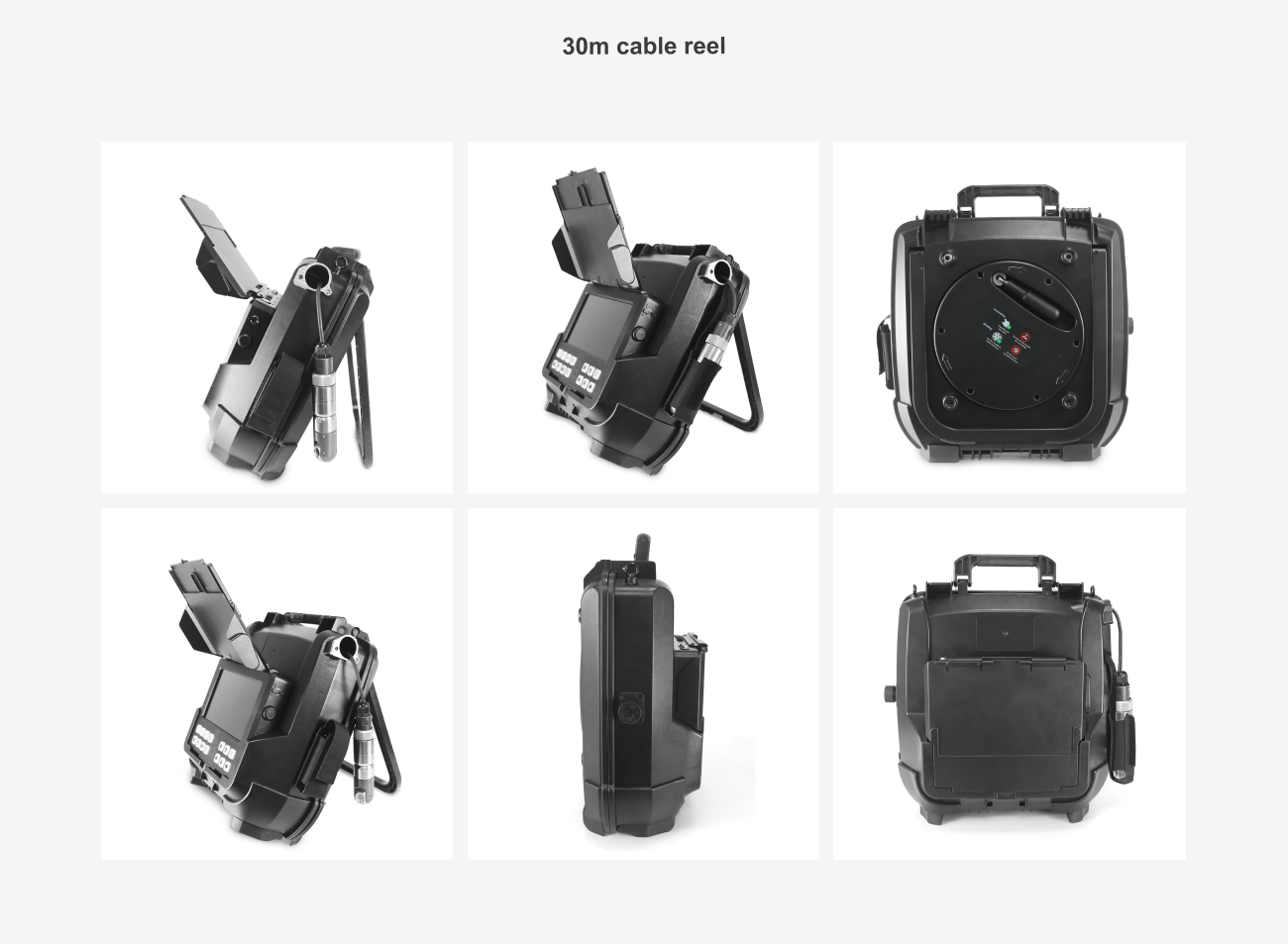

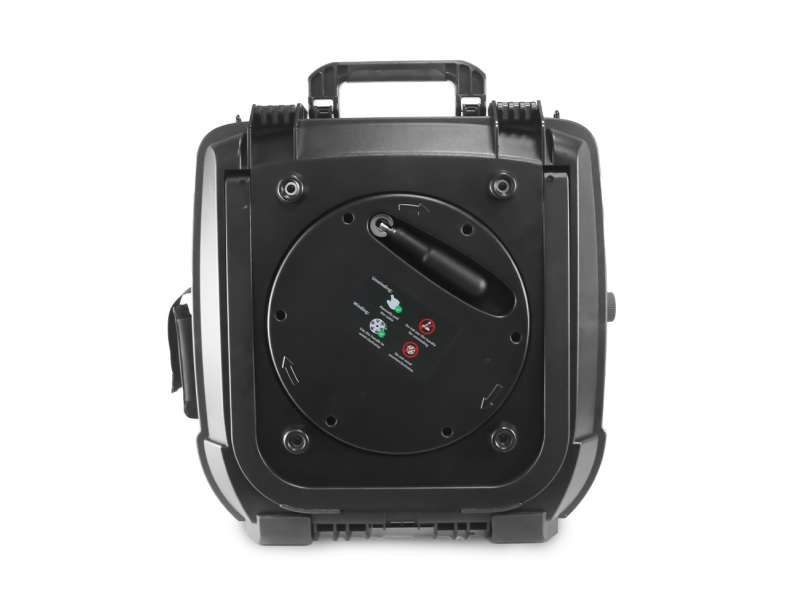

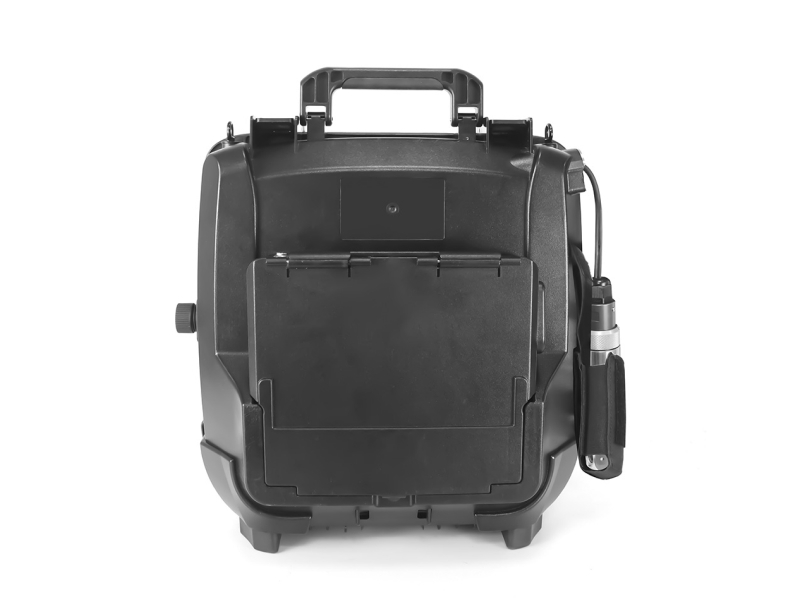

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
/ |
|
Cable diameter |
5mm |
|
Cable length |
30m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
