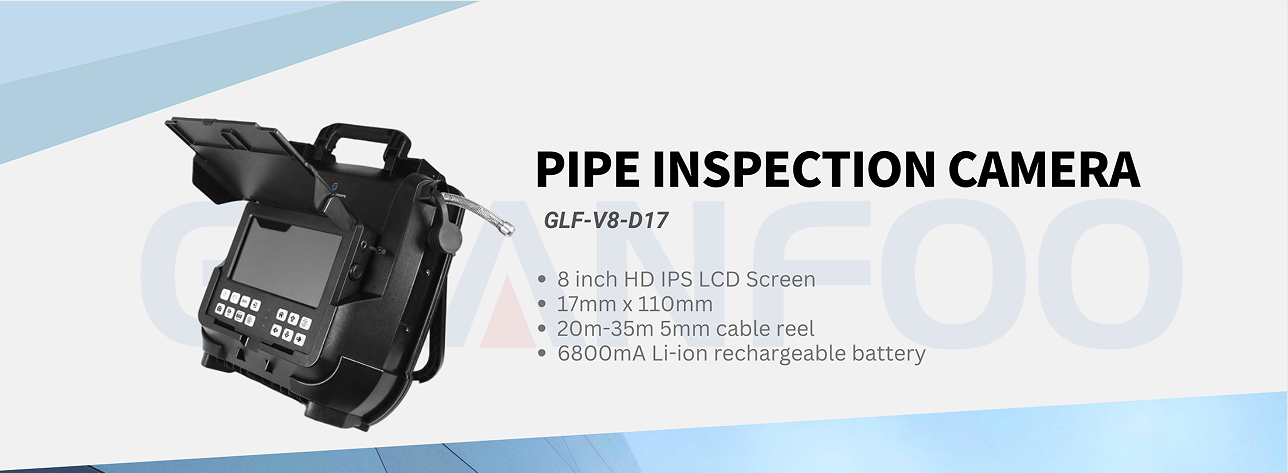

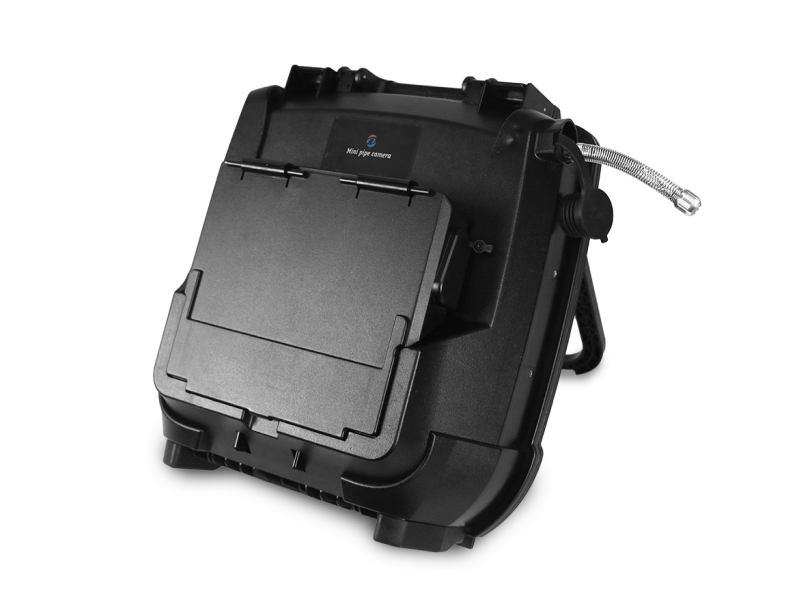

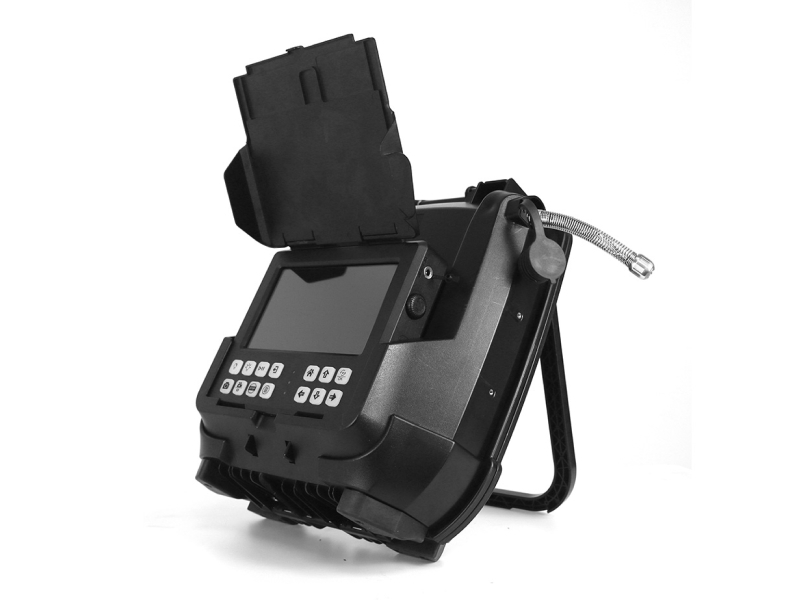

17mm Mini AHD plumbing video camera for pipe inspection
Engineered for confined spaces, the 17mm Ultra-Compact AHD Pipe Inspection Camera delivers exceptional versatility. Featuring a sleek 17mm camera head and cutting-edge AHD technology, this device ensures crystal-clear imaging even in the most challenging, hard-to-reach areas.
Model No.: GLF-V8-D17
Product Detail
Engineered for confined spaces, the 17mm Ultra-Compact AHD Pipe Inspection Camera delivers exceptional versatility. Featuring a sleek 17mm camera head and cutting-edge AHD technology, this device ensures crystal-clear imaging even in the most challenging, hard-to-reach areas.
Overview of 17mm Sewer Camera
| 8 inch IPS lcd screen, 1920*1080 resolution |
| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
| All-in-One Design ,Easy to Carry, Easy to use |

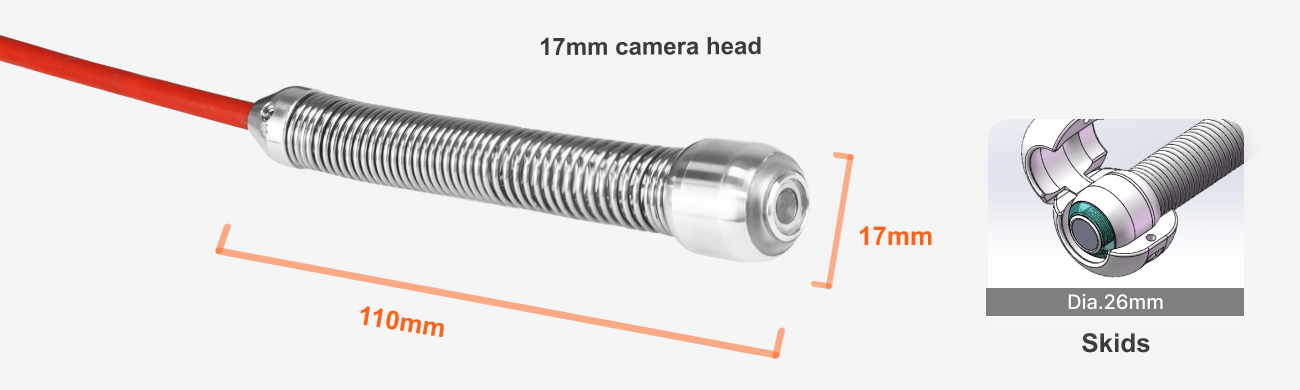

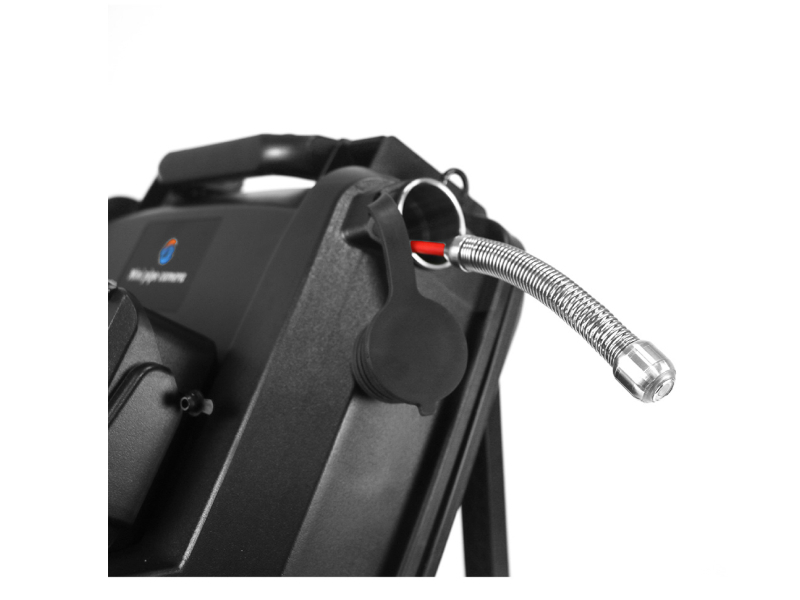

Main Part 1: 17mm camera head
|
Camera size |
17 x 17.4mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 90° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
6pcs high light LED lighting adjustable |
|
Connector |
Connected to the cable reel, cannot be removed |
|
Material |
Fiberglass push rod cable |

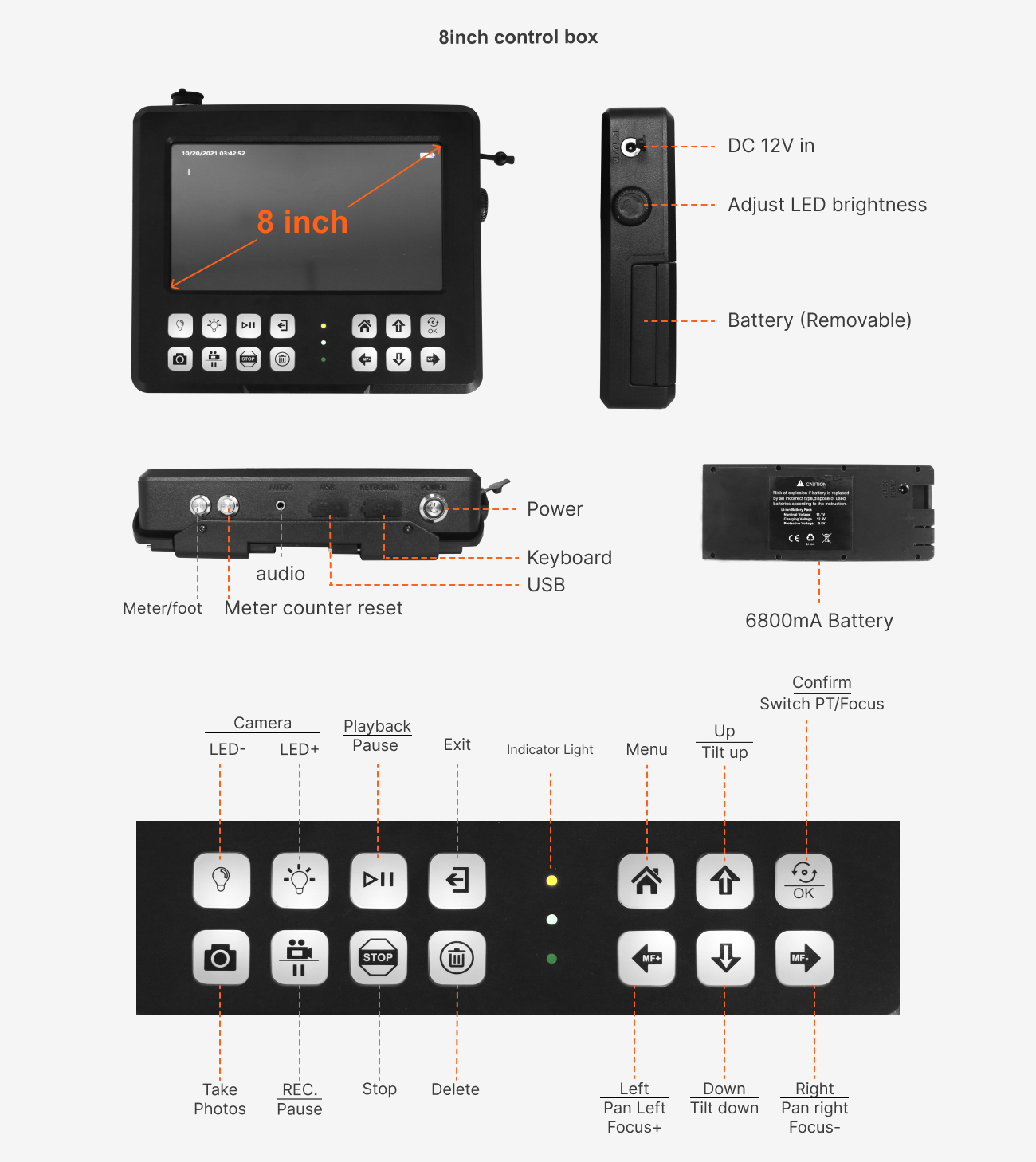

Main Part 2: DVR control unit
|
Screen Size |
8"HD IPS LCD Screen, 1920*1080 resolution |
|
Waterproof level |
Night version keys for DVR function |
|
Function |
1080P format video, auido and photography function DVR |
|
Keyboard |
/ |
|
Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack/ Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

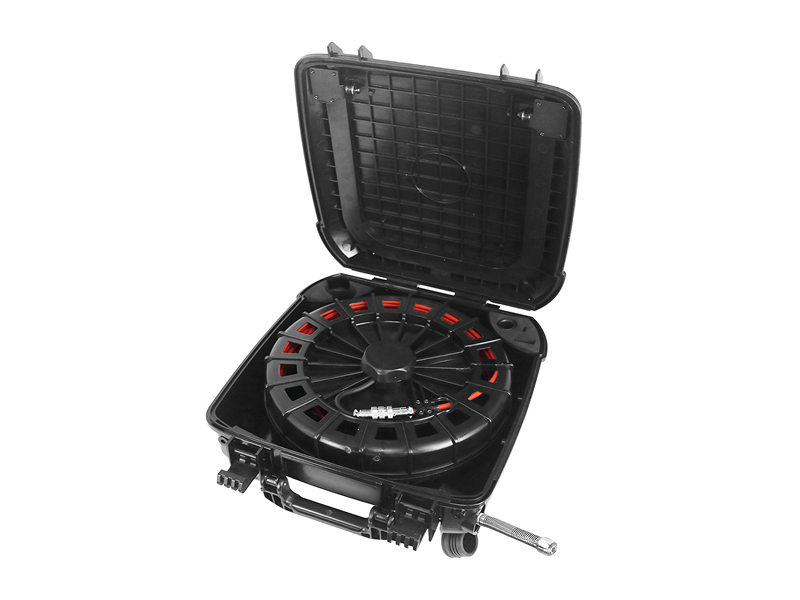

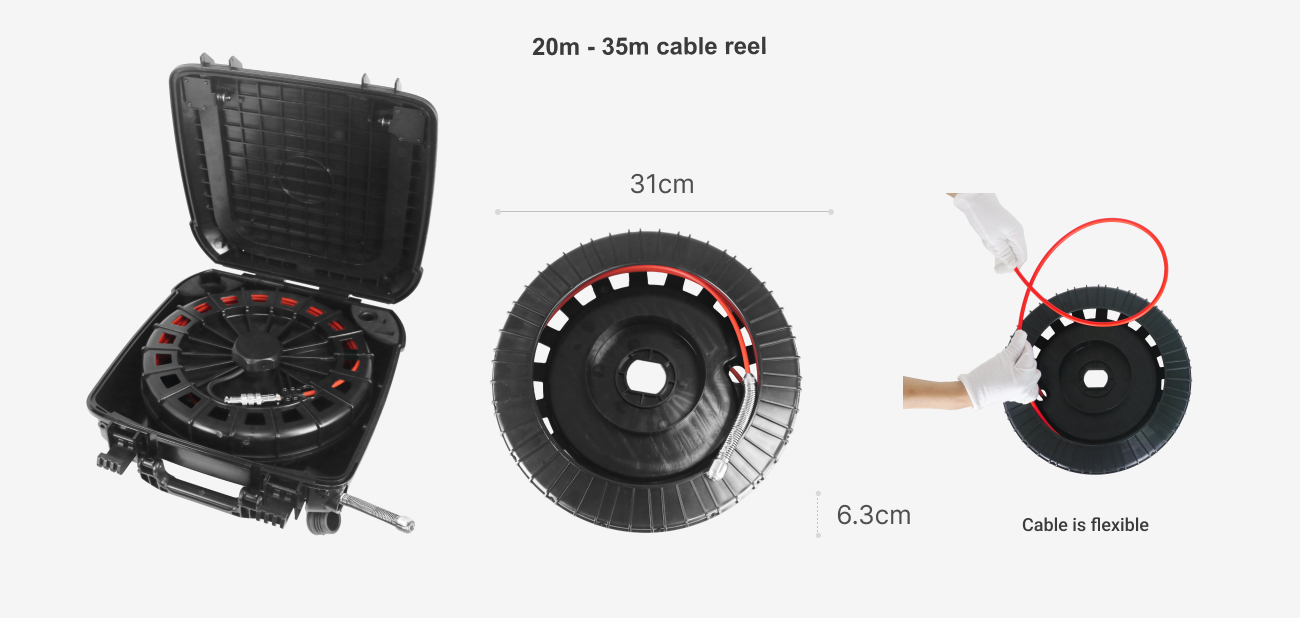

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
5mm |
|
Cable length |
20m-35m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
