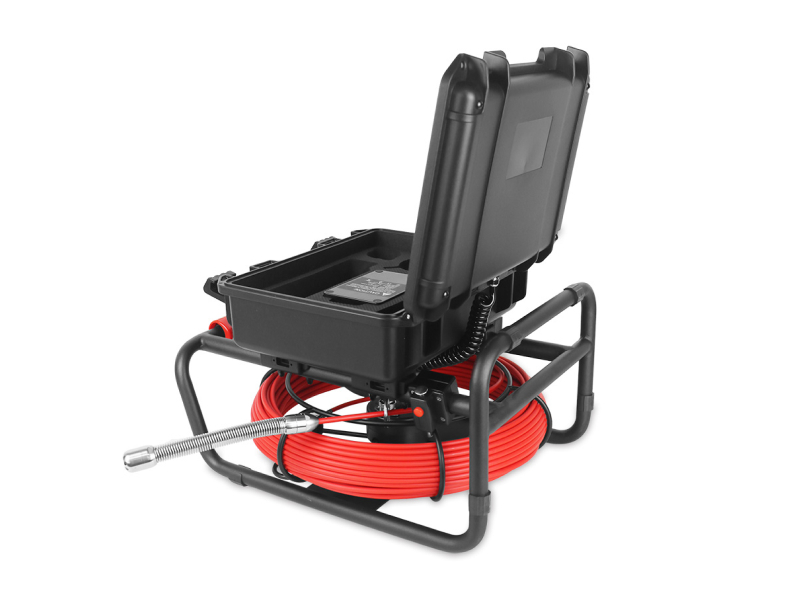

9inch Control Box with 20mm All-in-One HD 1080P Sewer Video Inspection Camera
Diagnose plumbing issues with ultimate precision using our Portable All-in-One Sewer Video Inspection Camera. Equipped with a slim 20mm HD 1080P camera head, this versatile and compact device is specifically designed to navigate narrow pipelines and confined spaces. It provides high-definition video clarity, ensuring a reliable and accurate inspection experience for complex residential, commercial, or industrial duct and sewer systems.
Product Detail
Diagnose plumbing issues with ultimate precision using our Portable All-in-One Sewer Video Inspection Camera. Equipped with a slim 20mm HD 1080P camera head, this versatile and compact device is specifically designed to navigate narrow pipelines and confined spaces. It provides high-definition video clarity, ensuring a reliable and accurate inspection experience for complex residential, commercial, or industrial duct and sewer systems.
Overview of 20mm Sewer Camera
| 9 inch IPS lcd screen, |
| DVR control box with audio , video recording and photography function |
| Built in 4400mA li-ion battery inside |
| Portable ,Easy to Carry, Easy to use |

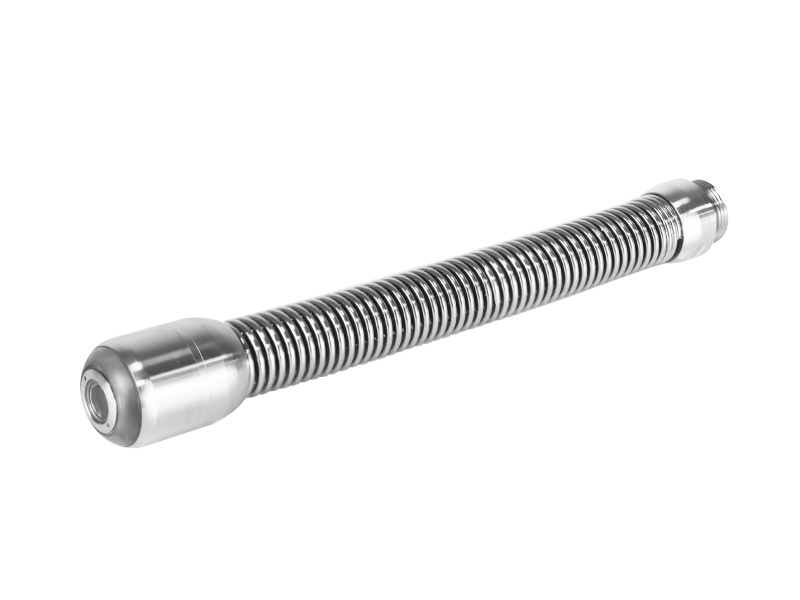

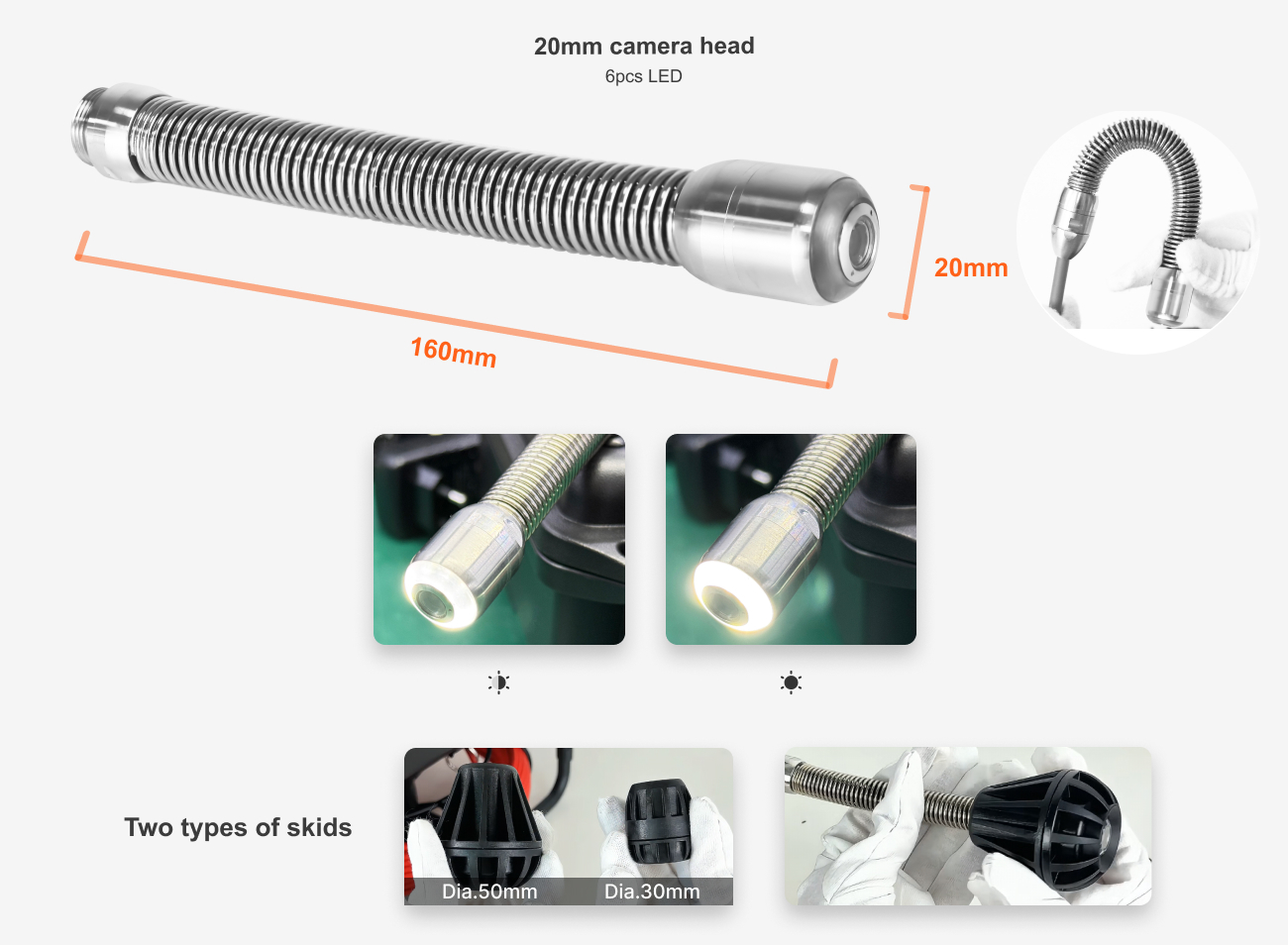

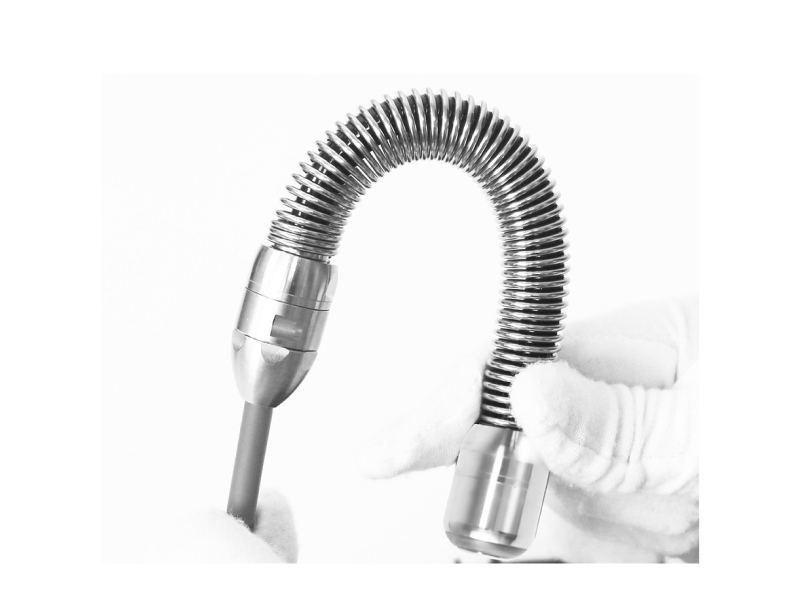

Main Part 1: 20mm camera head
|
Camera size |
20 x 160mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 90° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
6pcs high light LED lighting adjustable |
|
Connector |
Detachable with pins type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |

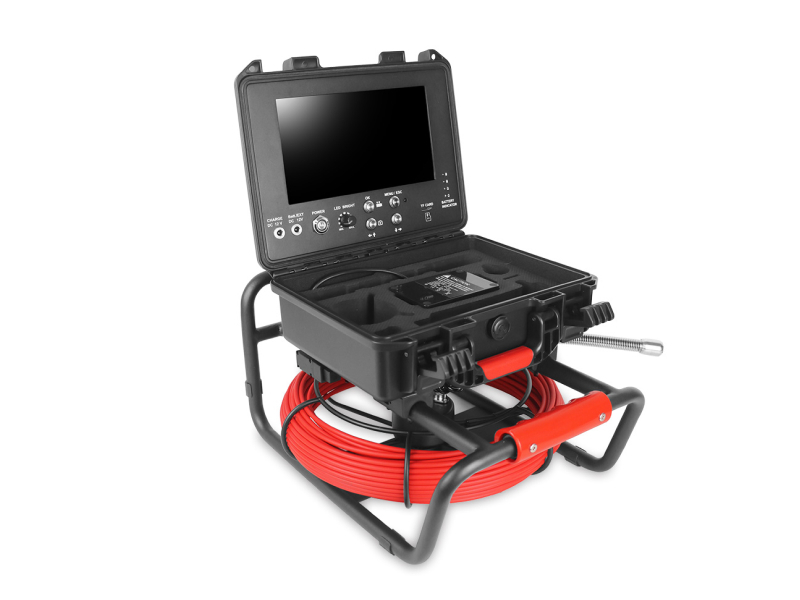

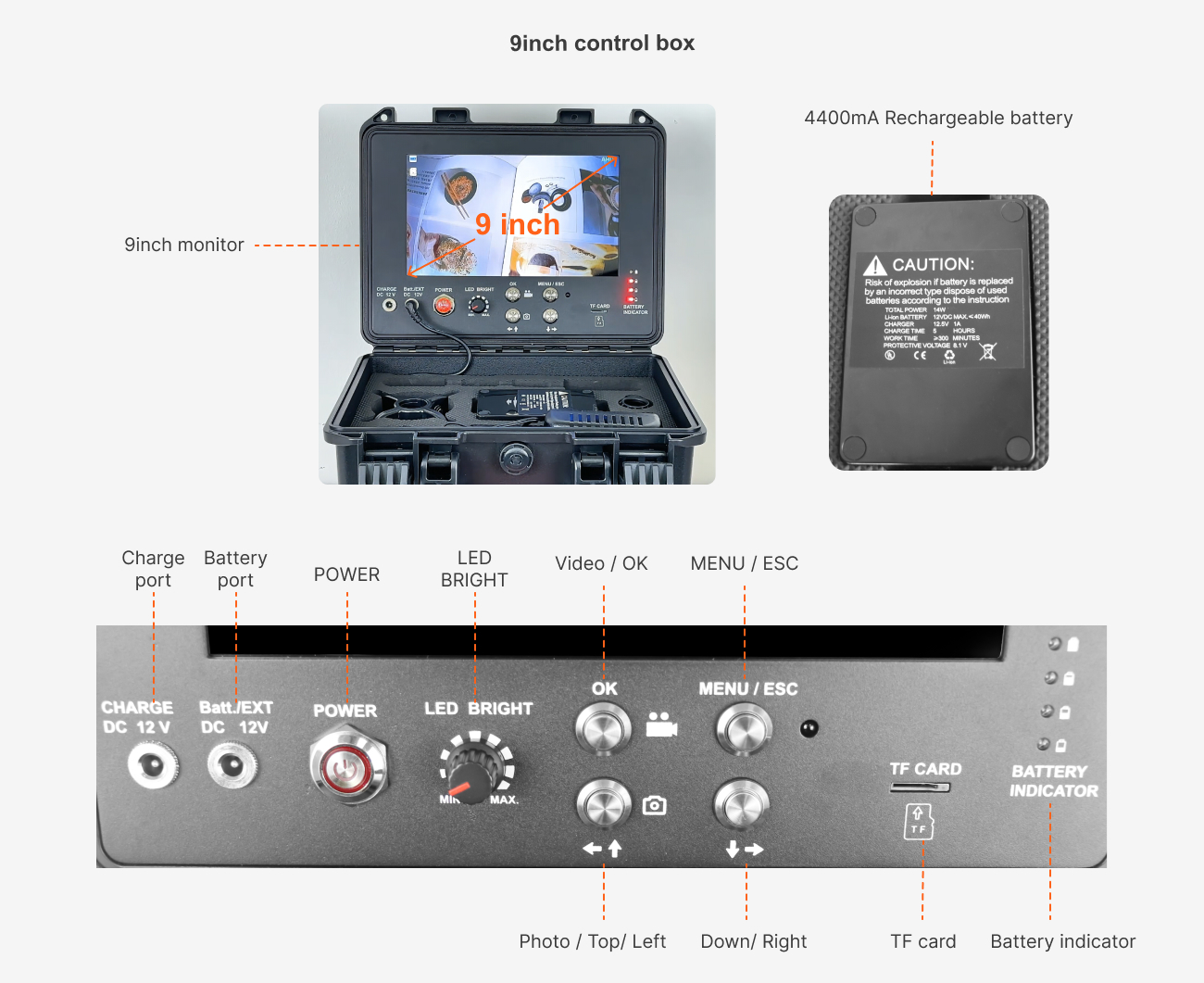

Main Part 2: DVR control unit
|
Screen Size |
9"HD IPS LCD Screen |
|
Waterproof level |
/ |
|
Function |
1080P format video, auido and photography function DVR |
|
Keyboard |
/ |
|
Meter counter |
/ |
|
Battery |
4400mA rechargeable Li-ion Battery Pack/ Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

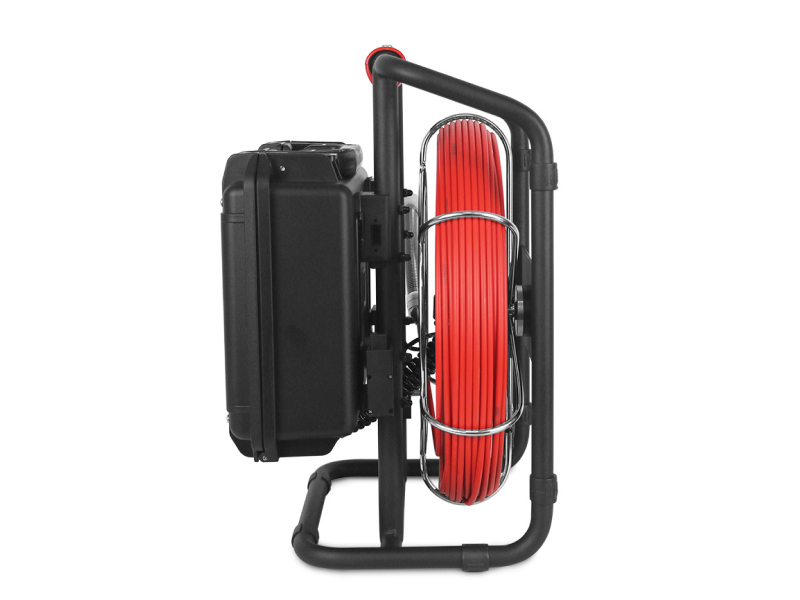

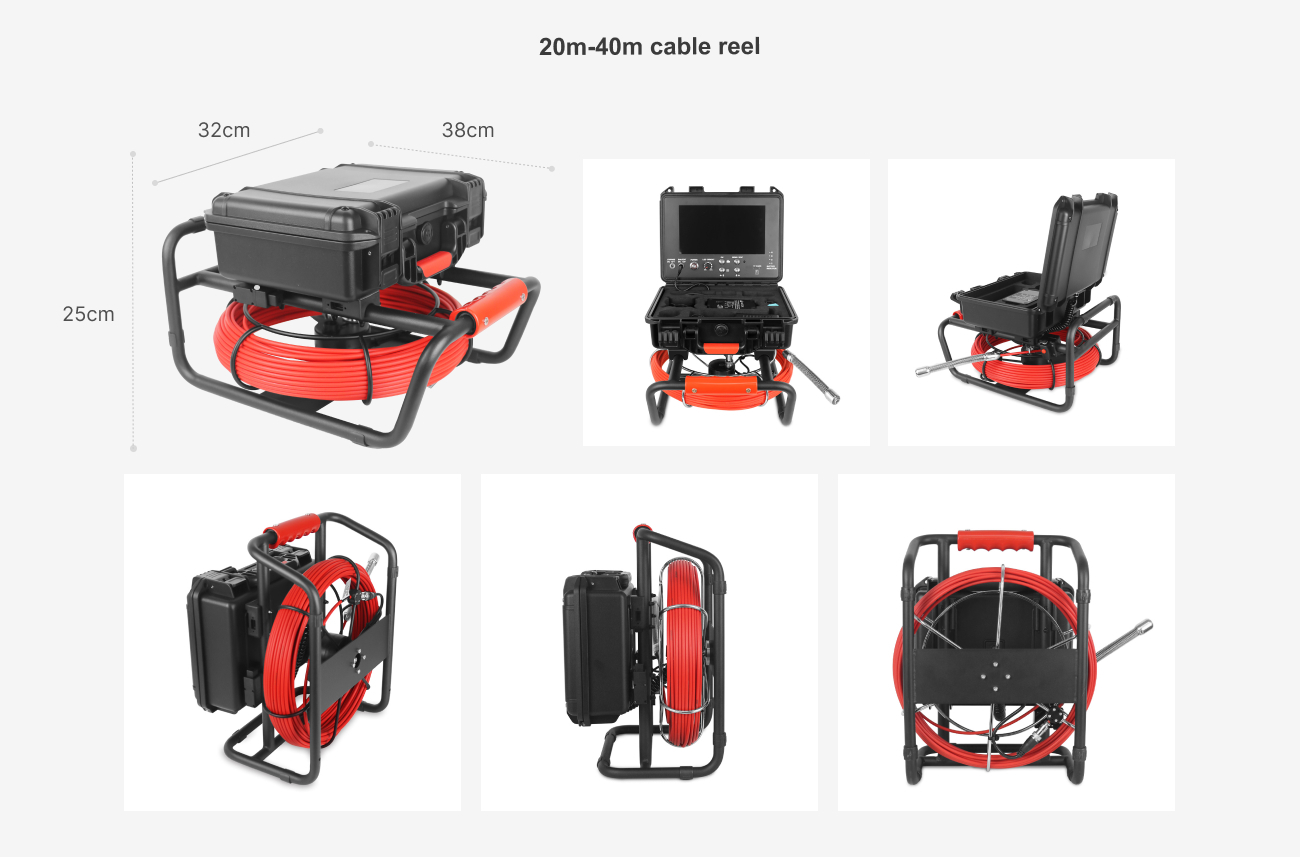

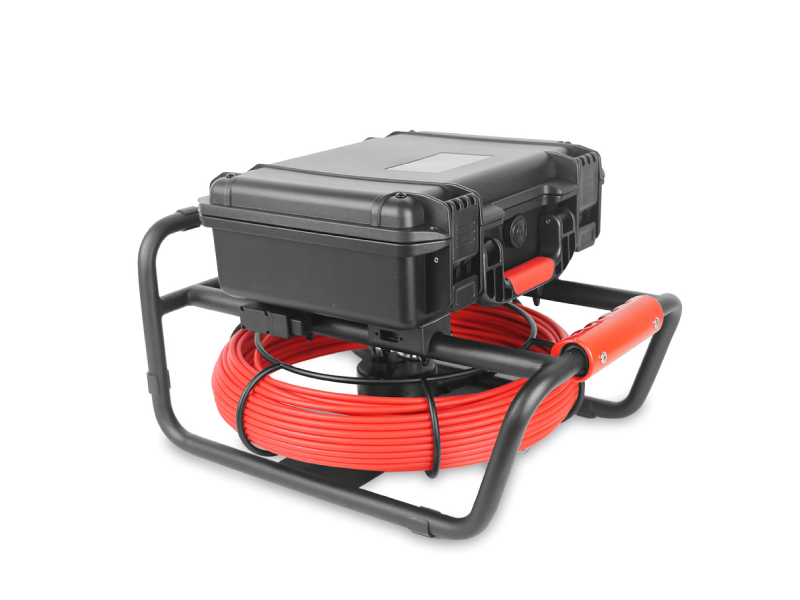

Main Part 3: Cable reel
|
Meter counter |
/ |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
5.2mm |
|
Cable length |
20m-40m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
