8inch Control Box with 20mm AHD Waterproof Pipe Inspection Camera System
Designed for professional plumbing inspection, the 20mm AHD Pipe Inspection Camera System delivers high-resolution visual diagnostics in restricted pipes. Combining a compact 20mm camera head with advanced AHD technology, it ensures sharp image contrast even in low-light conditions. Its ruggedized, moisture-resistant design guarantees reliable and repeatable performance for commercial contractors and inspectors.
Product Detail
Designed for professional plumbing inspection, the 20mm AHD Pipe Inspection Camera System delivers high-resolution visual diagnostics in restricted pipes. Combining a compact 20mm camera head with advanced AHD technology, it ensures sharp image contrast even in low-light conditions. Its ruggedized, moisture-resistant design guarantees reliable and repeatable performance for commercial contractors and inspectors.
Overview of 20mm Sewer Camera
| 8 inch IPS lcd screen, 1920X1080 resolution |
| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
| All-in-One Design ,Easy to Carry, Easy to use |

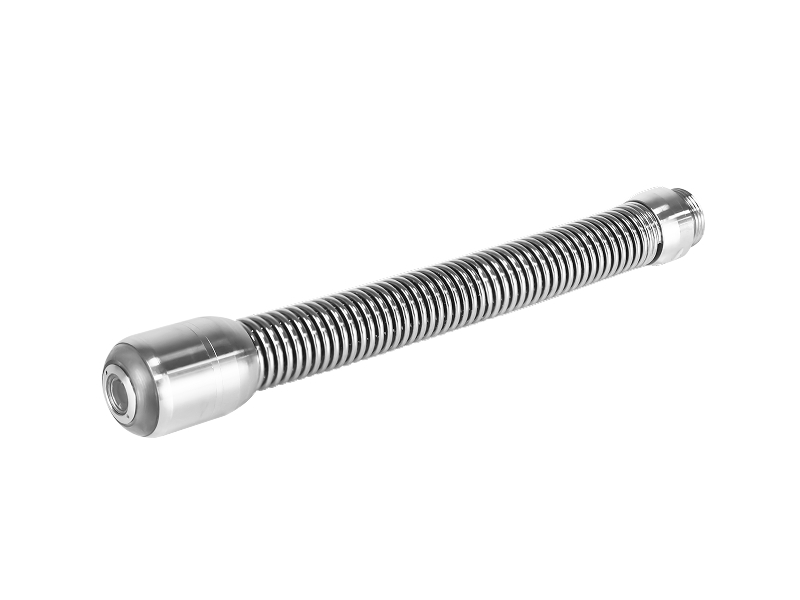

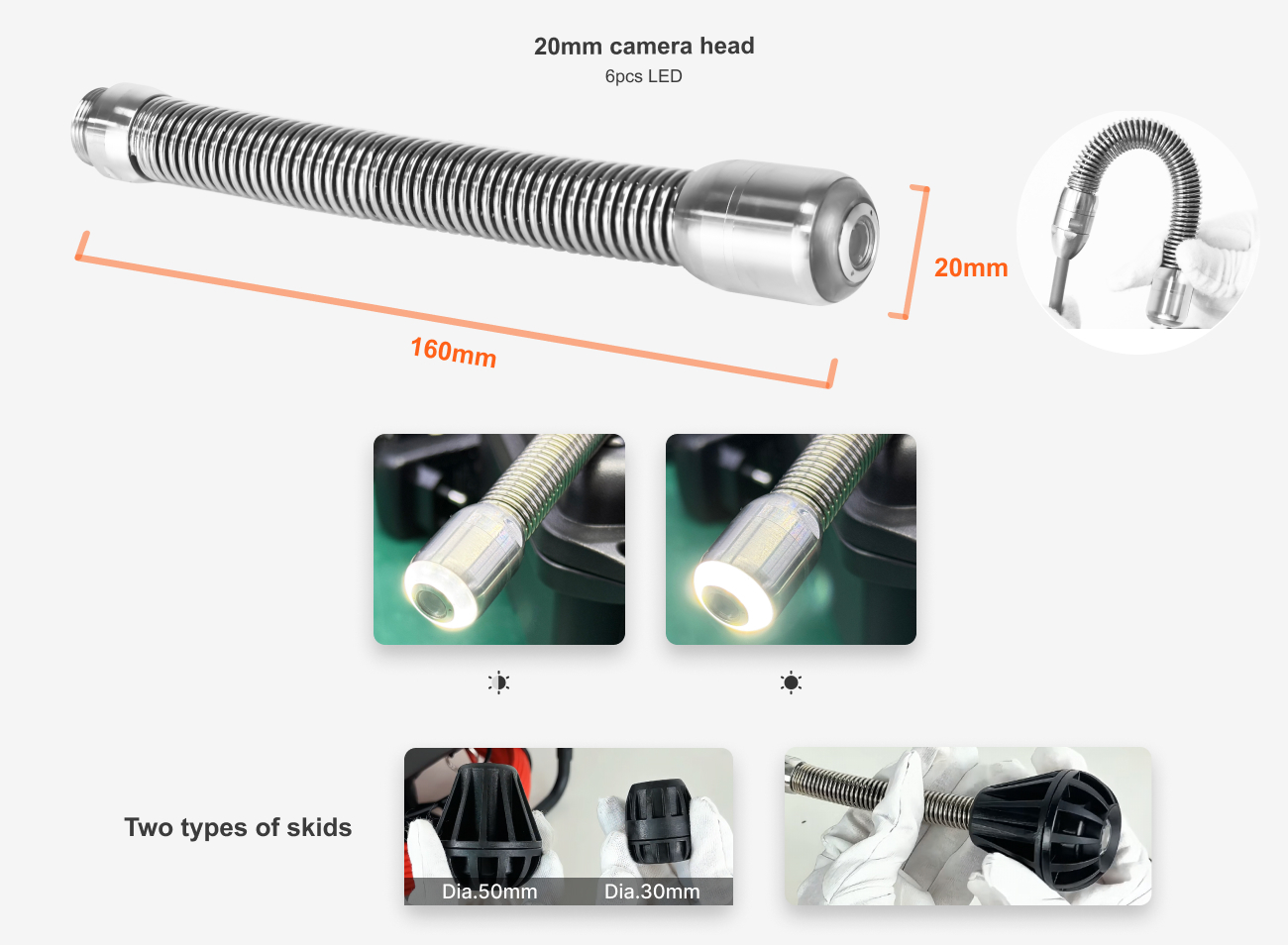

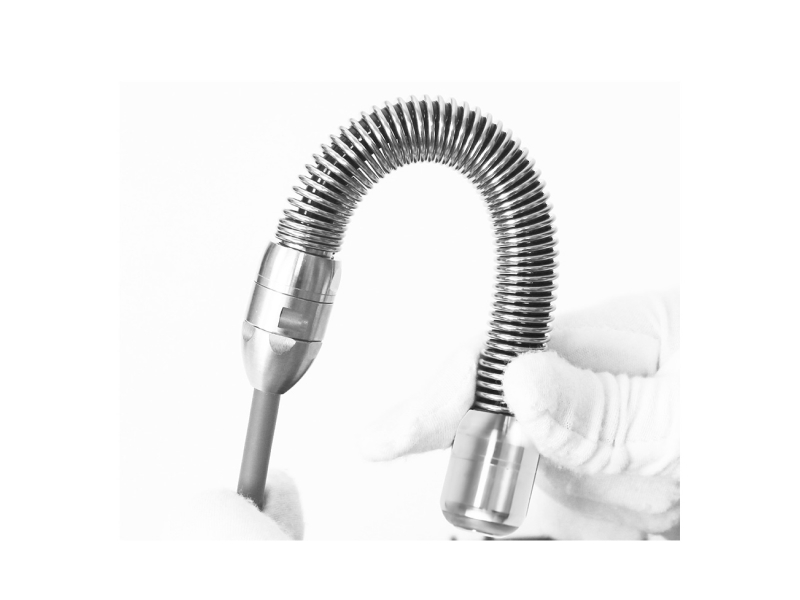

Main Part 1: 20mm camera head
|
Camera size |
20 x 26.5mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 90° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
6pcs high light LED lighting adjustable |
|
Connector |
Detachable with pins type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |

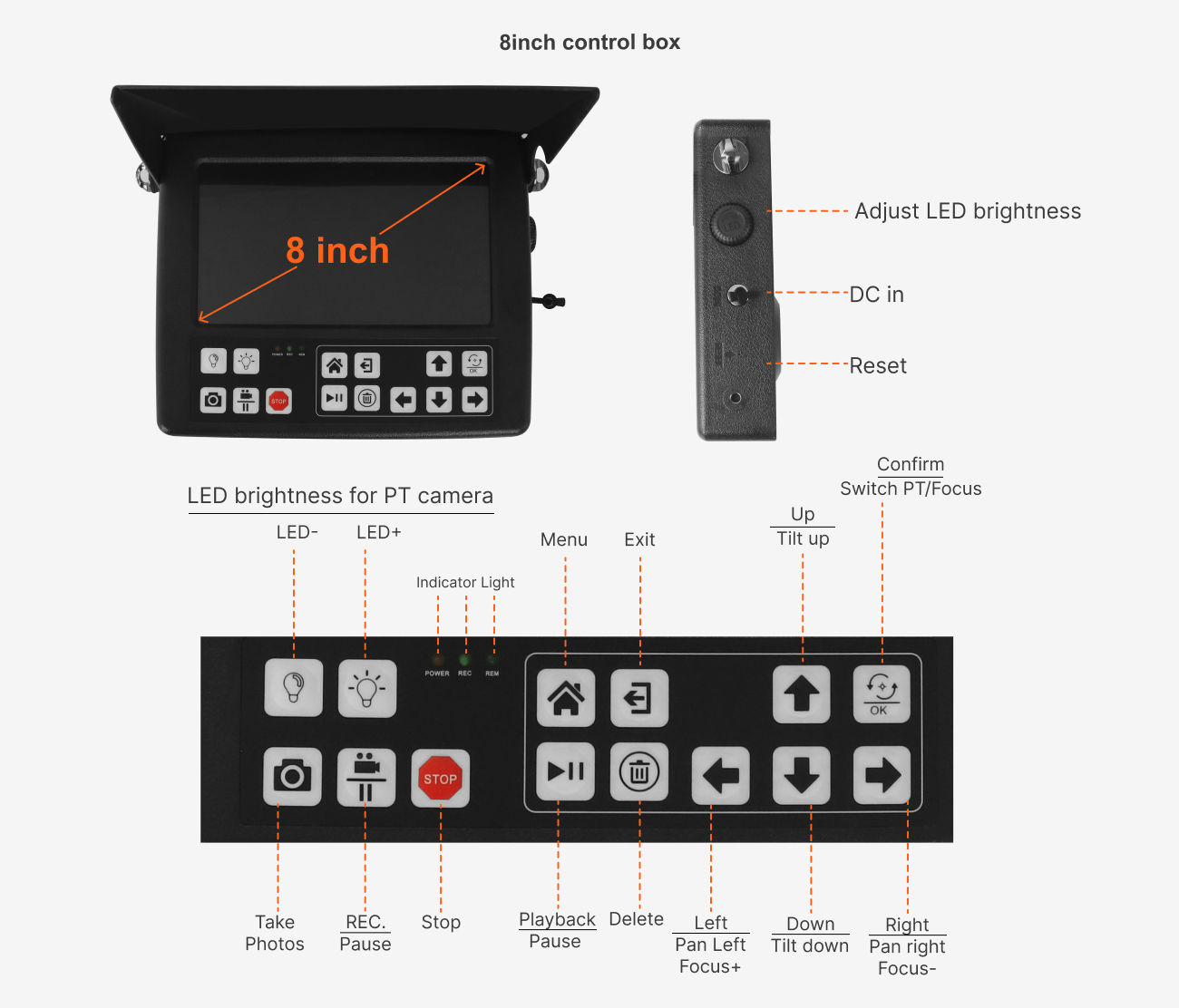

Main Part 2: DVR control unit
|
Screen Size |
8"HD IPS LCD Screen, 1980x1080 resolution |
|
Waterproof level |
IP68 |
|
Function |
1080P format video, auido and photography function DVR |
|
Keyboard |
/ |
|
Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack/ Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

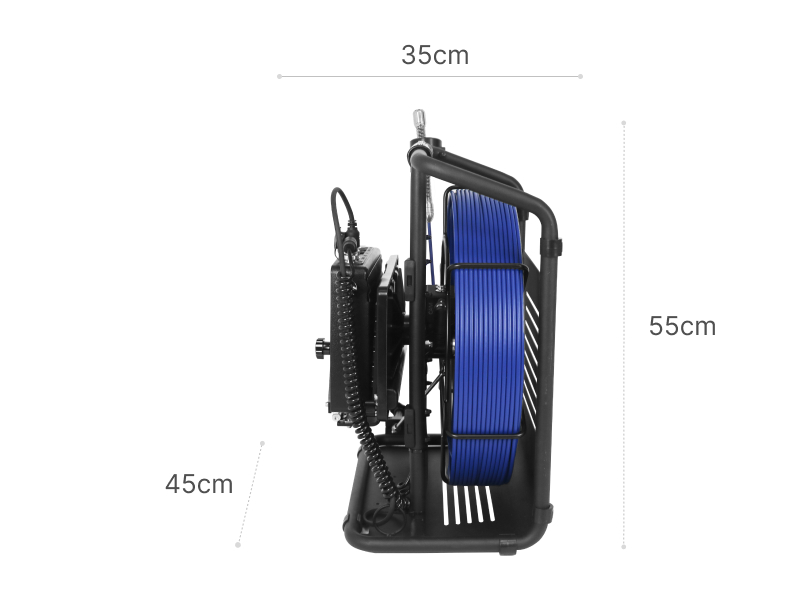

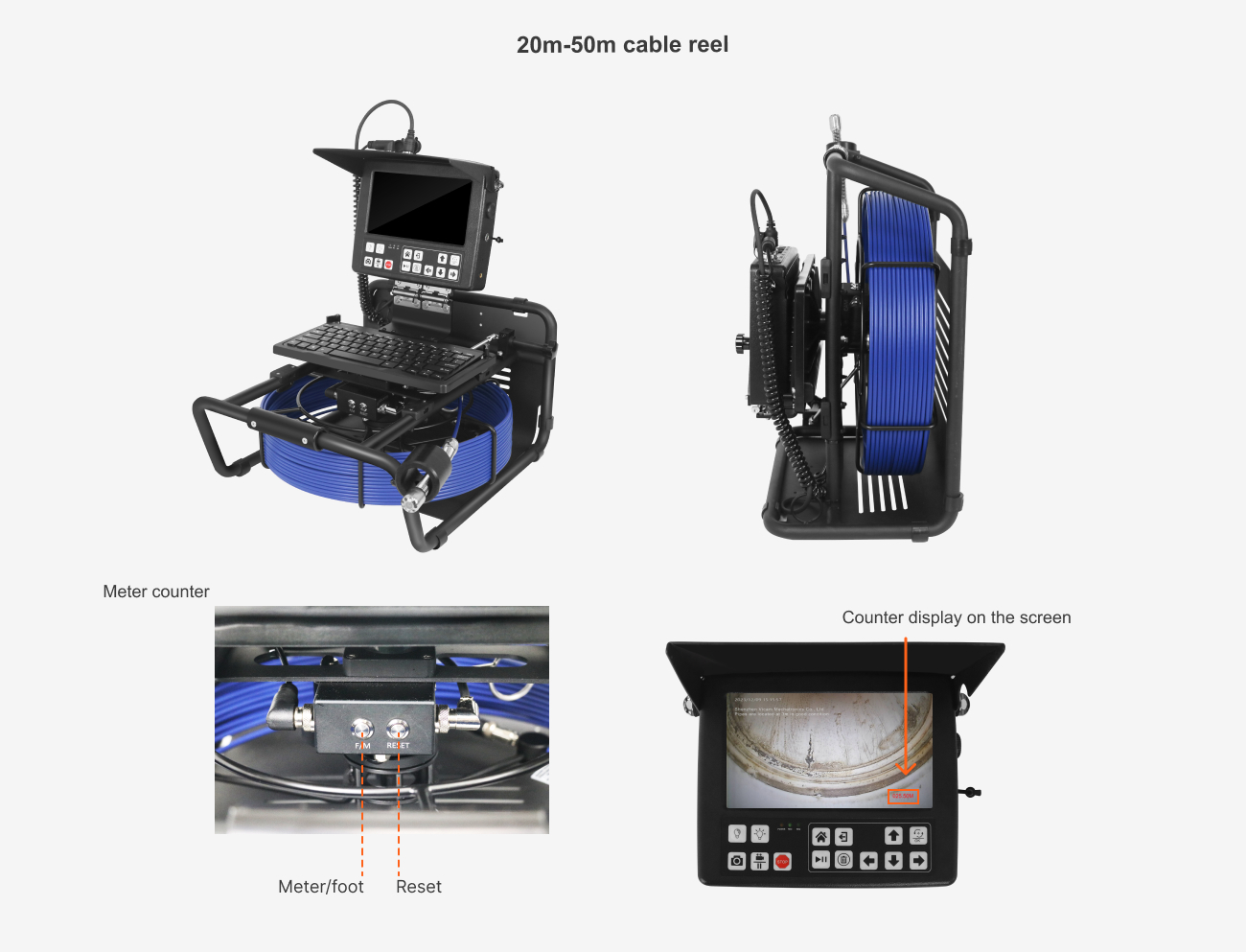

Main Part 3: Cable reel
|

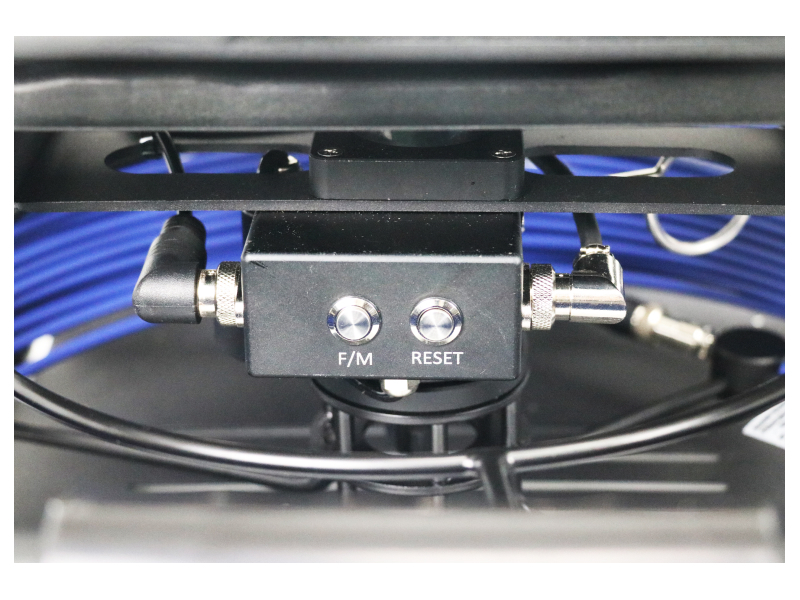

Meter counter |
Digital meter counter |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
5.2mm |
|
Cable length |
20m-50m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
