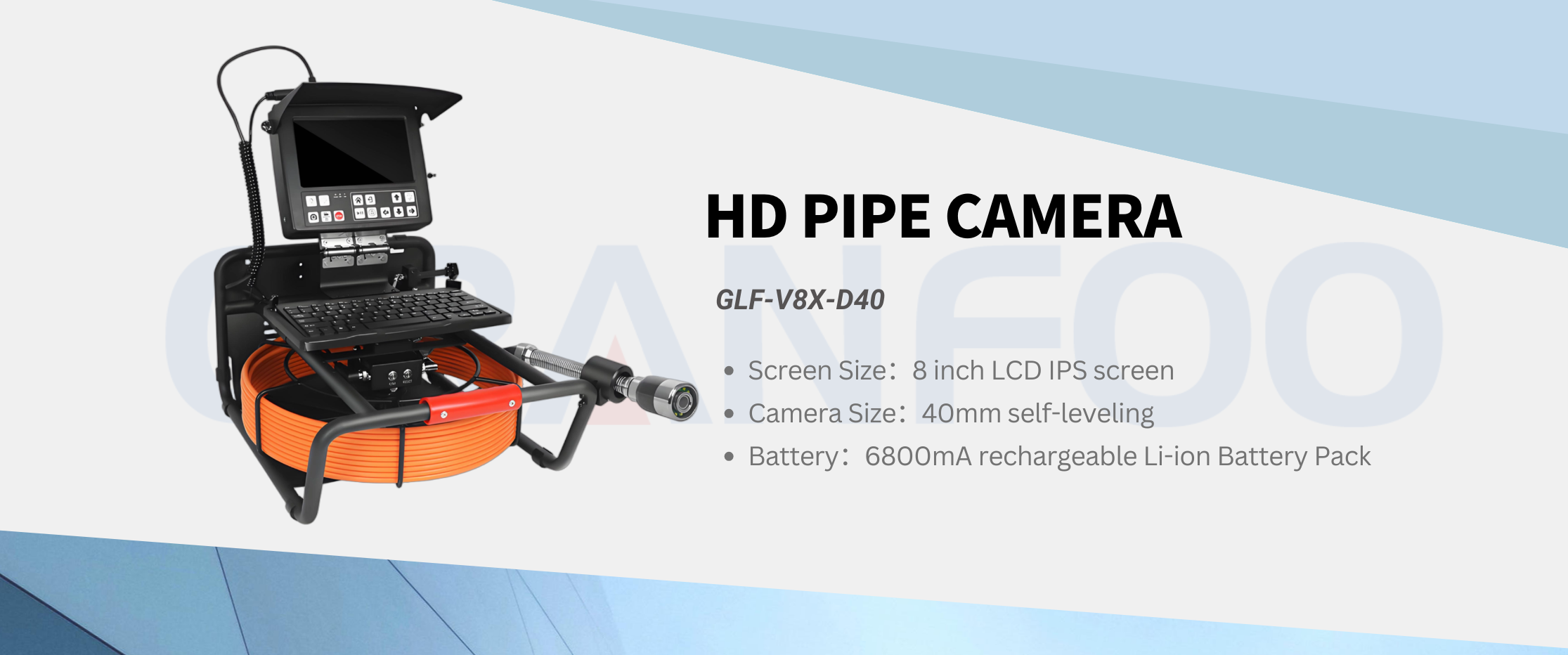

8inch Control Box with 40mm Portable AHD Pipe Inspection Camera
The 40mm Portable AHD Pipe Inspection Camera System is a compact, versatile tool for seamless pipe and drain evaluation. Powered by advanced high-resolution AHD technology, this lightweight system delivers crystal-clear visuals for fast, accurate condition assessments and streamlined on-site workflows.
Product Detail
The 40mm Portable AHD Pipe Inspection Camera System is a compact, versatile tool for seamless pipe and drain evaluation. Powered by advanced high-resolution AHD technology, this lightweight system delivers crystal-clear visuals for fast, accurate condition assessments and streamlined on-site workflows.
Overview of 40mm self-leveling Sewer Camera
| Dia.40mm self-leveling camera |
| 1/3 CMOS, 1.3MP pilex HD , waterproof IP68 |
| 8 inch IPS lcd screen, 1920X1080 resolution |
| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
| All-in-One Design ,Easy to Carry, Easy to use |

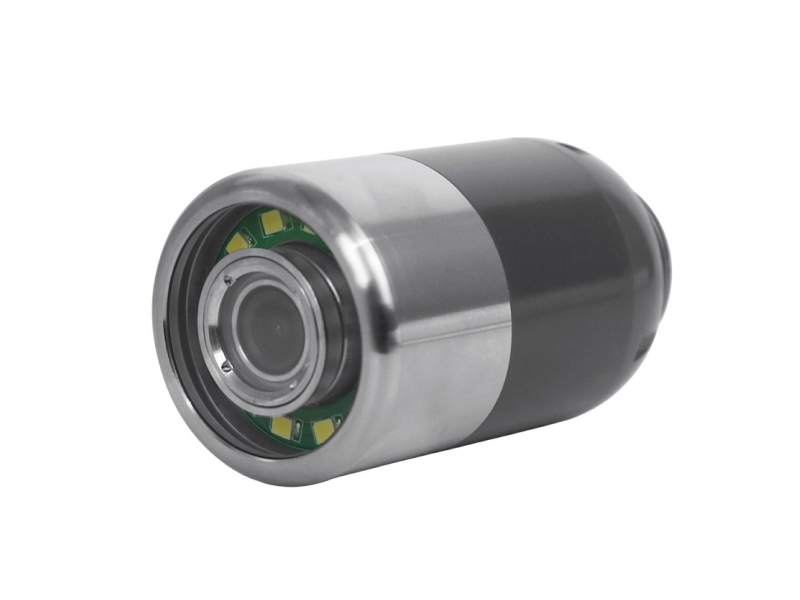

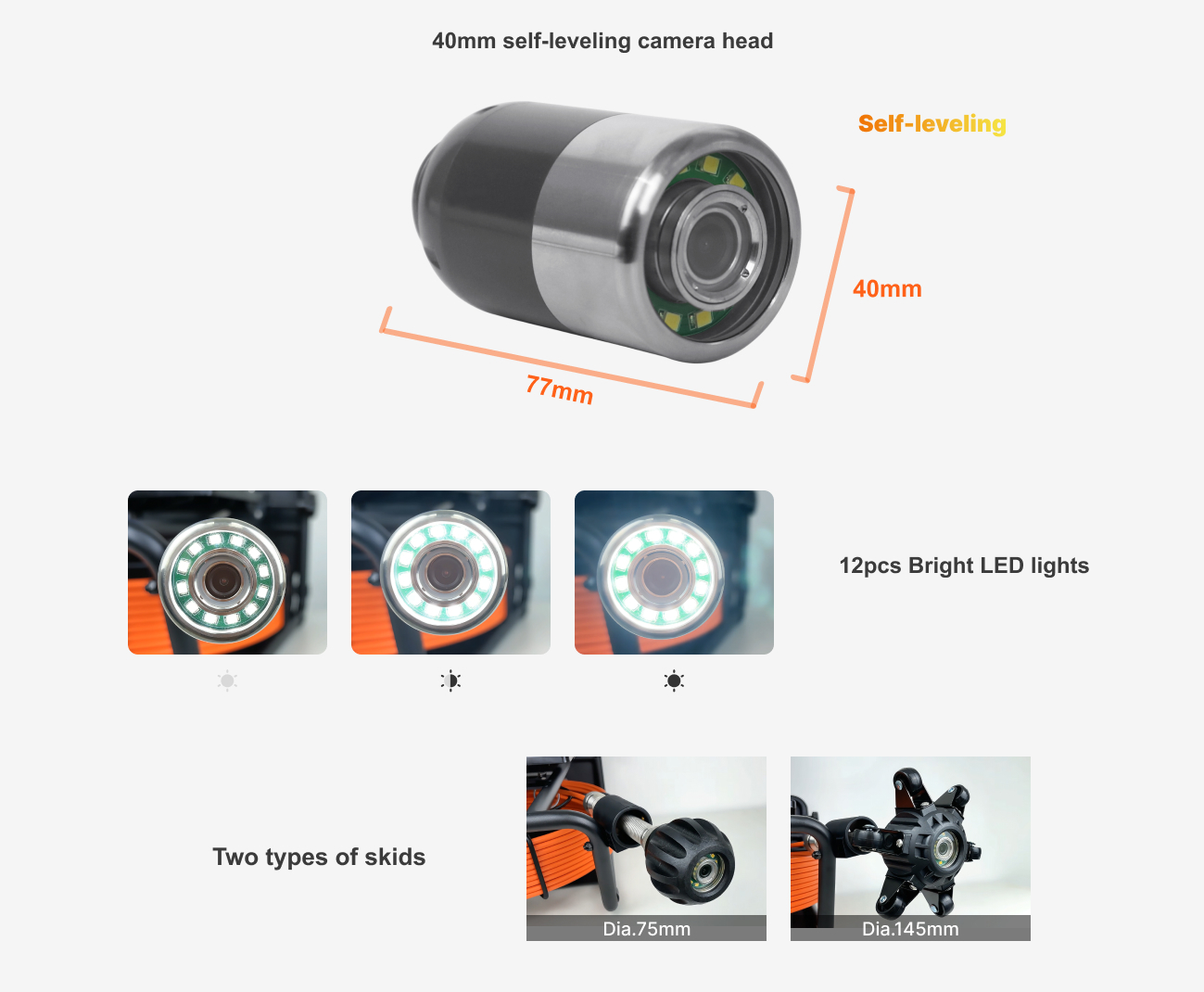

Main Part 1: 40mm self-leveling camera head
|
Camera size |
40mm x 77mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
12pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |

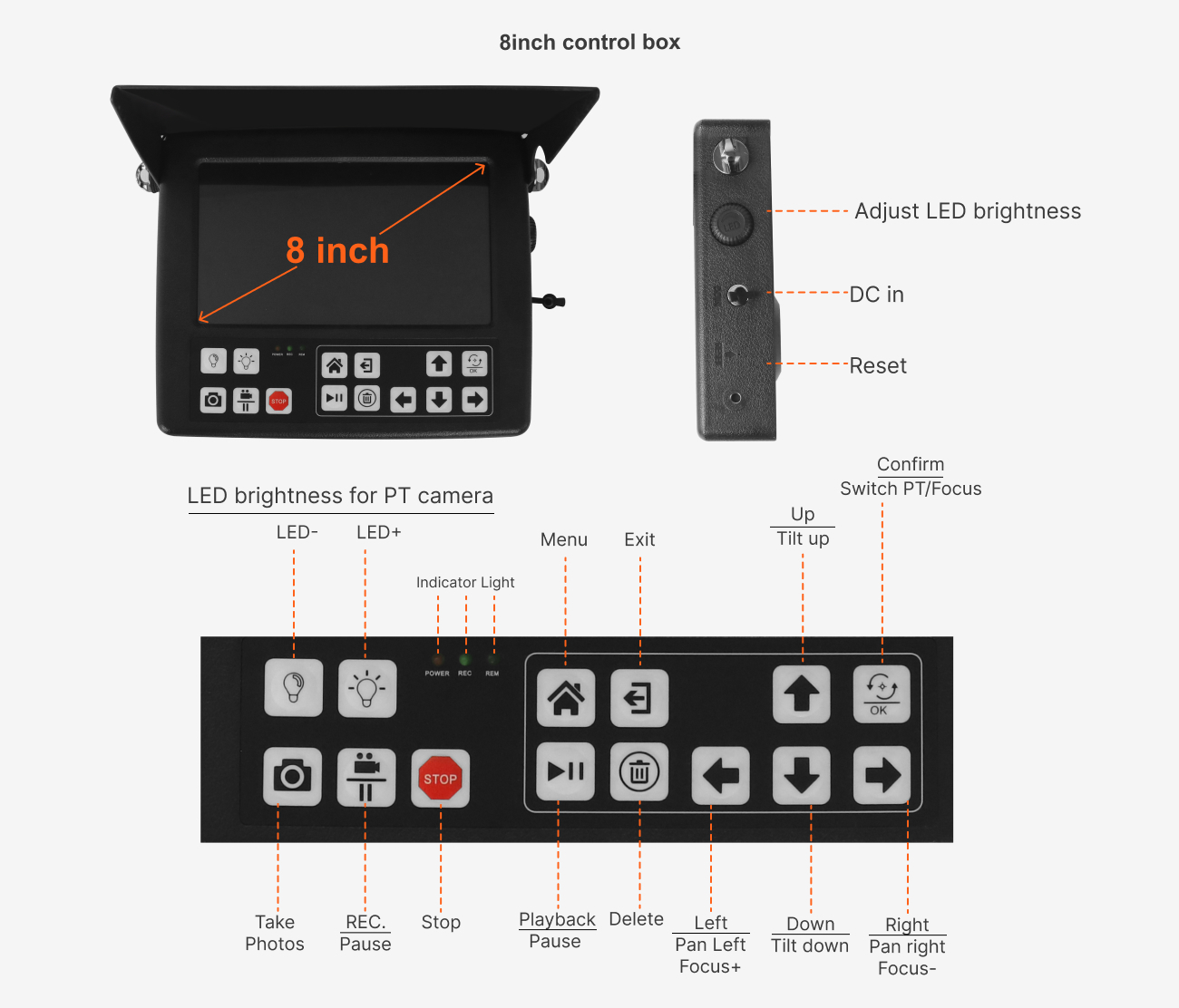

Main Part 2: DVR control unit
|
Screen Size |
8"HD IPS LCD Screen, 1920X1080 resolution |
|
Waterproof level |
IP68 |
|
Function |
1080P format video, auido and photography function DVR |
|
Keyboard |
/ |
|

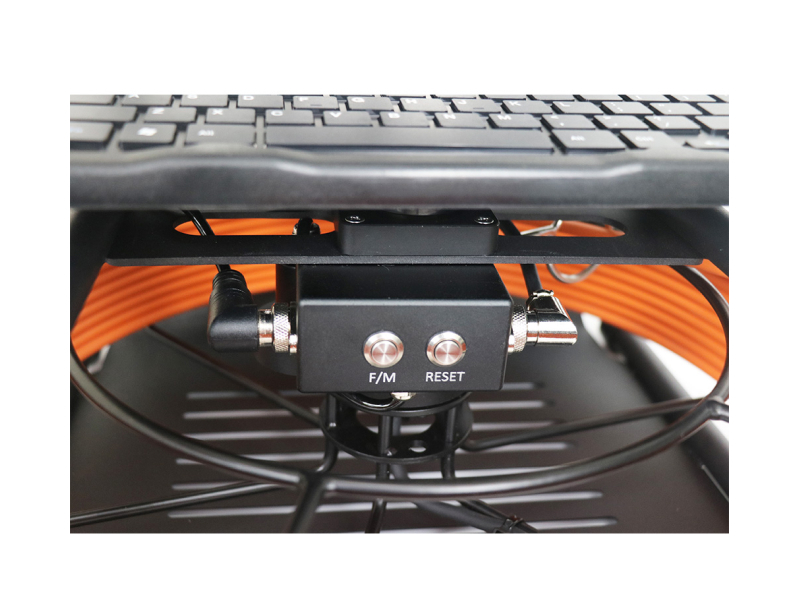

Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack/Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

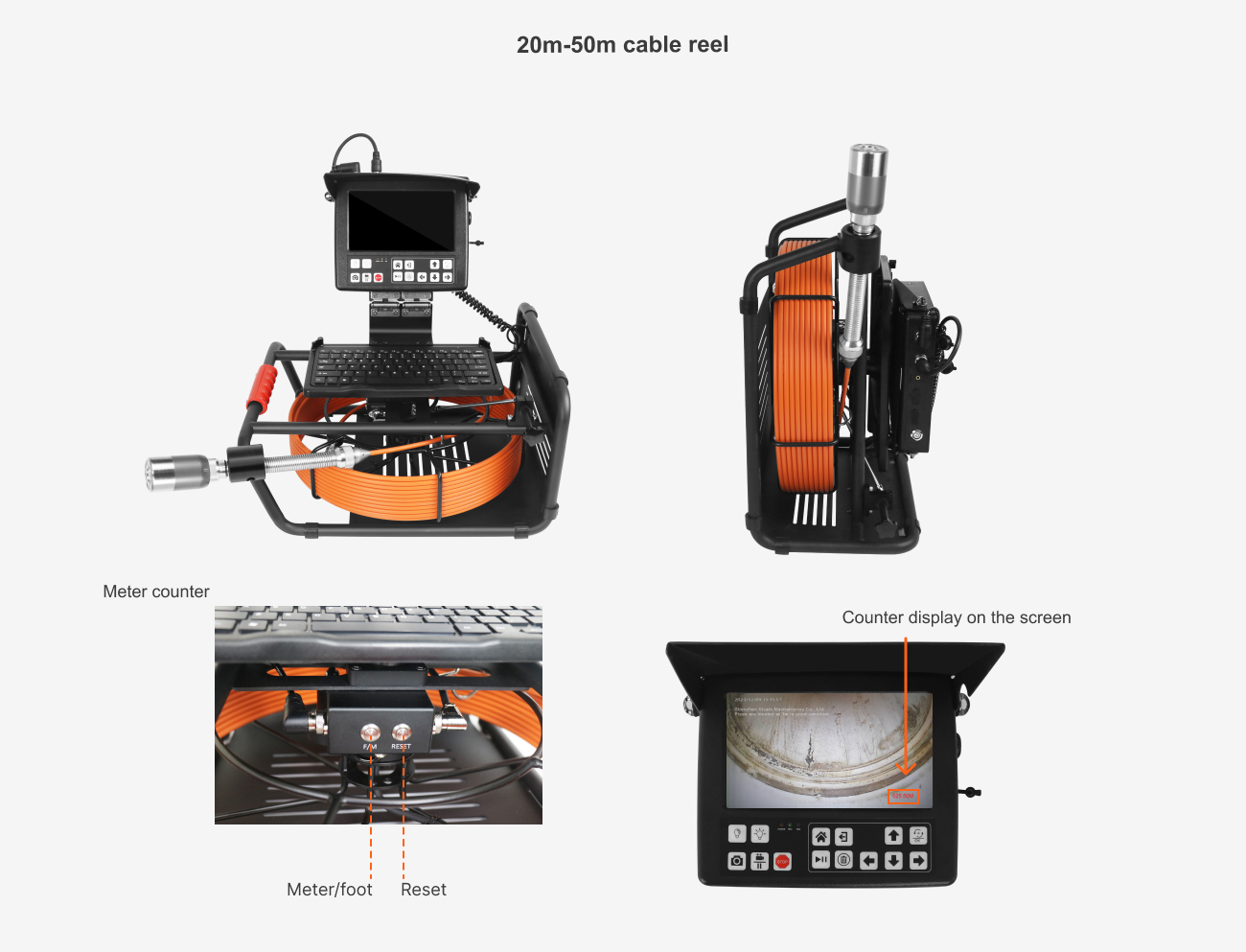

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
7mm |
|
Cable length |
20m-50m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
