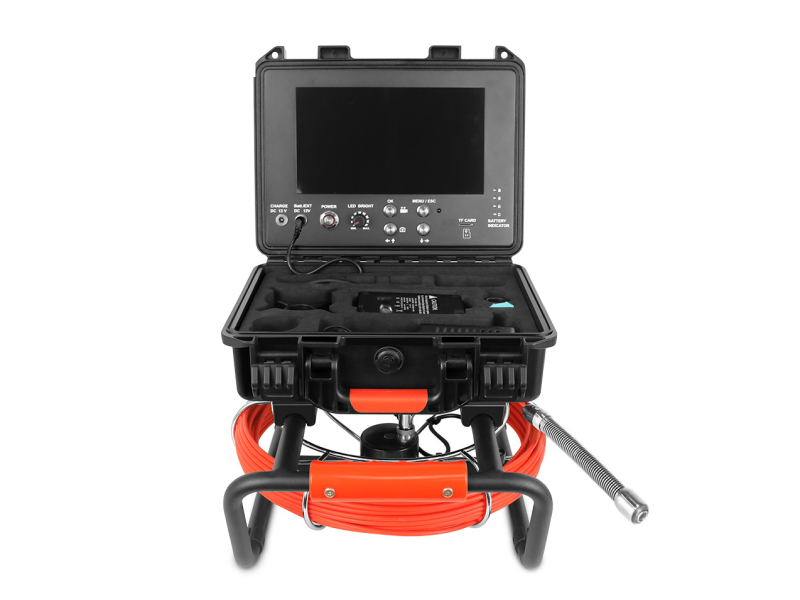

33mm PT Rotation Camera: Portable HD Video Pipe Inspection System
This portable 33mm HD pipe camera is a versatile tool for inspecting restricted areas. With high-definition imaging and a 33mm rotating head, it ensures exceptional clarity and easy maneuverability for fast, accurate diagnostics in complex pipe networks.
Product Detail
This portable 33mm HD pipe camera is a versatile tool for inspecting restricted areas. With high-definition imaging and a 33mm rotating head, it ensures exceptional clarity and easy maneuverability for fast, accurate diagnostics in complex pipe networks.
| 8 inch IPS lcd screen, 1920*1080 resolution |

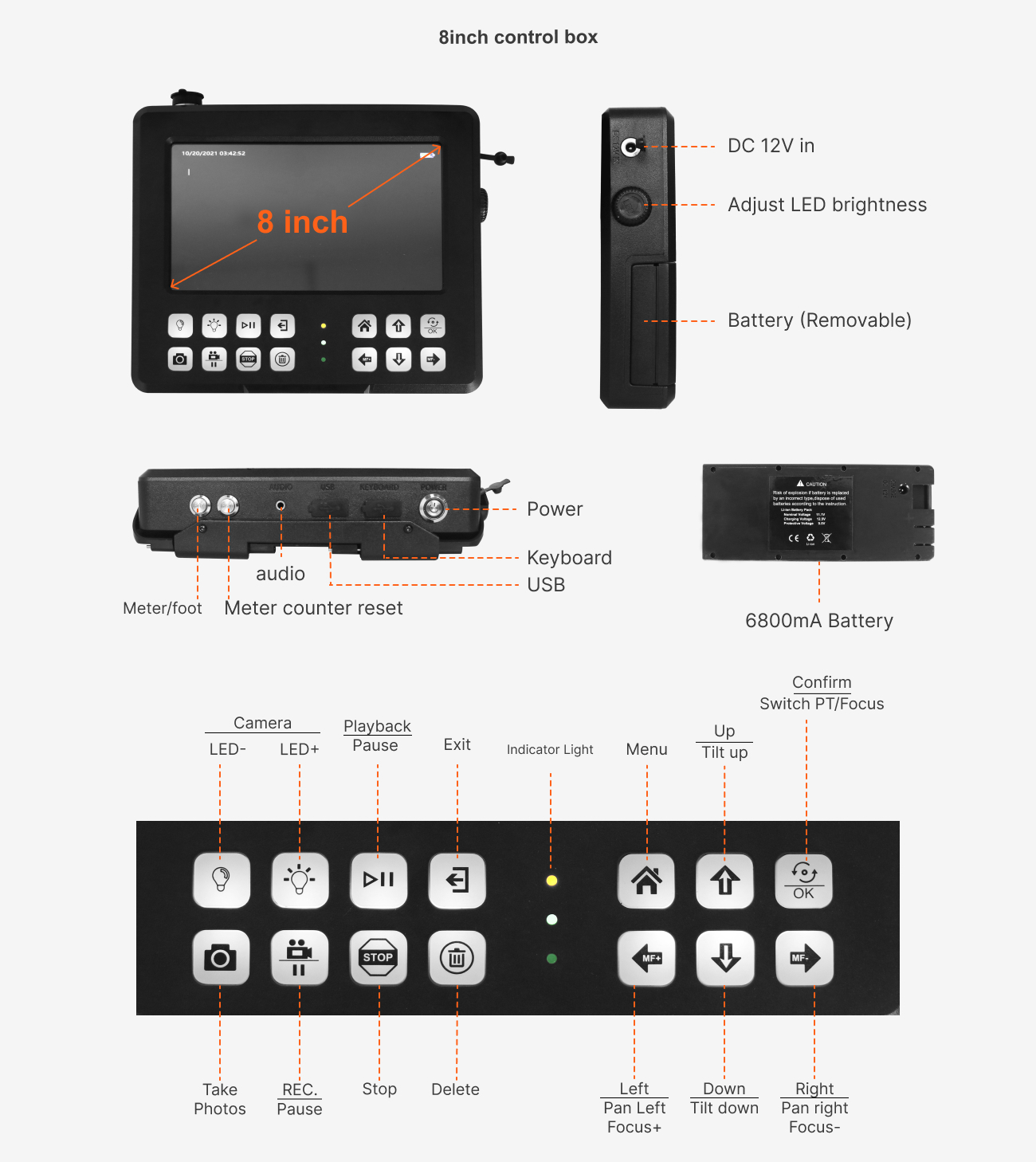

| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
| All-in-One Design ,Easy to Carry, Easy to use |
|

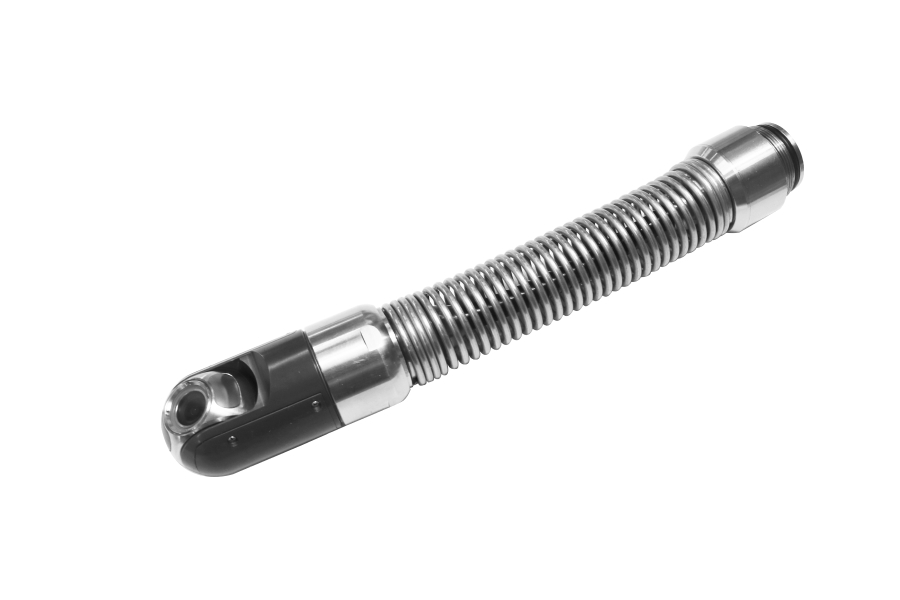

Camera size |
33 x 72mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
Manual focus manually |
|

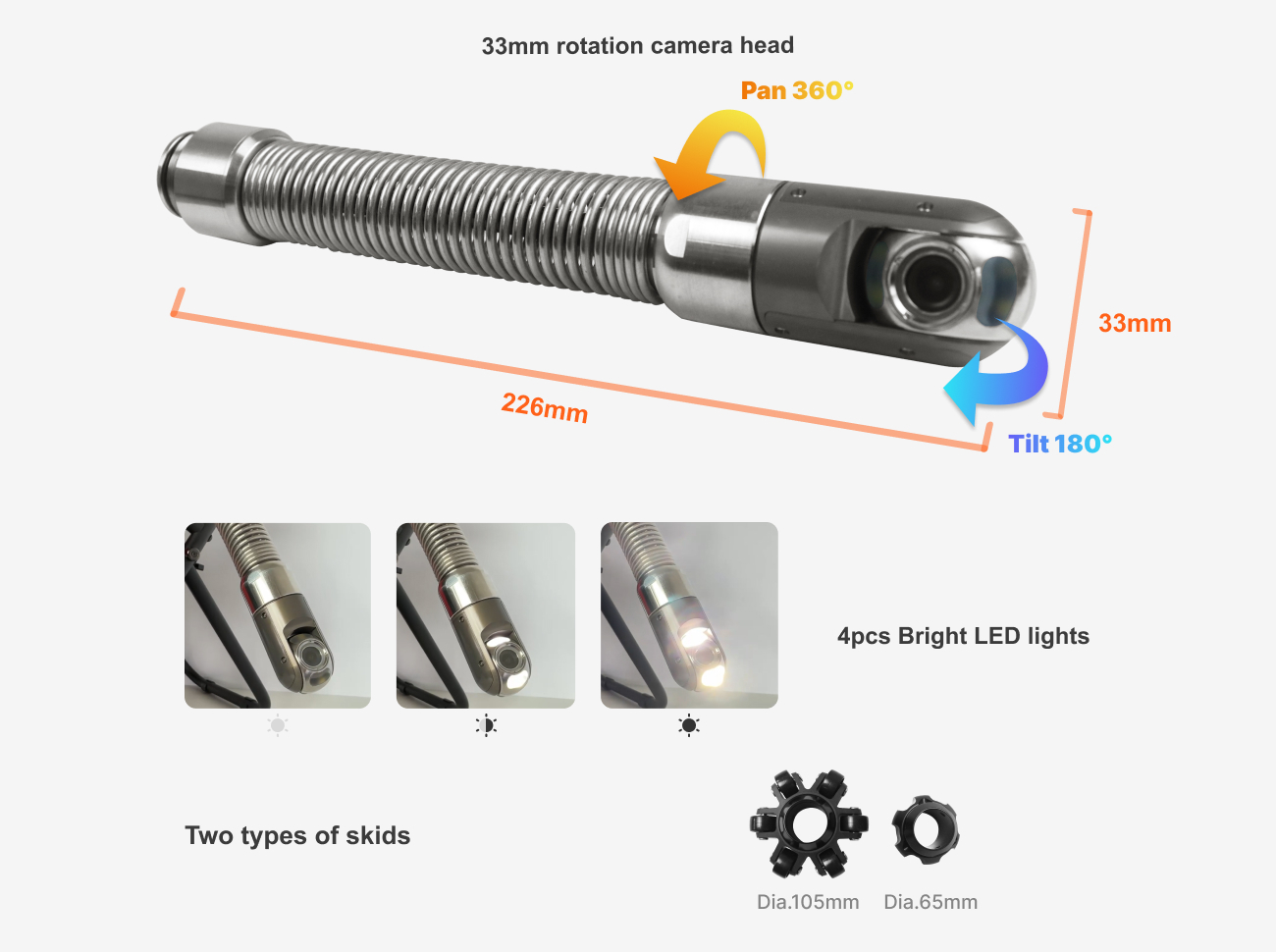

Rotation range |
Rotation: Pan 360°， Tilt 180° |
|
Light |
4pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |
|
Screen Size |
Screen Size: 8 inch HD IPS LCD Screen |
|
Waterproof level |
Night version keys for DVR function |
|
Function |
1080P format video, auido and photography function DVR |
|
Keyboard |
Wireless keyboard |
|
Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack |
|
On-screen |
Depth Meter |
|
Built in WIFI transmitter |
|
Meter counter |
Digital meter counter |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
7mm |
|

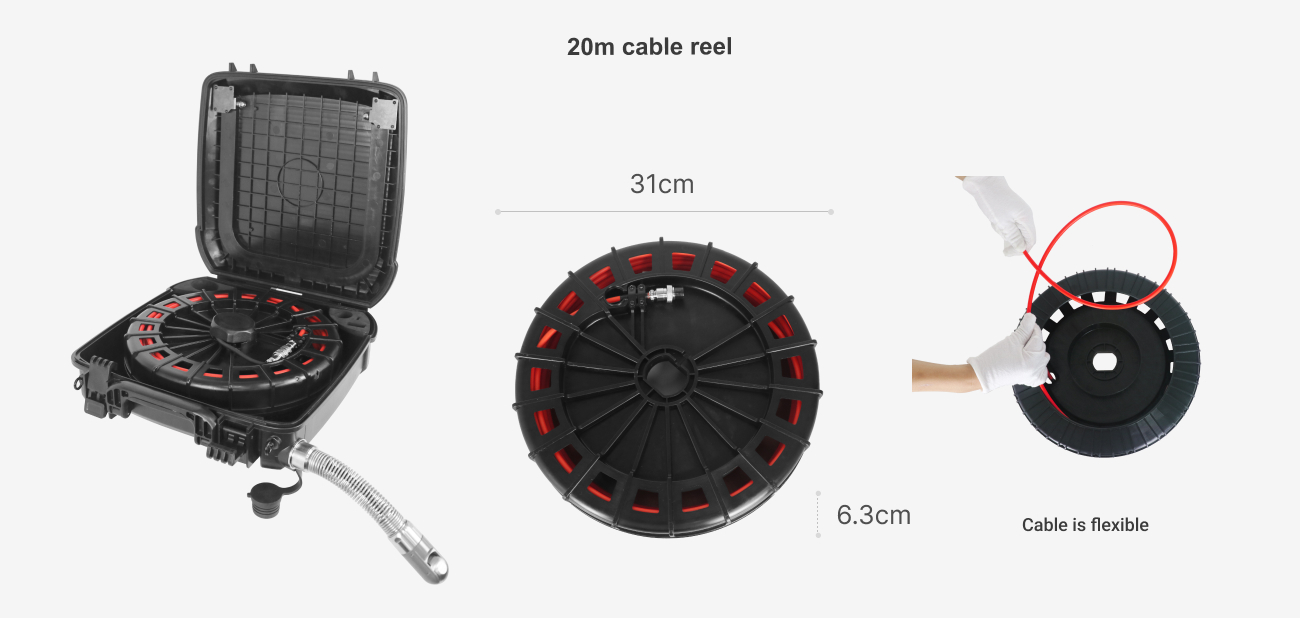

Cable length |
20m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
Frequently Asked QuestionsRelated Products
Vicam is the professional manufacturer of sewer drain pipe inspection cameras.
We have 100% test before delivery and all Vicam products have at least 48 hours Aging Testing to make sure good quality.
Pipe inspection camera,Under water Inspection camera,Endoscope inspection camera,CCTV video inspection camera.
Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras.
Related Products

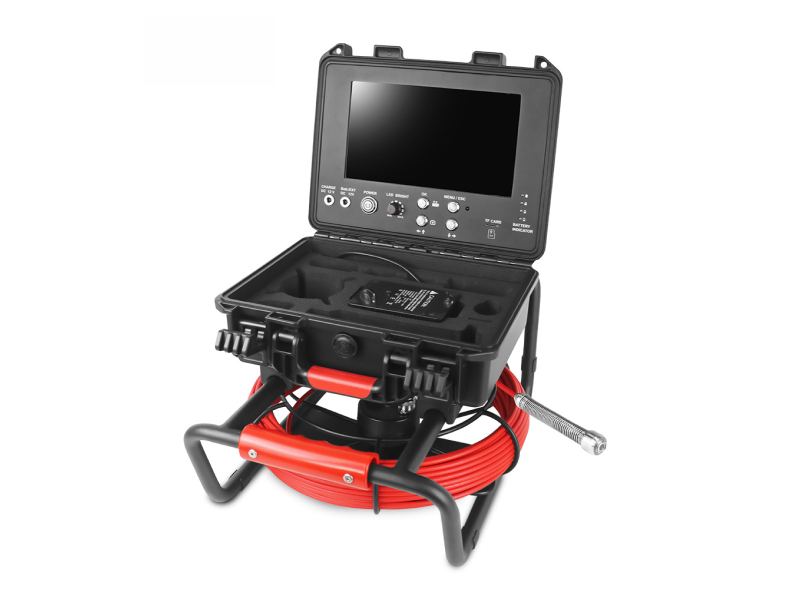

8inch Control Box with 23SL/29mm Pipe Inspection Camera with Front and Backward Viewing

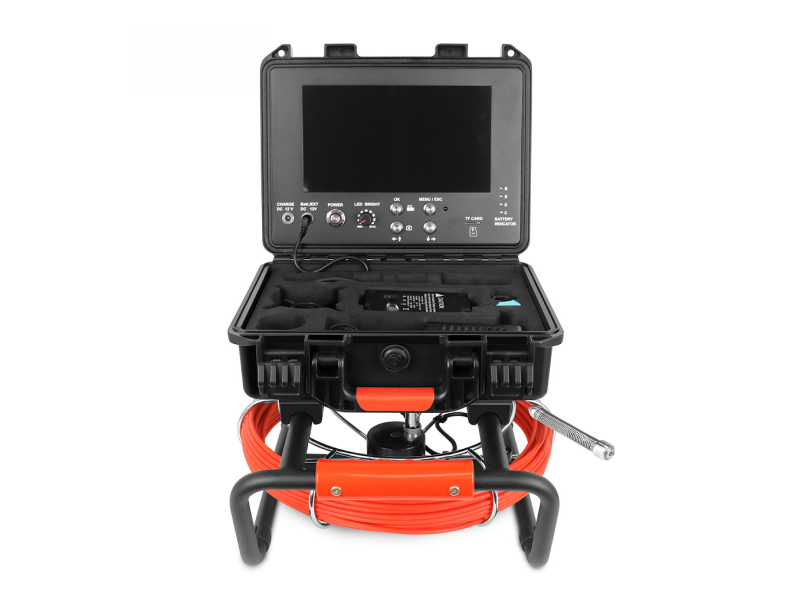

8inch Control Box with 45mm AHD Portable Pipe Inspection Camera System

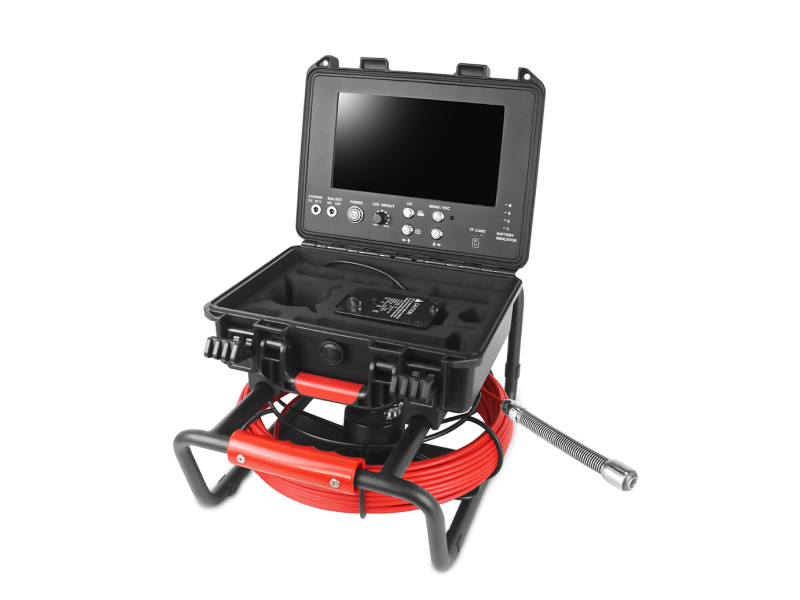

8inch Control Box with 50mm Pan Tilt Portable AHD Pipe Camera System
