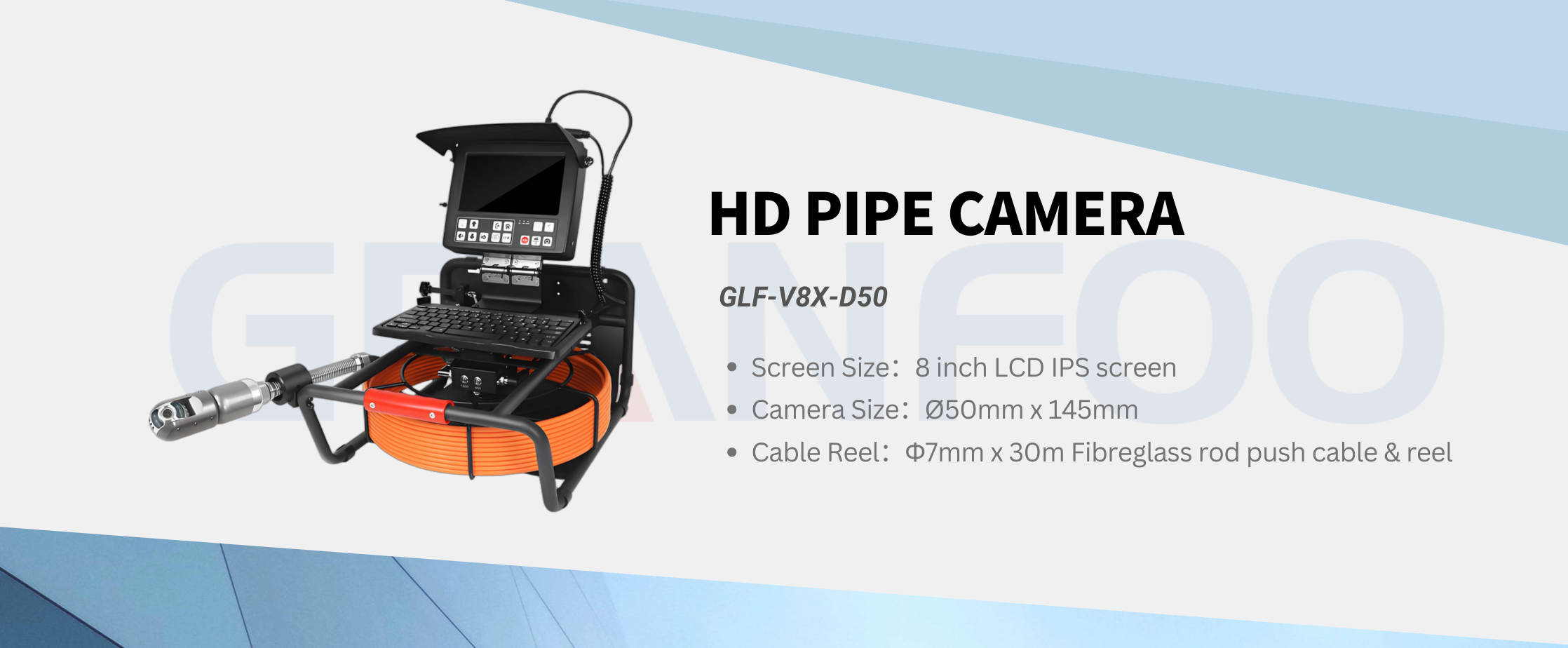

8inch Control Box with 50mm Pan Tilt Portable AHD Pipe Camera System
The 50mm Pan Tilt Portable AHD Pipe Inspection Camera System is a highly adaptable and efficient solution engineered for thorough examinations of pipelines and drainage networks. Featuring advanced motorized pan and tilt functionality, this compact system delivers exceptionally clear, high-definition imagery, enabling operators to precisely locate, diagnose, and analyze blockages, cracks, or structural anomalies within obscured spaces.
Product Detail
The 50mm Pan Tilt Portable AHD Pipe Inspection Camera System is a highly adaptable and efficient solution engineered for thorough examinations of pipelines and drainage networks. Featuring advanced motorized pan and tilt functionality, this compact system delivers exceptionally clear, high-definition imagery, enabling operators to precisely locate, diagnose, and analyze blockages, cracks, or structural anomalies within obscured spaces.
Overview of 50mm Pan Tilt Sewer Camera
| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS, 1.3MP pilex HD , waterproof IP68 |
| Adjustable focus function |
| 8 inch IPS lcd screen ,1980x1080 resolution |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 6800mA li-ion battery inside |

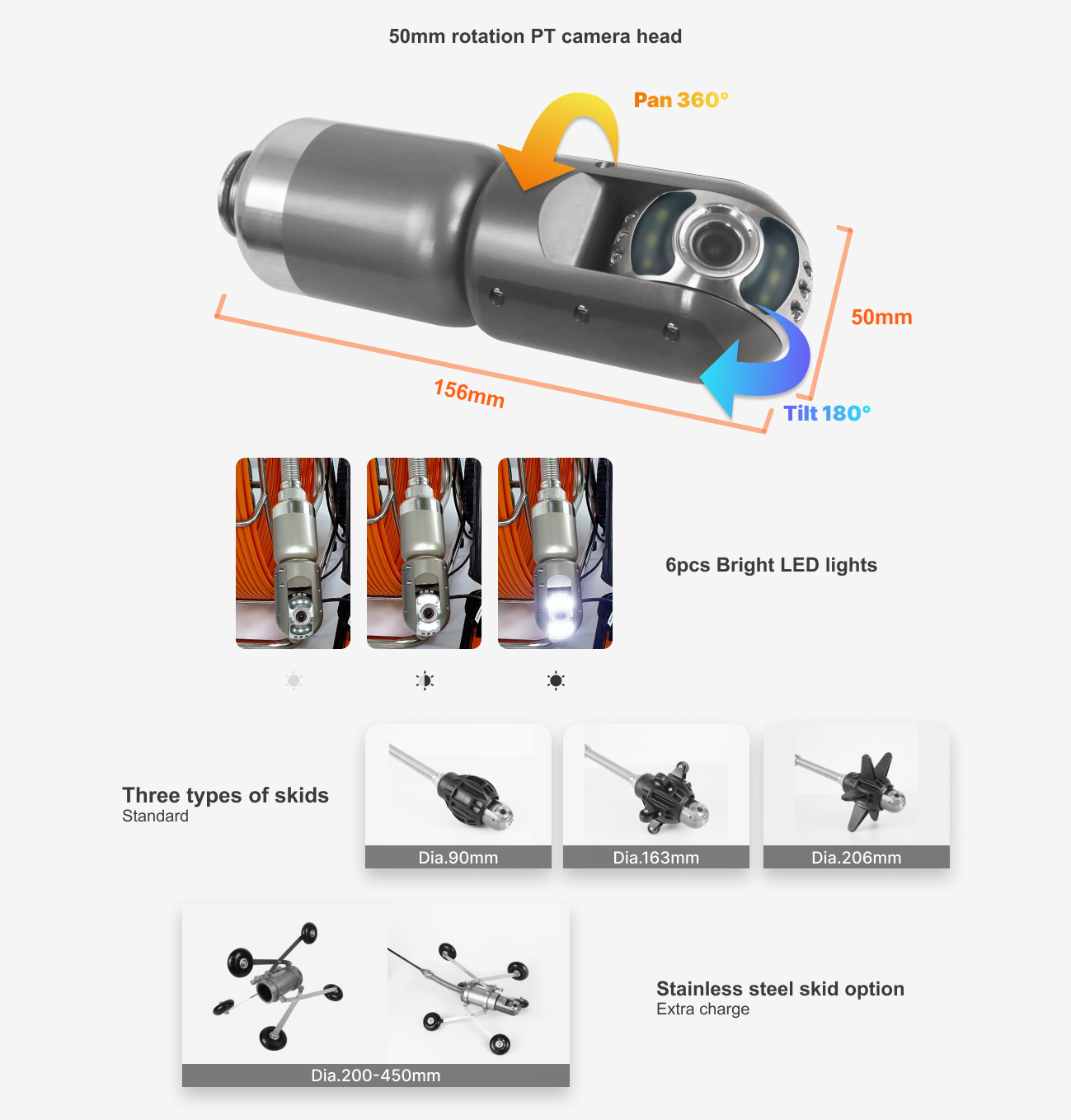

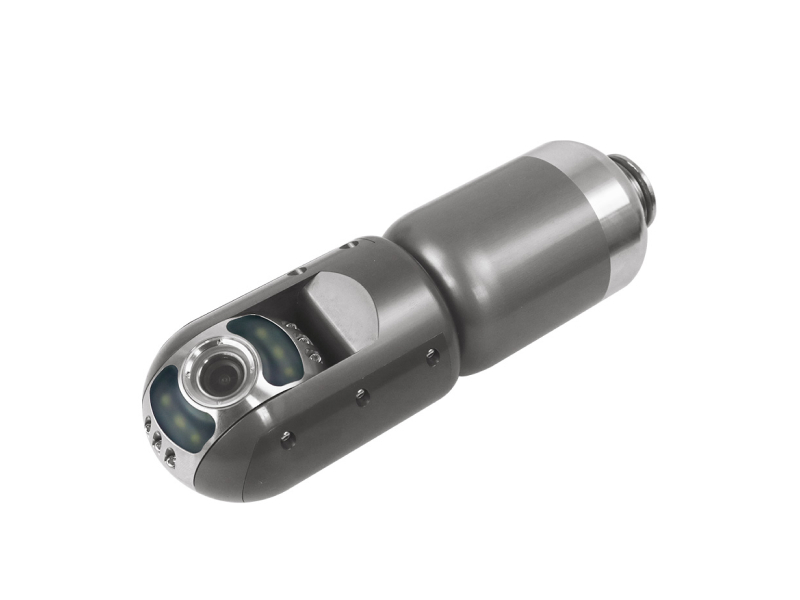

Main Part 1: 50mm Pan Tilt rotation camera head
|
Camera size |
50mm x 156mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
Manual focus manually |
|
Rotation range |
Rotation: Pan 360°， Tilt 180° |
|
Light |
6pcs high light LED lighting adjustable |
|
Connector |

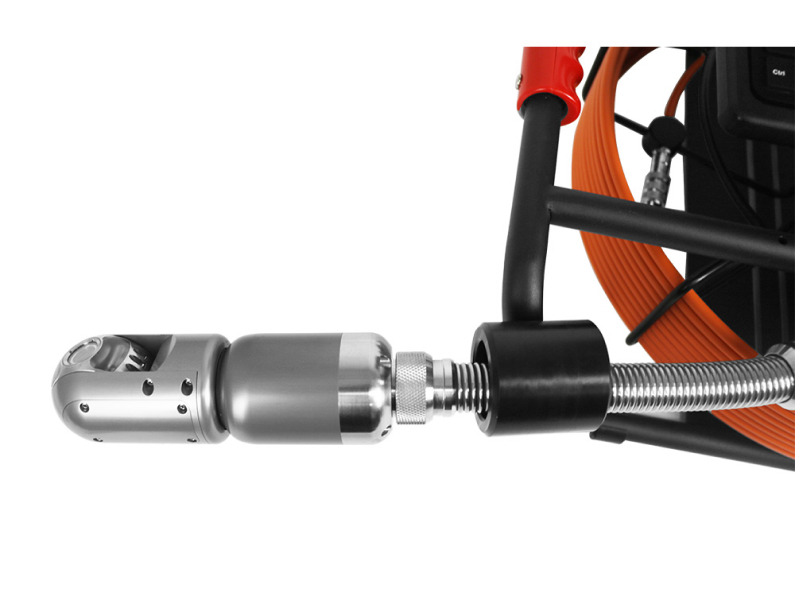

Detachable with aviation plug type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |

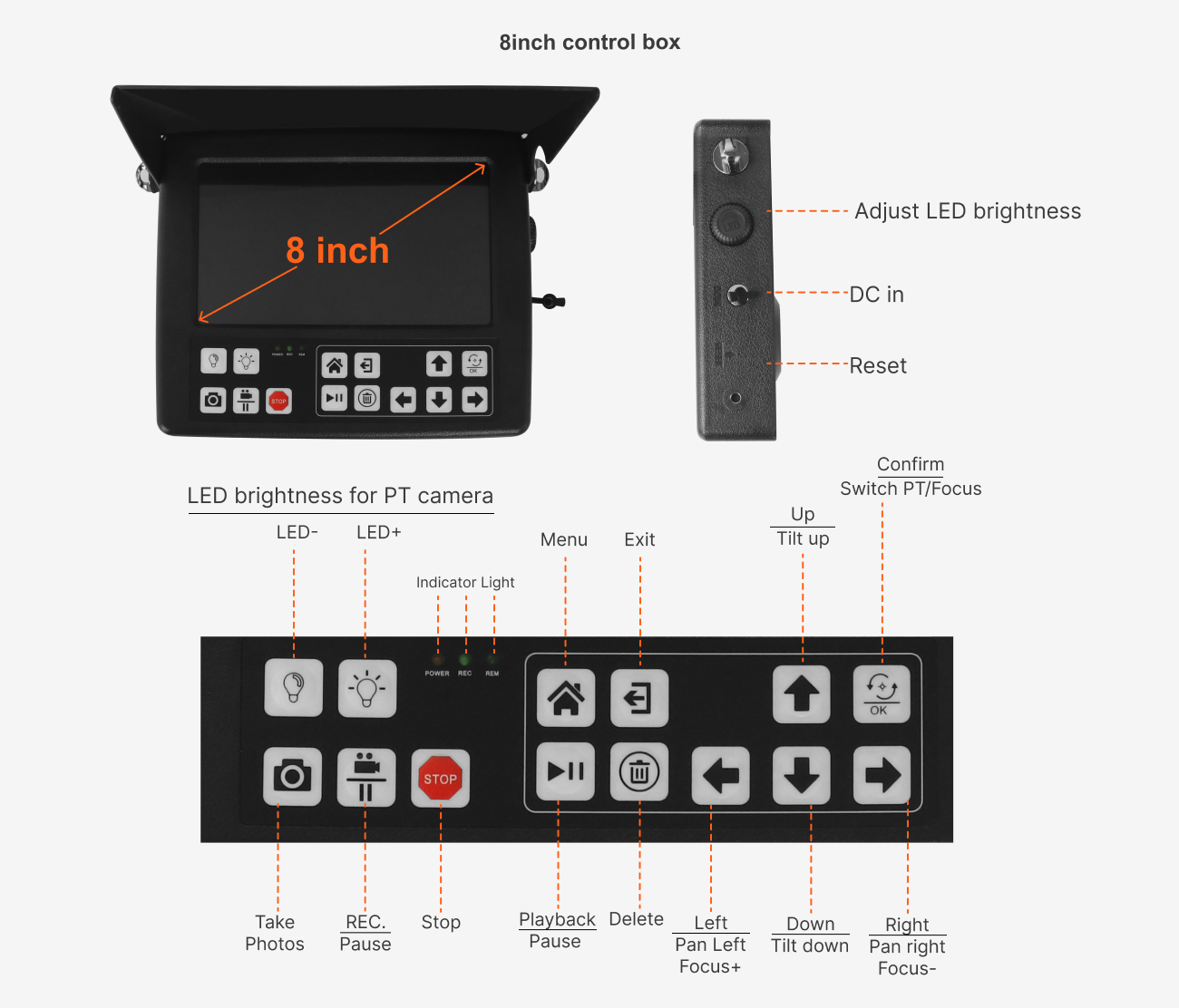

Main Part 2: DVR control unit
|
Screen Size |
8"HD IPS LCD Screen, 1980x1080 resolution |
|
Waterproof level |
IP68 |
|
Function |
1080P format video, auido and photography function DVR |
|
Keyboard |
/ |
|

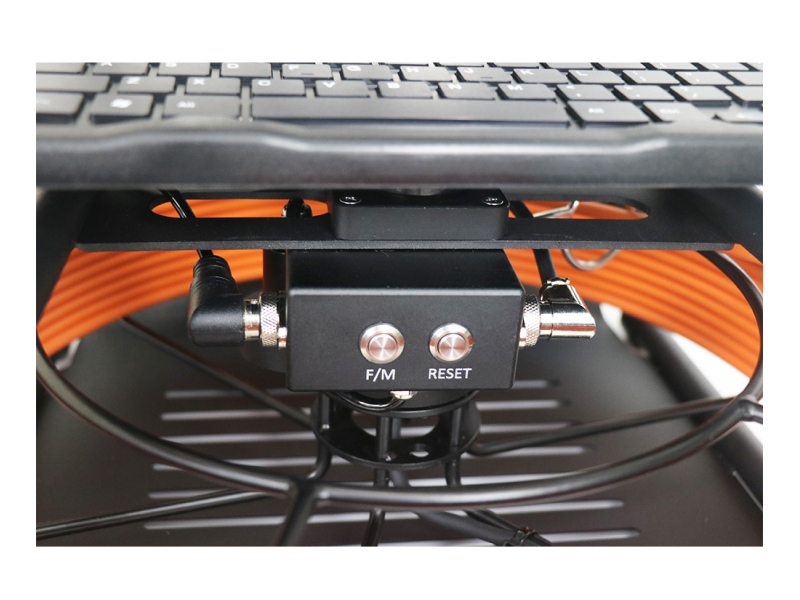

Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack/ Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

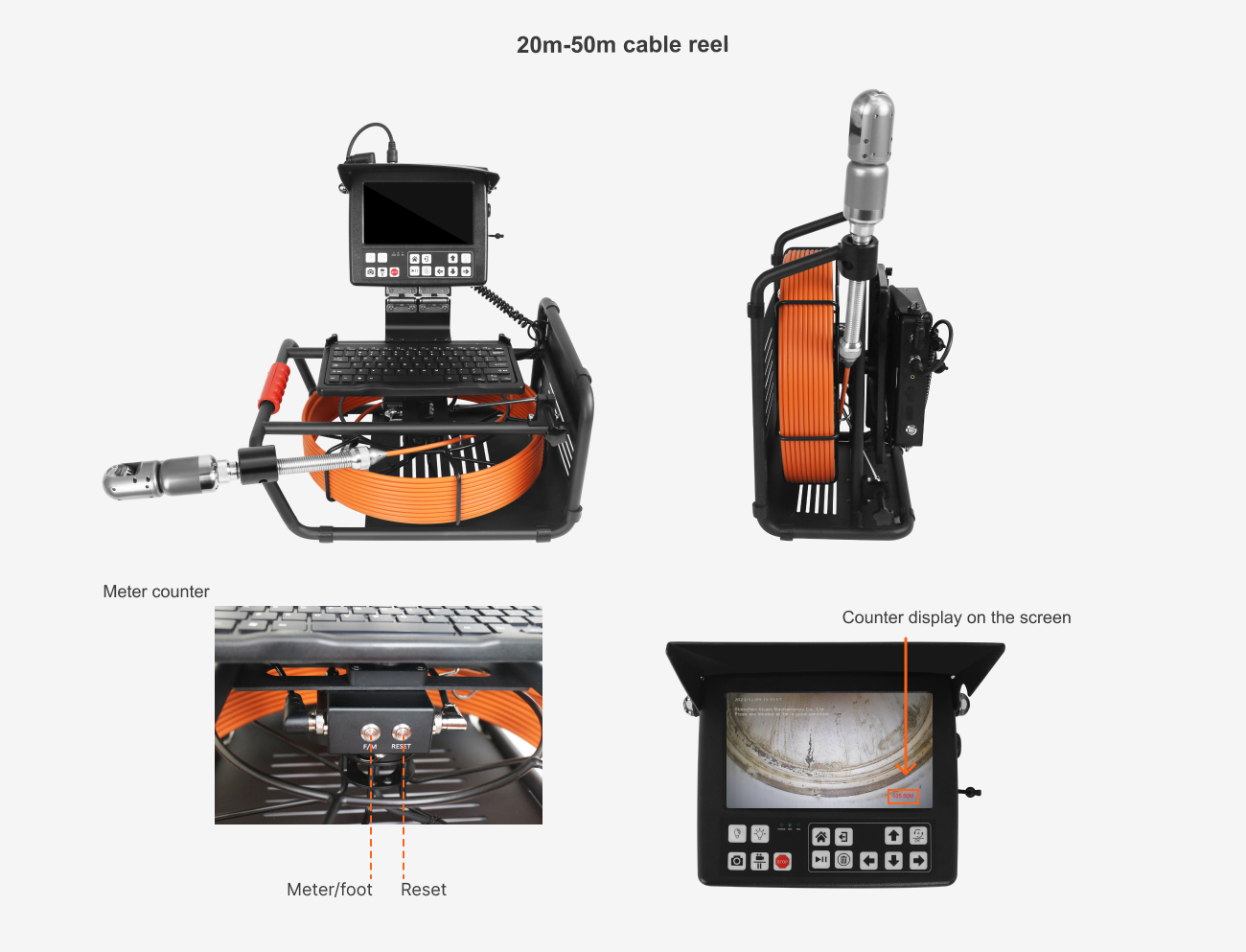

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
7mm |
|
Cable length |
20m-50m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
