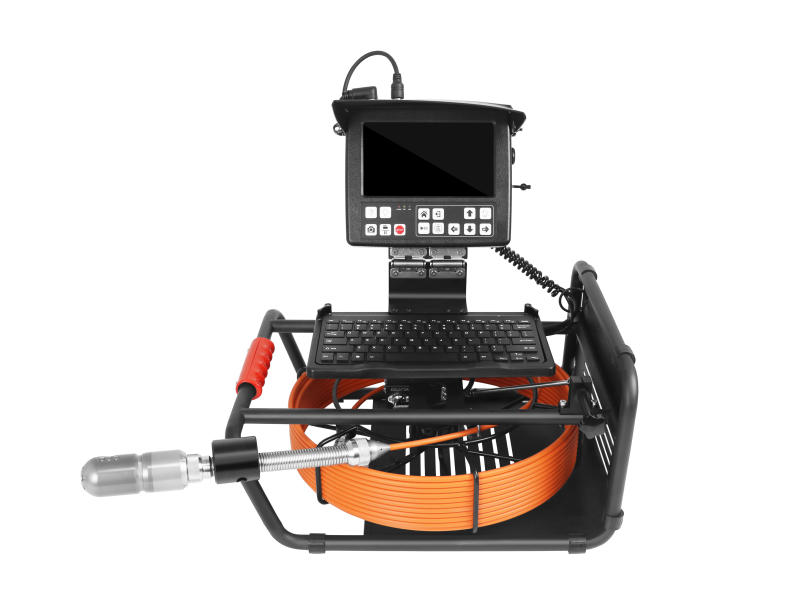

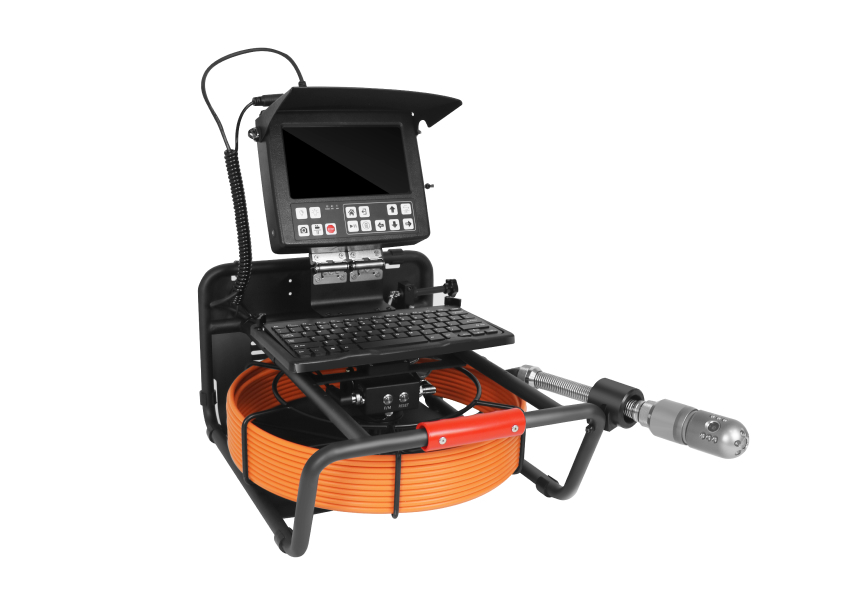

8inch Control Box with 23SL/29mm Pipe Inspection Camera with Front and Backward Viewing
Inspect challenging conduits with total clarity. Featuring a rugged, slim 29mm-diameter probe, the 23SL delivers powerful front and rear dual-viewing to eliminate blind spots in a single pass.Built for harsh environments, this compact tool features a durable waterproof housing and ultra-bright LED illumination. It provides the crystal-clear visuals needed for fast, accurate results in plumbing diagnostics, HVAC troubleshooting, and industrial maintenance.
Product Detail
Inspect challenging conduits with total clarity. Featuring a rugged, slim 29mm-diameter probe, the 23SL delivers powerful front and rear dual-viewing to eliminate blind spots in a single pass.Built for harsh environments, this compact tool features a durable waterproof housing and ultra-bright LED illumination. It provides the crystal-clear visuals needed for fast, accurate results in plumbing diagnostics, HVAC troubleshooting, and industrial maintenance.

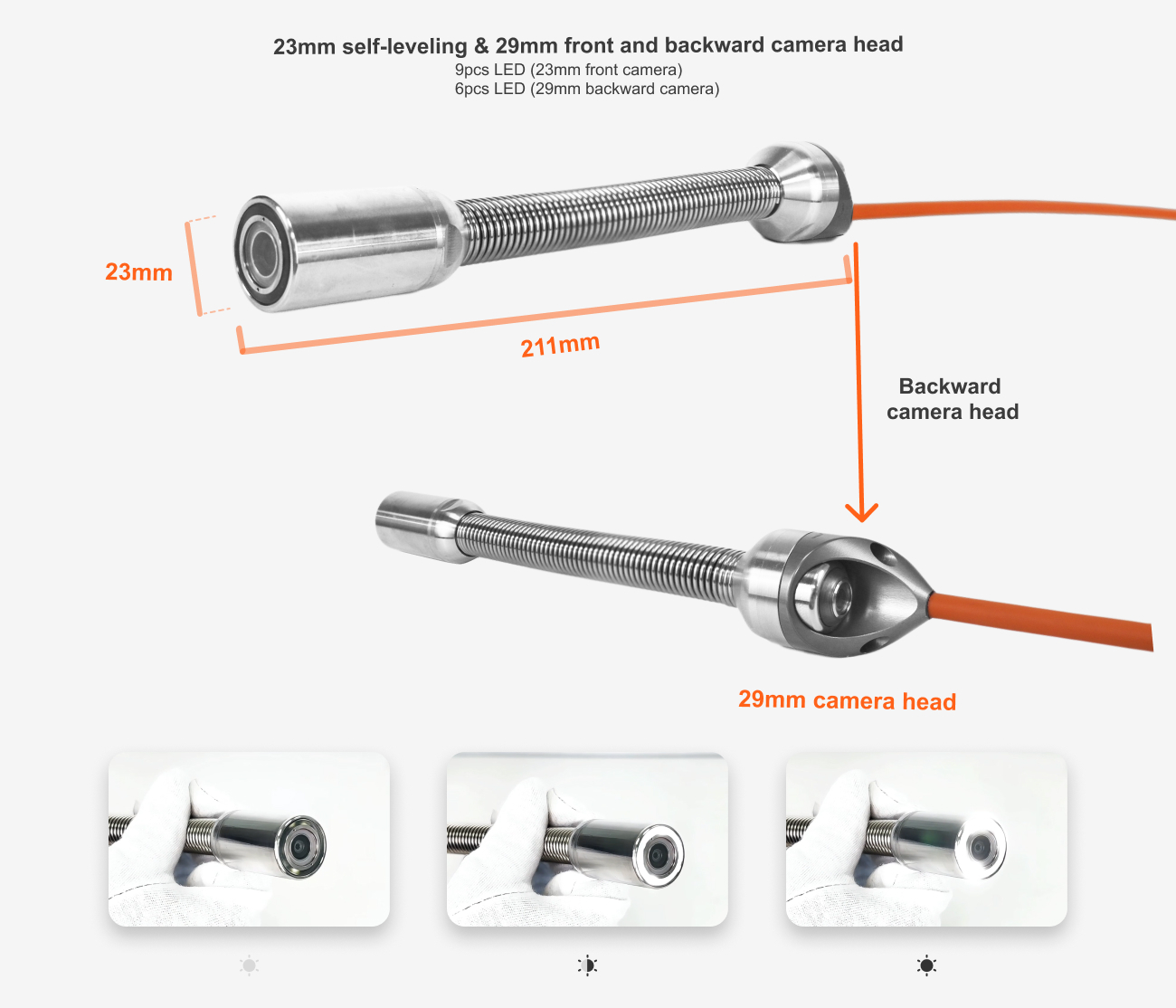

Overview of 23mm self-leveling & 29mm front and backward camera head
| 8 inch IPS lcd screen, 1920X1080 resolution |
| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
| Front and Rear Cameras: All-Around Observation |
Main Part 1: Front and backward camera head
|
Camera size |
23mm x 47mm（front camera） 29mm x 46mm (backward camera) |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
9pcs high light LED lighting adjustable（front camera） 6pcs high light LED lighting adjustable (backward camera) |
|
Connector |
Connected to a wire, cannot be removed |
|
Material |
Fiberglass push rod cable |

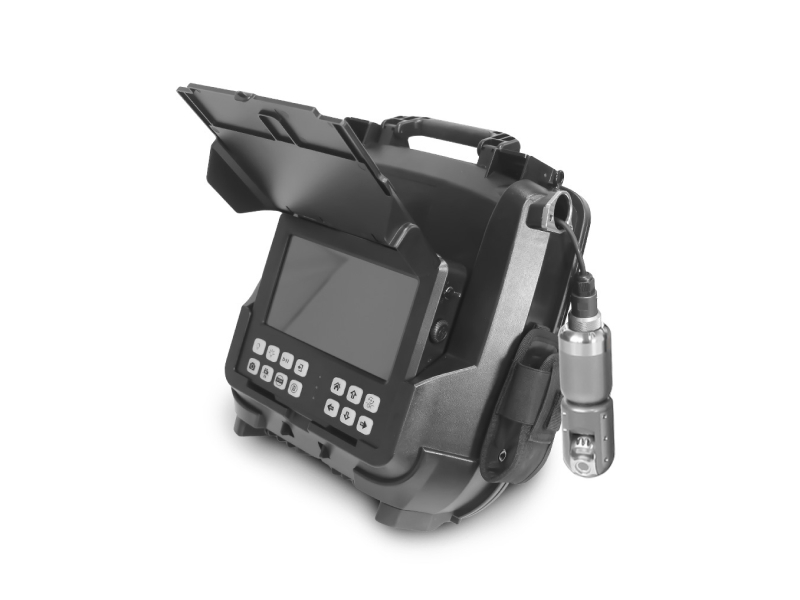

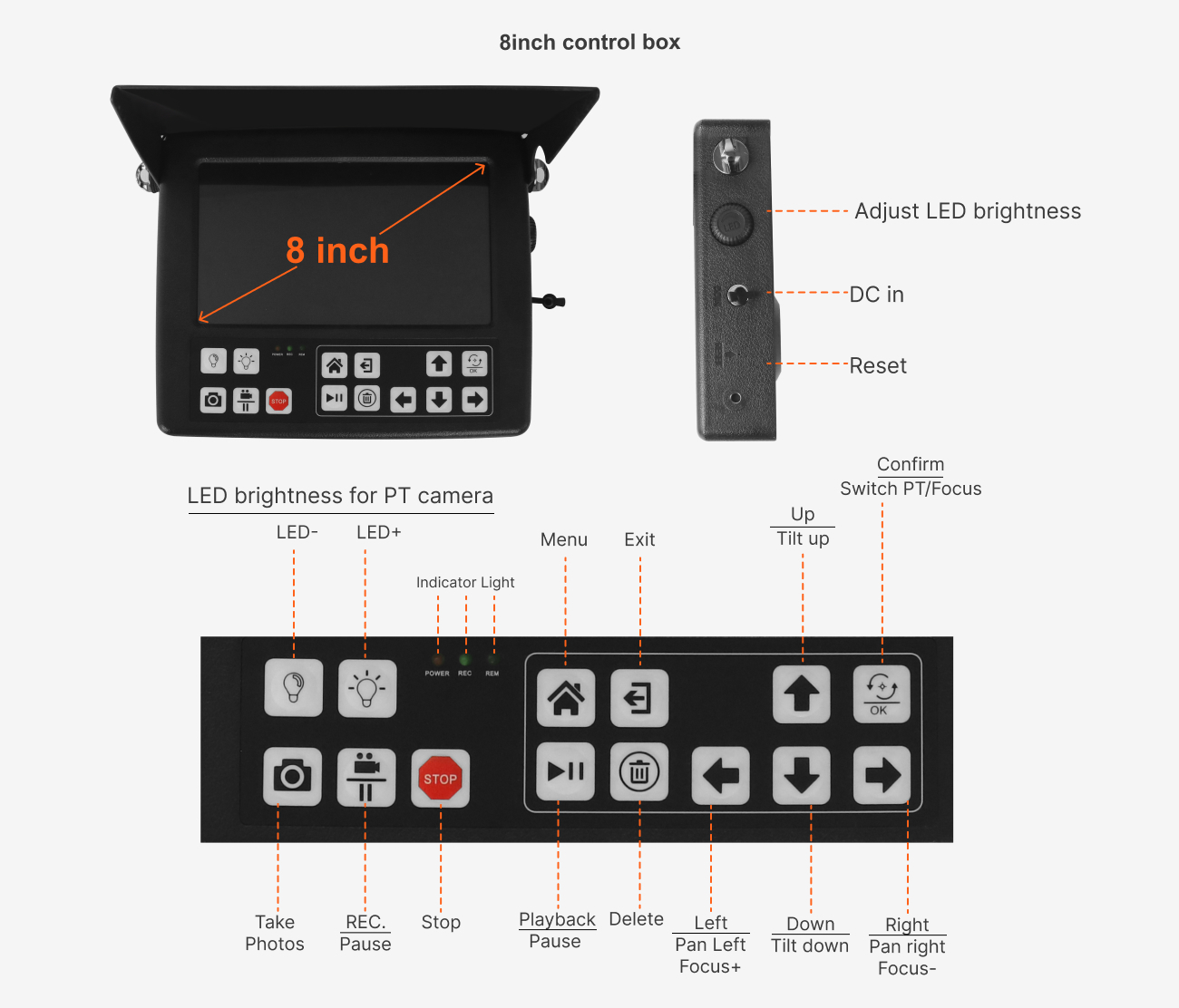

Main Part 2: DVR control unit
|
Screen Size |
8"HD IPS LCD Screen, 1920X1080 resolution |
|
Waterproof level |
IP68 |
|
Function |
1080P format video, auido and photography function DVR |
|
Keyboard |
/ |
|
Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack /Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

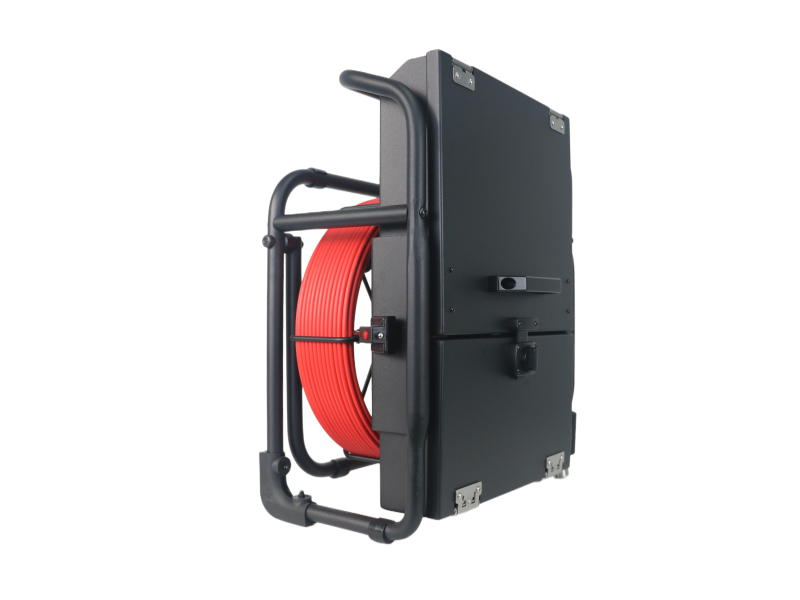

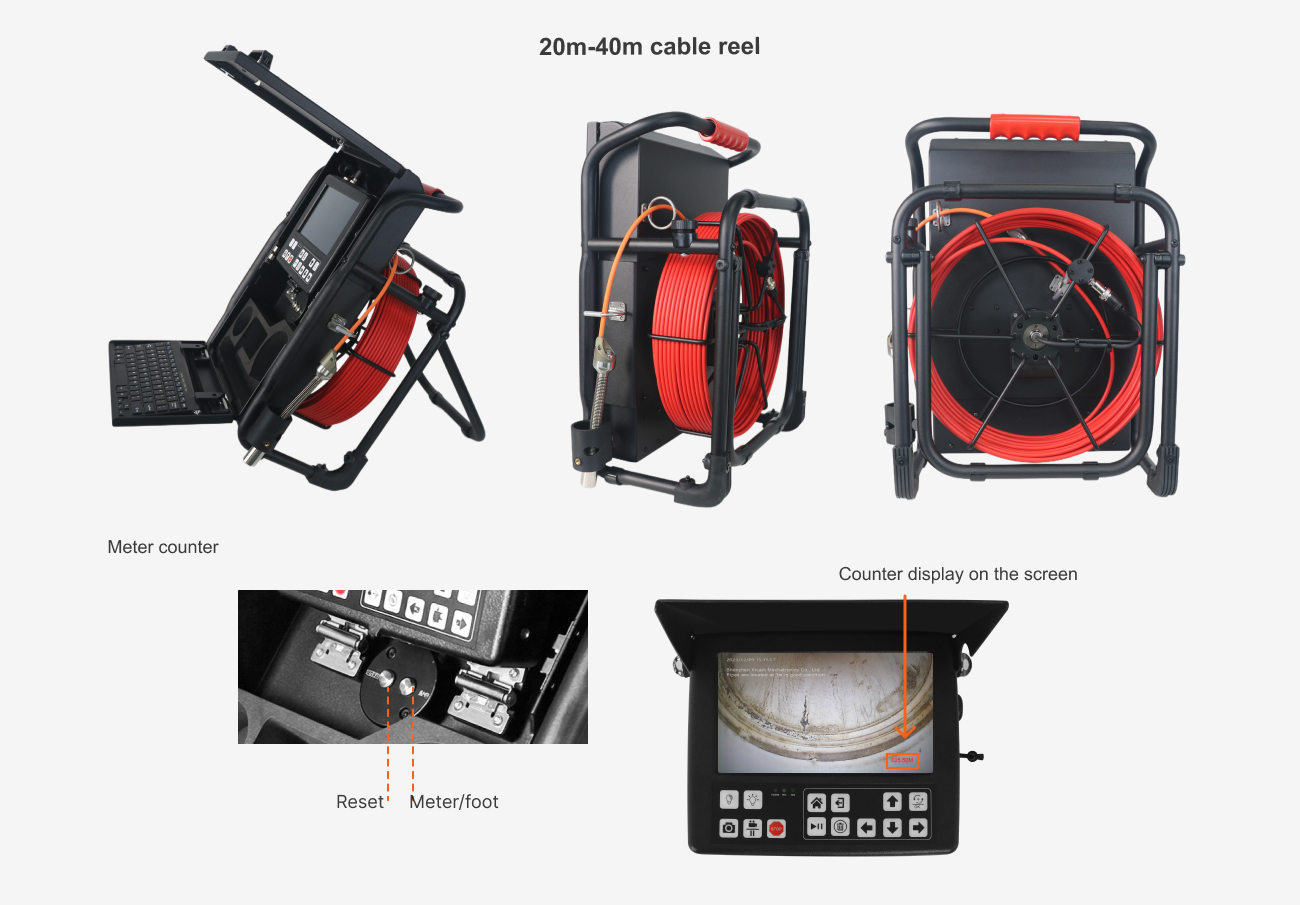

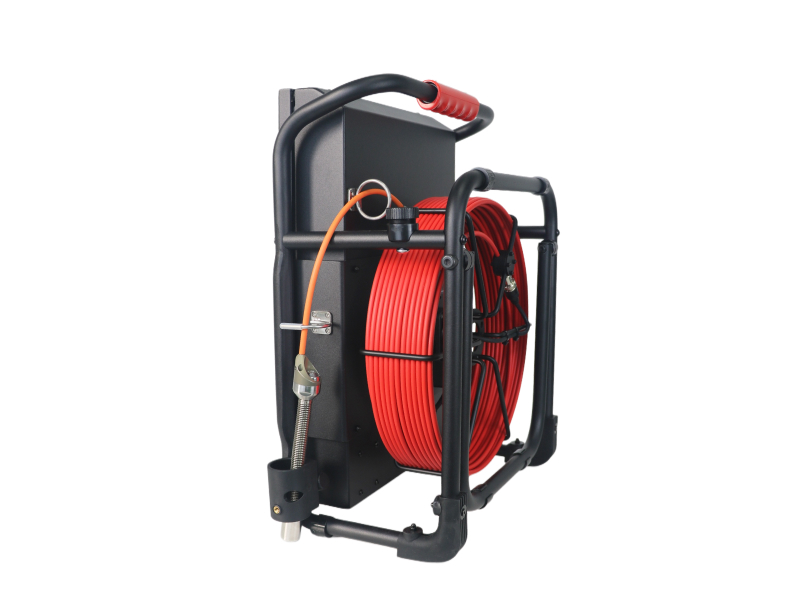

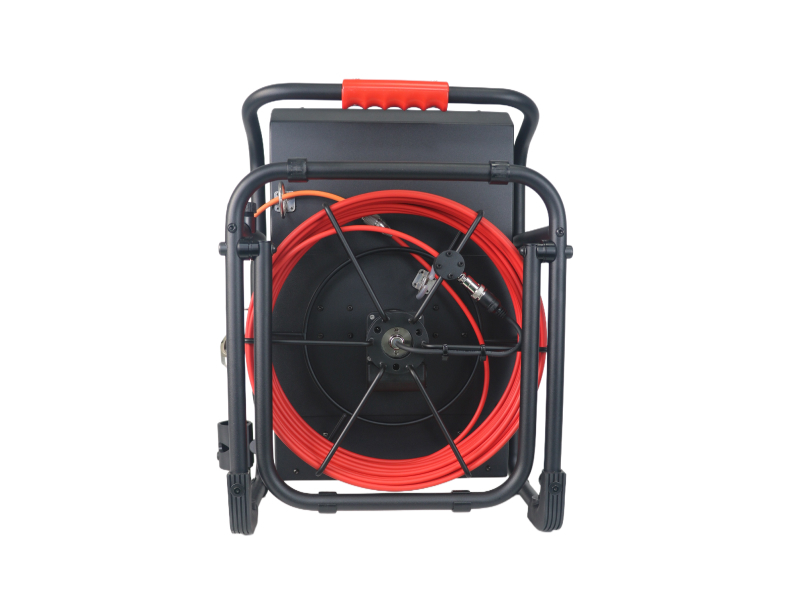

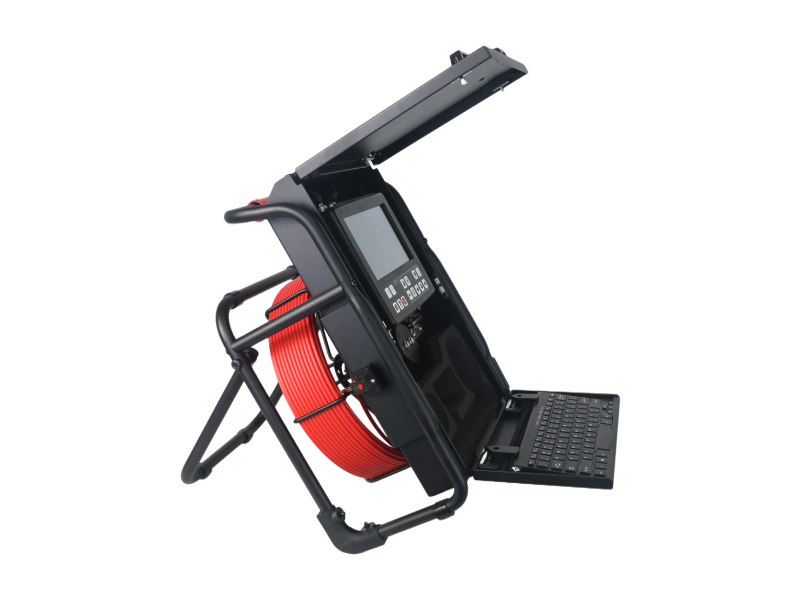

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
7mm |
|
Cable length |
20m-40m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
