9inch Control Box with 17mm AHD 720P Sewer Video Inspection Camera
这款17毫米AHD 720P一体式管道视频检测摄像头专为精准性和便携性而设计，是探索狭窄和难以触及空间的理想诊断工具。它将高清成像系统与紧凑坚固的设计相结合，这款多功能管道摄像头可帮助管道、暖通空调和建筑专业人员轻松清晰地定位堵塞、结构损坏和磨损情况。
Product Detail
This 17mm AHD 720P all-in-one pipe video inspection camera is designed for precision and portability, making it an ideal diagnostic tool for exploring narrow and hard-to-reach spaces. Combining a high-definition imaging system with a compact and rugged design, this versatile pipe camera helps plumbing, HVAC, and building professionals easily and clearly locate blockages, structural damage, and wear.
Overview of 17mm Sewer Camera
| 9 inch IPS lcd screen |
| DVR control box with audio , video recording and photography function |
| Built in 4400mA li-ion battery inside |
| Portable ,Easy to Carry, Easy to use |

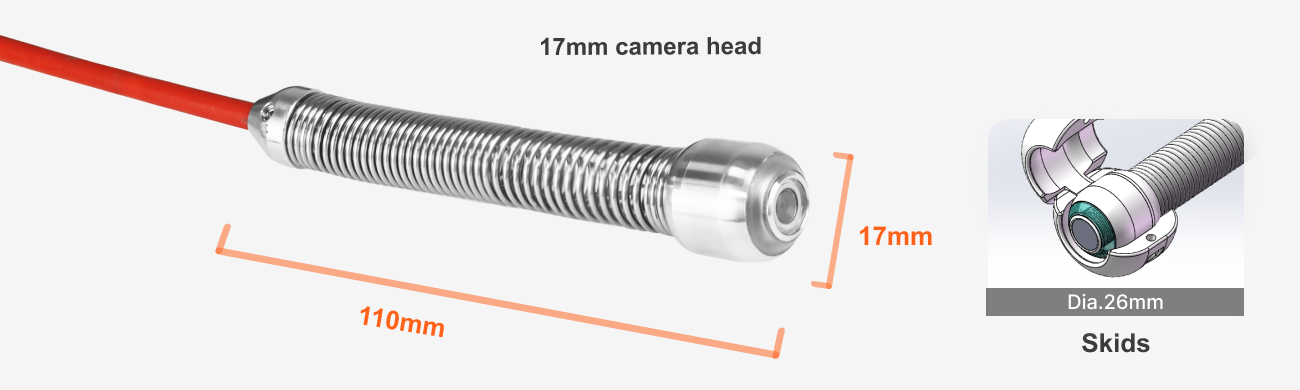

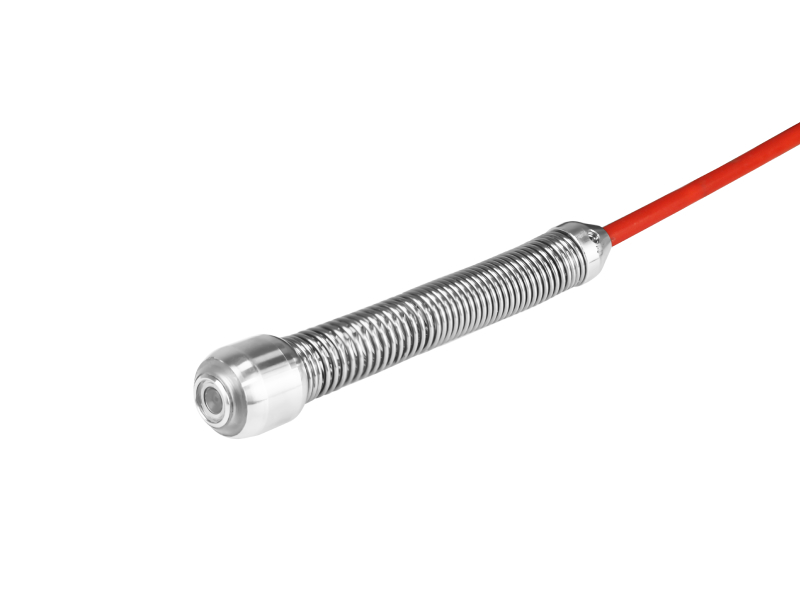

Main Part 1: 17mm camera head
|
Camera size |
17 x 110mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 90° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
6pcs high light LED lighting adjustable |
|
Connector |
Cannot be disassembled from Cable Reel |
|
Material |
Fiberglass push rod cable |

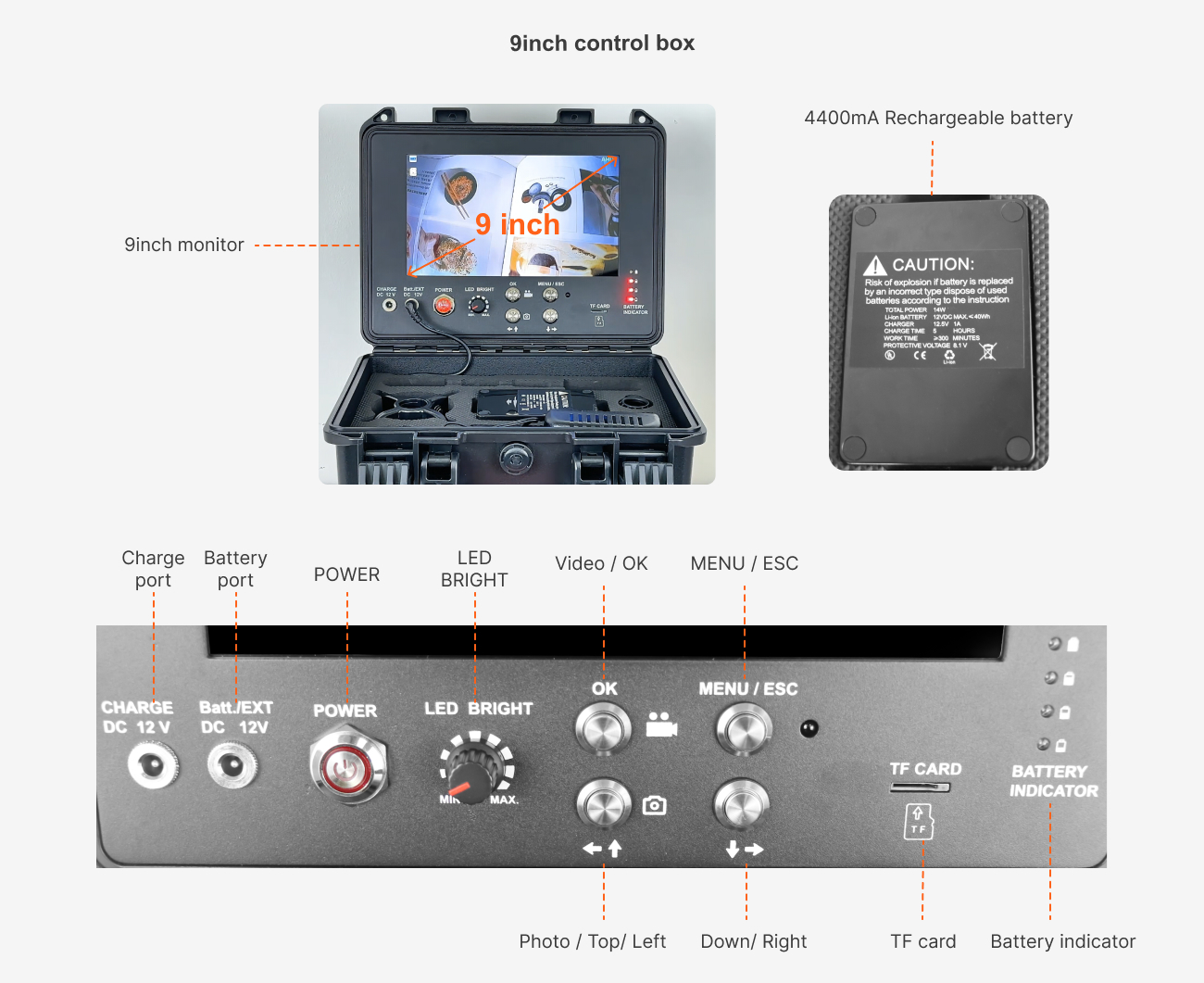

Main Part 2: DVR control unit
|
Screen Size |
9"HD IPS LCD Screen |
|
Waterproof level |
/ |
|
Function |
1080P format video, auido and photography function DVR |
|
Keyboard |
/ |
|
Meter counter |
/ |
|
Battery |
4400mA rechargeable Li-ion Battery Pack/ Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

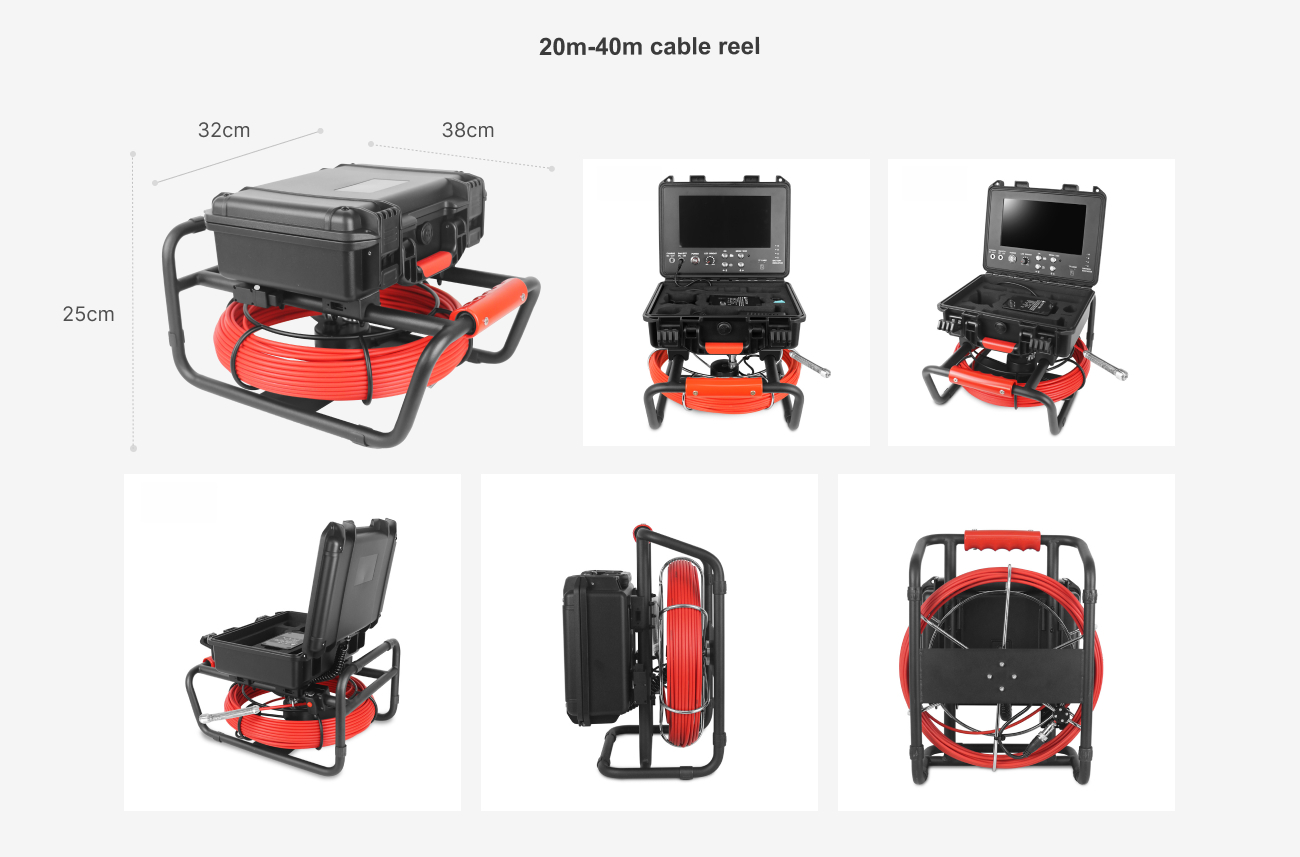

Main Part 3: Cable reel
|
Meter counter |
/ |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
5.0mm |
|
Cable length |
20m-40m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
