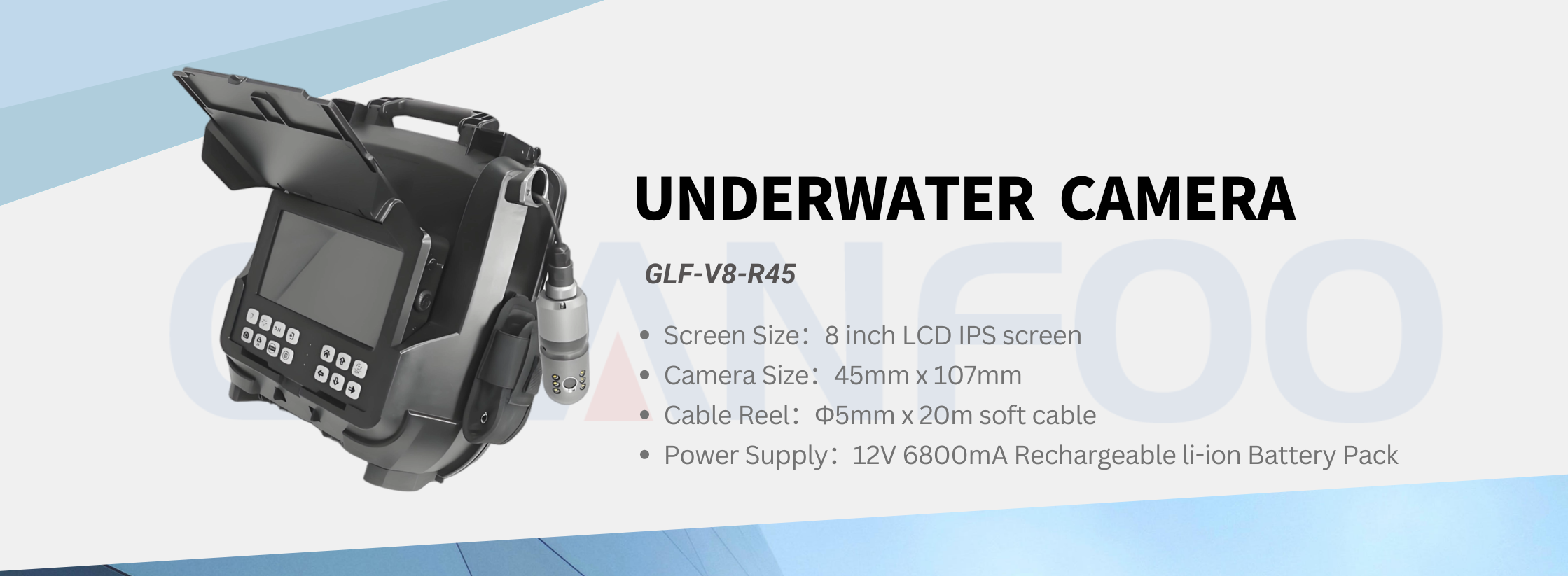

45mm dual view 360 degree rotation Underwater Inspection Camera
Optimized for complex underwater exploration, this 45mm Rotation Dual view Portable AHD Underwater Inspection Camera offers unmatched dual-view capabilities in a highly mobile form factor. Its synchronized rotating lenses eliminate blind spots to capture high-definition, high-accuracy imagery of submerged environments, ensuring seamless integration with monitors or DVR setups for professional data logging.
Product Detail
Optimized for complex underwater exploration, this 45mm Rotation Dual view Portable AHD Underwater Inspection Camera offers unmatched dual-view capabilities in a highly mobile form factor. Its synchronized rotating lenses eliminate blind spots to capture high-definition, high-accuracy imagery of submerged environments, ensuring seamless integration with monitors or DVR setups for professional data logging.
Overview of 45mm dual rotation Camera
| 45mm dual view 360 degree rotation camera |
| 1/3 CMOS, 1.3MP pilex AHD , waterproof IP68 |
| 8 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |

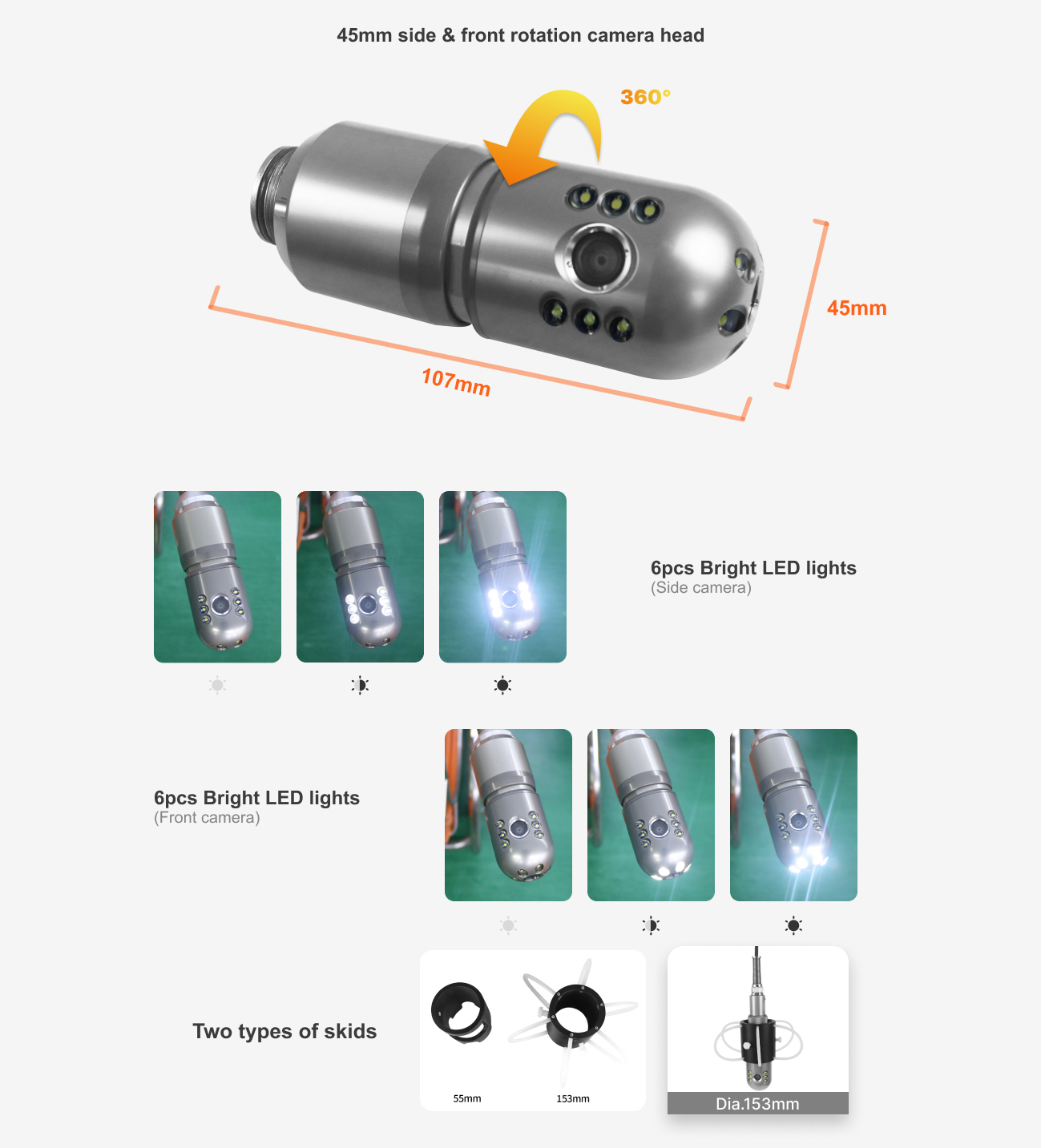

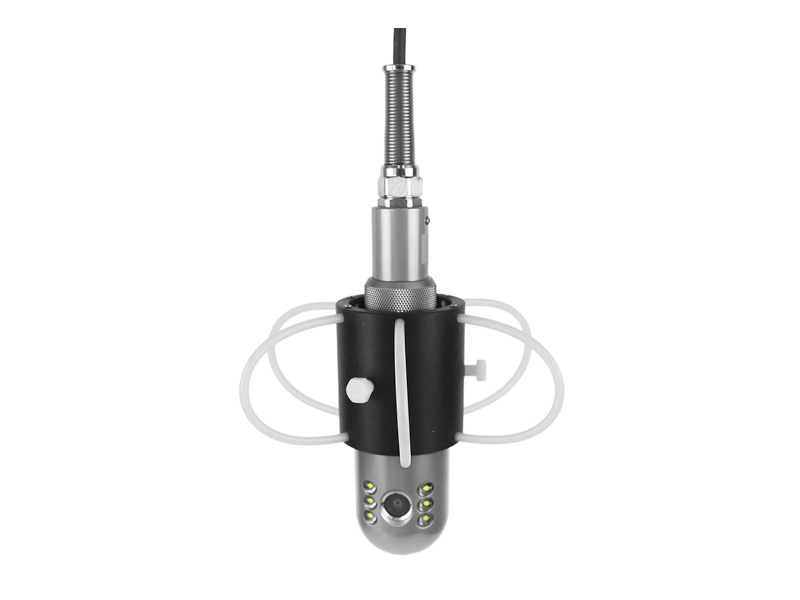

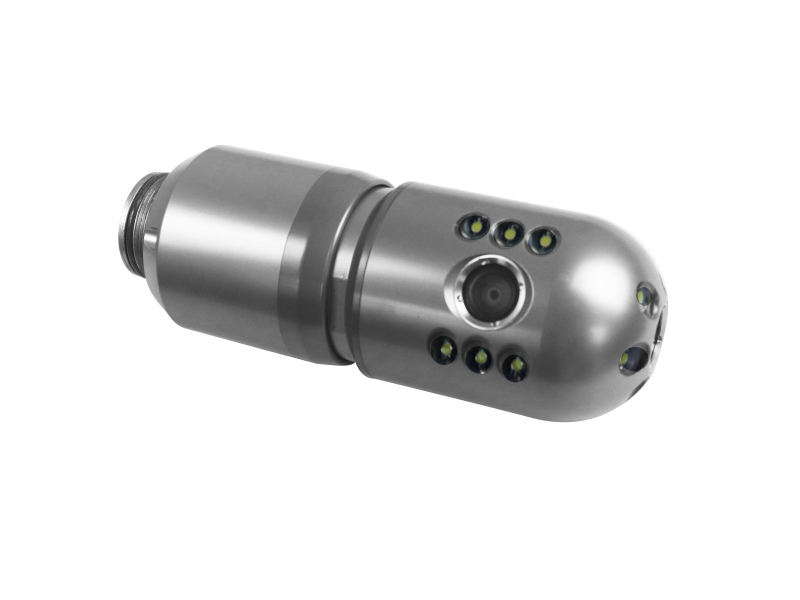

Main Part 1: 45mm dual view 360 degree rotation camera head
|
Camera size |
45mm x 107mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
6pcs high light LED lighting adjustable (down view and side view) |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
/ |

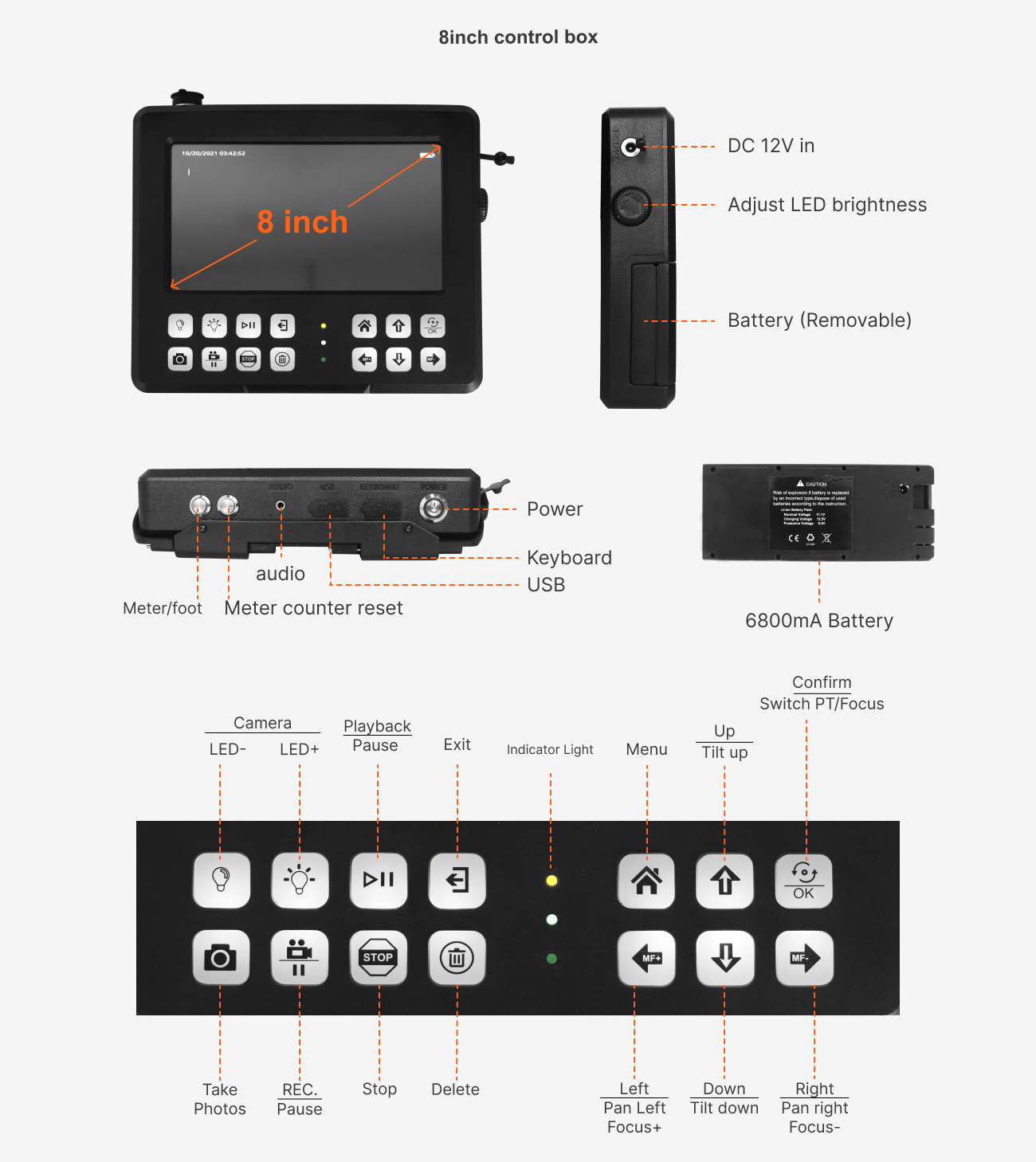

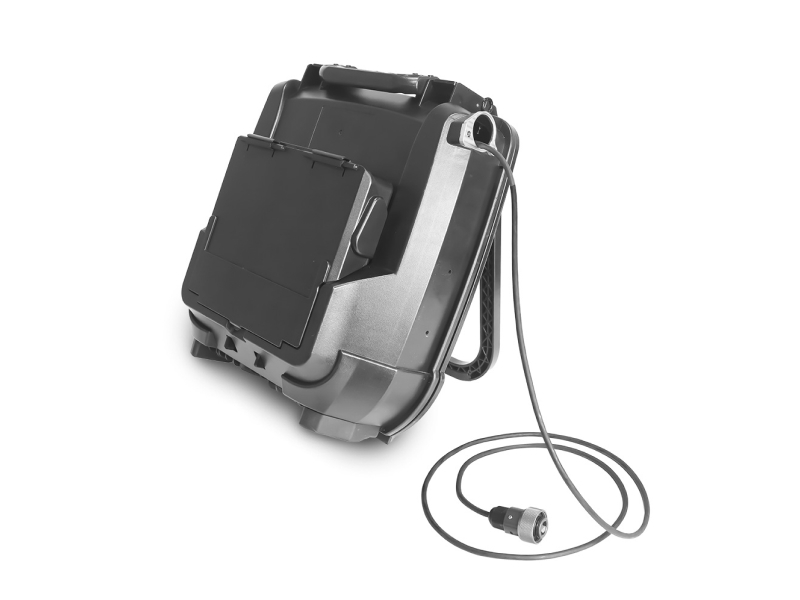

Main Part 2: DVR control unit
|
Screen Size |
8"HD IPS LCD Screen, 1920*1080 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
/ |
|
Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack/Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

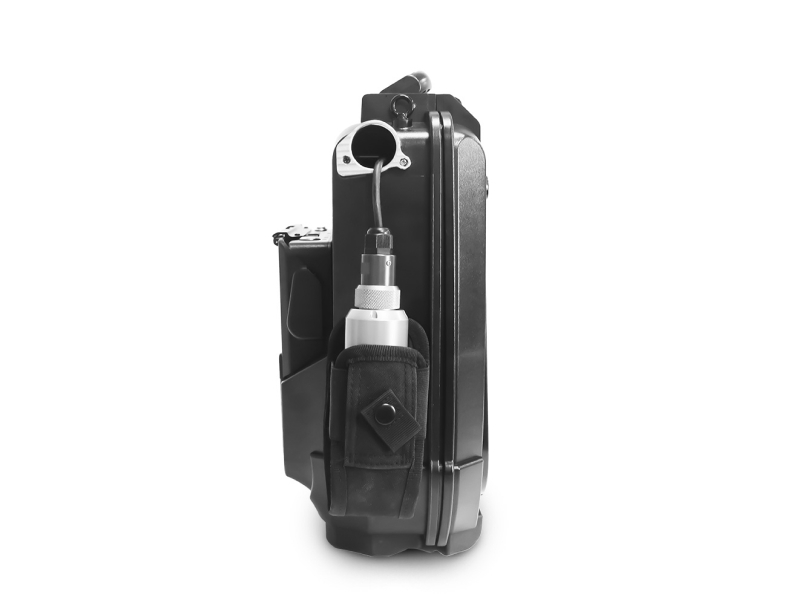

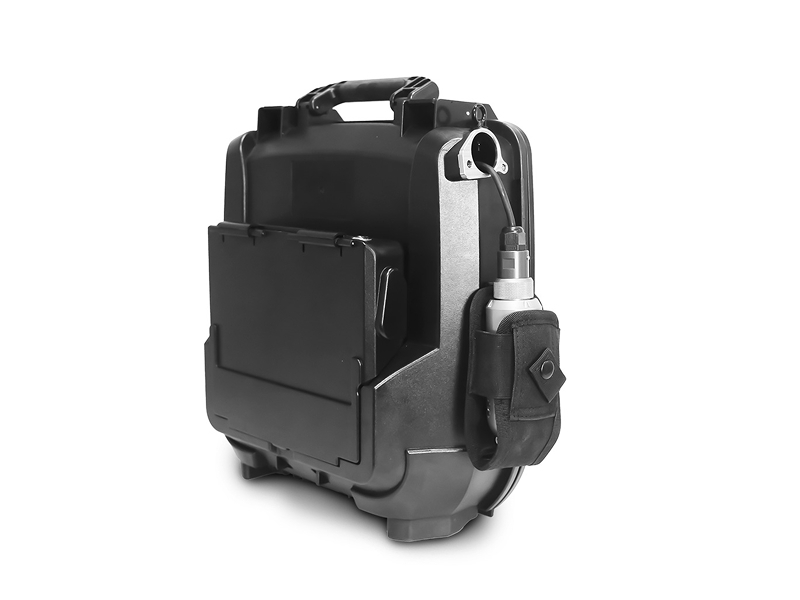

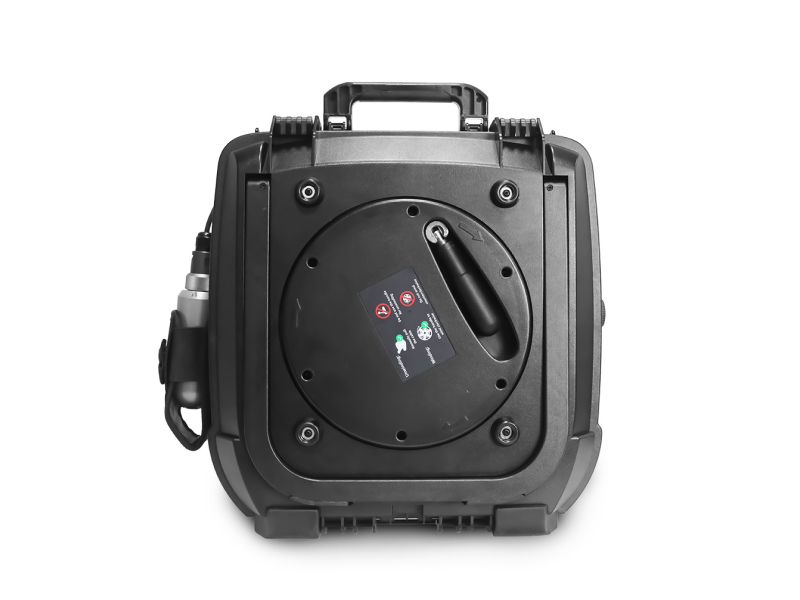

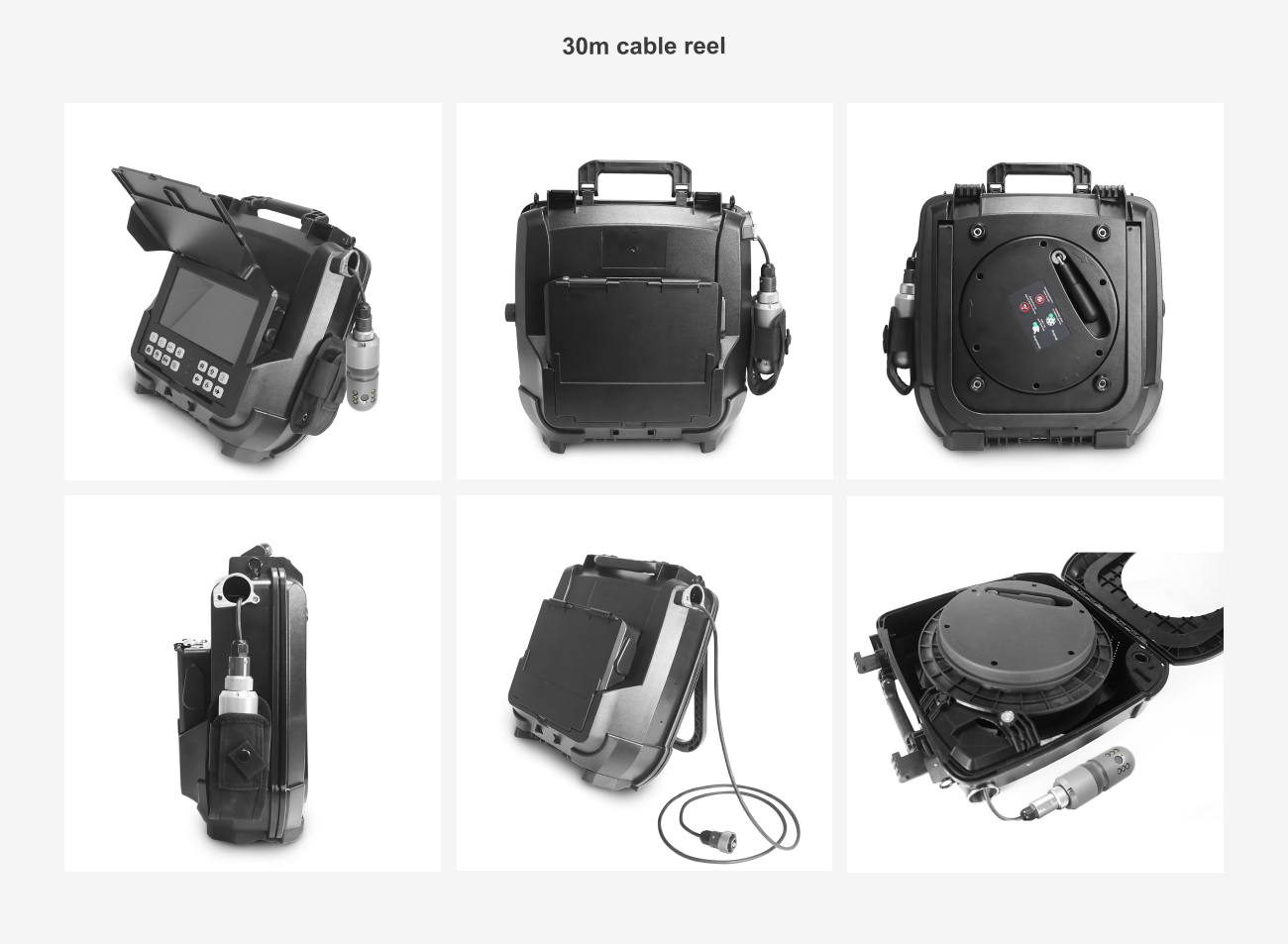

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
/ |
|
Cable diameter |
5mm |
|
Cable length |
30m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
