55mm 100m AHD Borehole Camera with 10″ HD Monitor
Capture every detail in the deepest spaces with our 55mm AHD Borehole Inspection Camera. Combining a 100m waterproof cable with a premium 10-inch HD IPS display, this durable system provides reliable, high-definition down-view monitoring for wells and tight underground channels.
Product Detail
Capture every detail in the deepest spaces with our 55mm AHD Borehole Inspection Camera. Combining a 100m waterproof cable with a premium 10-inch HD IPS display, this durable system provides reliable, high-definition down-view monitoring for wells and tight underground channels.
Overview of 55mm underwater Camera
| 55mm AHD camera head, sensor 1/3" CMOS ,1.3MP pixel |
| Φ6.8mm x 100m flexible cable with depth counter function |
| 32G USB flash storage device |
| Video/audio recording & still image capture |
| 720P vidoe and AVI format |
| 8800mA li-ion battery pack |
| Keyboard for real time typewriting |

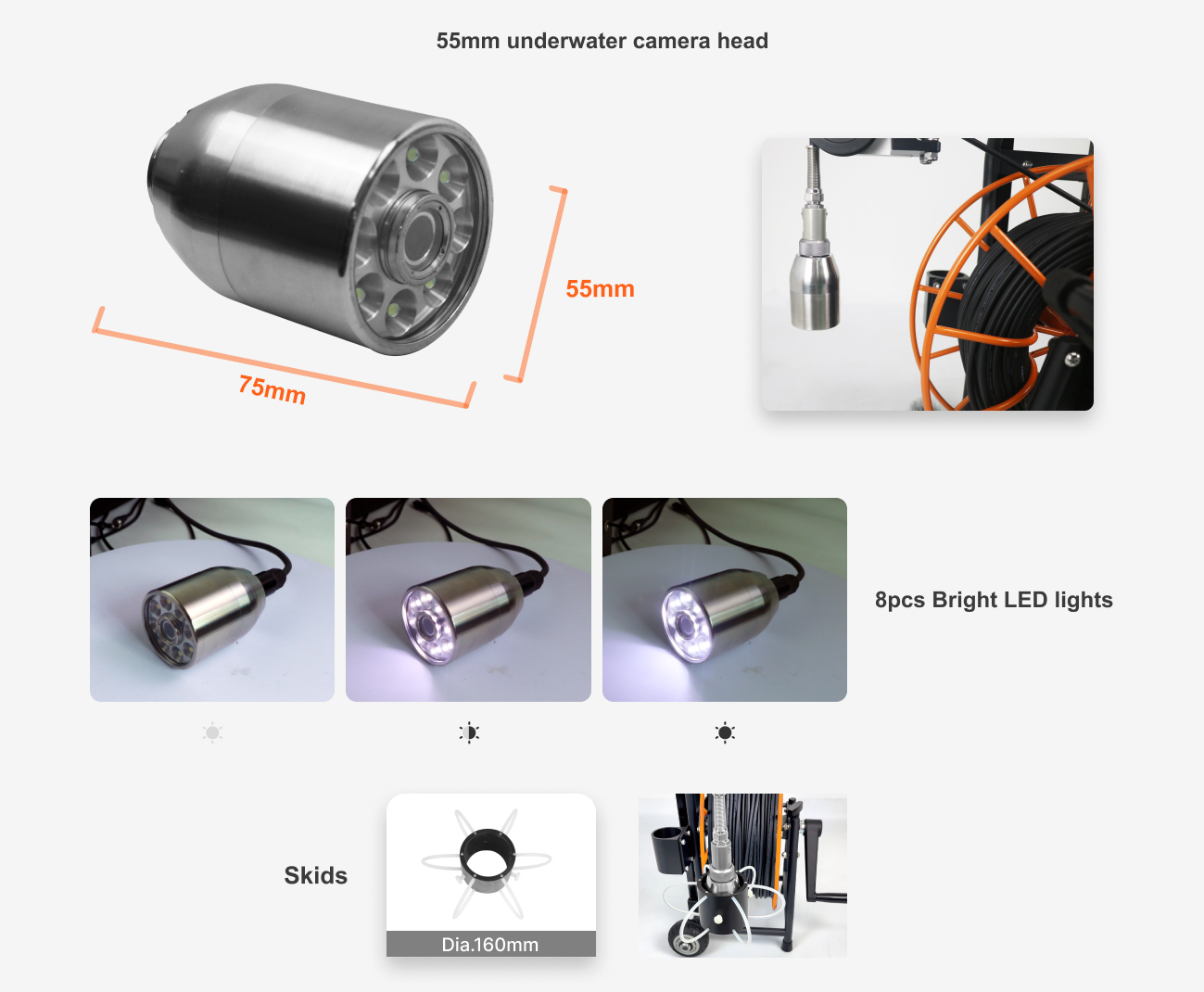

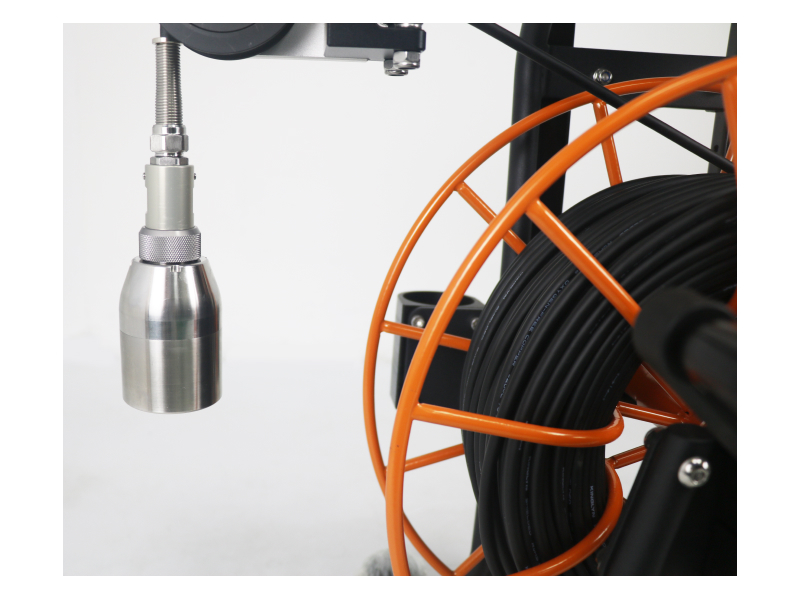

Main Part 1: 55mm waterproof camera head
|
Camera size |
55mm x 75mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
8pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Oxygen free copper flexible cable |

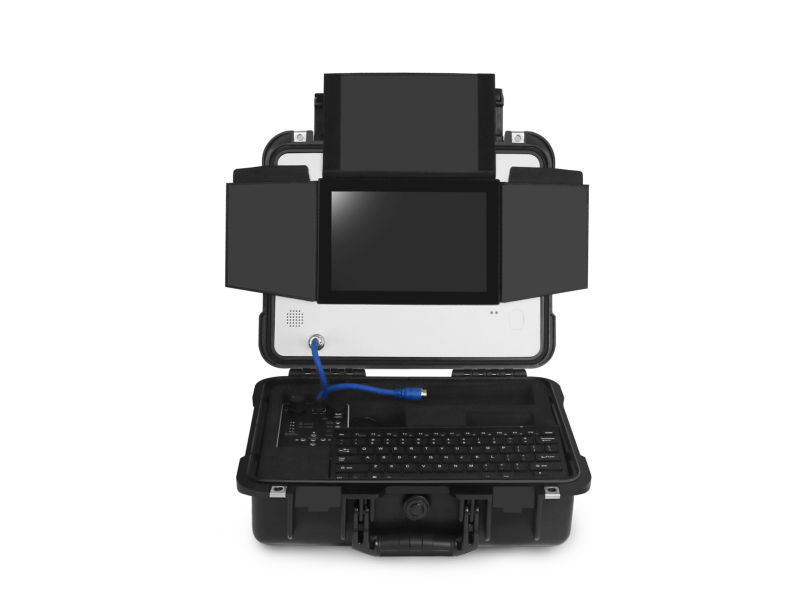

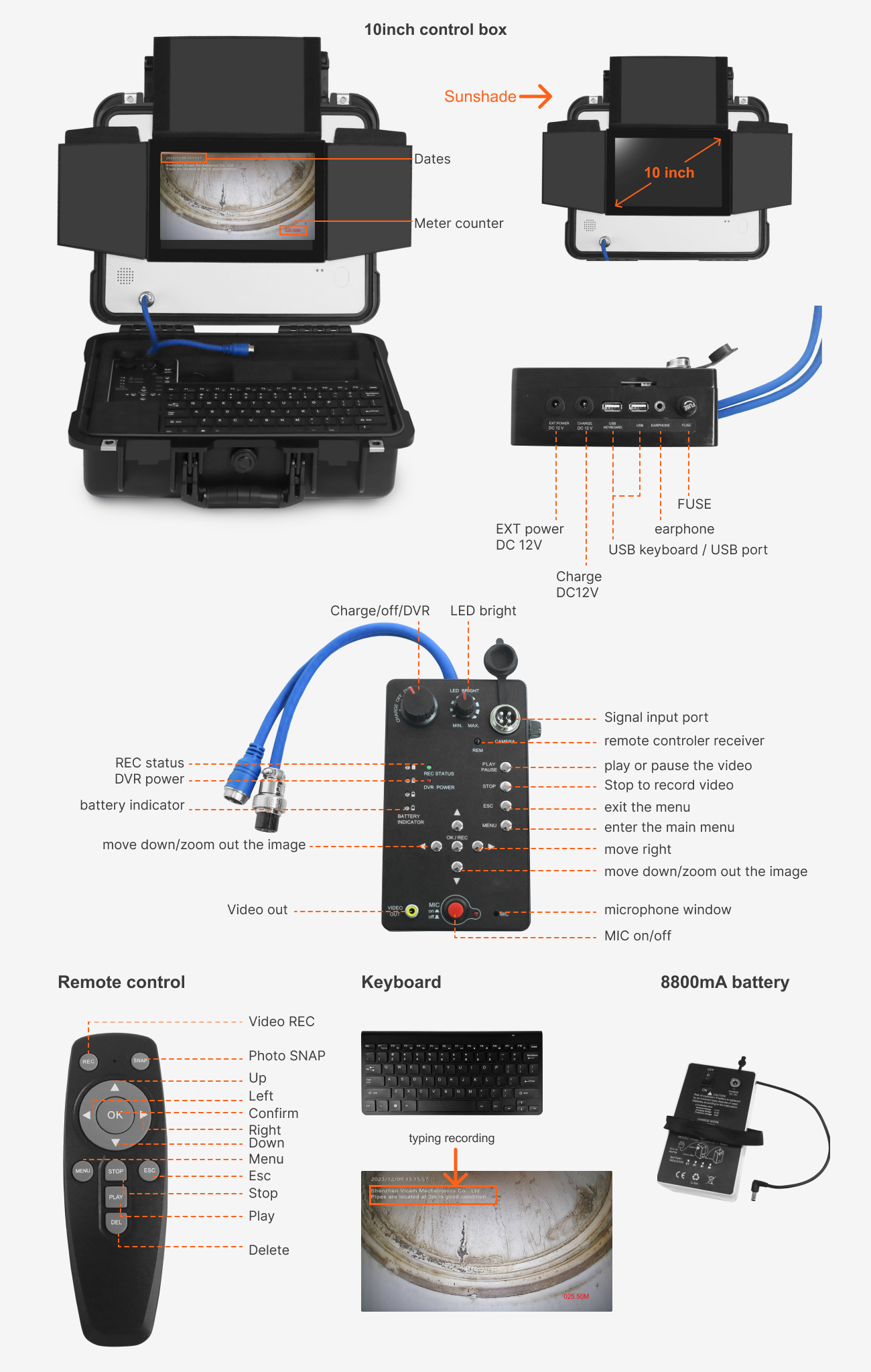

Main Part 2: DVR control unit
|
Screen Size |
10"HD IPS LCD Screen |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
Digital meter counter |
|
Battery |
8800mA rechargeable Li-ion Battery Pack/Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |

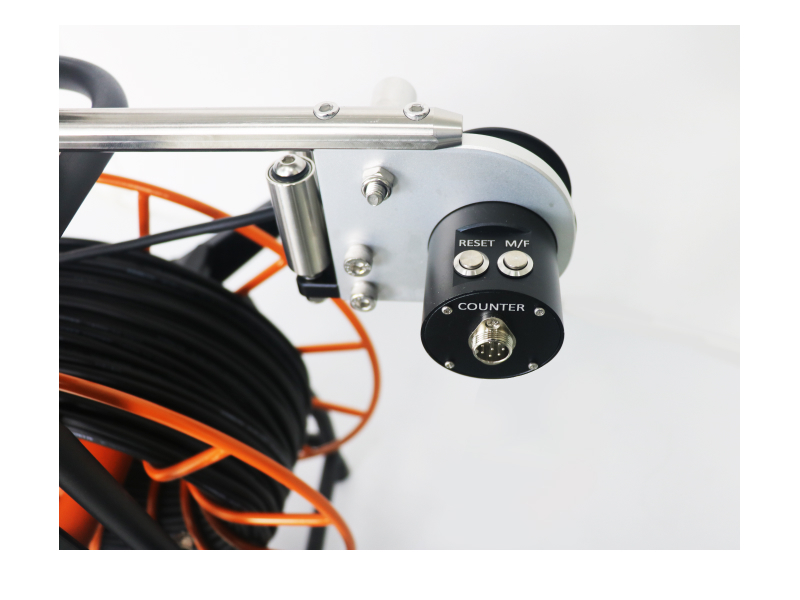

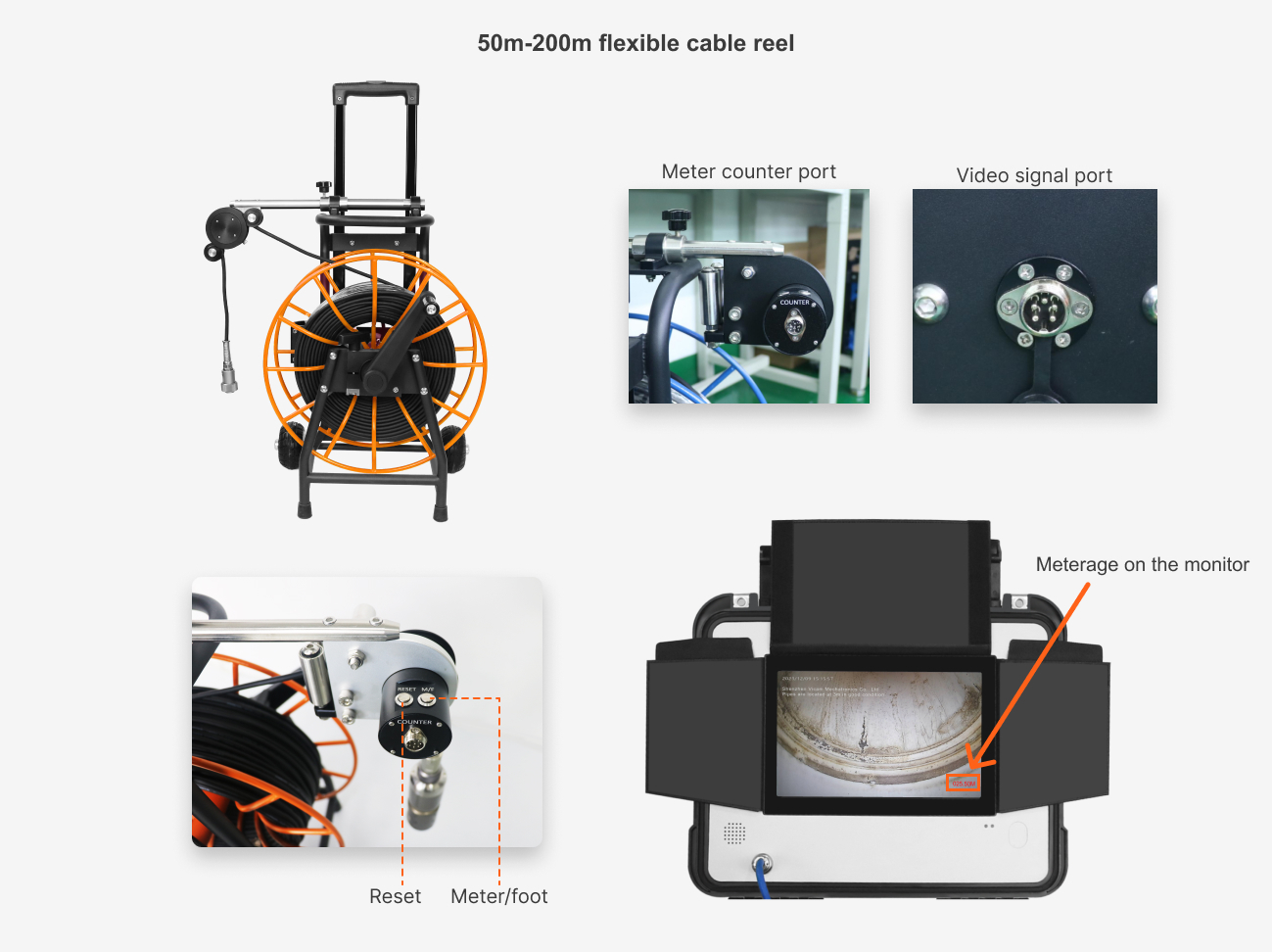

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
Oxygen free copper flexible cable |
|
Cable diameter |
6.8mm |
|
Cable length |
50m-200m |
|
Electric winding |
|
|
Winding speed |
|
|
Power supply |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
