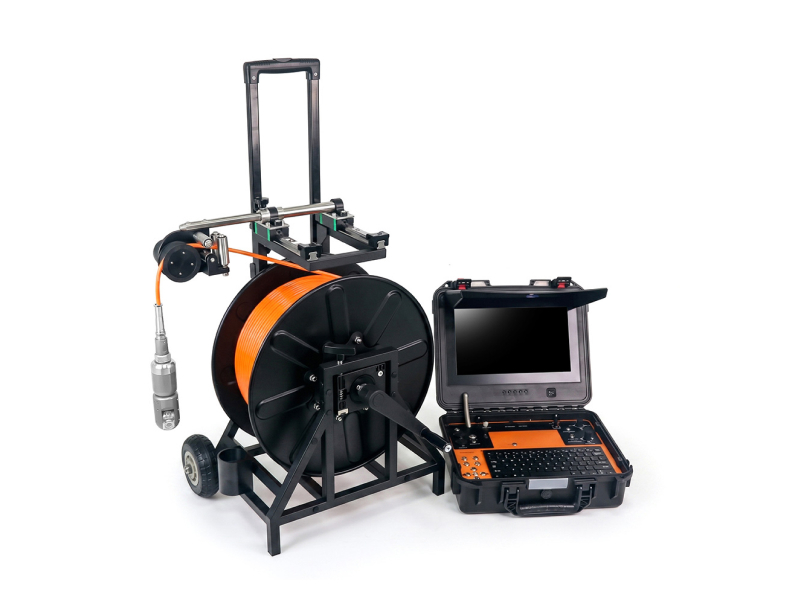

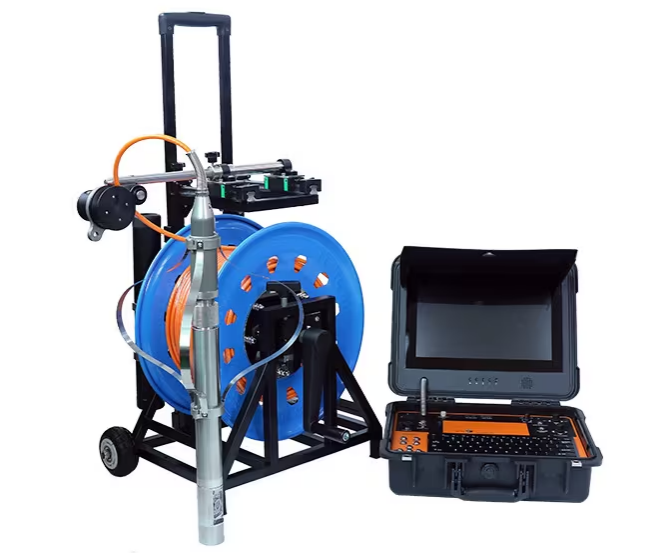

45mm Dual-View Camera with 13inch Control Box & Motorized Cable Reel
Engineered for deep-well and subsea inspection, this 45mm camera features dual (side/down) rotation for full-coverage surveillance. Paired with a motorized cable reel, it ensures high-definition clarity and rugged reliability in demanding environments.
Product Detail
Engineered for deep-well and subsea inspection, this 45mm camera features dual (side/down) rotation for full-coverage surveillance. Paired with a motorized cable reel, it ensures high-definition clarity and rugged reliability in demanding environments.
| Dia.45mm dual (side/down) camera |
| 1/3 CMOS,2.0MP pilex AHD , waterproof IP68 |
| Adjustable focus function |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
|

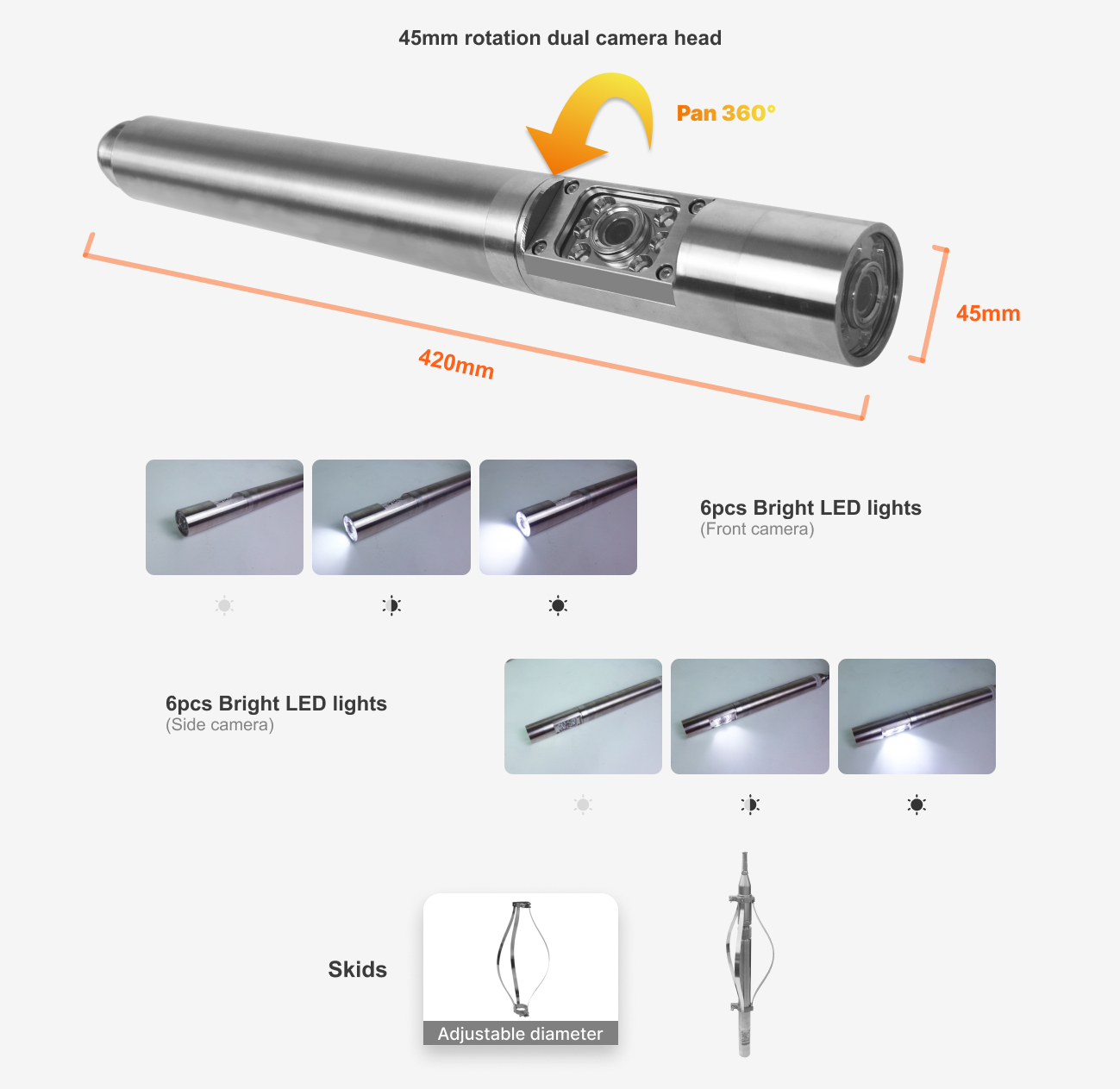

Camera size |
45mm x 420mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
Manual focus for side camera |
|
Rotation range |
Rotation: Pan 360°， Tilt 180° |
|
Light |
6pcs high light LED lighting adjustable (side & down camera) |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Oxygen free copper flexible cable |
|

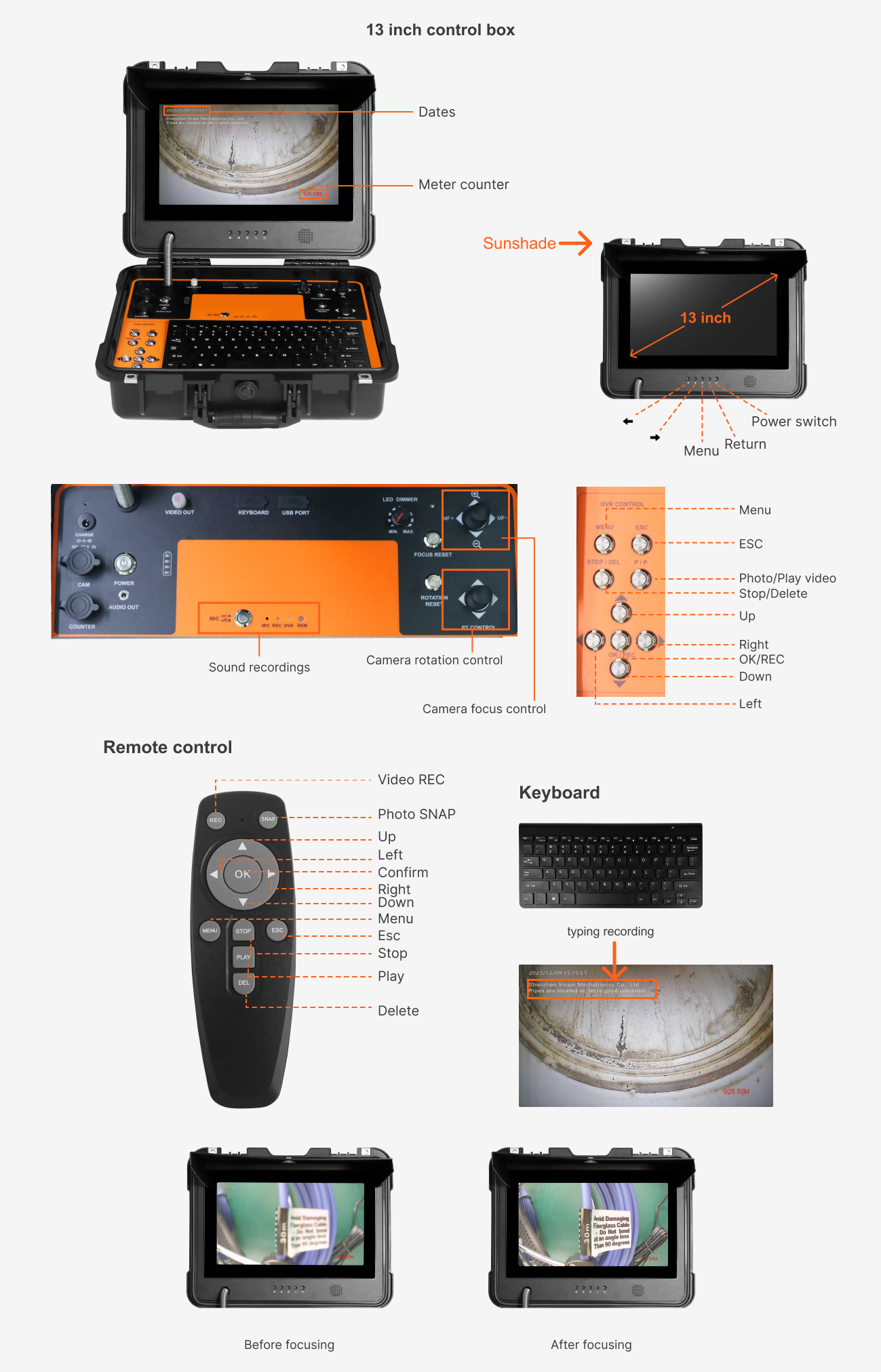

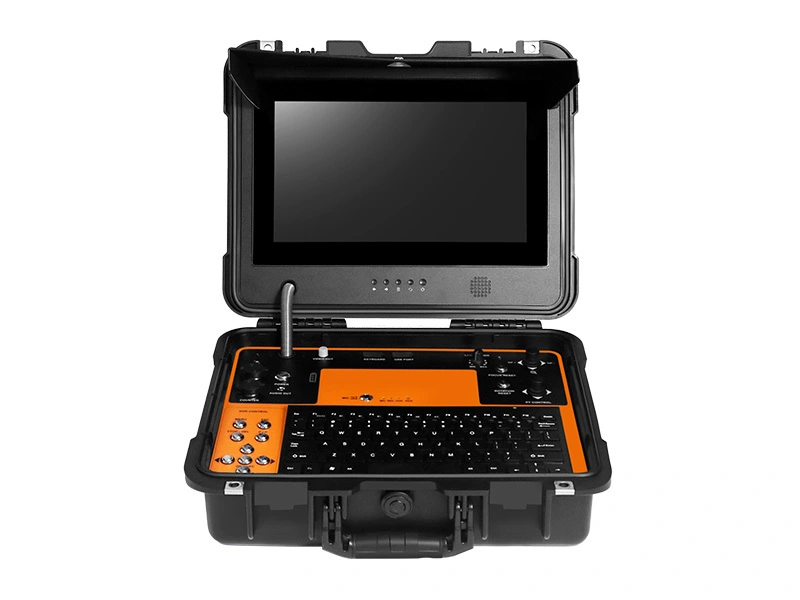

Screen Size |
13"HD IPS LCD Screen, 1980x1080 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|

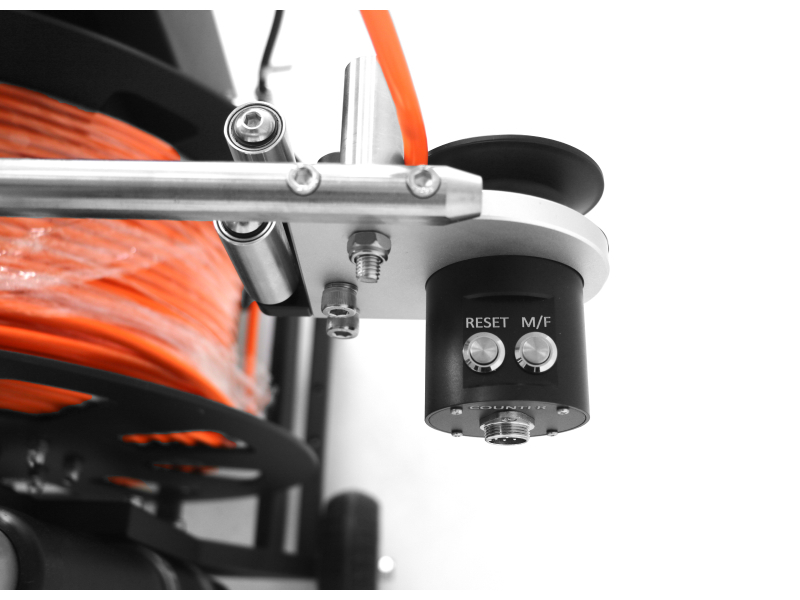

Meter counter |
Digital meter counter |
|
Battery |
8800mA rechargeable Li-ion Battery Pack |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
Through WIFI wireless transmit video to Android, Apply OS or MID terminal |
|
Meter counter |
Digital meter counter |
|
Material |
Oxygen free copper flexible cable |
|
Cable diameter |
8mm |
|
Cable length |
100m-300m |
|

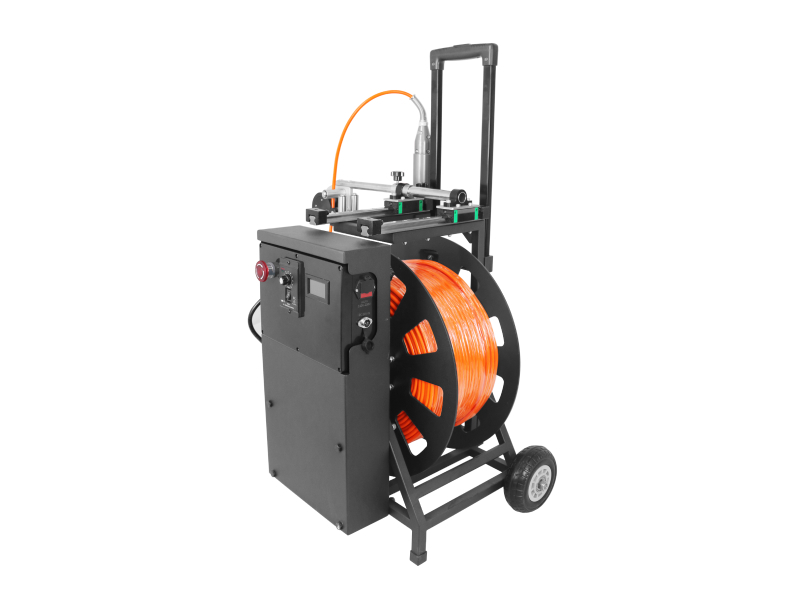

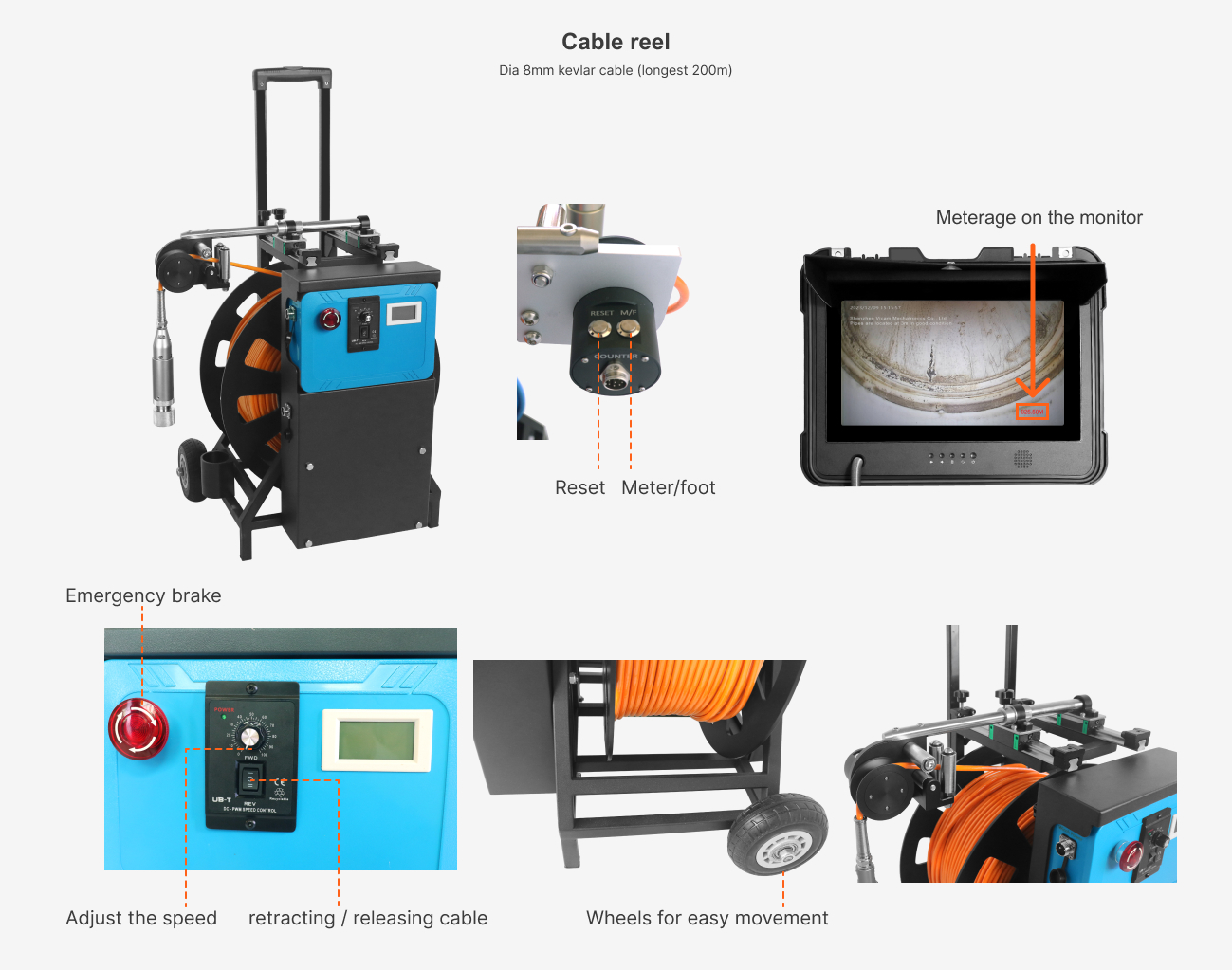

Electric winding |
Adjustable spee |
|
Winding speed |
/ |
|
Power supply |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
