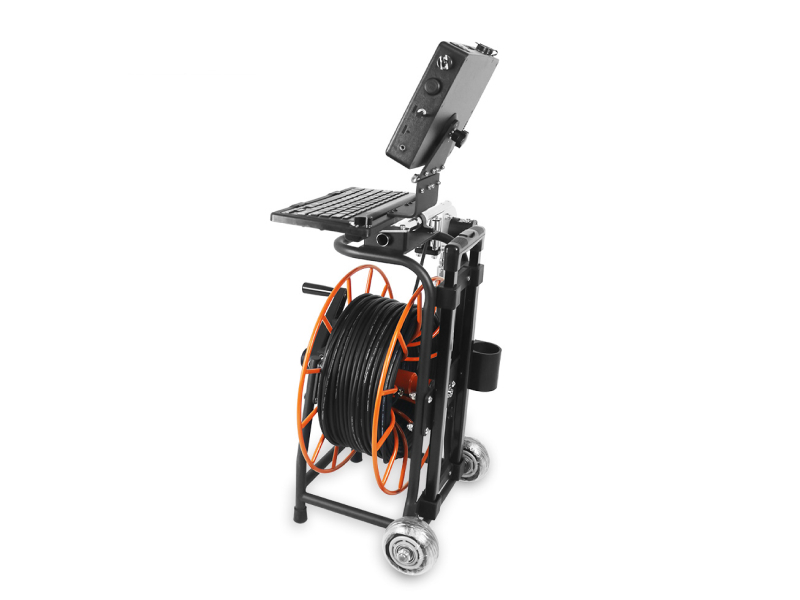

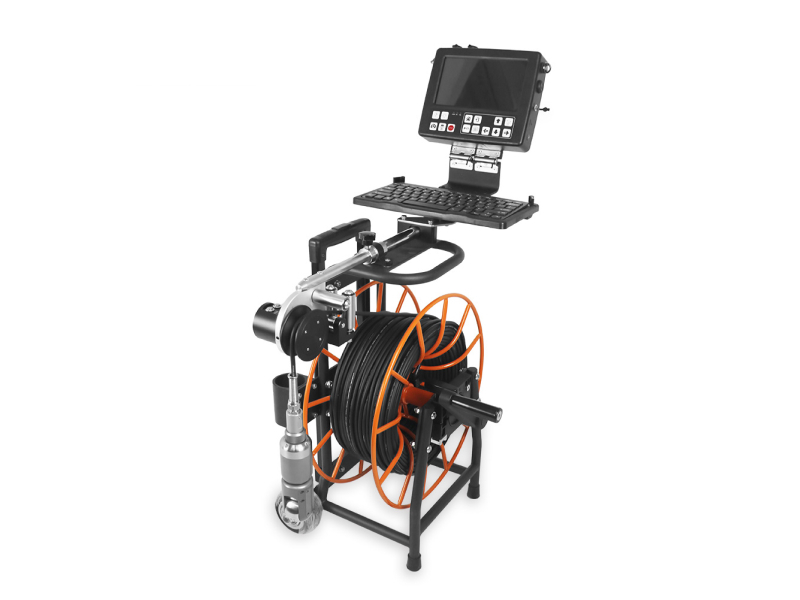

50mm Dual-Axis Pan-Tilt Rotation Well & Pipe Camera with 100-200m-Cable
Designed for comprehensive pipeline diagnostic mapping, this 50mm HD Pan-Tilt Pipe Inspection Camera offers an unobstructed $360^{\circ}$ panoramic view of deep water networks. Equipped with an industrial-grade 100-meter push rod/cable and a heavy-duty dual-axis rotation camera head, it delivers crystal-clear high-definition imaging across hard-to-reach municipal mains and deep wells, making it an indispensable asset for proactive utility maintenance.
Product Detail
Designed for comprehensive pipeline diagnostic mapping, this 50mm HD Pan-Tilt Pipe Inspection Camera offers an unobstructed $360^{\circ}$ panoramic view of deep water networks. Equipped with an industrial-grade 100-meter push rod/cable and a heavy-duty dual-axis rotation camera head, it delivers crystal-clear high-definition imaging across hard-to-reach municipal mains and deep wells, making it an indispensable asset for proactive utility maintenance.
| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS,2.0MP pilex FHD , waterproof IP68 |
| Adjustable focus function |
| 8 inch IPS lcd screen, 1980x1080 resolution |

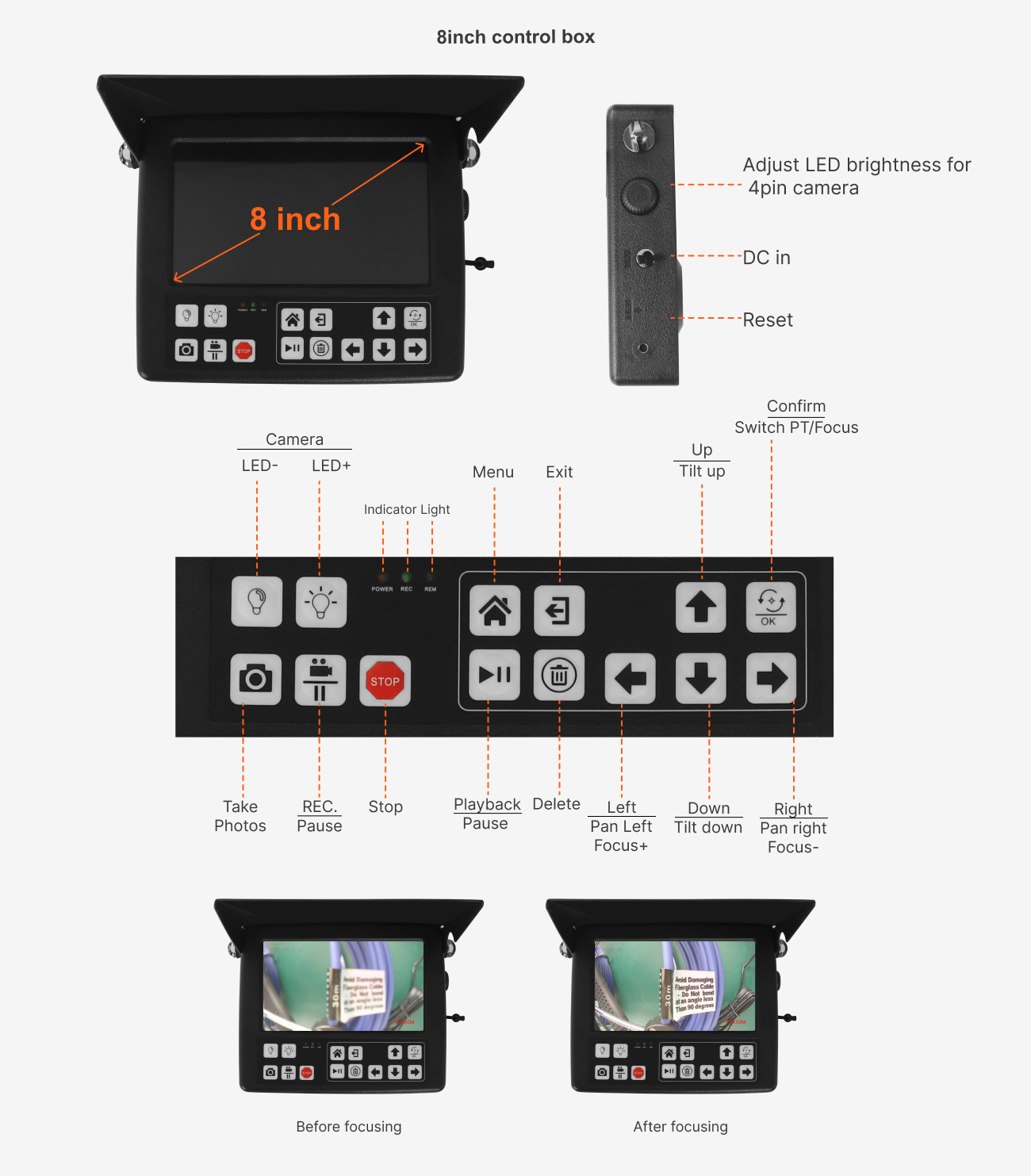

| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| USB wireless keyboard to typewrite the words |
|

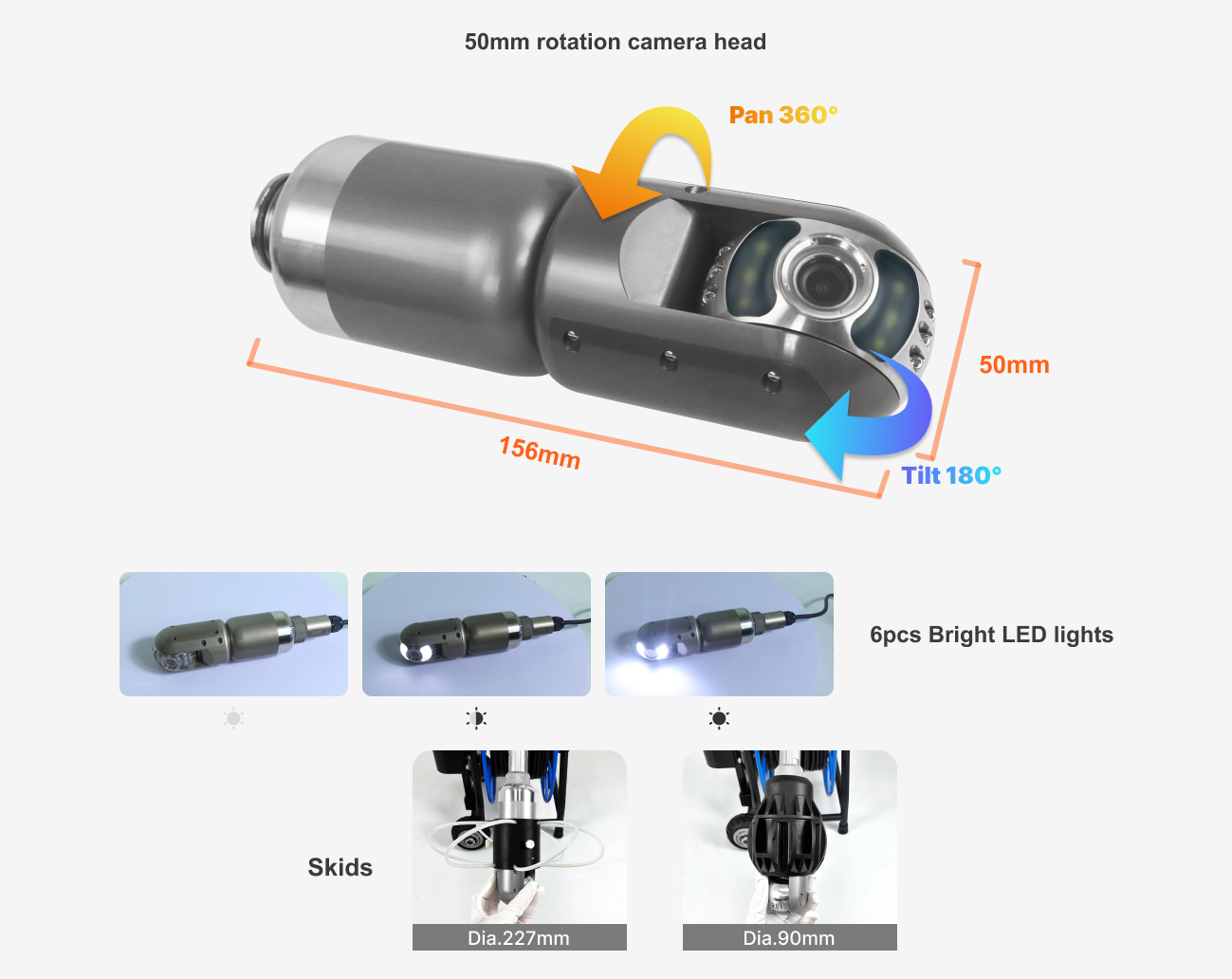

Camera size |
50mm x 154mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
Manual focus manually |
|
Rotation range |
Rotation: Pan 360°， Tilt 180° |
|
Light |
6pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Oxygen free copper flexible cable |
|

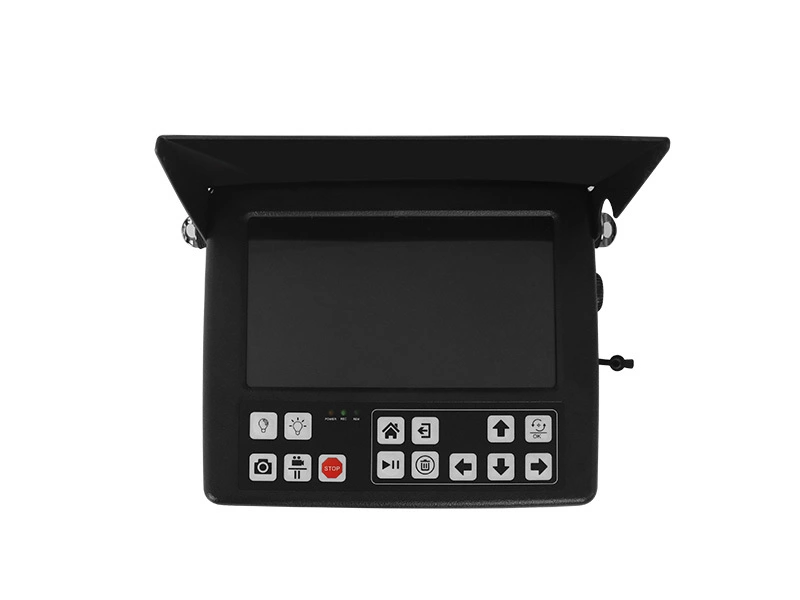

Screen Size |
8"HD IPS LCD Screen, 1980x1080 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack |
|
On-screen |
Depth in meters |
|
Built in WIFI transmitter |
|
Meter counter |
Digital meter counter |
|
Material |
Oxygen free copper flexible cable |
|
Cable diameter |
8mm |
|

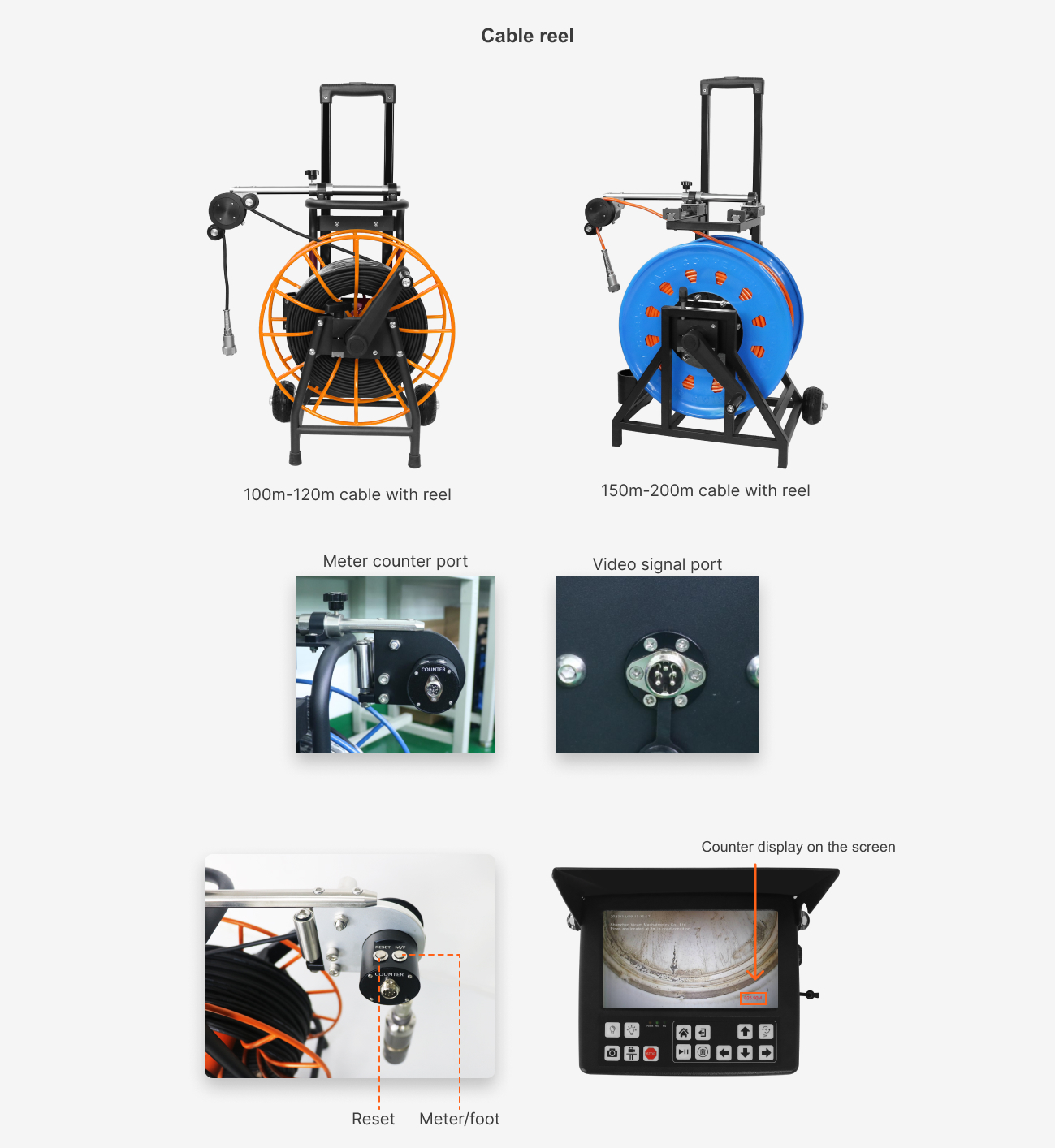

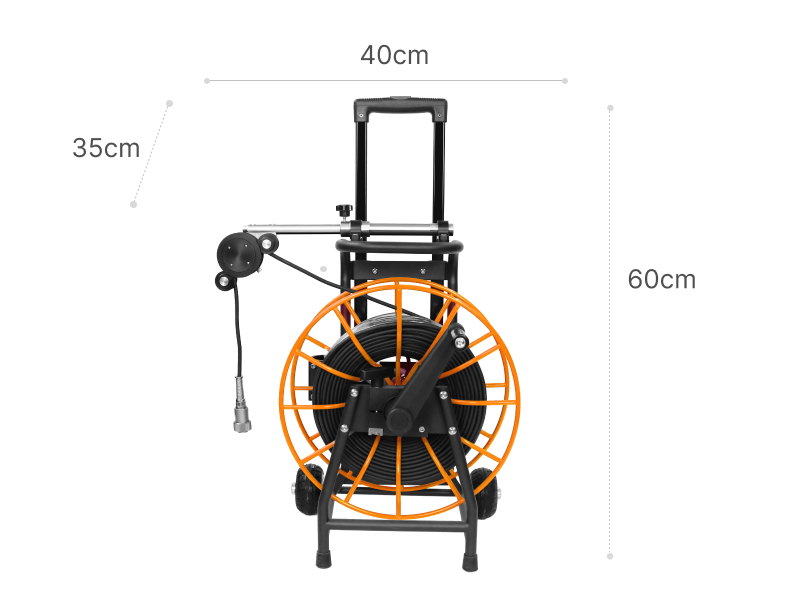

Cable length |
100m-200m |
|
Electric winding |
Adjustable speed |
|
Winding speed |
Adjustable speed |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
