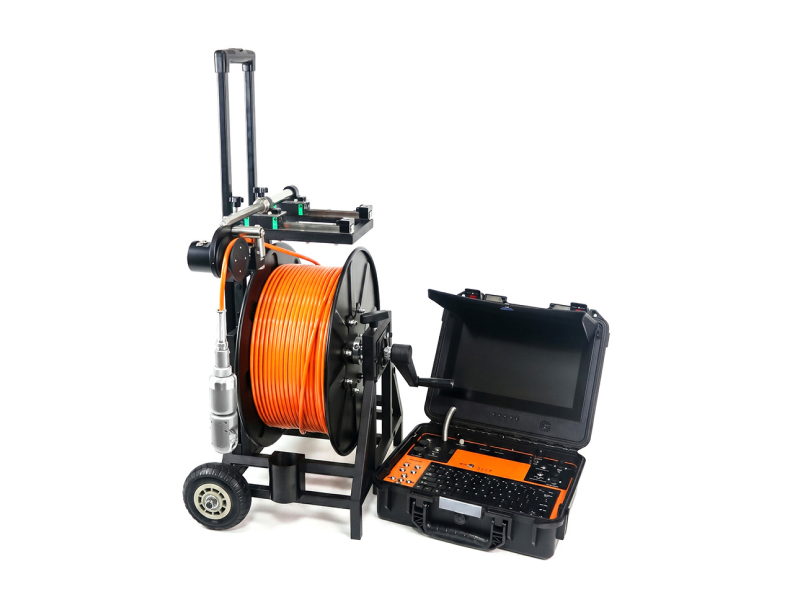

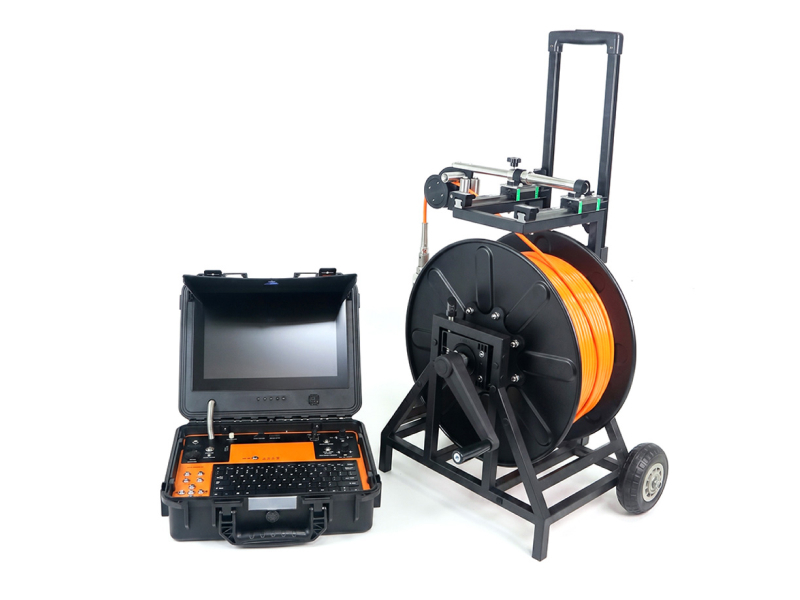

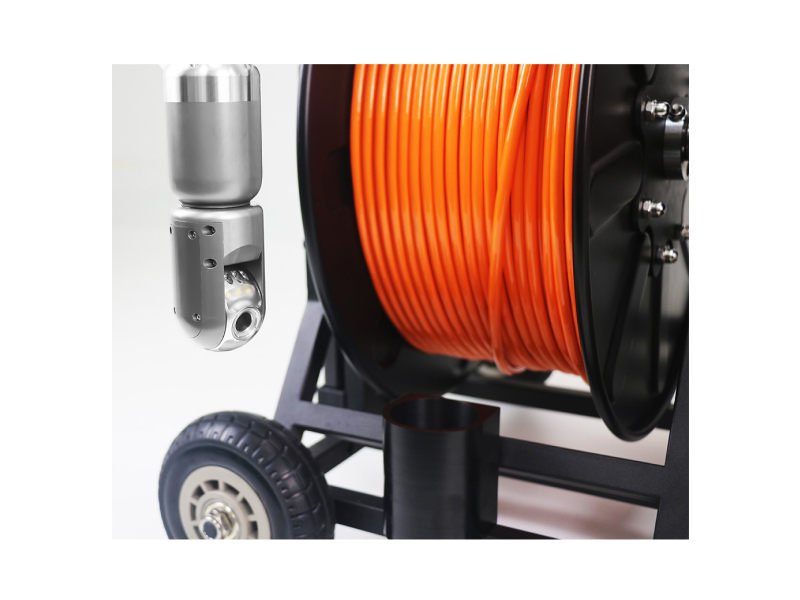

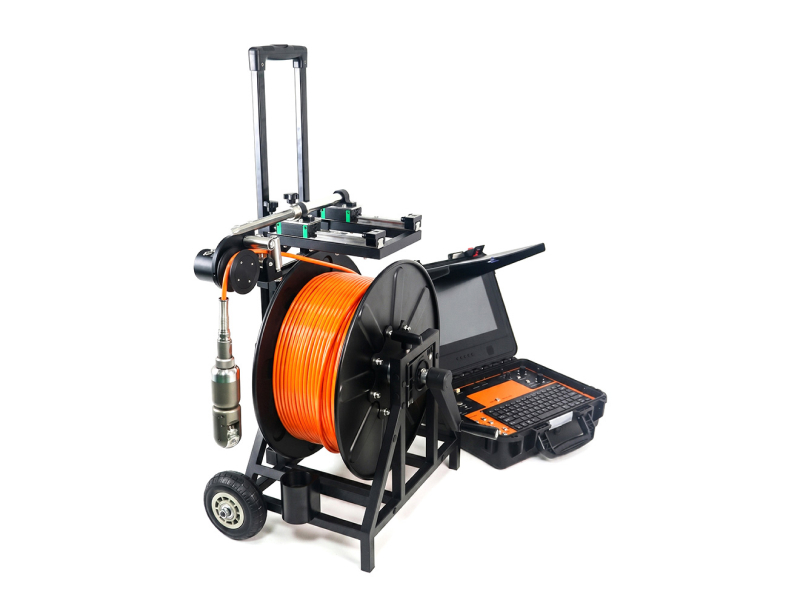

50mm AHD 360 Degree View Pan Tilt Water Well Inspection Camera 100m-200m
The 50mm AHD 360° Pan-Tilt Water Well Inspection System (100m–200m) represents the benchmark in sub-surface diagnostics, purpose-built for rigorous water well and borehole evaluations. Leveraging a dynamic 360-degree panoramic pan-tilt mechanism and specialized high-pressure waterproofing, it enables operators to conduct exhaustive, high-fidelity visual audits of deep well casing interiors. This specialized tool transforms complex downhole data into actionable insights, streamlining critical decision-making for rehabilitation, well-cleaning, and structural repairs.
Product Detail
The 50mm AHD 360° Pan-Tilt Water Well Inspection System (100m–200m) represents the benchmark in sub-surface diagnostics, purpose-built for rigorous water well and borehole evaluations. Leveraging a dynamic 360-degree panoramic pan-tilt mechanism and specialized high-pressure waterproofing, it enables operators to conduct exhaustive, high-fidelity visual audits of deep well casing interiors. This specialized tool transforms complex downhole data into actionable insights, streamlining critical decision-making for rehabilitation, well-cleaning, and structural repairs.
| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS,2.0MP pilex FHD , waterproof IP68 |
| Adjustable focus function |

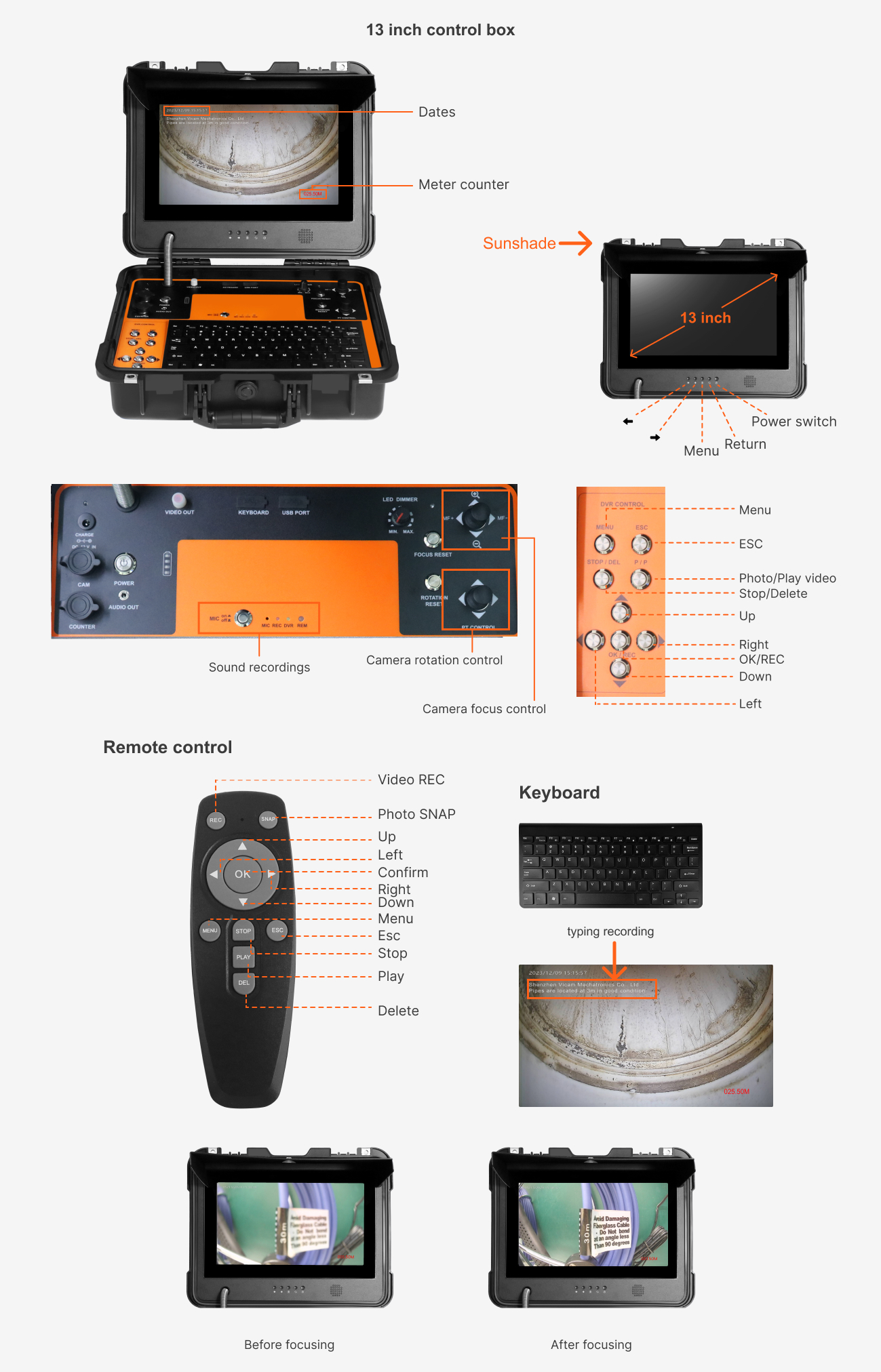

| 13 inch IPS lcd screen, 1980x1080 resolution |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |
|

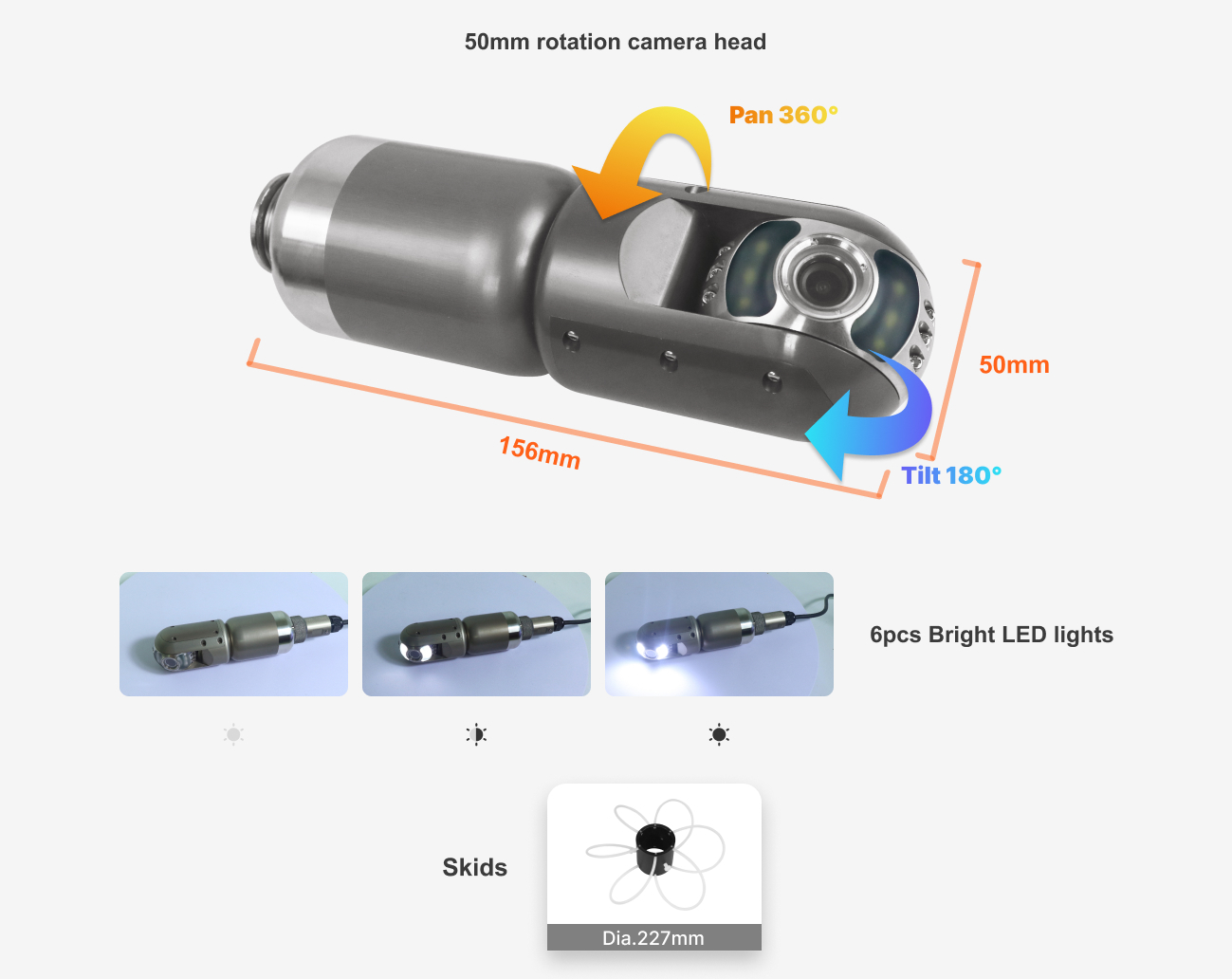

Camera size |
50mm x 154mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
Manual focus manually |
|
Rotation range |
Rotation: Pan 360°， Tilt 180° |
|
Light |
6pcs high light LED lighting adjustable |
|

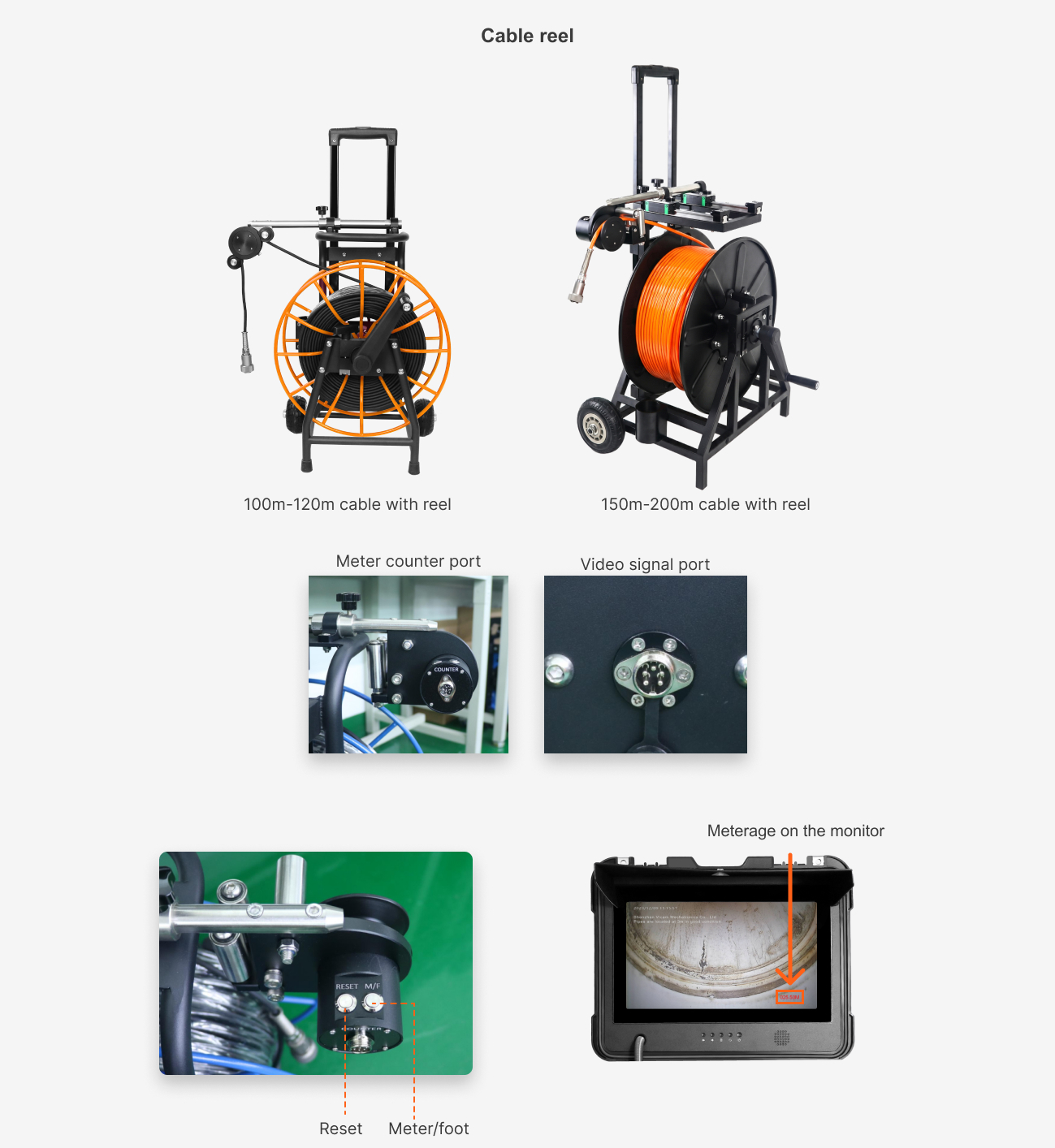

Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Oxygen free copper flexible cable |
|
Screen Size |
13"HD IPS LCD Screen, 1980x1080 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
Digital meter counter |
|
Battery |
8800mA rechargeable Li-ion Battery Pack |
|
On-screen |
Meter counter |
|
Built in WIFI transmitter |
/ |
|
Meter counter |
Digital meter counter |
|
Material |
Oxygen free copper flexible cable |
|
Cable diameter |
8mm |
|
Cable length |
100m-200m |
|
Electric winding |
Adjustable spee |
|
Winding speed |
|
|
Power supply |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
