29mm AHD 10inch waterproof Inspection Camera
The 29mm AHD 10-inch Waterproof Inspection Camera is a professional-grade diagnostic system engineered for precision pipe, wall, and void inspections. Featuring a ruggedized, high-definition camera head and a fully waterproof design, it is the ideal solution for demanding plumbing, construction, and industrial maintenance environments. Equipped with a vibrant 10-inch monitor, it allows operators to effortlessly review real-time, crystal-clear footage and capture detailed imagery for comprehensive structural assessments.
Product Detail
The 29mm AHD 10-inch Waterproof Inspection Camera is a professional-grade diagnostic system engineered for precision pipe, wall, and void inspections. Featuring a ruggedized, high-definition camera head and a fully waterproof design, it is the ideal solution for demanding plumbing, construction, and industrial maintenance environments. Equipped with a vibrant 10-inch monitor, it allows operators to effortlessly review real-time, crystal-clear footage and capture detailed imagery for comprehensive structural assessments.

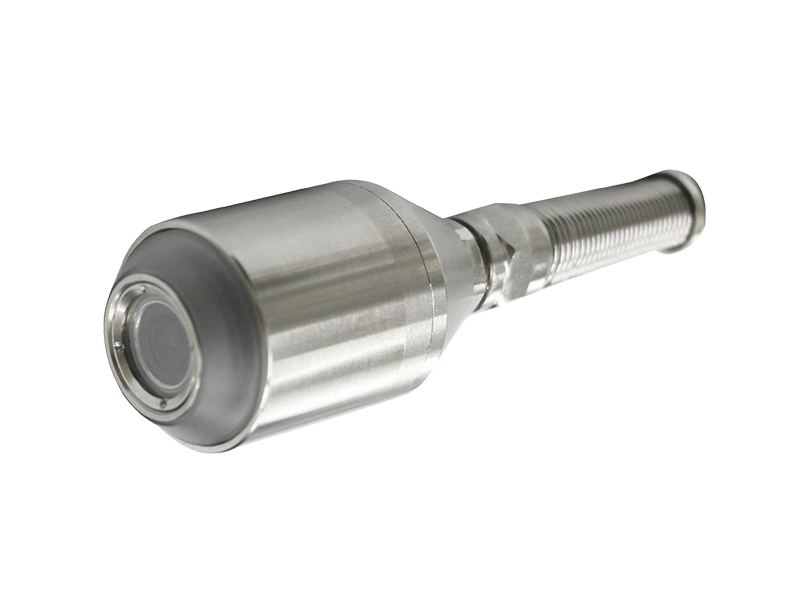

| 29mm AHD camera head, sensor 1/3" CMOS ,1.3MP pixel |
| Φ6.8mm x 100m flexible cable with depth counter function |
| 32G USB flash storage device |
| Video/audio recording & still image capture |
| 720P vidoe and AVI format |
| 8800mA li-ion battery pack |
| Keyboard for real time typewriting |
|

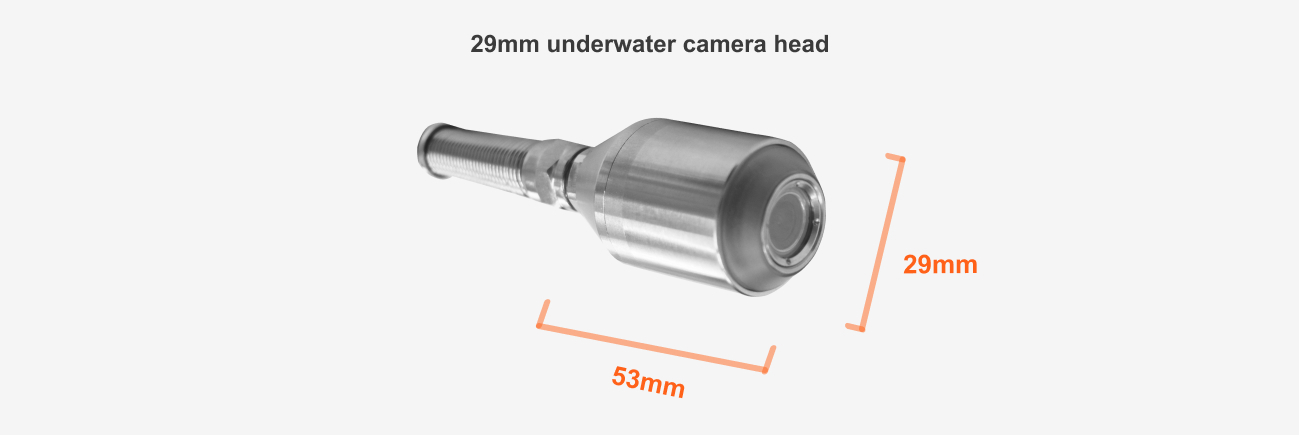

Camera size |
29mm x 53mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
/ |
|
Rotation range |
View range 120° |
|
Light |
12pcs high light LED lighting adjustable |
|
Connector |
Detachable with pins type connection to Cable Reel |
|
Material |
Oxygen free copper flexible cable |
|

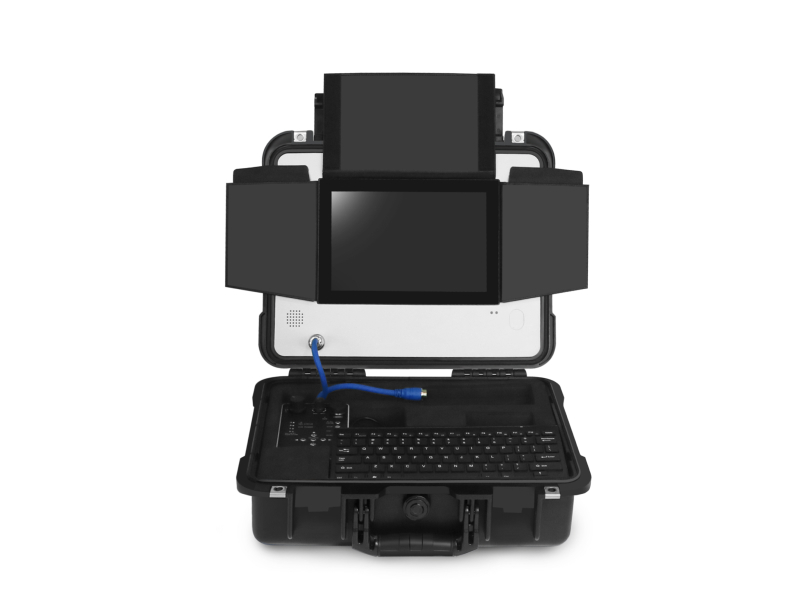

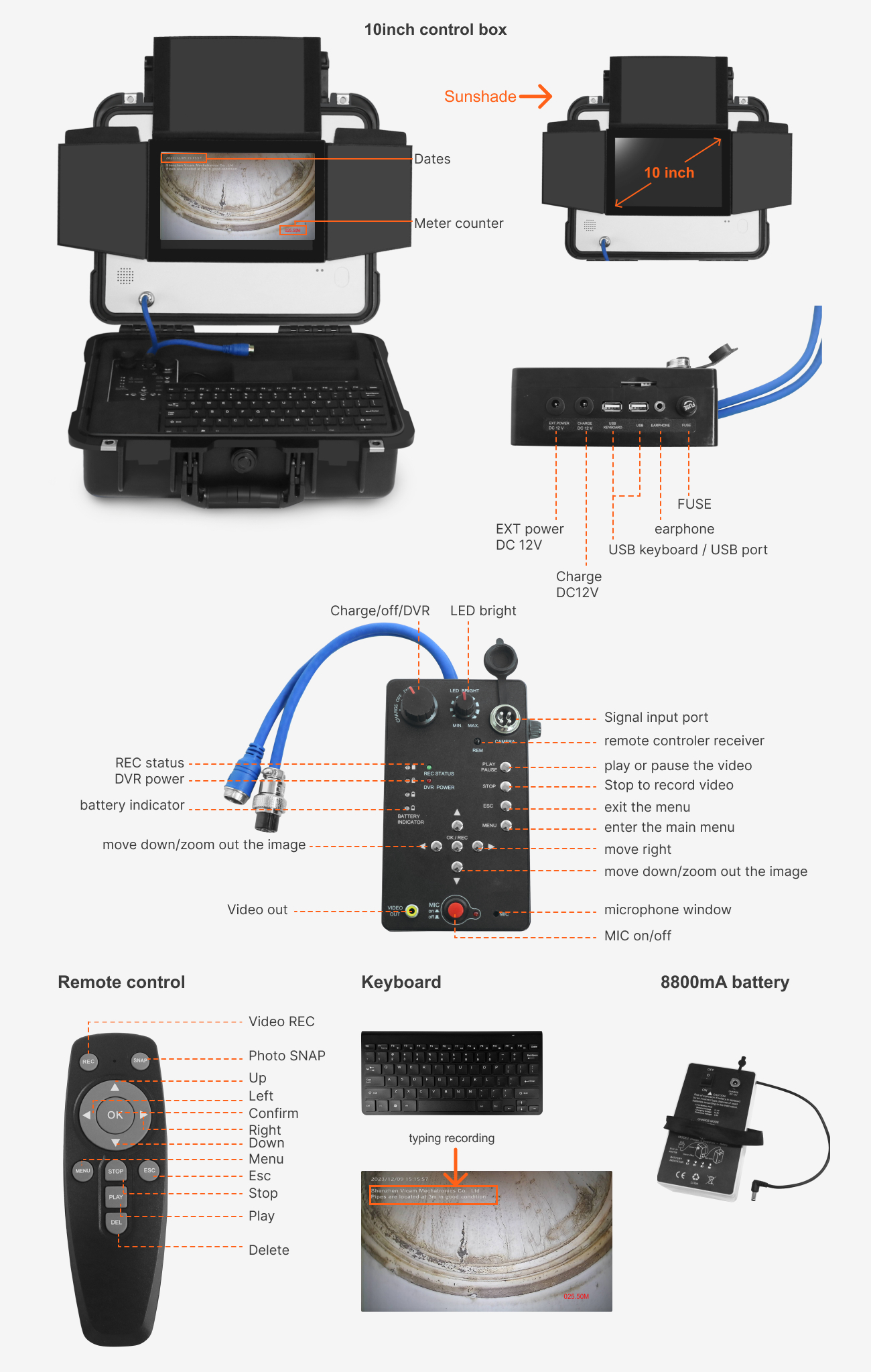

Screen Size |
10"HD IPS LCD Screen |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|

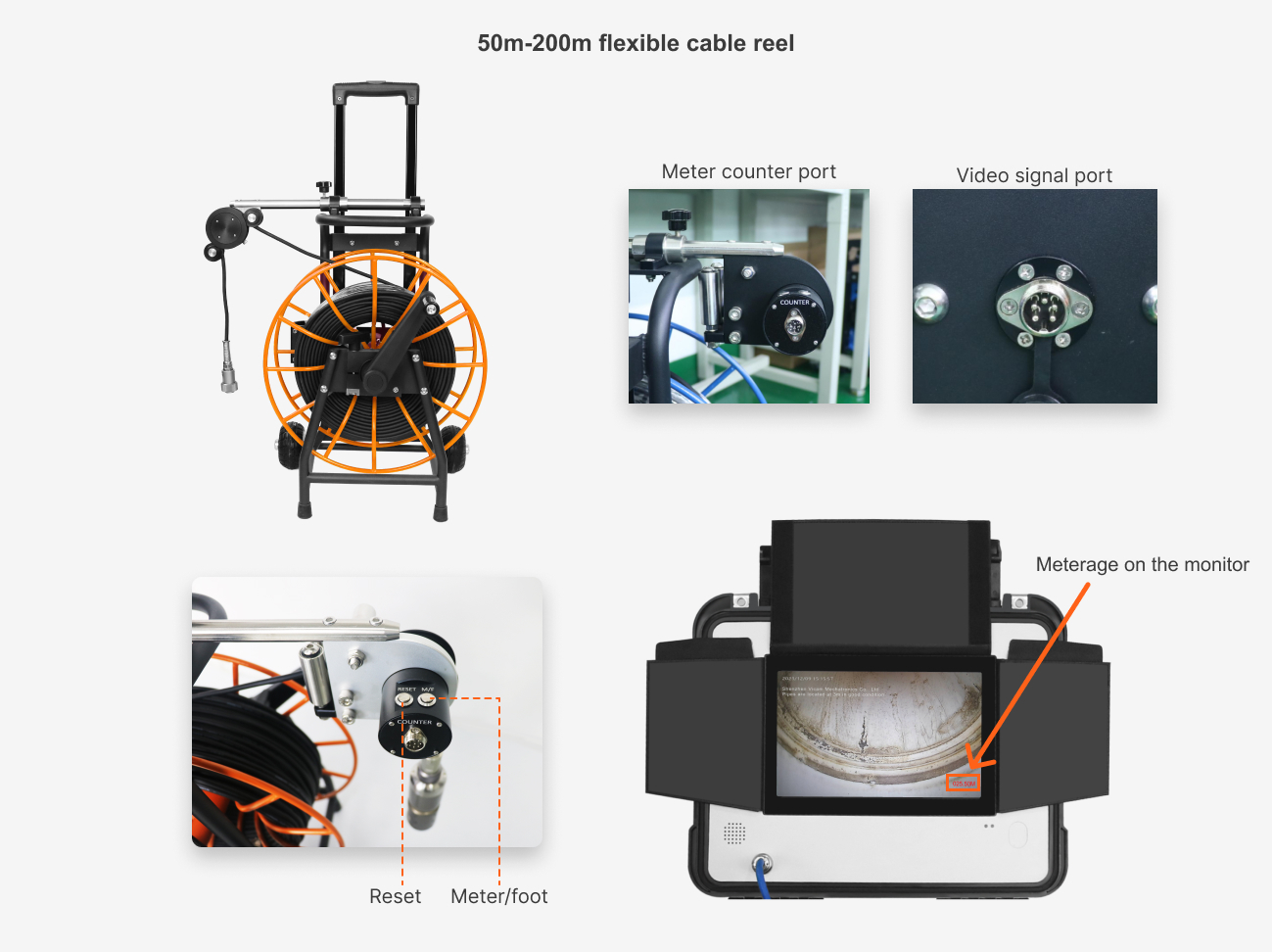

Meter counter |
Digital meter counter |
|
Battery |
8800mA rechargeable Li-ion Battery Pack |
|
On-screen |
Meter counter |
|
Built in WIFI transmitter |
/ |
|
Meter counter |
Digital meter counter |
|
Material |
Oxygen free copper flexible cable |
|
Cable diameter |
6.8mm |
|

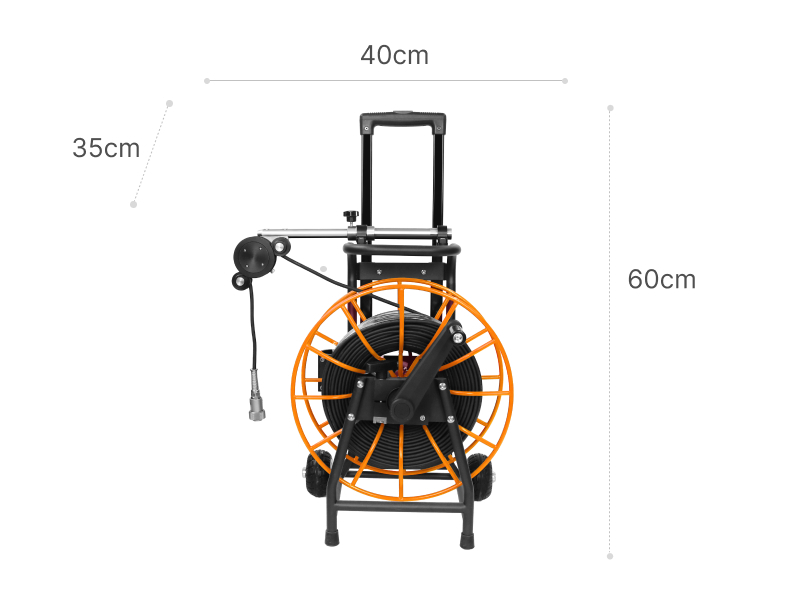

Cable length |
50m-100m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
