33mm Pan Tilt AHD Pipe Inspection Camera Manual Focus 360° Rotation Push Camera (60m-150m)
Engineered for precision and built for demanding environments, this 33mm AHD Push Pipe Camera delivers crystal-clear high-definition visuals across extensive distances from 60m up to 150m. Featuring a highly agile 360-degree Pan & Tilt rotation and crisp manual focus capabilities, it empowers technicians to capture every intricate detail inside complex pipeline networks. Its streamlined, compact architecture ensures seamless navigation through tight bends, making it the ultimate professional solution for comprehensive sewer and drainage diagnostics.
Product Detail
Engineered for precision and built for demanding environments, this 33mm AHD Push Pipe Camera delivers crystal-clear high-definition visuals across extensive distances from 60m up to 150m. Featuring a highly agile 360-degree Pan & Tilt rotation and crisp manual focus capabilities, it empowers technicians to capture every intricate detail inside complex pipeline networks. Its streamlined, compact architecture ensures seamless navigation through tight bends, making it the ultimate professional solution for comprehensive sewer and drainage diagnostics.
Overview of 33mm Pan Tilt Sewer Camera
| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS, 2.0MP pilex FHD , waterproof IP68 |
| Adjustable focus function |
| 13 inch IPS lcd screen, 1980x1080 resolution |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |

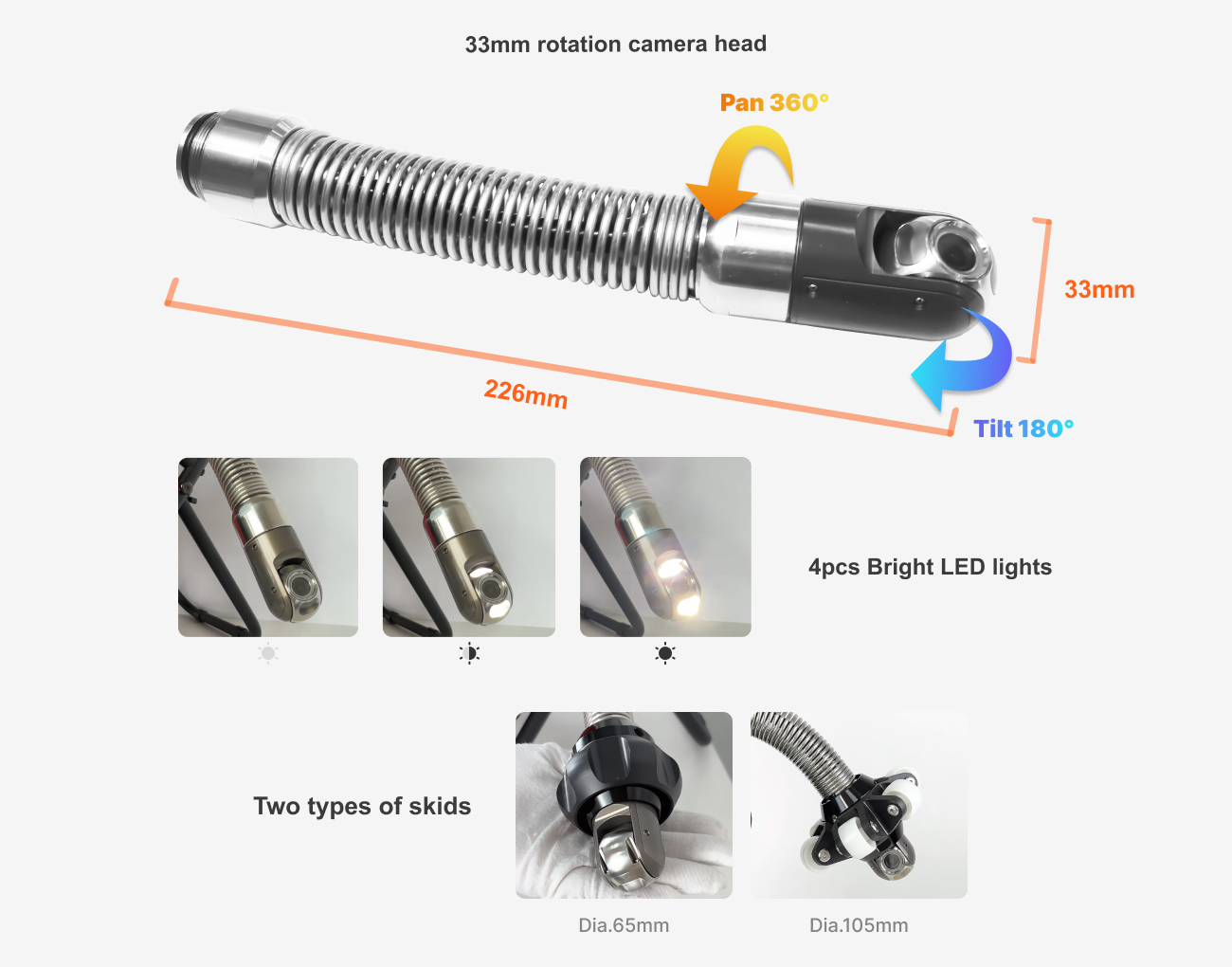

Main Part 1: 33mm Pan Tilt rotation camera head
|
Camera size |
33 x 72mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
Manual focus manually |
|
Rotation range |
Rotation: Pan 360°， Tilt 180° |
|
Light |
4pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |

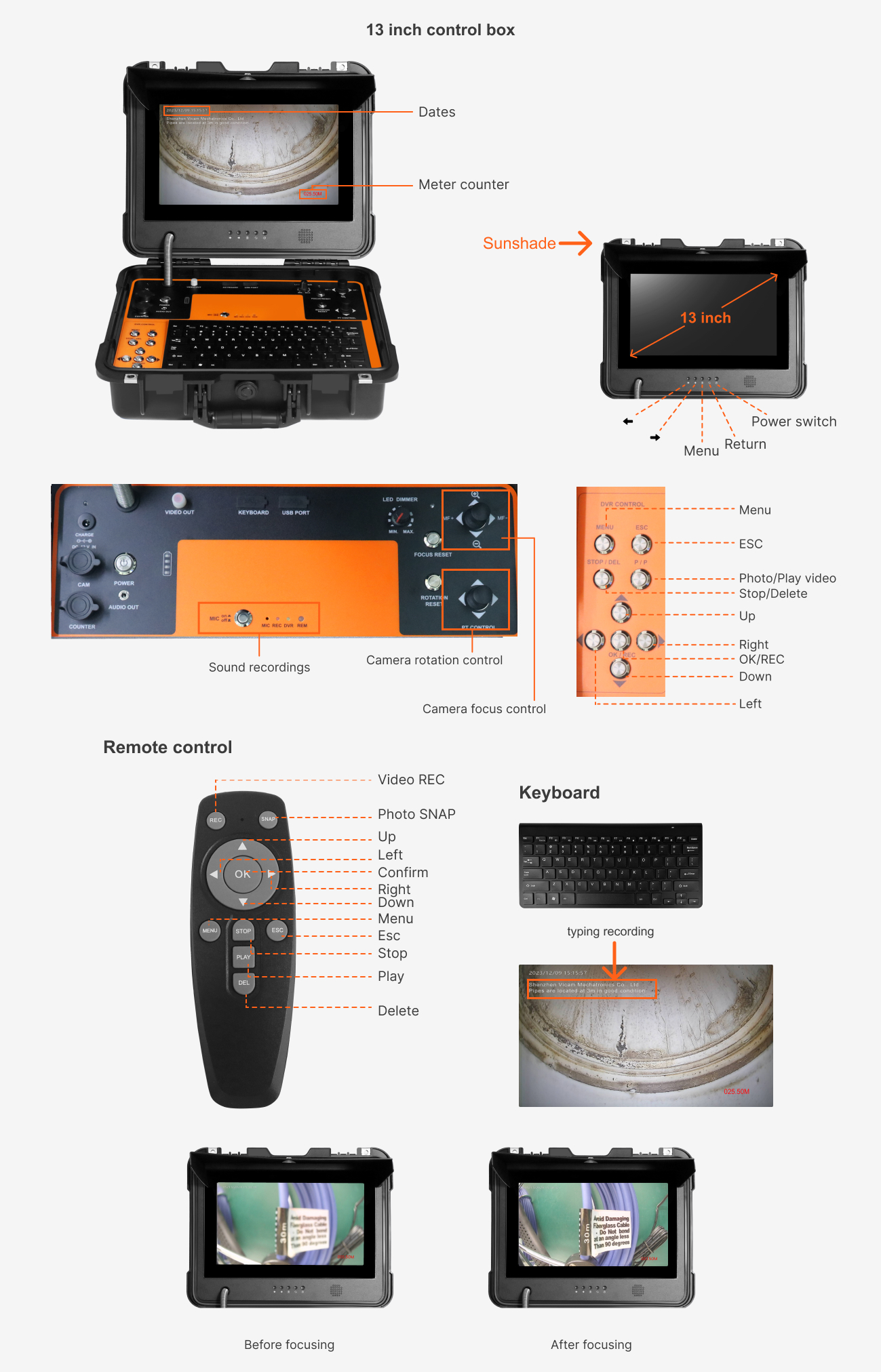

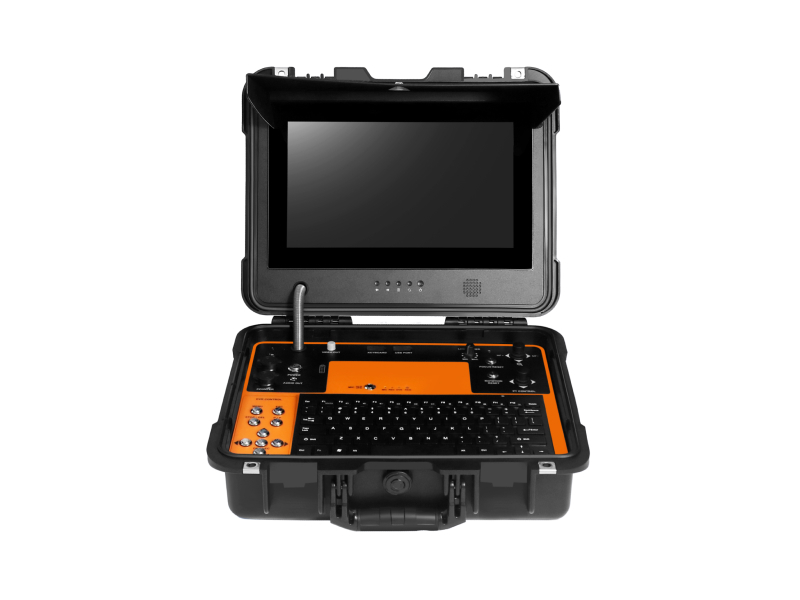

Main Part 2: DVR control unit
|
Screen Size |
13"HD IPS LCD Screen, 1980x1080 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
Digital meter counter |
|
Battery |
8800mA rechargeable Li-ion Battery Pack / Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

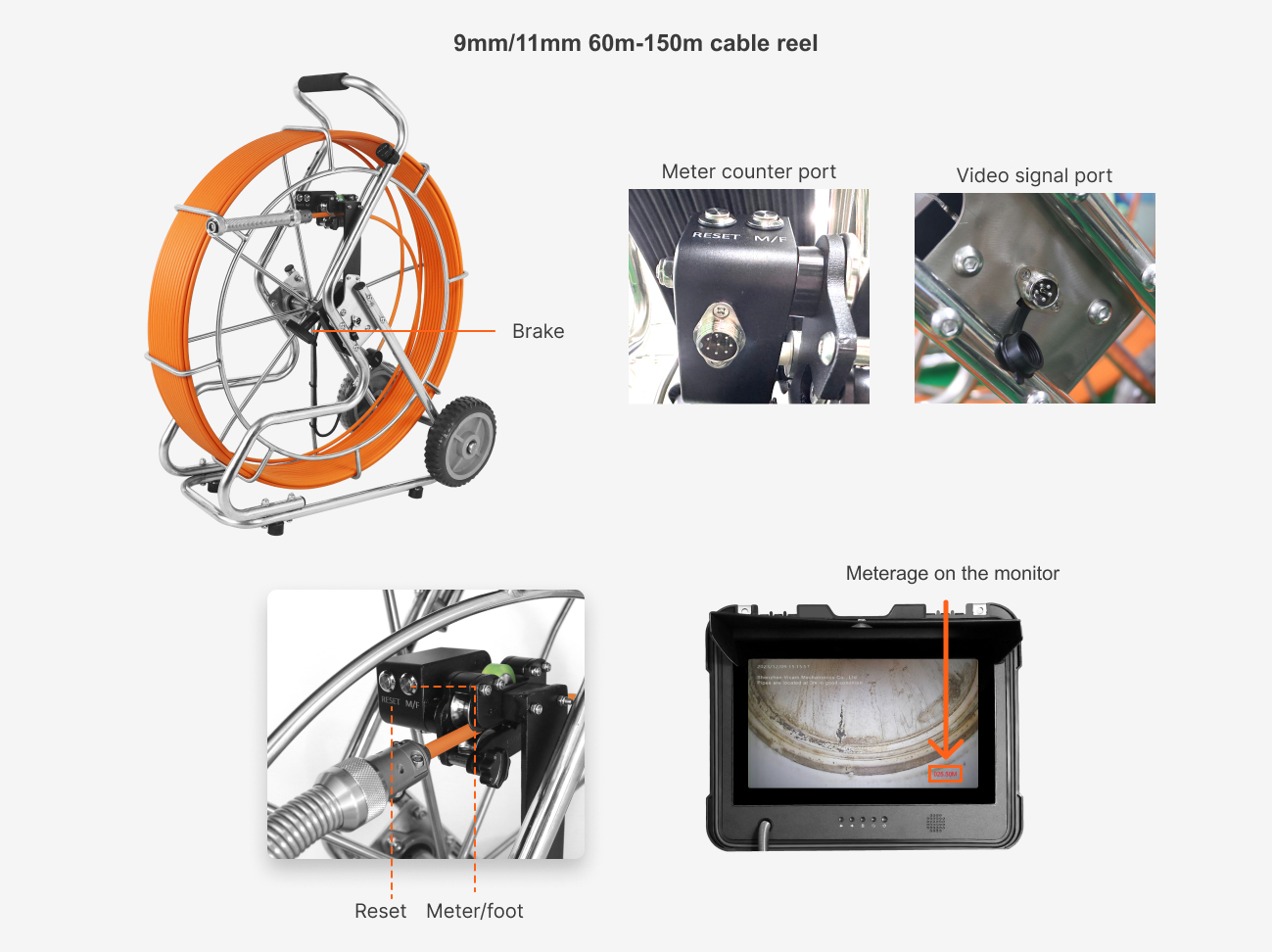

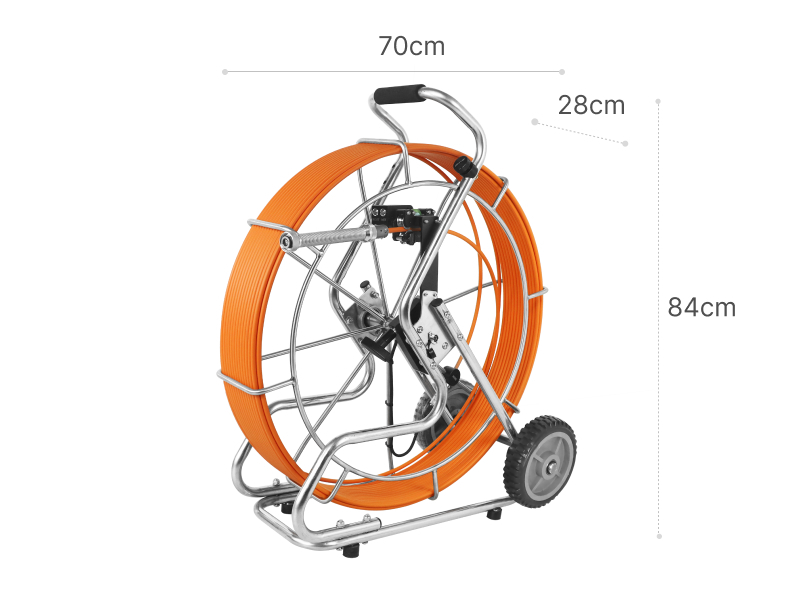

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
9mm / 11mm |
|
Cable length |
60m-150m |
|
Electric winding |
|
|
Winding speed |
|
|
Power supply |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
