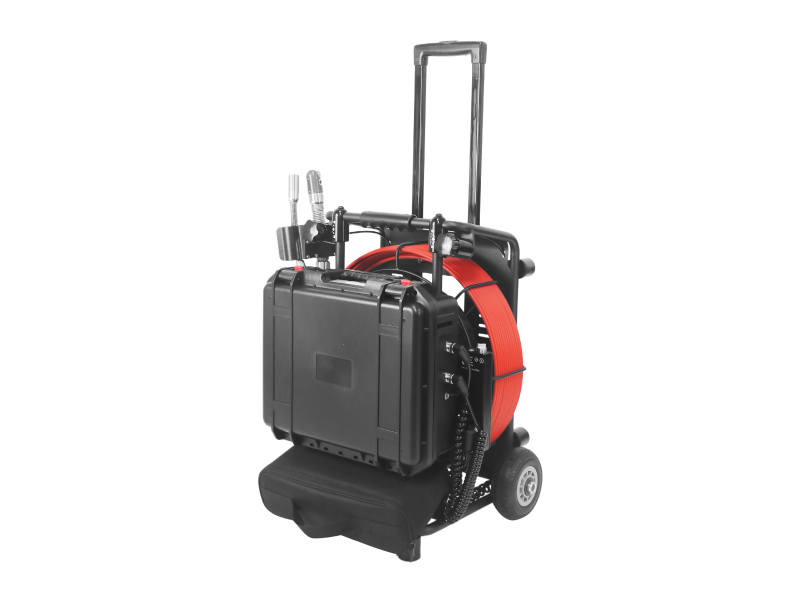

33mm Pan Tilt & 23mm Self Leveling Dual Camera Head Pipe System with Dual Cable Reel
The Dual Cable Reel Dual Camera Head Pan-Tilt Pipe Camera System is a premier industrial pipeline inspection solution featuring two specialized cameras on a remote-controlled pan-tilt mount to eliminate blind spots and deliver exceptional visual clarity. Engineered for demanding environments, the system utilizes dual cable reels to provide extended reach and an uninterrupted workflow, allowing operators to seamlessly switch tasks or deploy deeper lines for highly efficient inspections.
Product Detail
The Dual Cable Reel Dual Camera Head Pan-Tilt Pipe Camera System is a premier industrial pipeline inspection solution featuring two specialized cameras on a remote-controlled pan-tilt mount to eliminate blind spots and deliver exceptional visual clarity. Engineered for demanding environments, the system utilizes dual cable reels to provide extended reach and an uninterrupted workflow, allowing operators to seamlessly switch tasks or deploy deeper lines for highly efficient inspections.

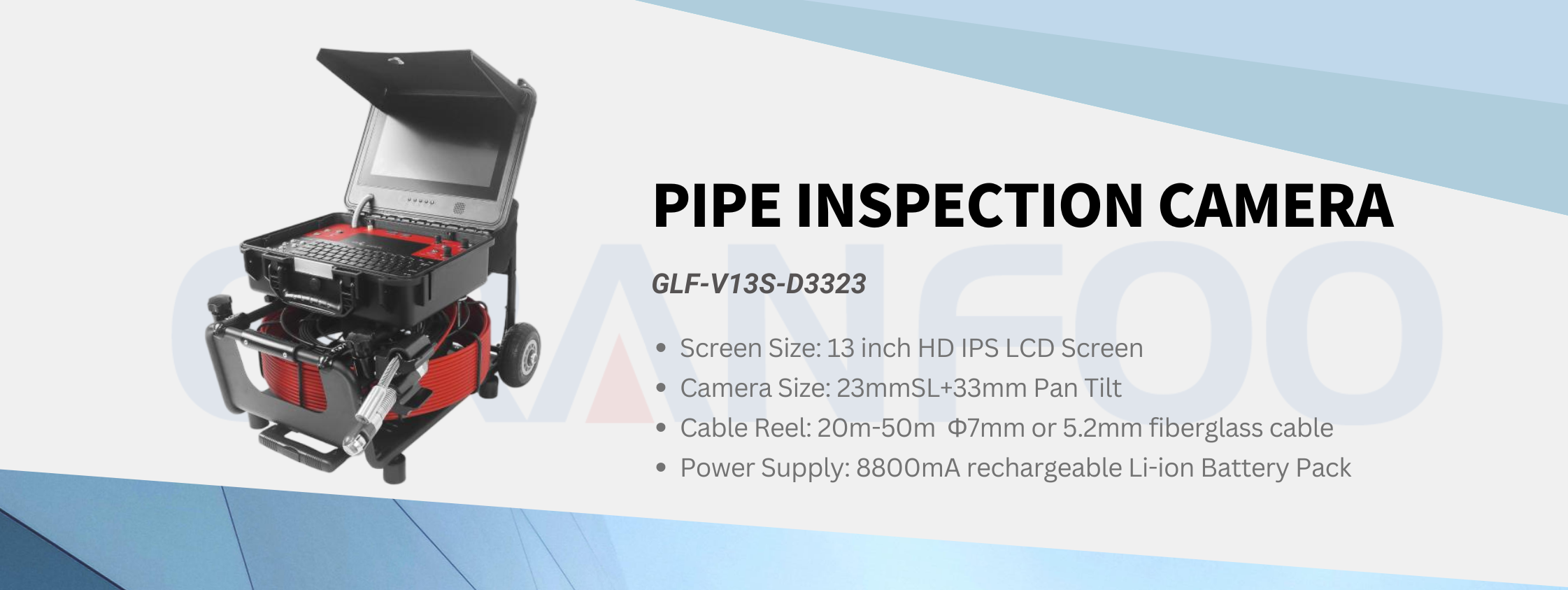

| 33mm 360° Tilt 180° rotation camera head & 23mm self-leveling camera head |
| 1/3 CMOS, 2.0MP pilex FHD , waterproof IP68 |
| Dual cable reel (7mm & 5.2mm) 20m-50m option |
| 13 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |

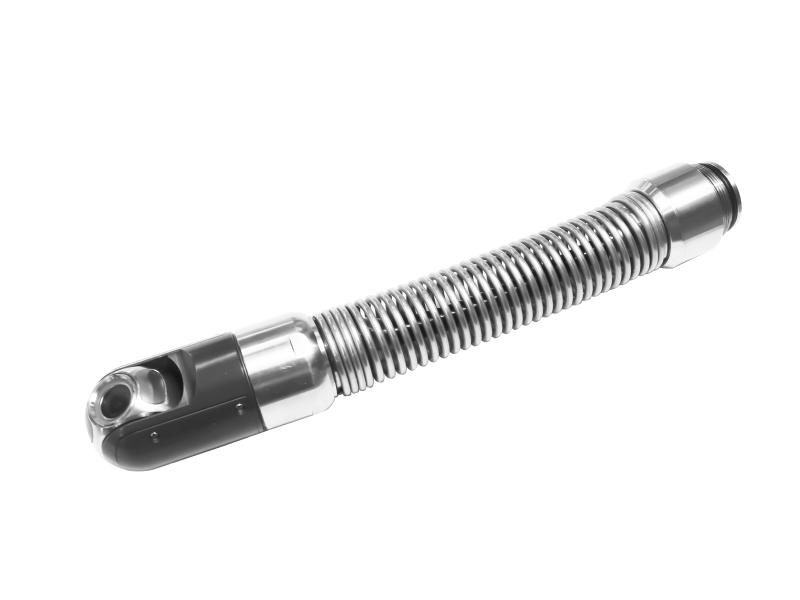

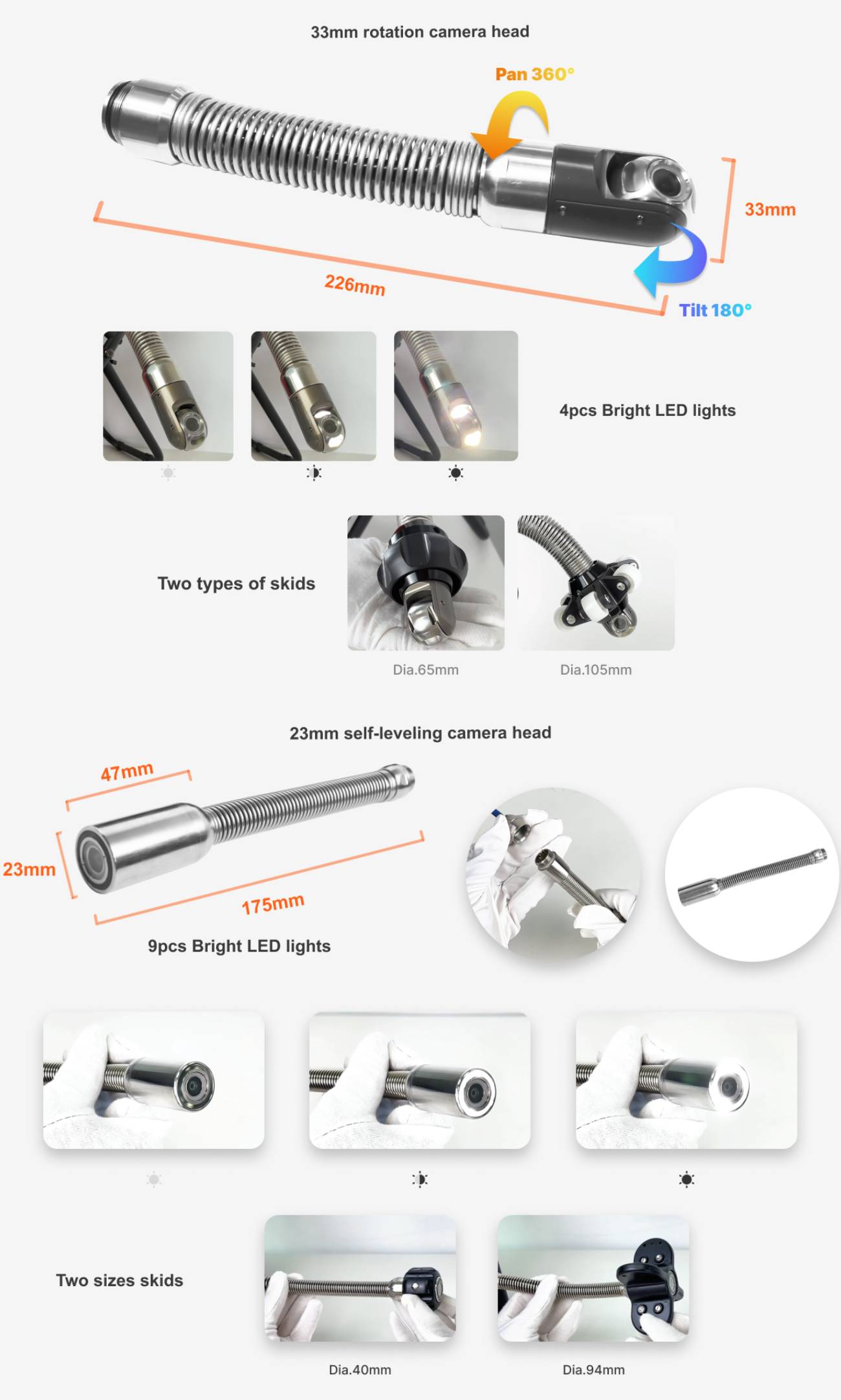

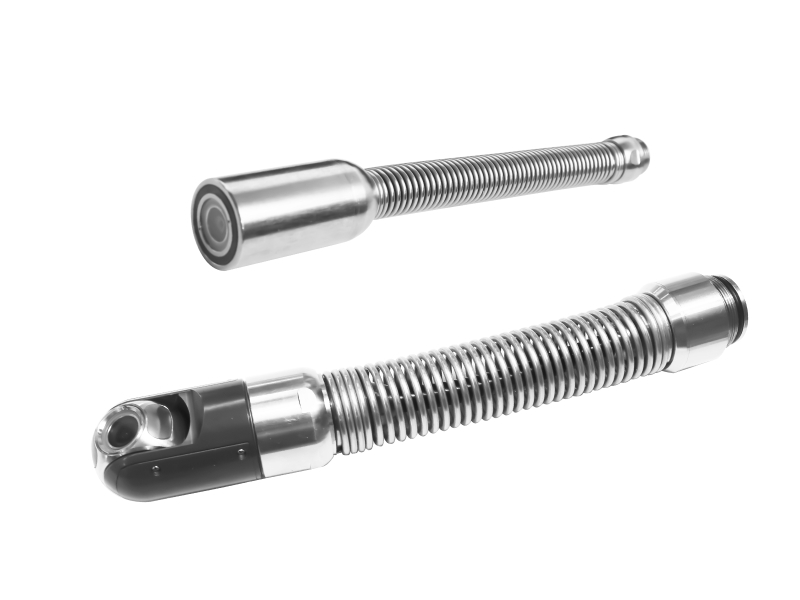

Main Part 1: 33mm Pan Tilt rotation camera head and 23mm self-leveling camera head
|
Camera size |
33mm x 226mm / 23mm x 47mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
33mm : Manual focus manually |
|
Rotation range |
33mm : Rotation: Pan 360°， Tilt 180° |
|
Light |
4pcs high light LED lighting adjustable/ 9pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |

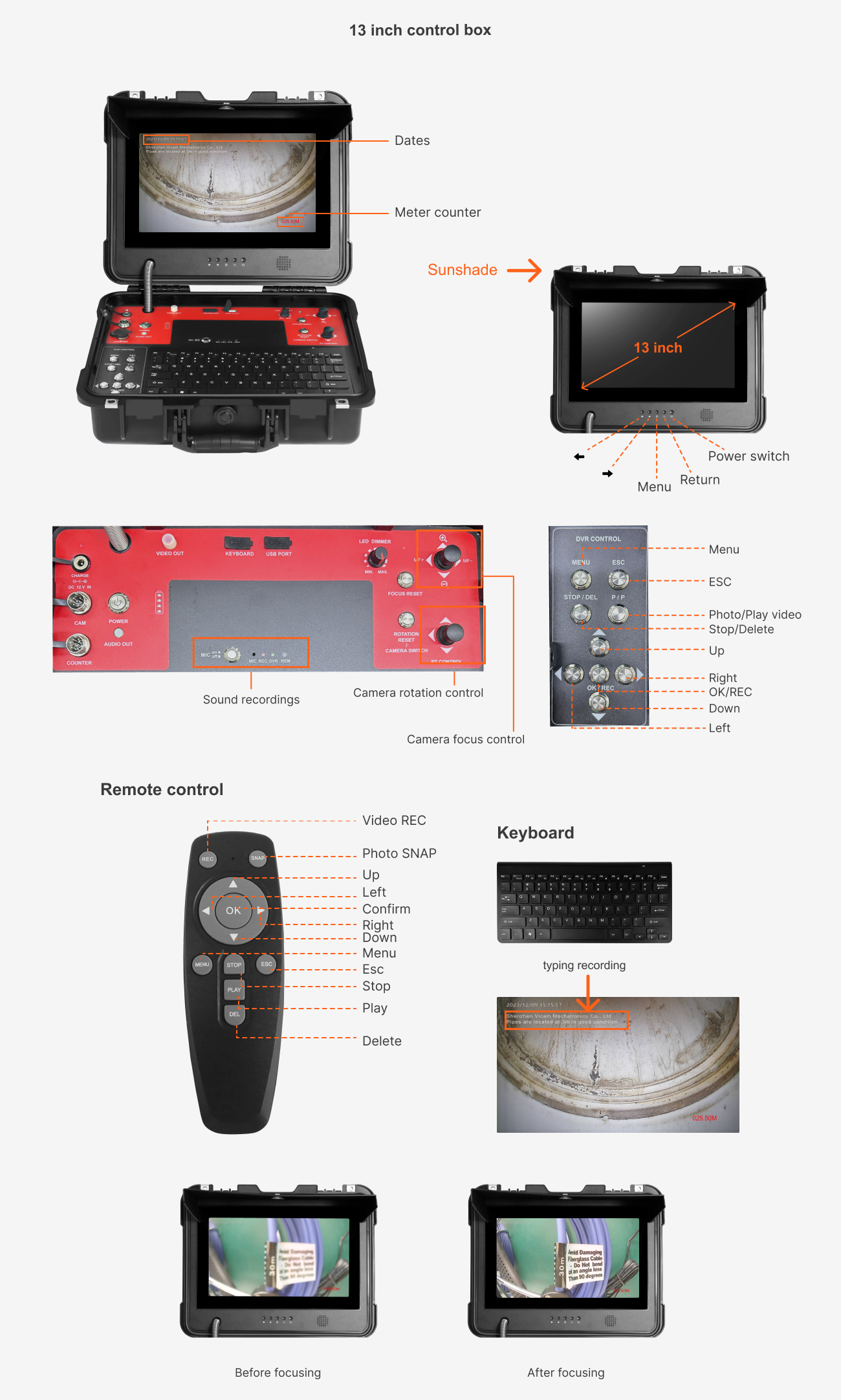

Main Part 2: DVR control unit
|
Screen Size |
13"HD IPS LCD Screen, 1280X720 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
Digital meter counter (only for outer cable reel) |
|
Battery |
8800mA rechargeable Li-ion Battery Pack/ Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

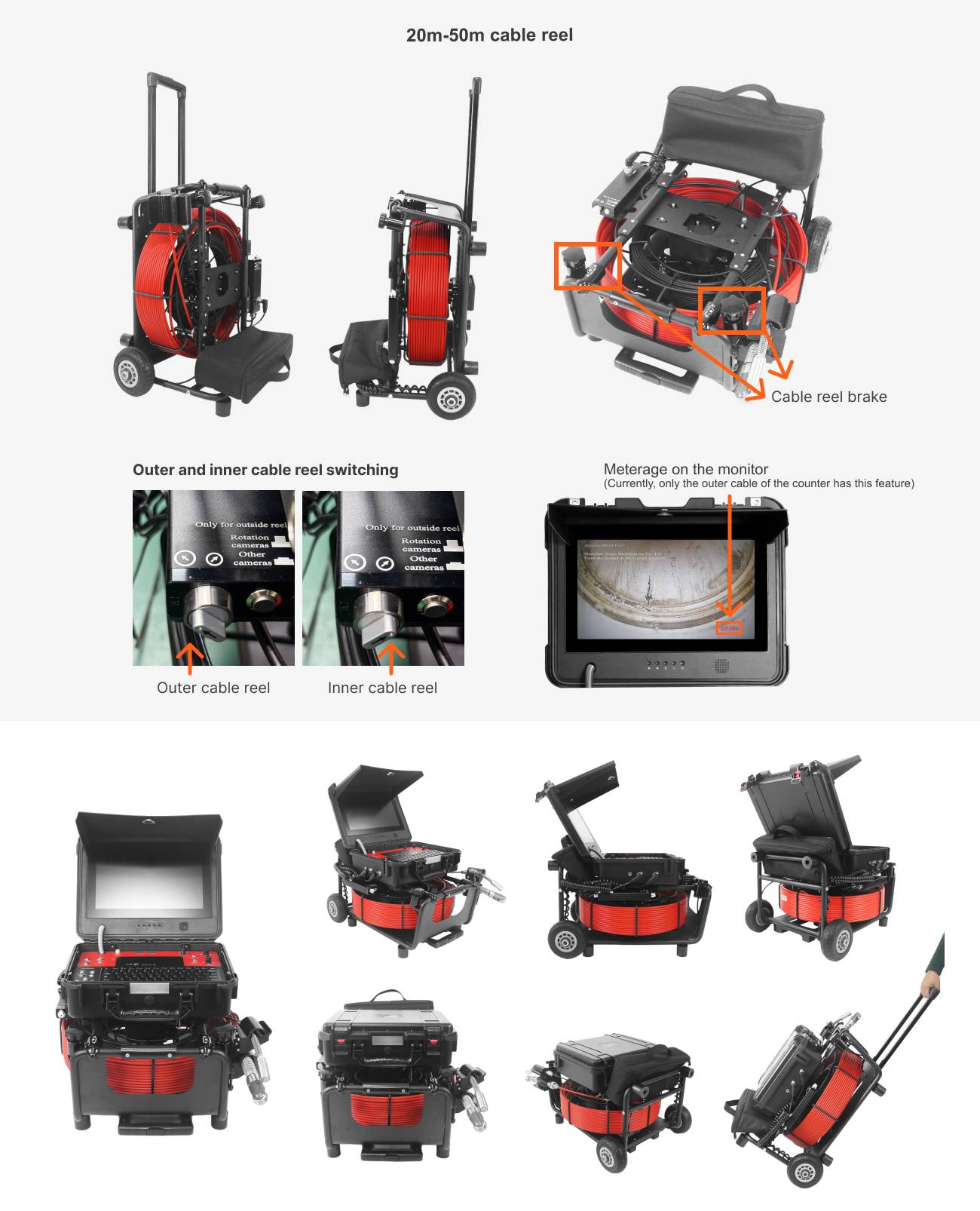

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter (only for outer cable reel) |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
7mm (outer cable reel) 5.2mm (inner cable reel) |
|
Cable length |
20m-50m(outer cable reel) 20m-40m(inner cable reel) |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
Frequently Asked QuestionsRelated Products
Vicam is the professional manufacturer of sewer drain pipe inspection cameras.
We have 100% test before delivery and all Vicam products have at least 48 hours Aging Testing to make sure good quality.
Pipe inspection camera,Under water Inspection camera,Endoscope inspection camera,CCTV video inspection camera.
Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras.
Related Products

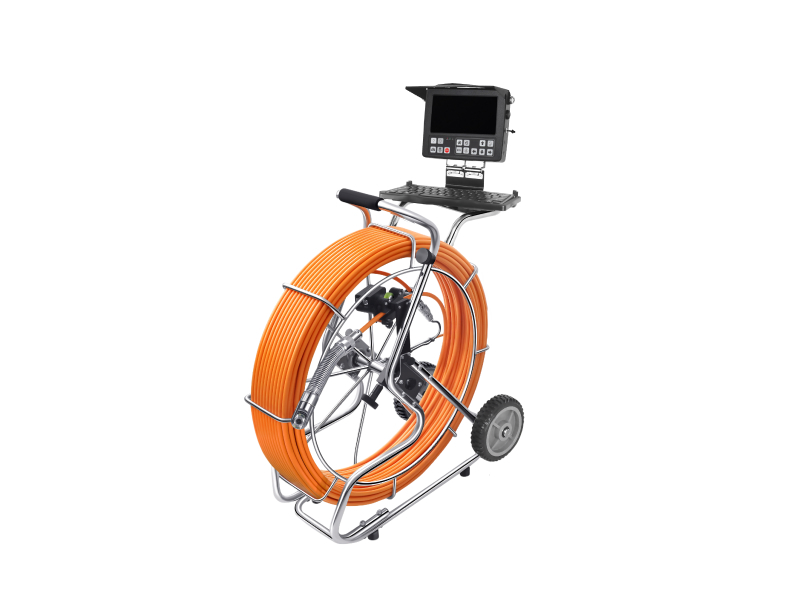

40mm Self Leveling AHD Sewer Camera System
