40mm AHD Self Leveling Sewer & Drain Camera
Built for maximum durability and precision, this professional-grade inspection system combines AHD high-definition imaging with an advanced 40mm self-leveling camera head. Designed to navigate the toughest drainage environments, it delivers crystal-clear, upright visuals over a 60-meter range, making it an indispensable asset for plumbing, municipal maintenance, and construction experts.
Product Detail
Built for maximum durability and precision, this professional-grade inspection system combines AHD high-definition imaging with an advanced 40mm self-leveling camera head. Designed to navigate the toughest drainage environments, it delivers crystal-clear, upright visuals over a 60-meter range, making it an indispensable asset for plumbing, municipal maintenance, and construction experts.
Overview of 40mm self-leveling Camera
| Self-leveling image no matter what angle the camera is at, the image is always upwards. |
| 1/3 CMOS, 1.3MP pilex FHD , waterproof IP68 |
| Waterproof IP68 |
| 10 inch IPS lcd screen, resolution 1980x1080 |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |

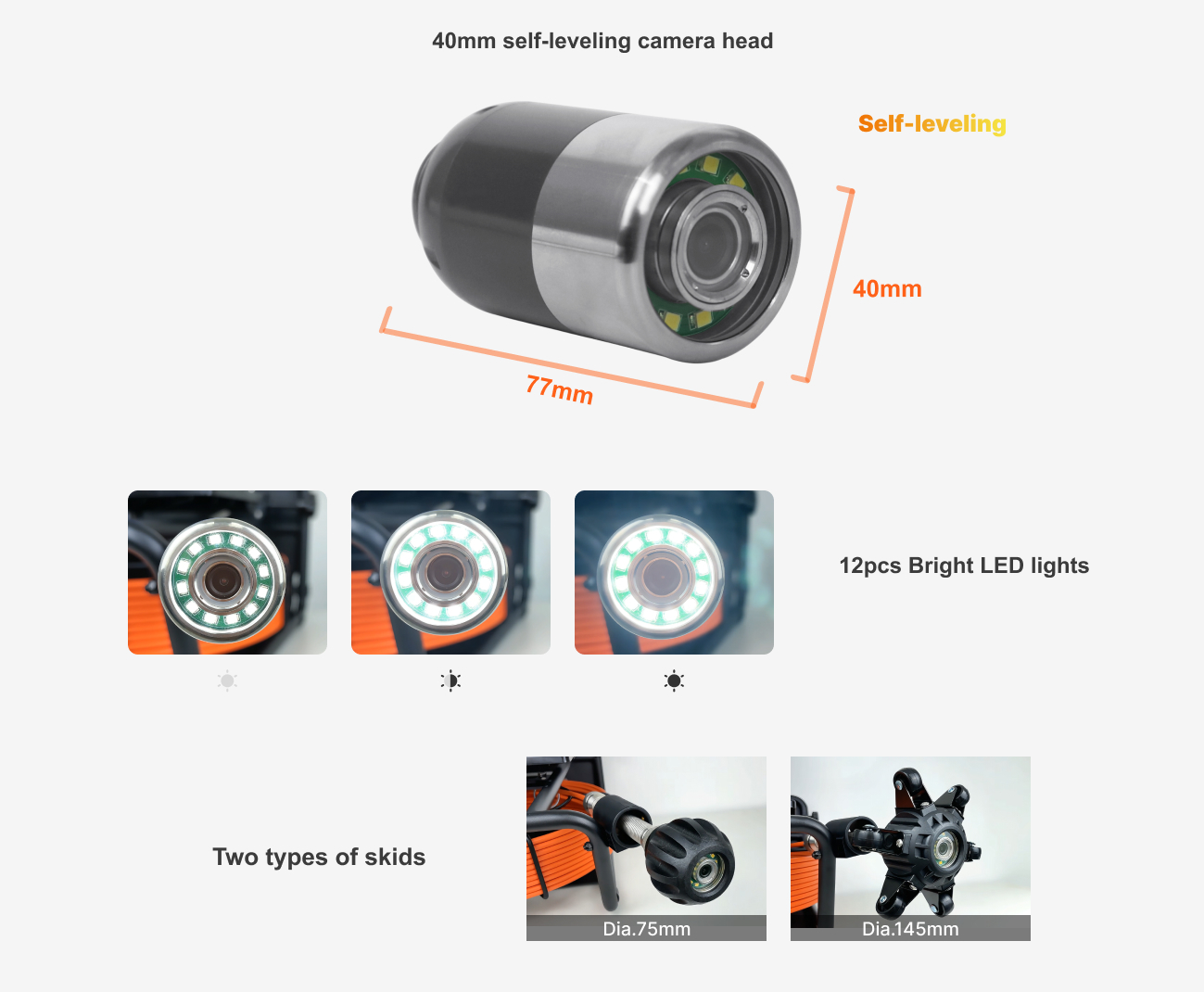

Main Part 1: 40mm self-leveling camera head
|
Camera size |
40mm x 77mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
12pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |

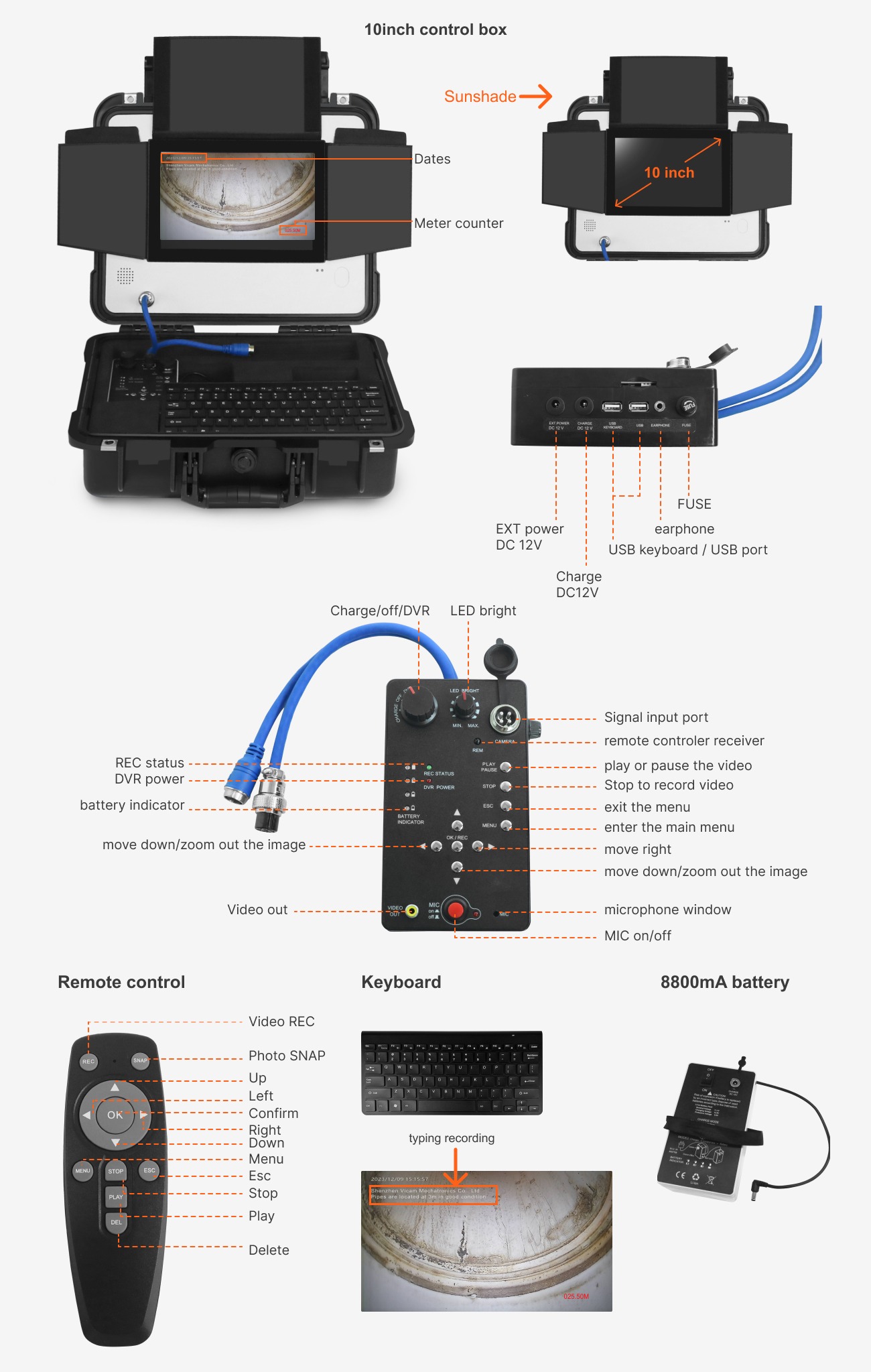

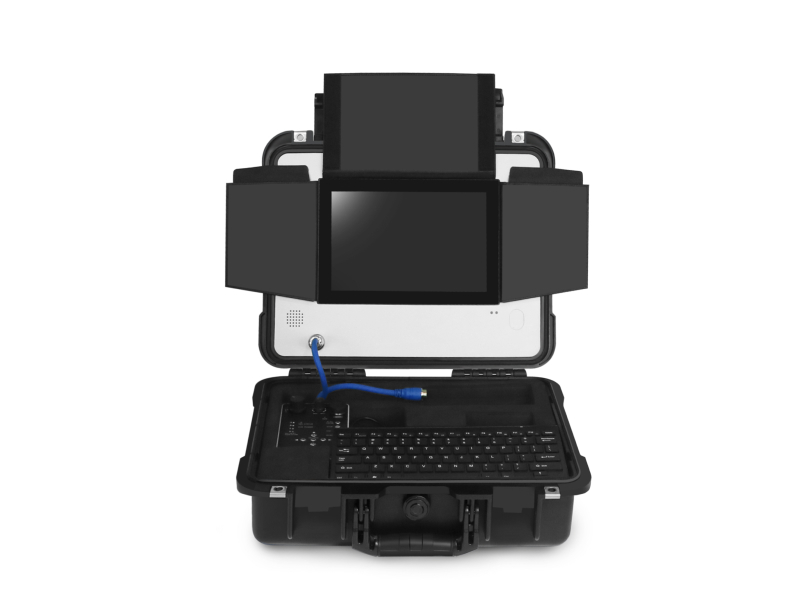

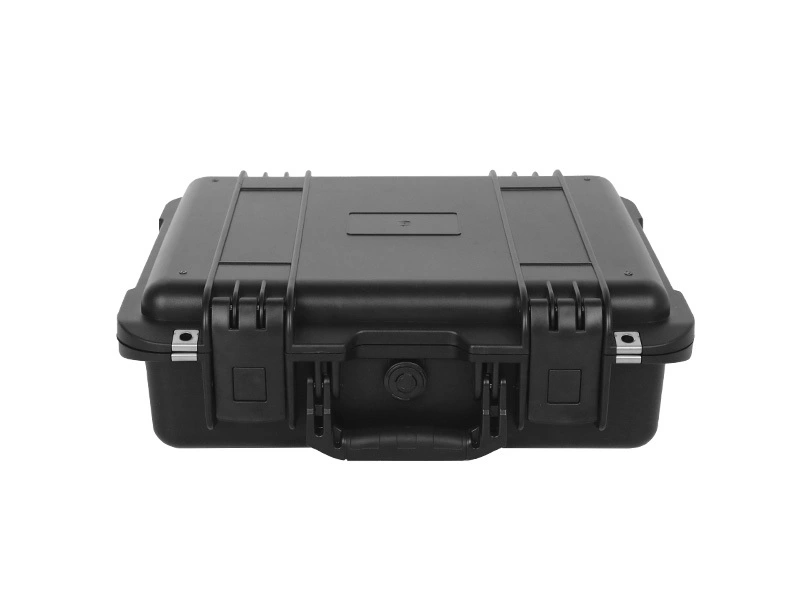

Main Part 2: DVR control unit
|
Screen Size |
10"HD IPS LCD Screen |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
Digital meter counter |
|
Battery |
8800mA rechargeable Li-ion Battery Pack/ Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

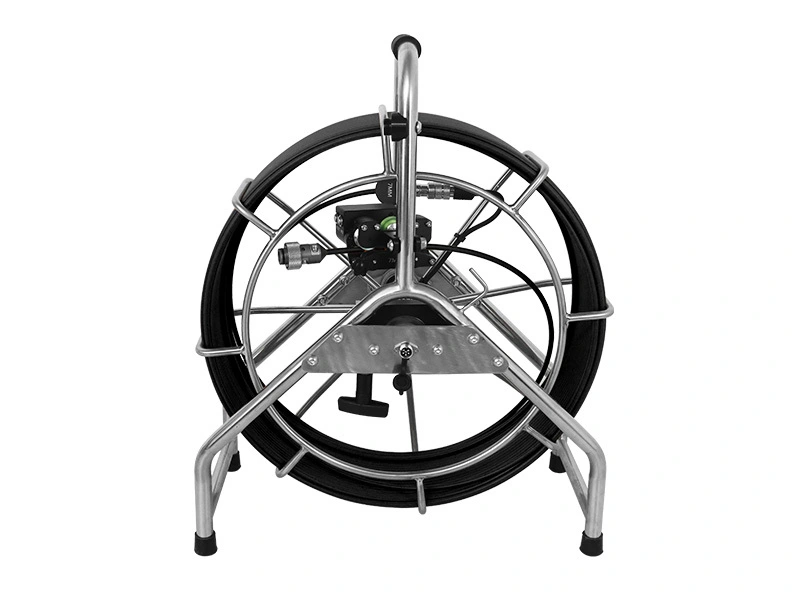

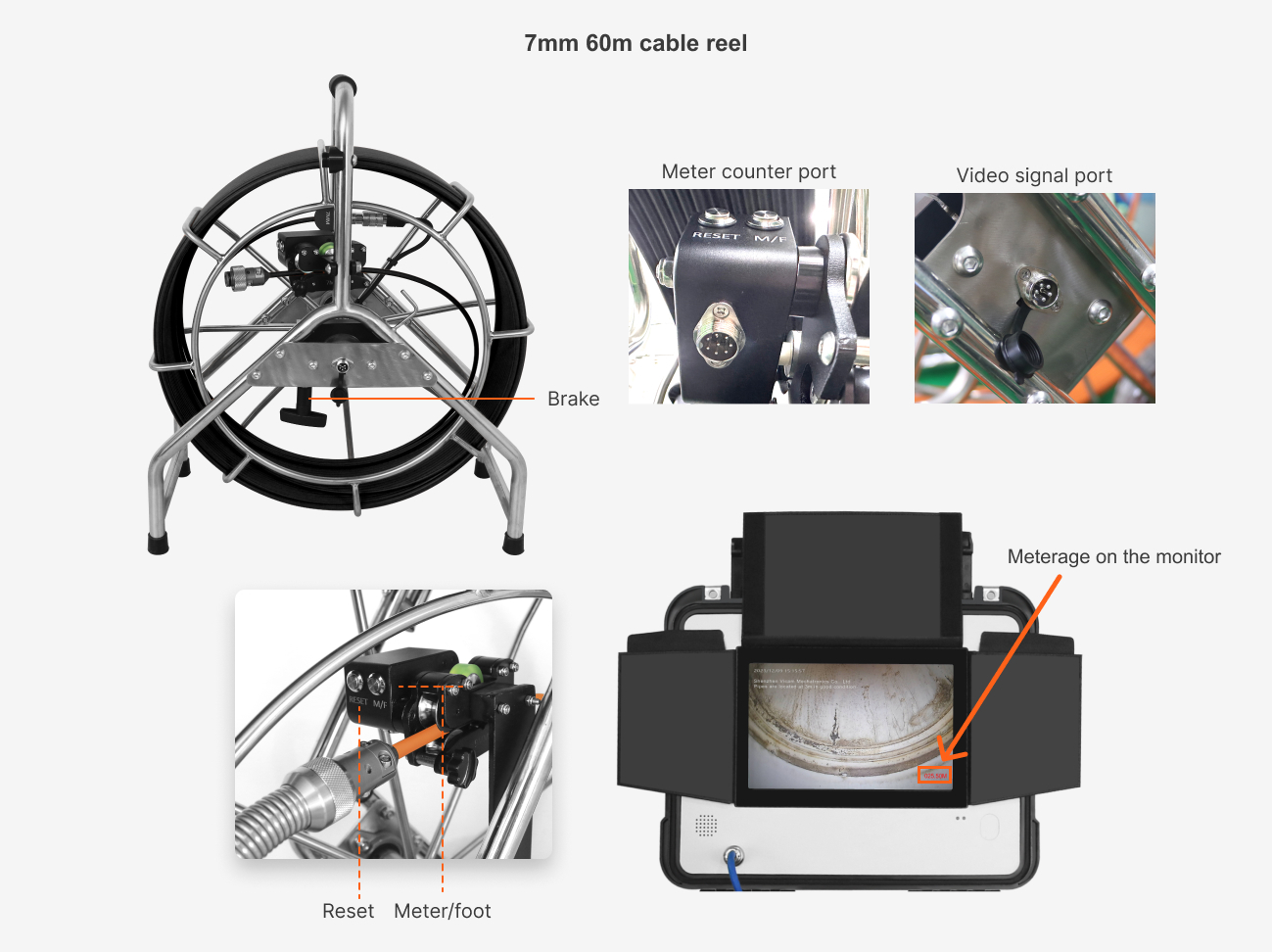

Main Part 3: Cable reel
|

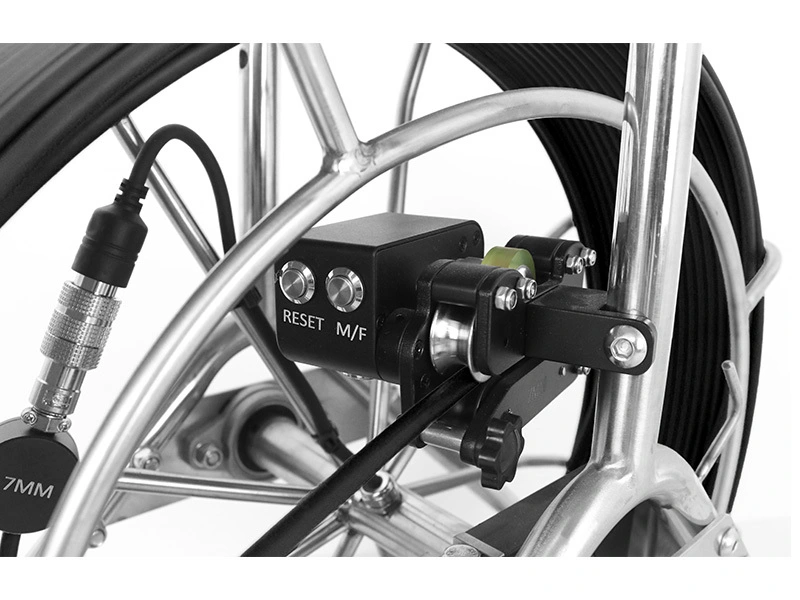

Meter counter |
Digital meter counter |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
7mm |
|
Cable length |
60m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
