33mm Pan Tilt Rotation Sewer Camera with Manual Focus HD Pipe Inspection Camera
Featuring an ultra-large 13-inch HD monitor and a motorized pan-tilt camera head, this 33mm AHD pipe inspection camera provides comprehensive, all-angle coverage of hard-to-reach areas. With its advanced manual focus function ensuring razor-sharp clarity at any depth, this versatile system is an essential tool for professional plumbers to precisely and efficiently identify pipeline blockages or structural flaws.
Product Detail
Featuring an ultra-large 13-inch HD monitor and a motorized pan-tilt camera head, this 33mm AHD pipe inspection camera provides comprehensive, all-angle coverage of hard-to-reach areas. With its advanced manual focus function ensuring razor-sharp clarity at any depth, this versatile system is an essential tool for professional plumbers to precisely and efficiently identify pipeline blockages or structural flaws.
| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS,2.0MP pilex FHD , waterproof IP68 |
| Adjustable focus function |
| 13 inch IPS lcd screen, 1920X1080 resolution |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |

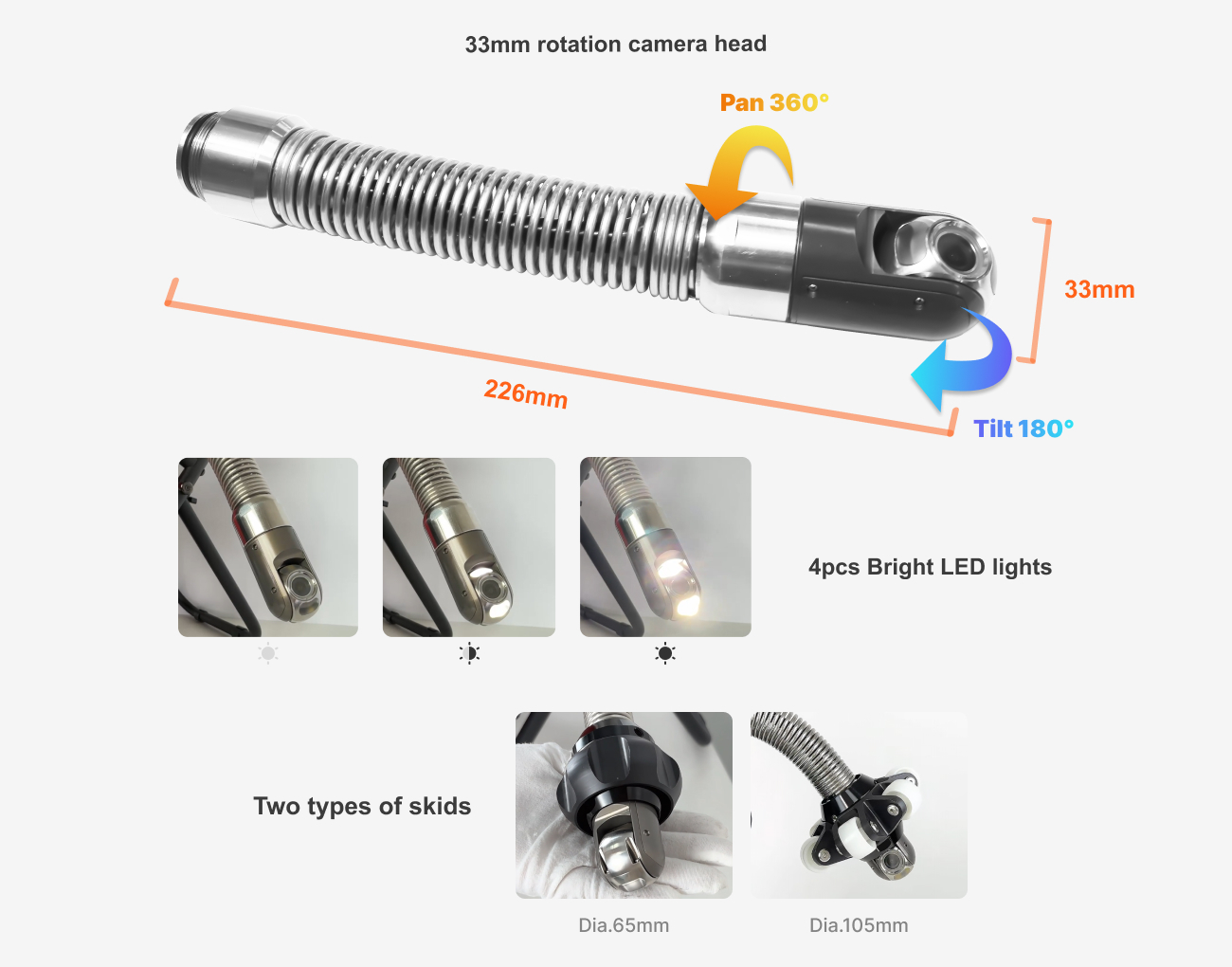

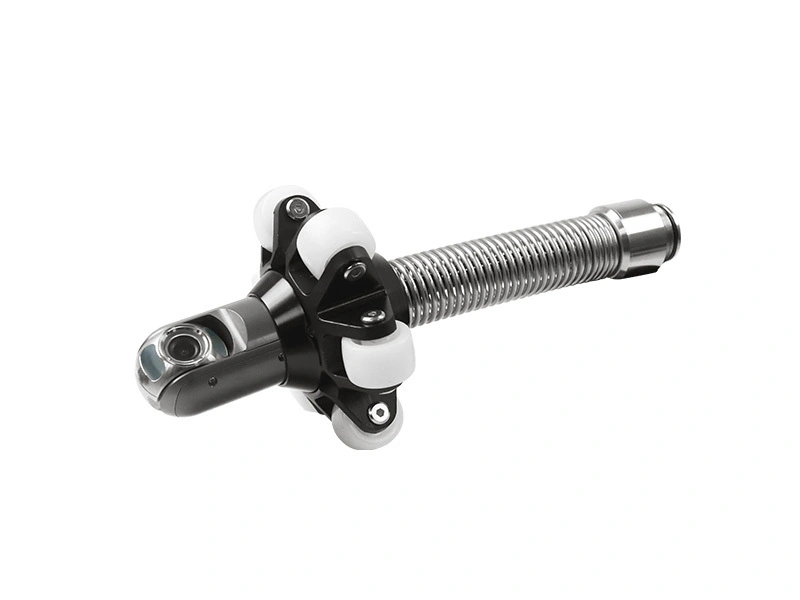

Main Part 1: 33mm Pan Tilt rotation camera head
|
Camera size |
33 x 72mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
Manual focus manually |
|
Rotation range |
Rotation: Pan 360°， Tilt 180° |
|
Light |
4pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |

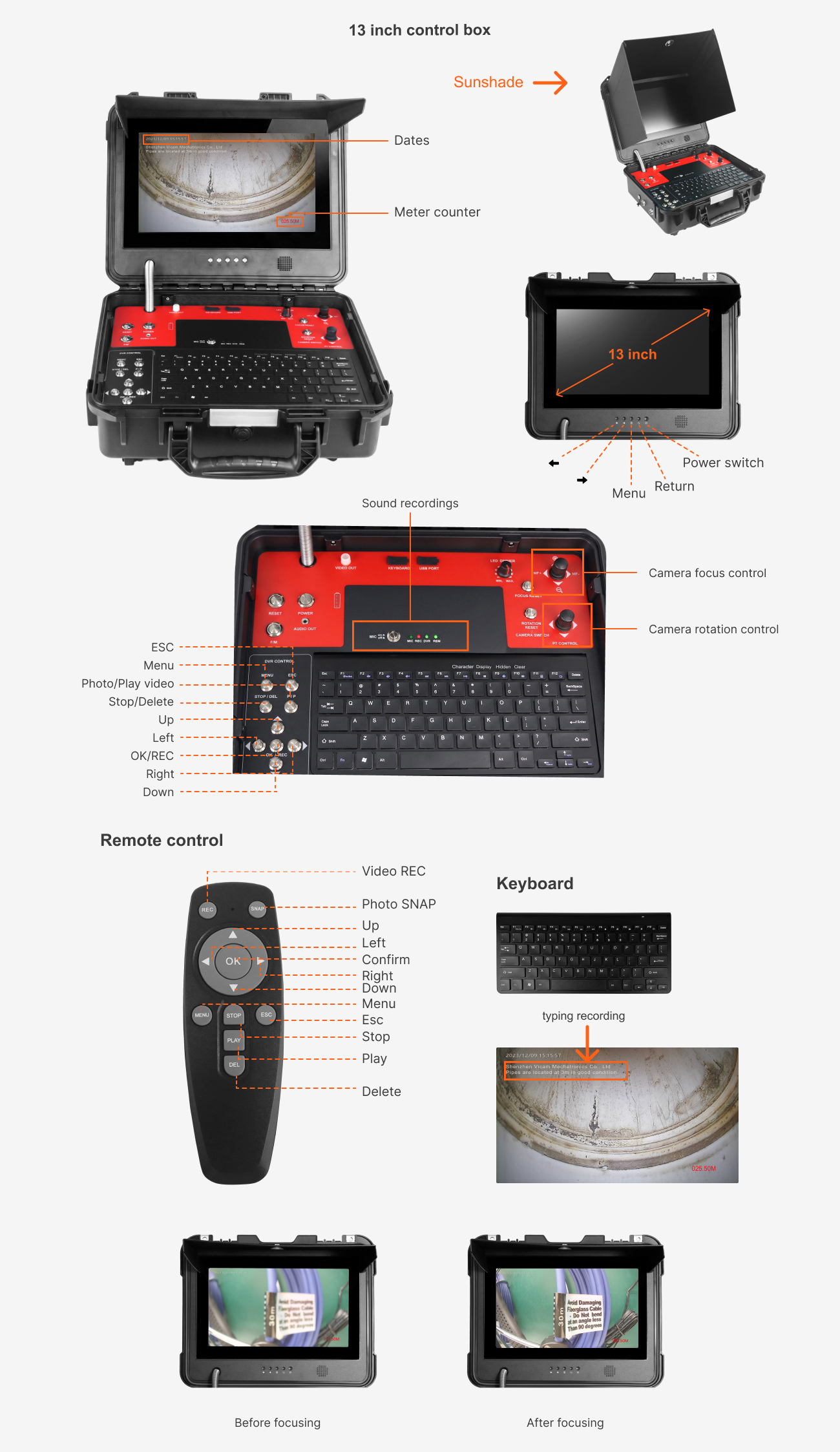

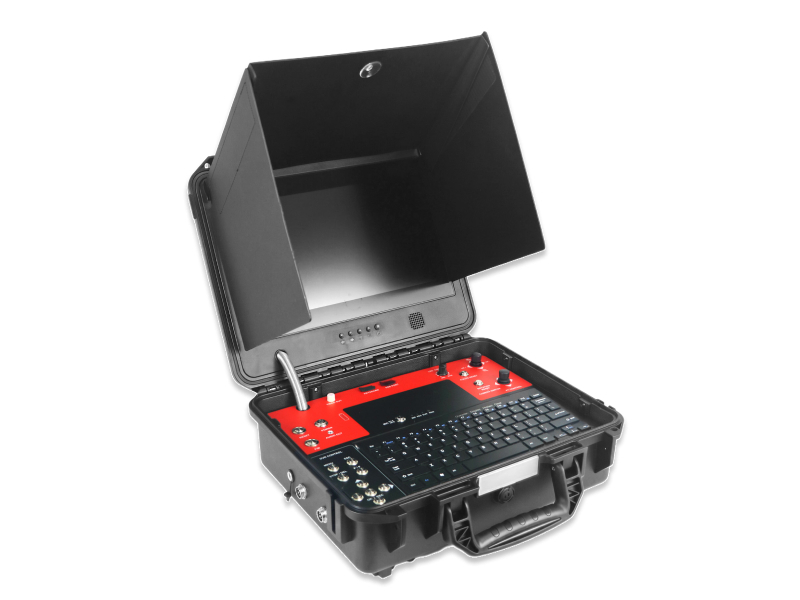

Main Part 2: DVR control unit
|
Screen Size |
13"HD IPS LCD Screen, waterproof panel 1980x1080 resolution |
|
Waterproof level |
Waterproof keys for DVR function |
|
Function |
1080P format video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
Digital meter counter |
|
Battery |
8800mA rechargeable Li-ion Battery Pack / Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

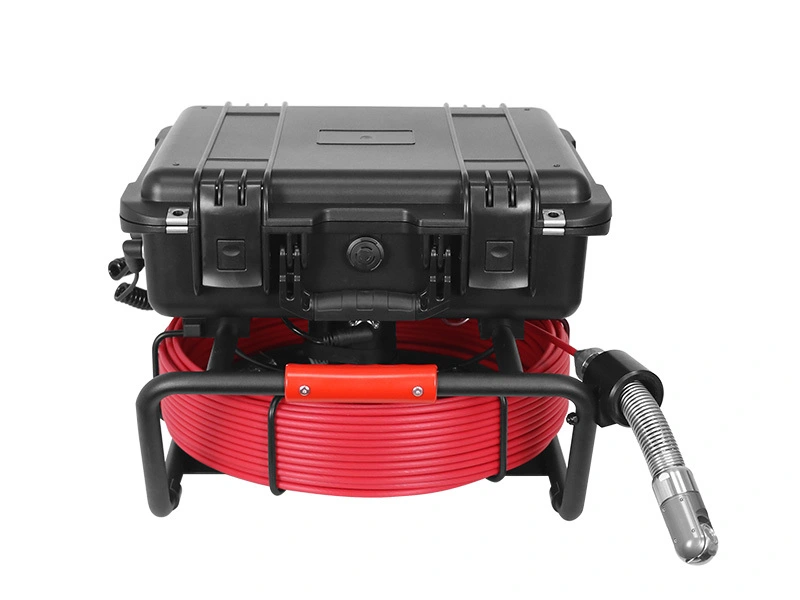

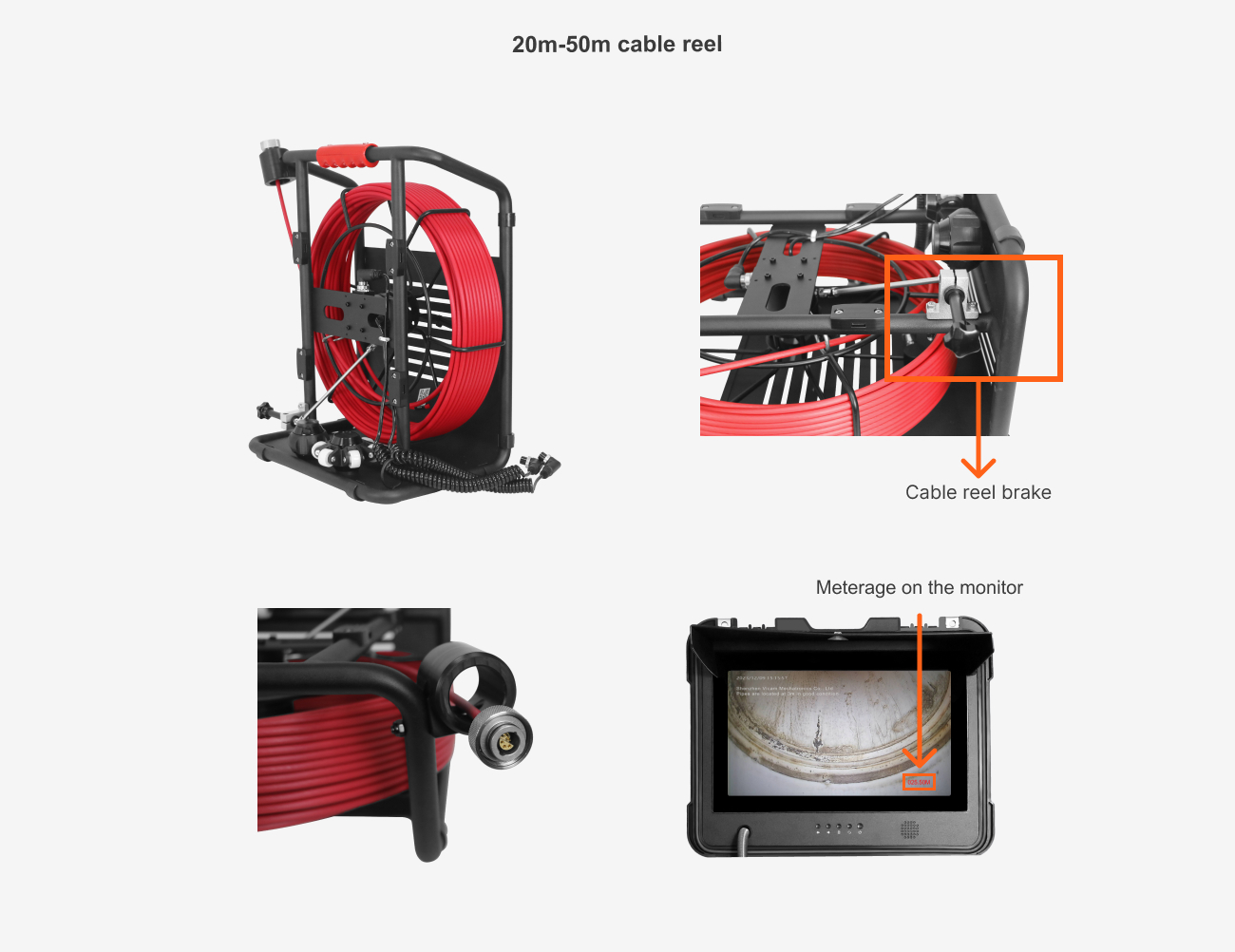

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
7mm |
|
Cable length |
20m-50m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
