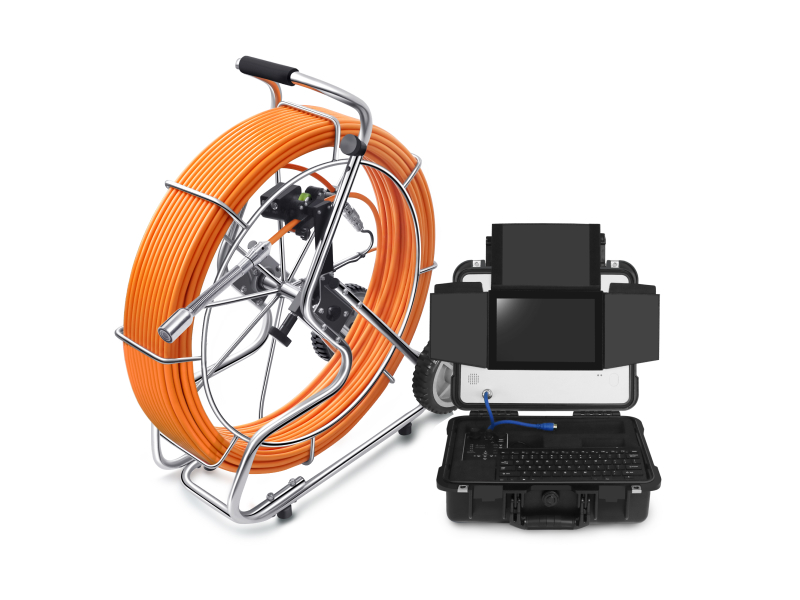

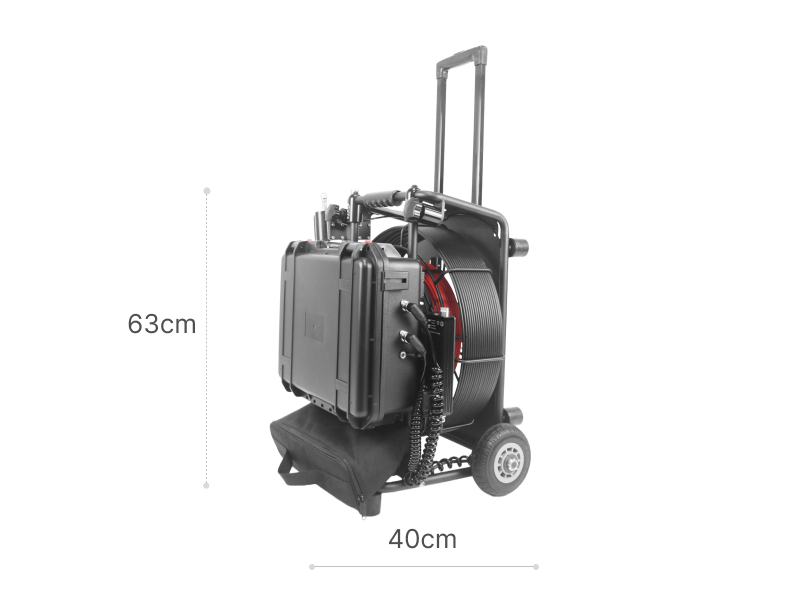

17mm& 23mm Dual Self-Leveling Lens Pipe Inspection Camera Dual Cable Reel Sewer Camera System
The Professional Pipe Inspection System is engineered for comprehensive diagnostic work in challenging environments. Featuring a unique Dual Cable Reel design paired with 17mm and 23mm Dual Camera Heads, this kit offers unmatched versatility for inspecting a wide range of pipe diameters without needing multiple systems.
Product Detail
The Professional Pipe Inspection System is engineered for comprehensive diagnostic work in challenging environments. Featuring a unique Dual Cable Reel design paired with 17mm and 23mm Dual Camera Heads, this kit offers unmatched versatility for inspecting a wide range of pipe diameters without needing multiple systems.
| 17mm camera head & 23mm self-leveling camera head |
| 1/3 CMOS, 2.0MP pilex HD , waterproof IP68 |
| Dual cable reel (7mm & 5.2mm) 20m-50m option |
| 13 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |

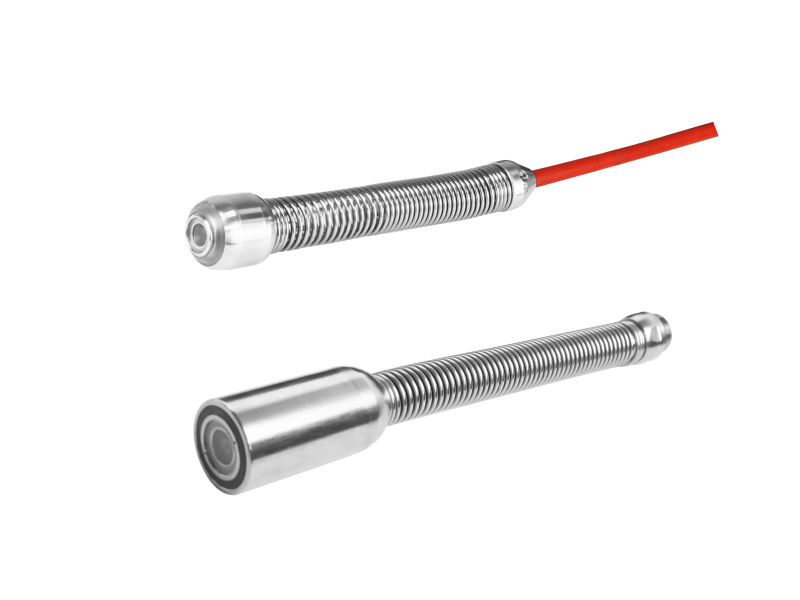

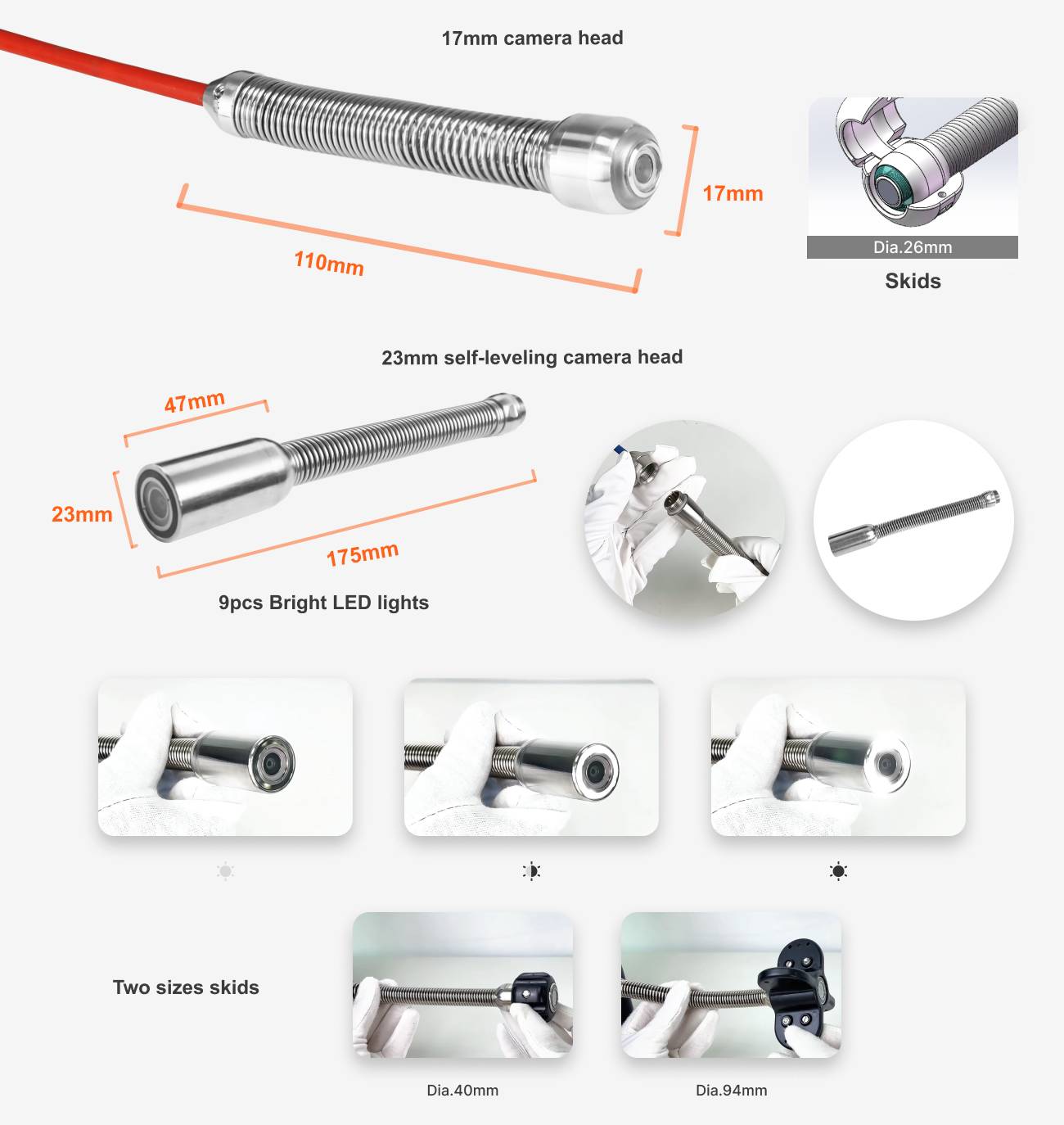

Main Part 1: 17mm camera head and 23mm self-leveling camera head
|
Camera size |
17 x 17.4mm / 23mm x 47mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel / Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 90° / View range 120° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
6pcs high light LED lighting adjustable/ 12pcs high light LED lighting adjustable |
|
Connector |
Connected to the cable reel, cannot be removed / Detachable with pins type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |

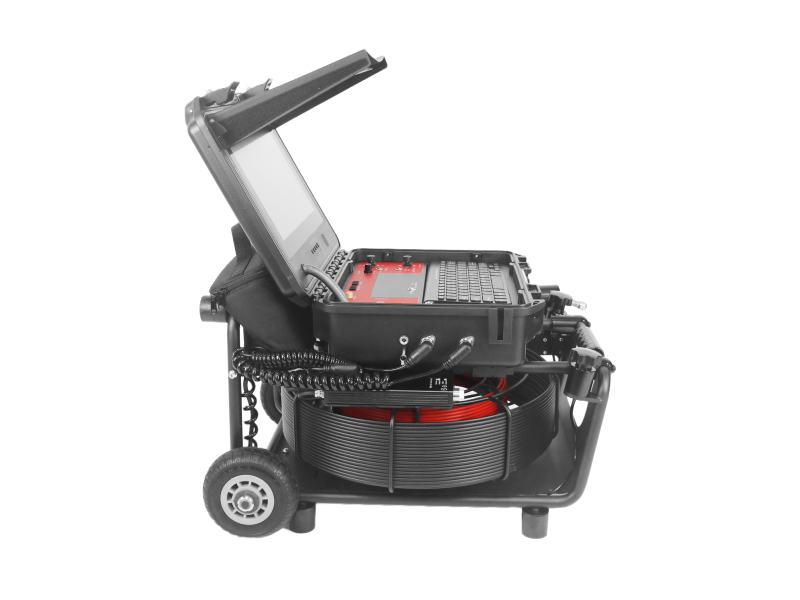

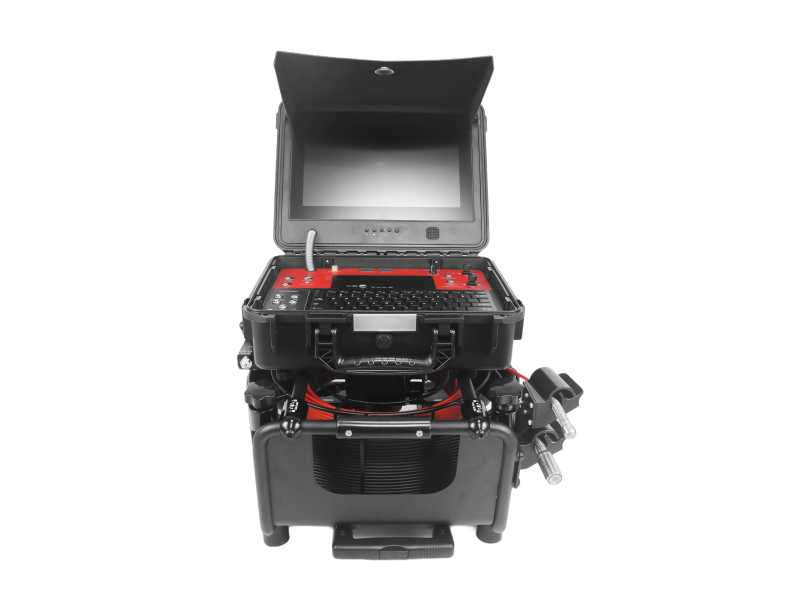

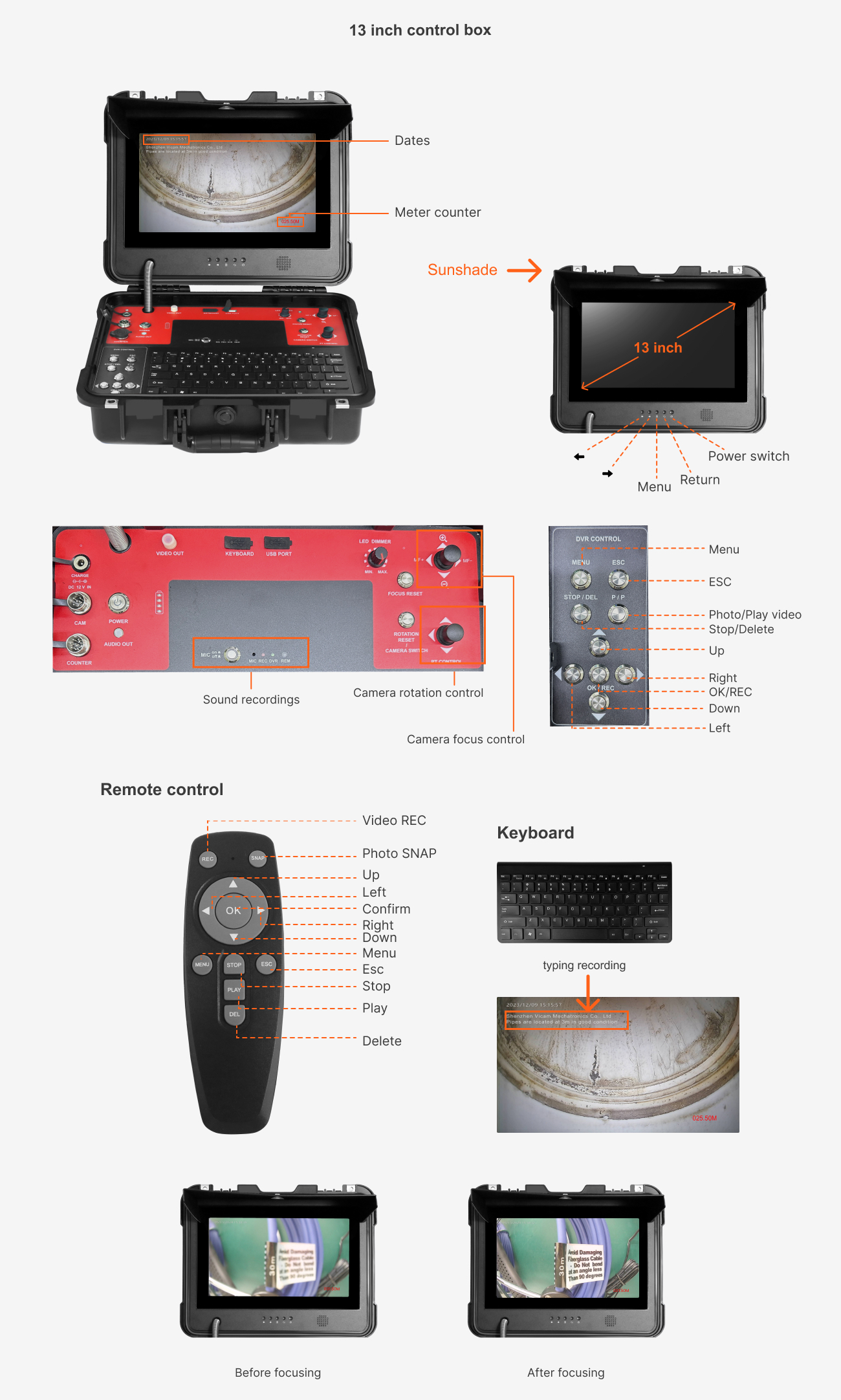

Main Part 2: DVR control unit
|
Screen Size |
13"HD IPS LCD Screen, 1280X720 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|

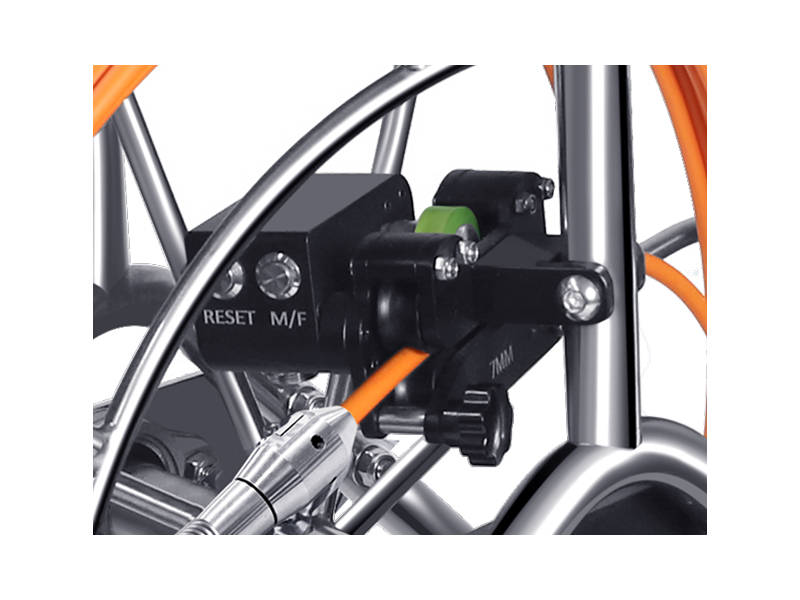

Meter counter |
Digital meter counter (only for outer cable reel) |
|
Battery |
8800mA rechargeable Li-ion Battery Pack / Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |
|
Meter counter |
Digital meter counter (only for outer cable reel) |
|
Material |
Fiberglass push rod cable |
|

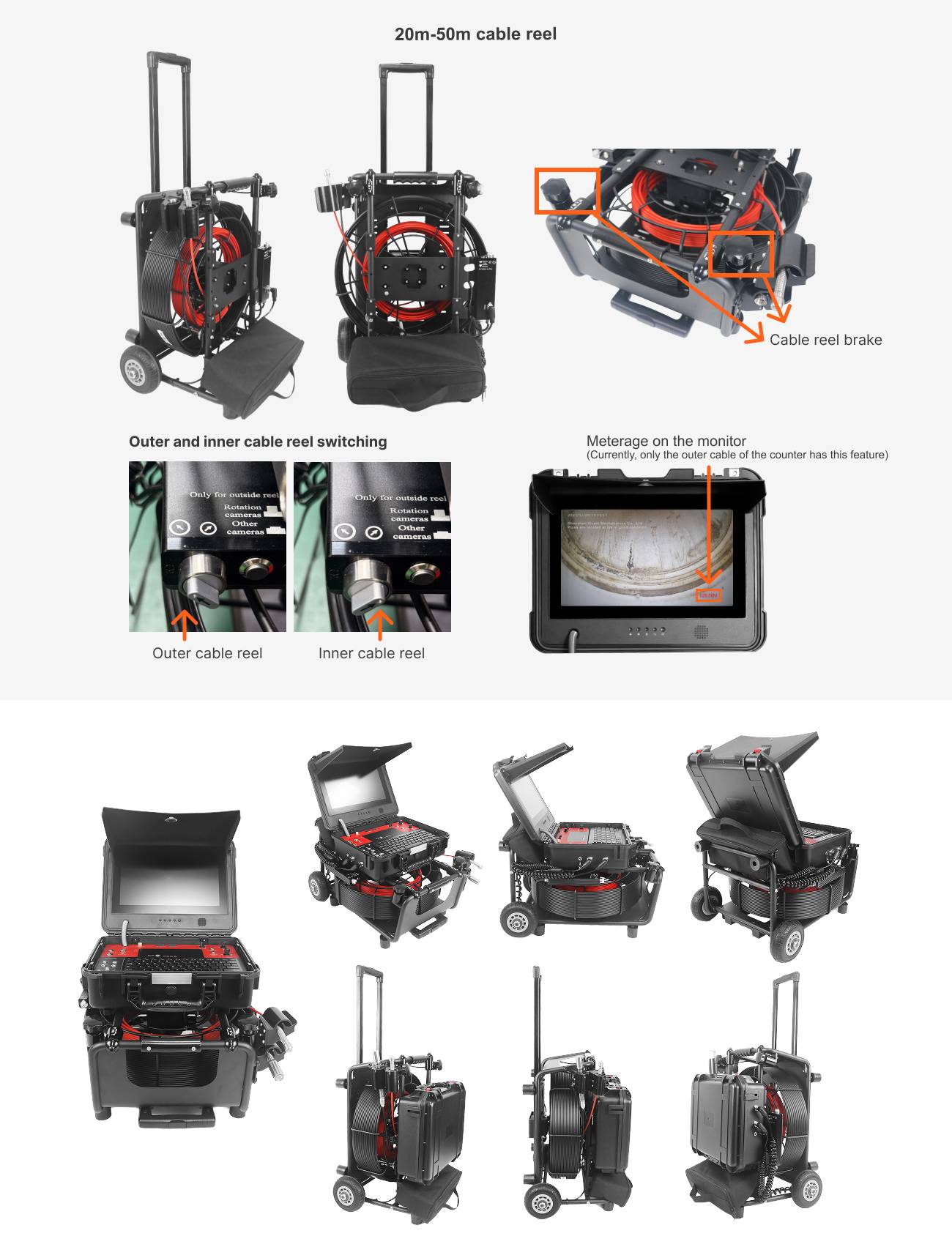

Cable diameter |
7mm (outer cable reel) 5.2mm (inner cable reel) |
|
Cable length |
20m-50m(outer cable reel) 20m-40m(inner cable reel) |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
