8inch Control Box with 33mm Pan Tilt AHD Pipe Camera 360 Degree Rotation Inspection Camera System
Maximize efficiency with our 33mm Pan Tilt AHD Pipe Camera System. Featuring a 360° rotating camera head, an 8-inch HD display, and a 60m-150m cable reach, it is the ultimate tool for precise inspections in drains and confined spaces.
Product Detail
Maximize efficiency with our 33mm Pan Tilt AHD Pipe Camera System. Featuring a 360° rotating camera head, an 8-inch HD display, and a 60m-150m cable reach, it is the ultimate tool for precise inspections in drains and confined spaces.
Overview of 33mm Pan Tilt Sewer Camera
| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 1/3 CMOS, 2.0MP pilex HD , waterproof IP68 |
| Adjustable focus function |
| 8 inch IPS lcd screen, 1980x1080 resolution |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 6800mA li-ion battery inside |

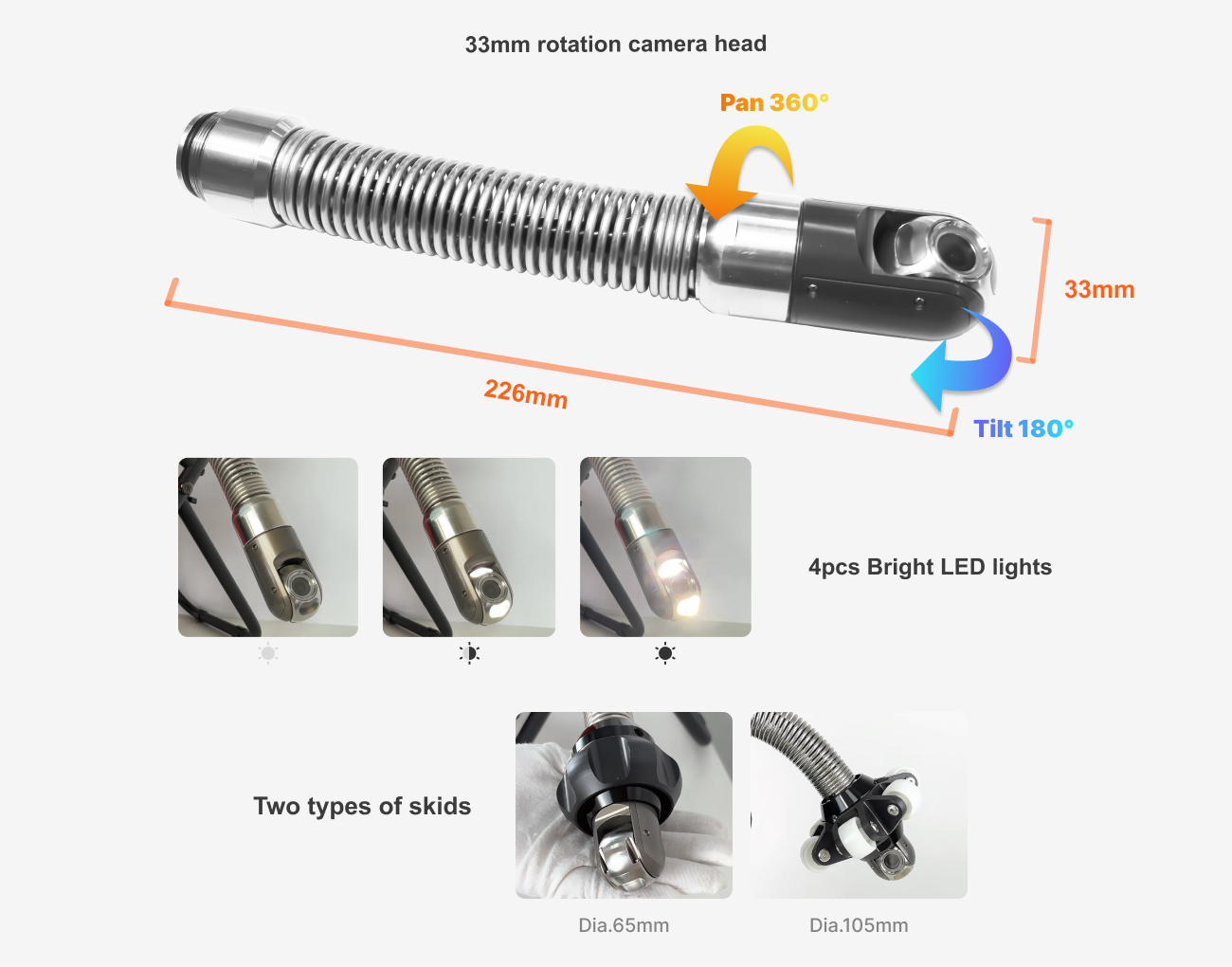

Main Part 1: 33mm Pan Tilt rotation camera head
|
Camera size |
33mm x 226mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
Manual focus manually |
|
Rotation range |
Rotation: Pan 360°， Tilt 180° |
|
Light |
4pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |

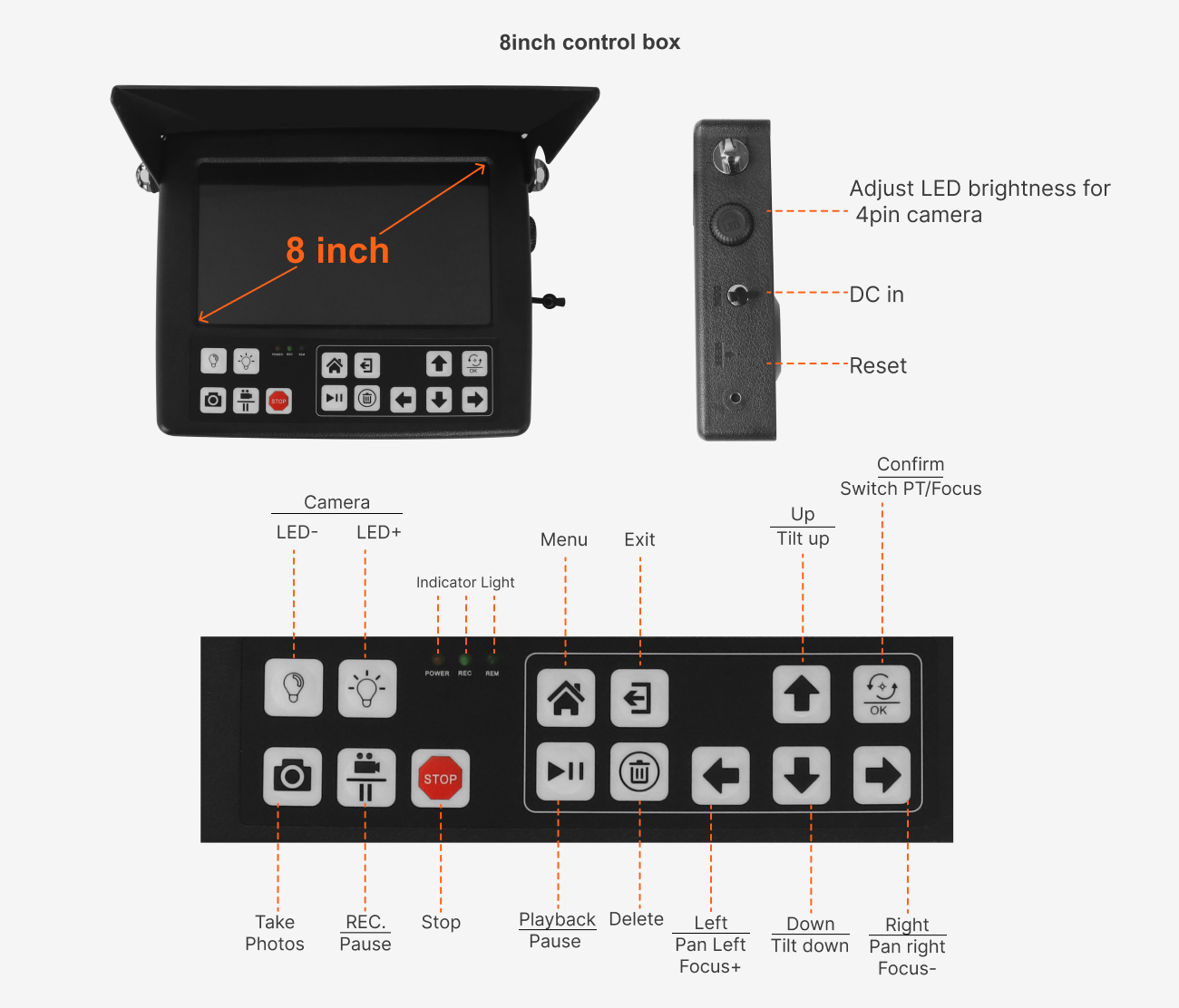

Main Part 2: DVR control unit
|

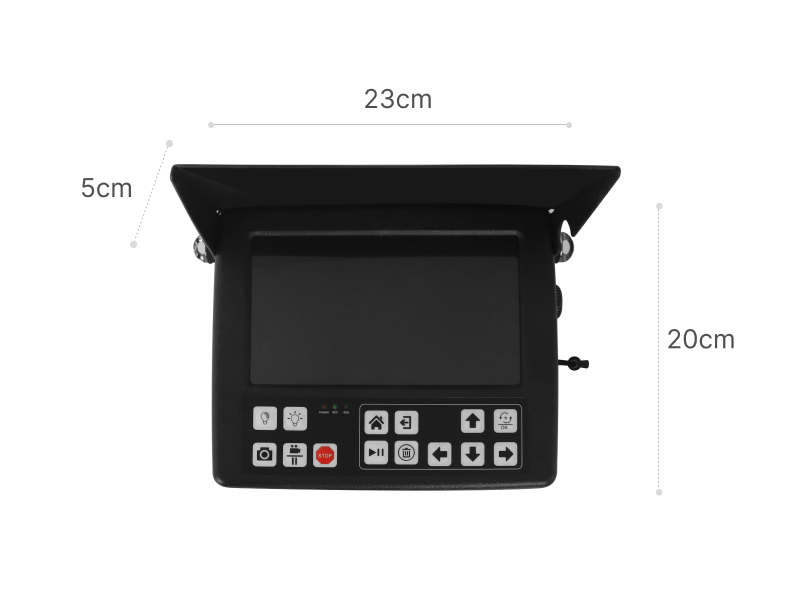

Screen Size |
8"HD IPS LCD Screen, 1980x1080 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack/ Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |

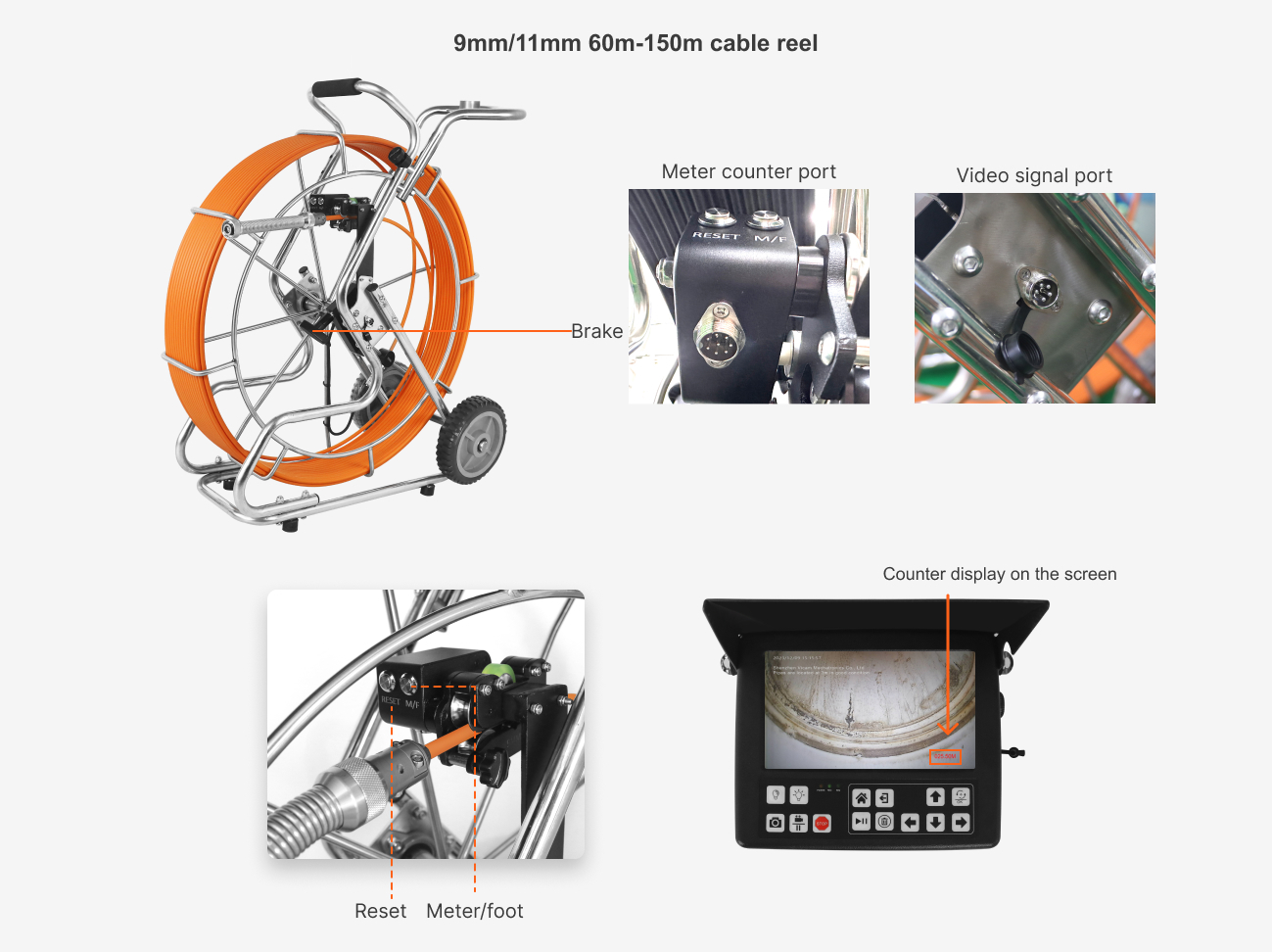

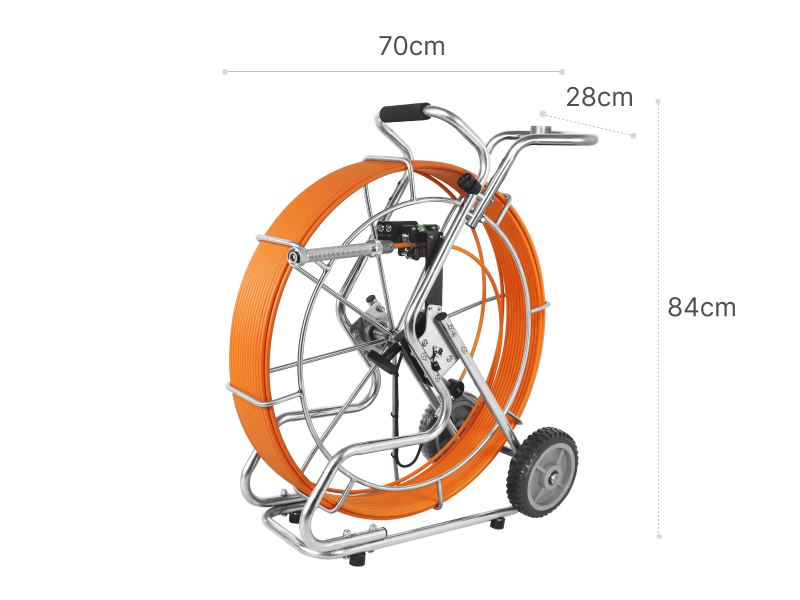

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
9mm or 11mm |
|
Cable length |
60m-150m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
