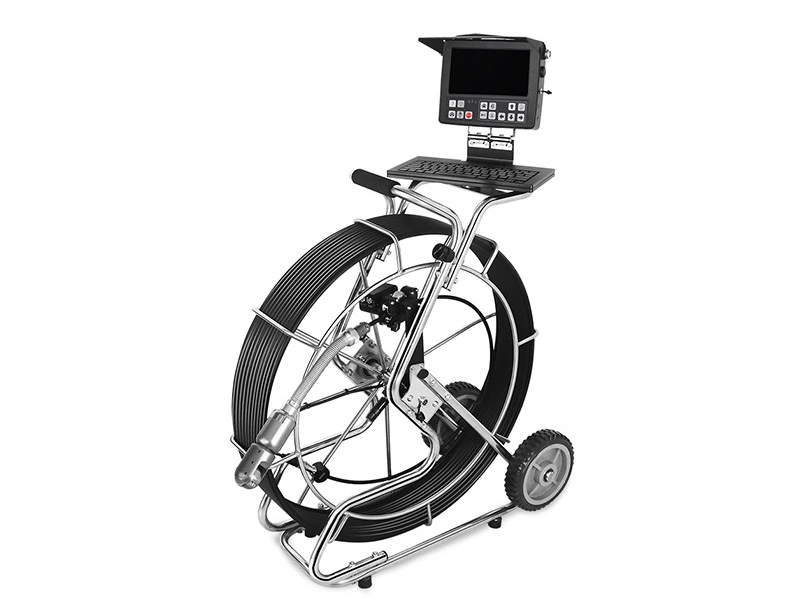

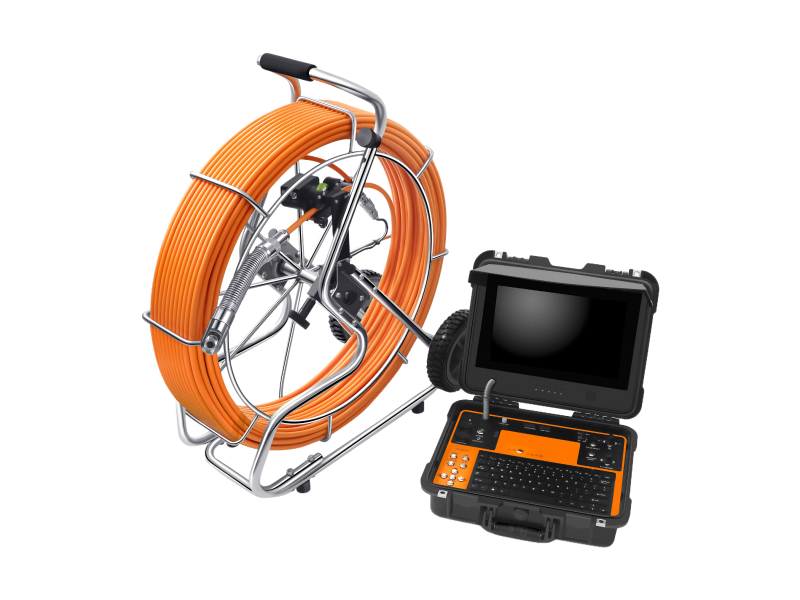

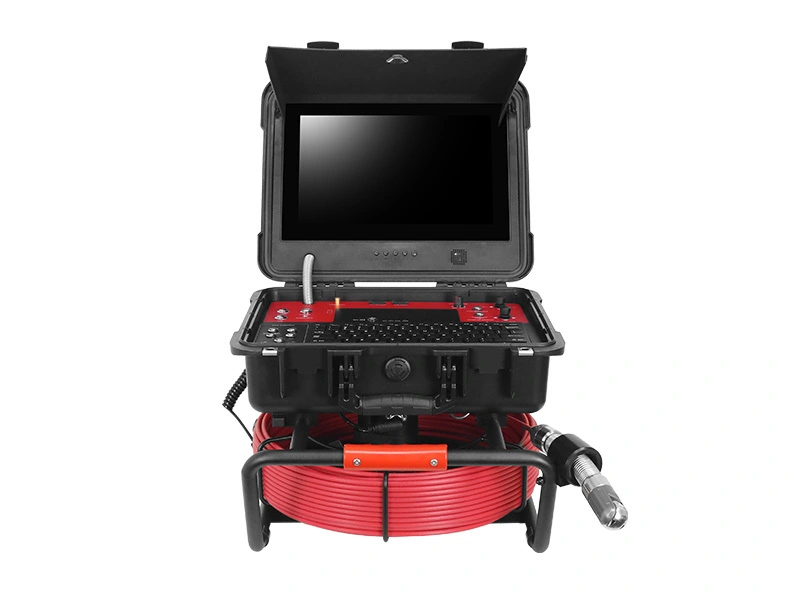

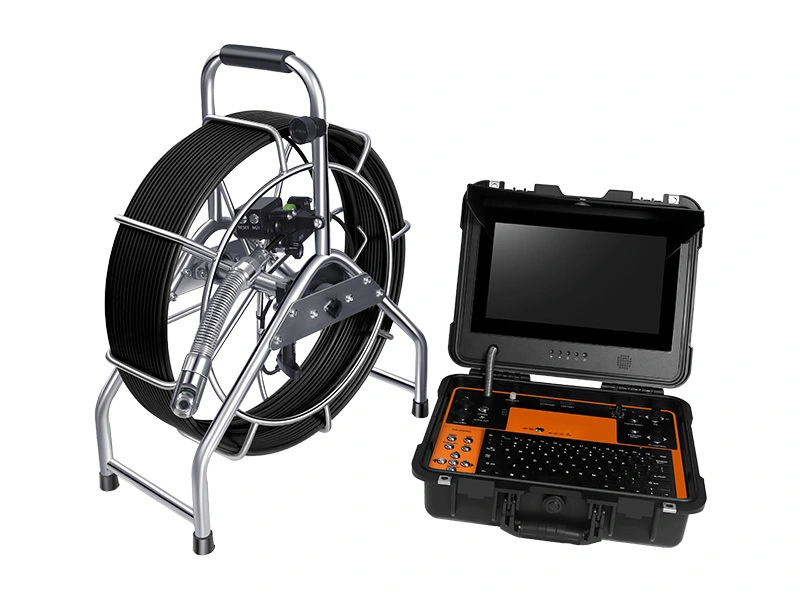

13inch Control Box with 50mm PT 360° Rotation Inspection Pipe Camera System
This 50mm AHD PTZ industrial inspection infrared sensor features 360° unlimited rotation and precise manual operation. Designed for harsh environments, it maintains excellent stepping performance at depths of 60 to 150 meters, making it ideal for professional pipeline diagnostics and basic monitoring facilities.
Product Detail
This 50mm AHD PTZ industrial inspection infrared sensor features 360° unlimited rotation and precise manual operation. Designed for harsh environments, it maintains excellent stepping performance at depths of 60 to 150 meters, making it ideal for professional pipeline diagnostics and basic monitoring facilities.

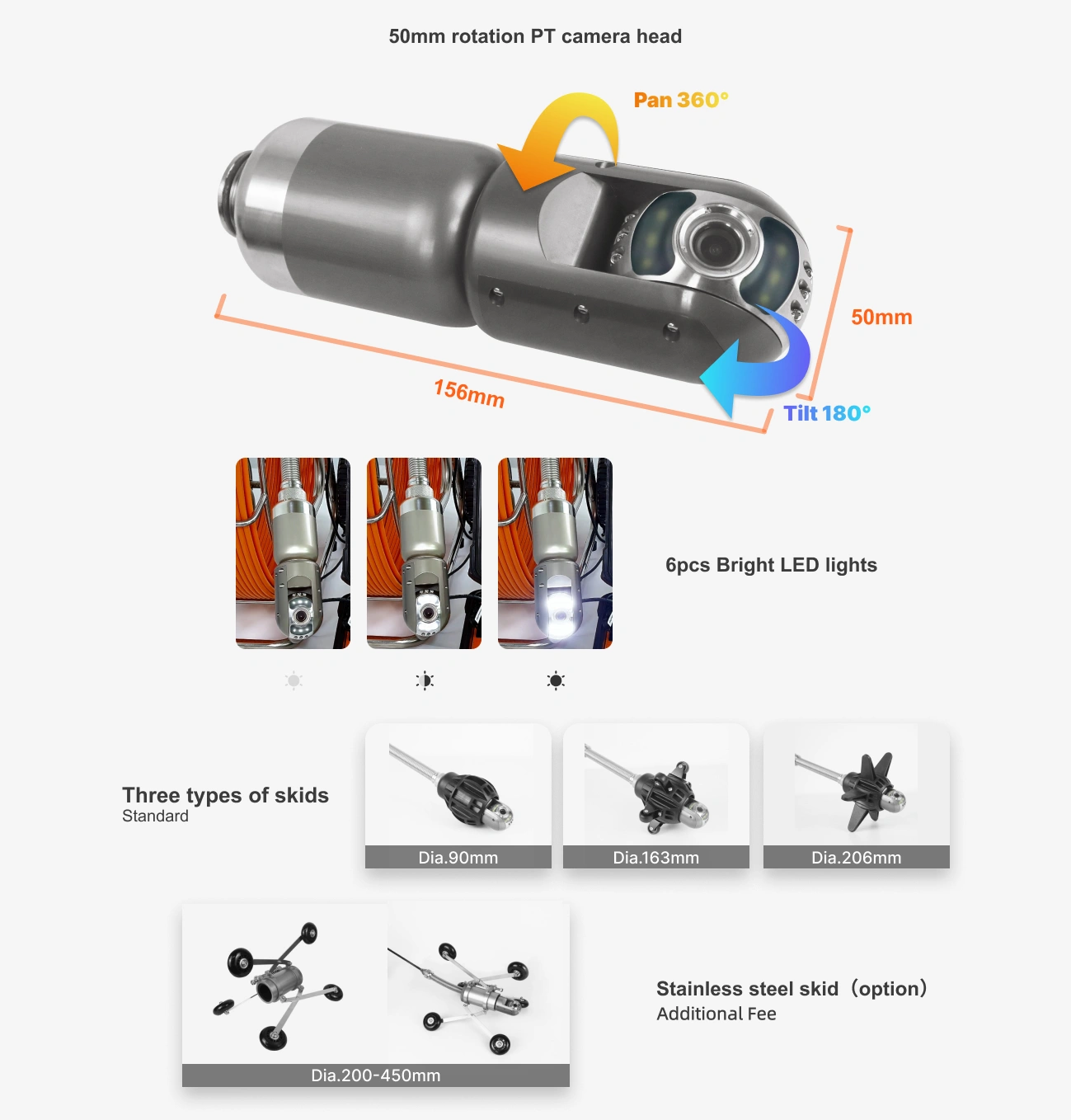

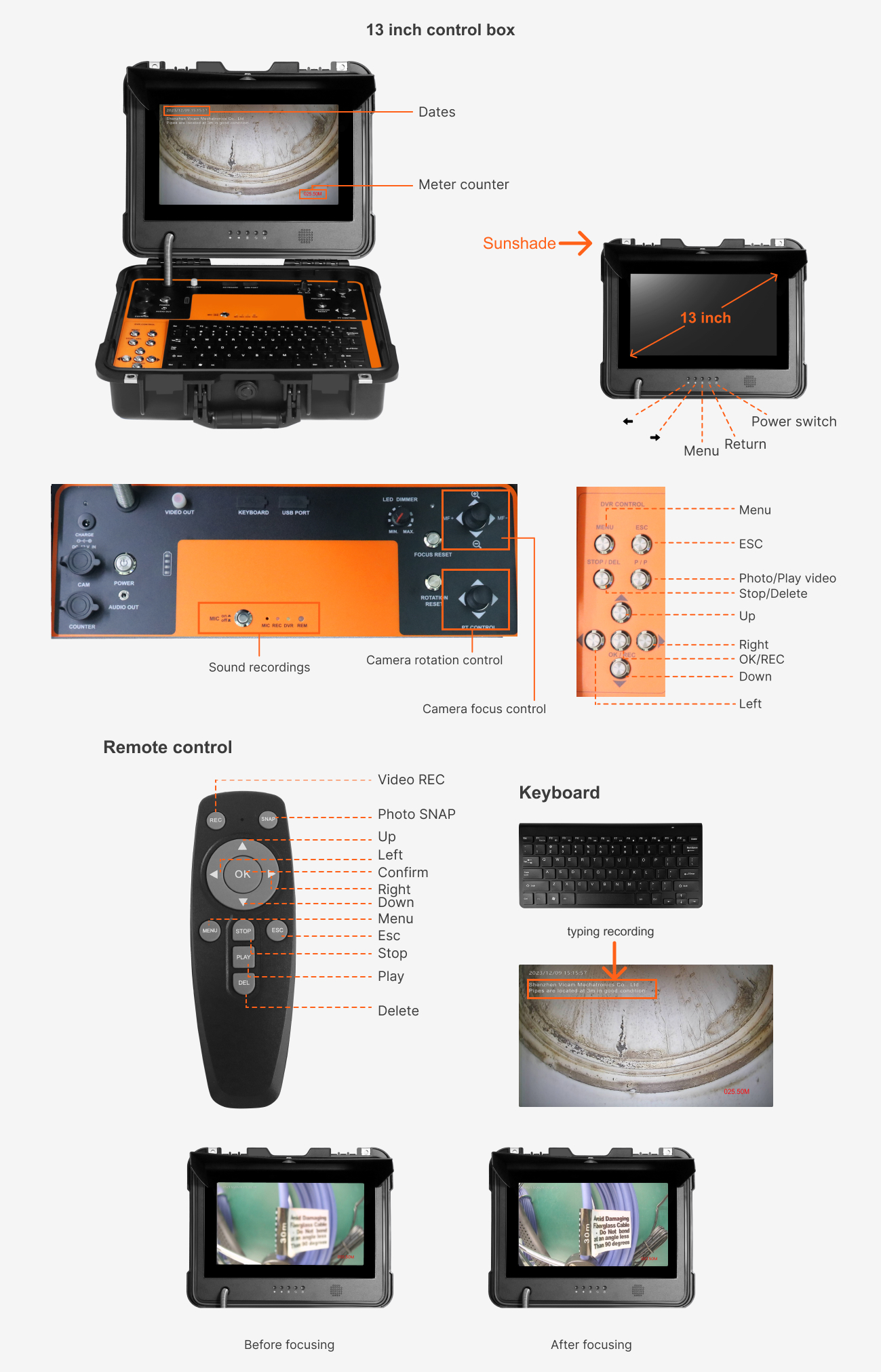

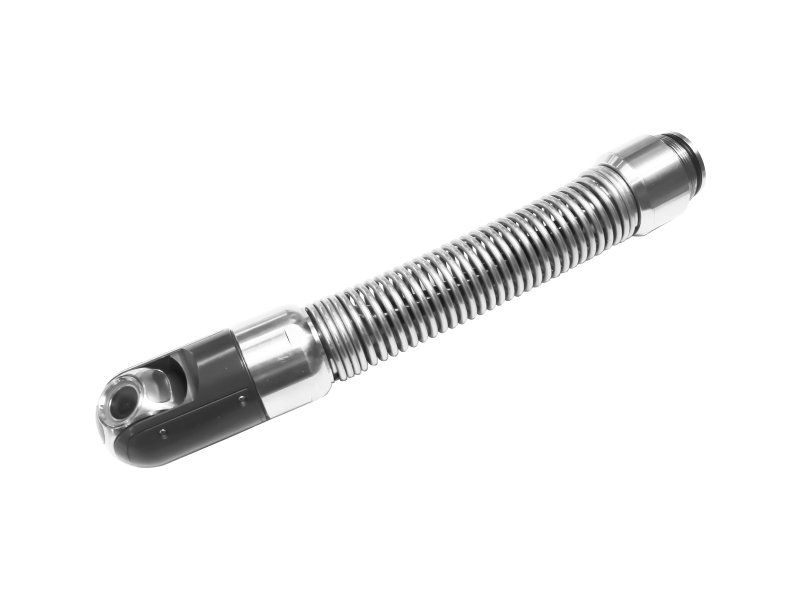

| 360° rotation AHD Camera Head, Pan 360° Tilt 180° |
| 13 inch IPS lcd screen, 1980x1080 resolution |
| 1/3 CMOS, 2.0MP pilex HD , waterproof IP68 |
| Adjustable focus function |
| 13 inch IPS lcd screen, 1980x1080 resolution |

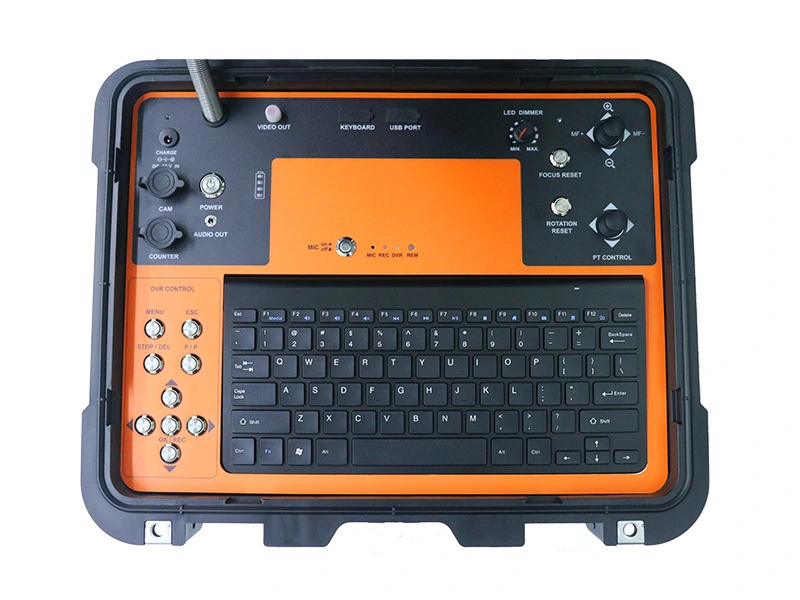

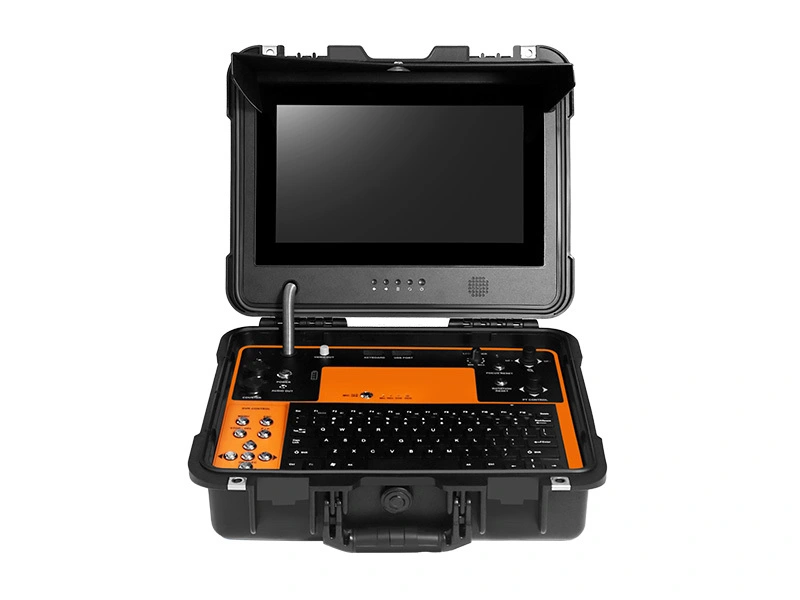

| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
|
Camera size |
50mm x 154mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
Manual focus manually |
|
Rotation range |
Rotation: Pan 360°， Tilt 180° |
|
Light |
6pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Fiberglass push rod cable |
|
Screen Size |
Screen Size: 13inch |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|

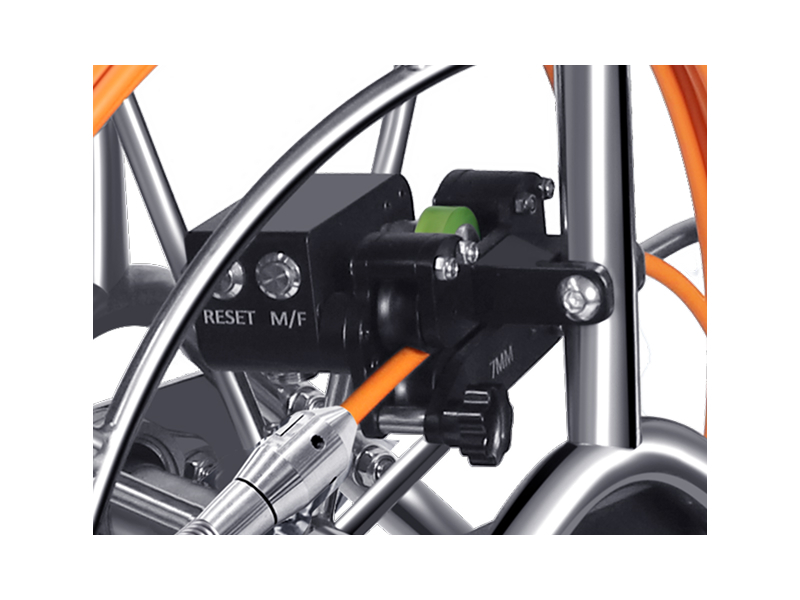

Meter counter |
Digital meter counter |
|
Battery |
8800mA rechargeable Li-ion Battery Pack |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |
/ |
|
Meter counter |
Digital meter counter |
|

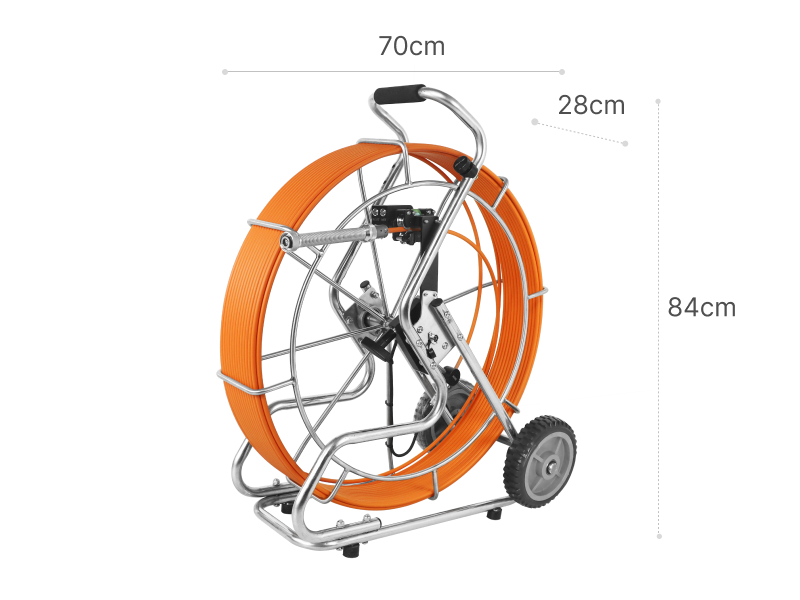

Material |
Fiberglass push rod cable |
|

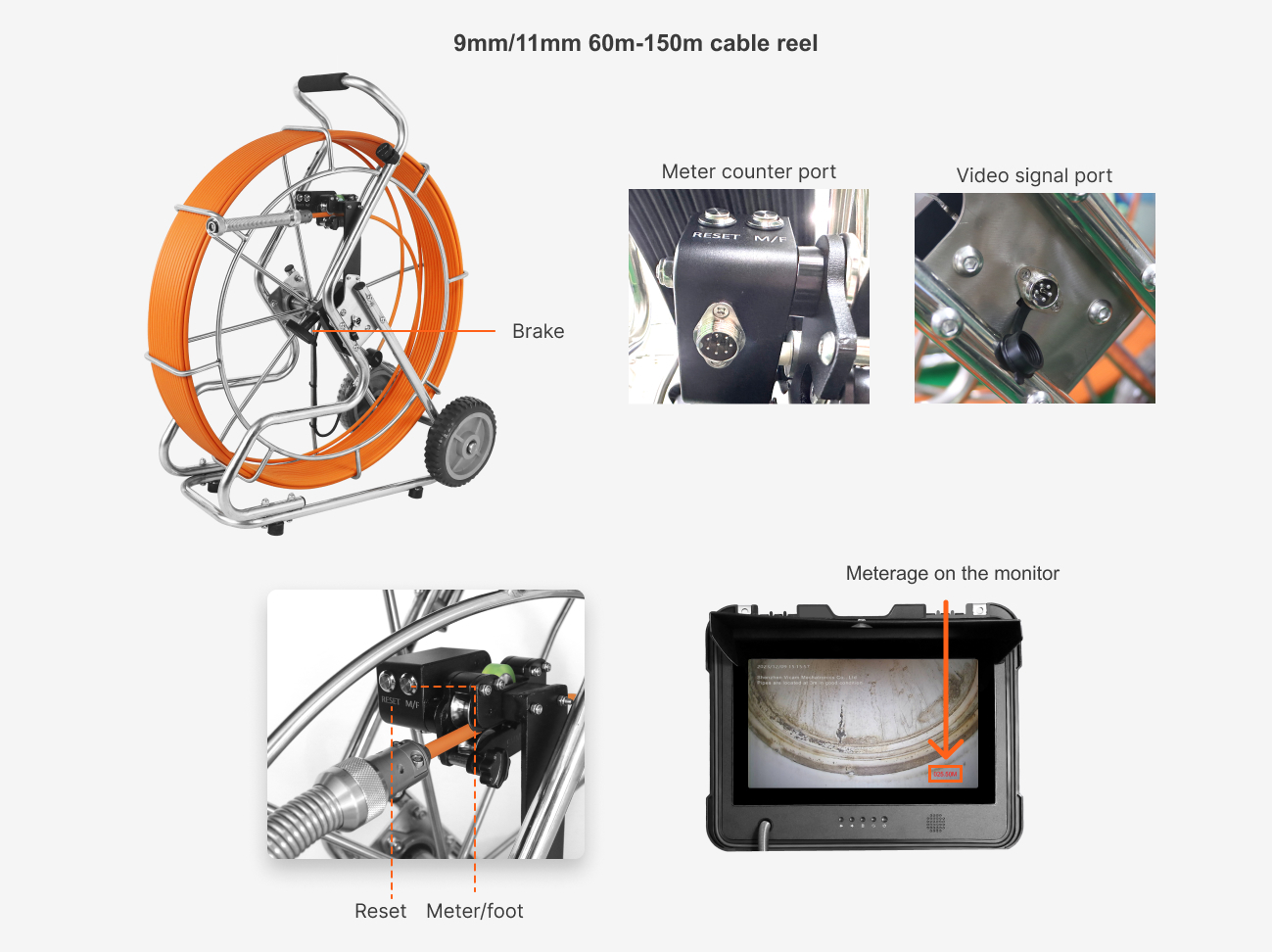

Cable diameter |
9mm / 11mm |
|
Cable length |
60m-150m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
Frequently Asked QuestionsRelated Products
Vicam is the professional manufacturer of sewer drain pipe inspection cameras.
We have 100% test before delivery and all Vicam products have at least 48 hours Aging Testing to make sure good quality.
Pipe inspection camera,Under water Inspection camera,Endoscope inspection camera,CCTV video inspection camera.
Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras.
Related Products

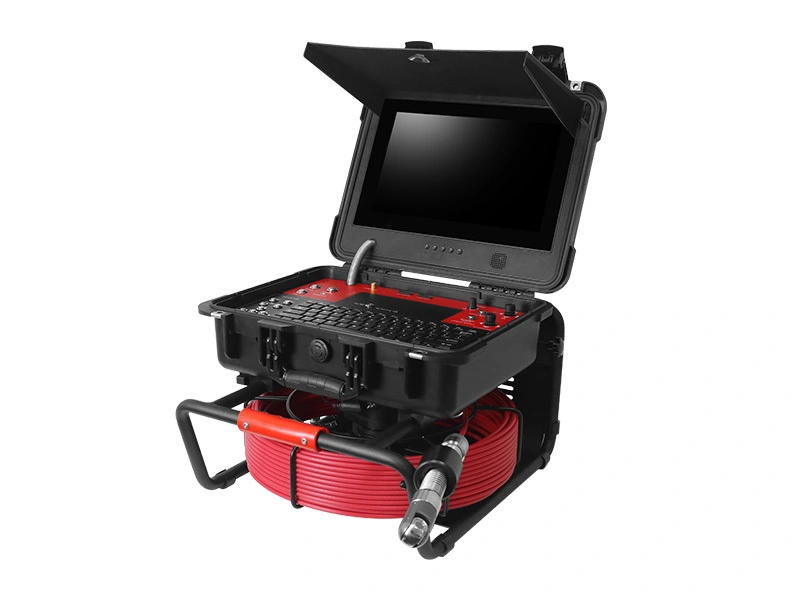

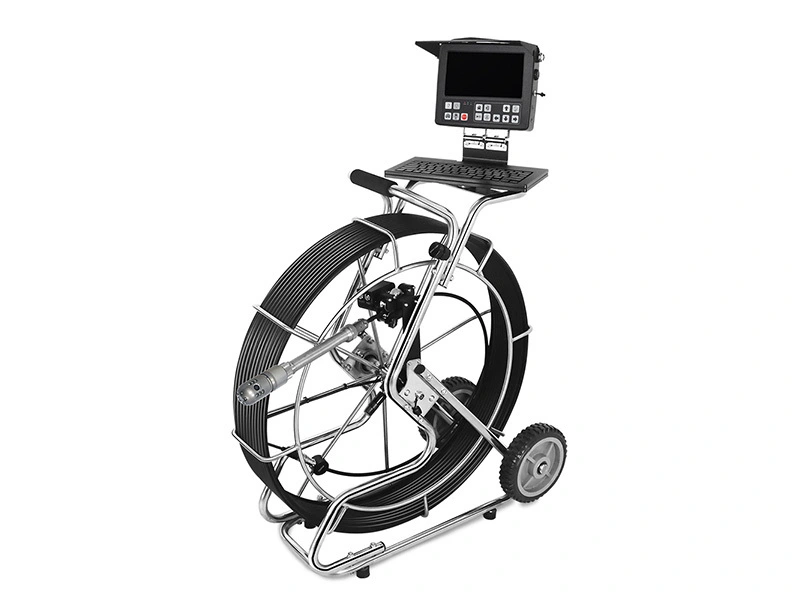

13inch Control Box with 33mm PT AHD Pipe Inspection Camera System

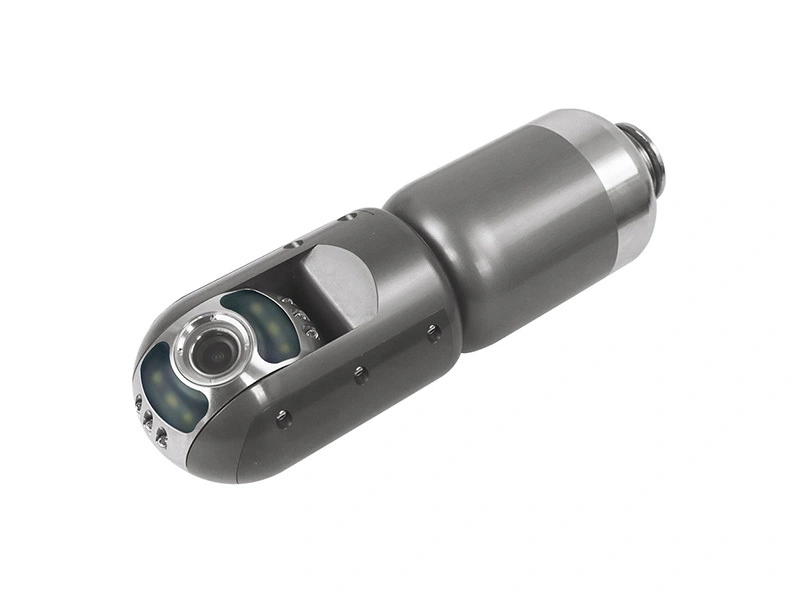

33mm Pan Tilt Rotation Sewer Camera with Manual Focus HD Pipe Inspection Camera

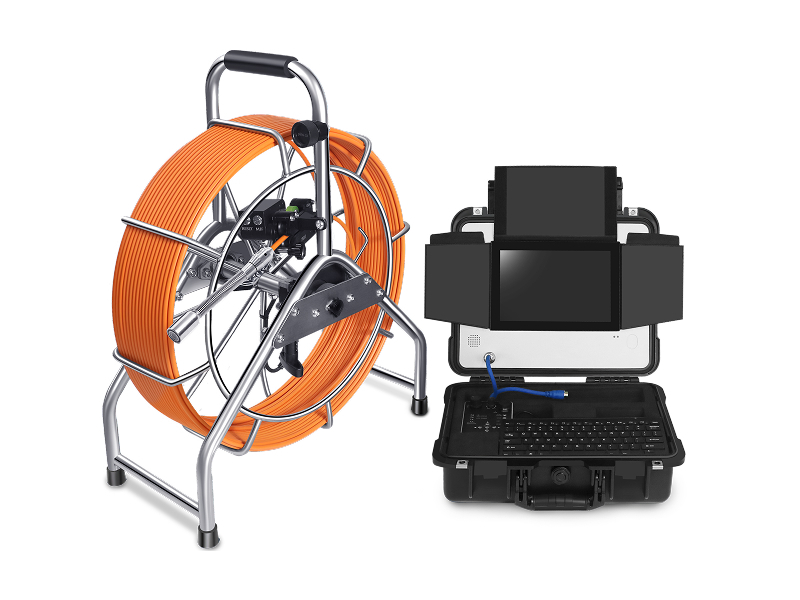

8inch Control Box with 33mm PT AHD Pipe Inspection Camera System
