50mm Pan Tilt Portable HD Underwater Inspection Camera
Engineered for professional marine and structural diagnostics, the 50mm Pan-Tilt Portable AHD Underwater Inspection Camera delivers exceptional versatility in a highly mobile form factor. Featuring an advanced, responsive pan-and-tilt control mechanism, this compact system allows operators to navigate challenging aquatic environments effortlessly, ensuring precise multi-angle viewing and high-definition image capture without blind spots.
Product Detail
Engineered for professional marine and structural diagnostics, the 50mm Pan-Tilt Portable AHD Underwater Inspection Camera delivers exceptional versatility in a highly mobile form factor. Featuring an advanced, responsive pan-and-tilt control mechanism, this compact system allows operators to navigate challenging aquatic environments effortlessly, ensuring precise multi-angle viewing and high-definition image capture without blind spots.
Overview of 50mm Pan Tilt rotation Camera
| 50mm Pan 360 degree Tilt 180 degree rotation camera |
| 1/3 CMOS, 2.0MP pilex AHD , waterproof IP68 |
| 8 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |

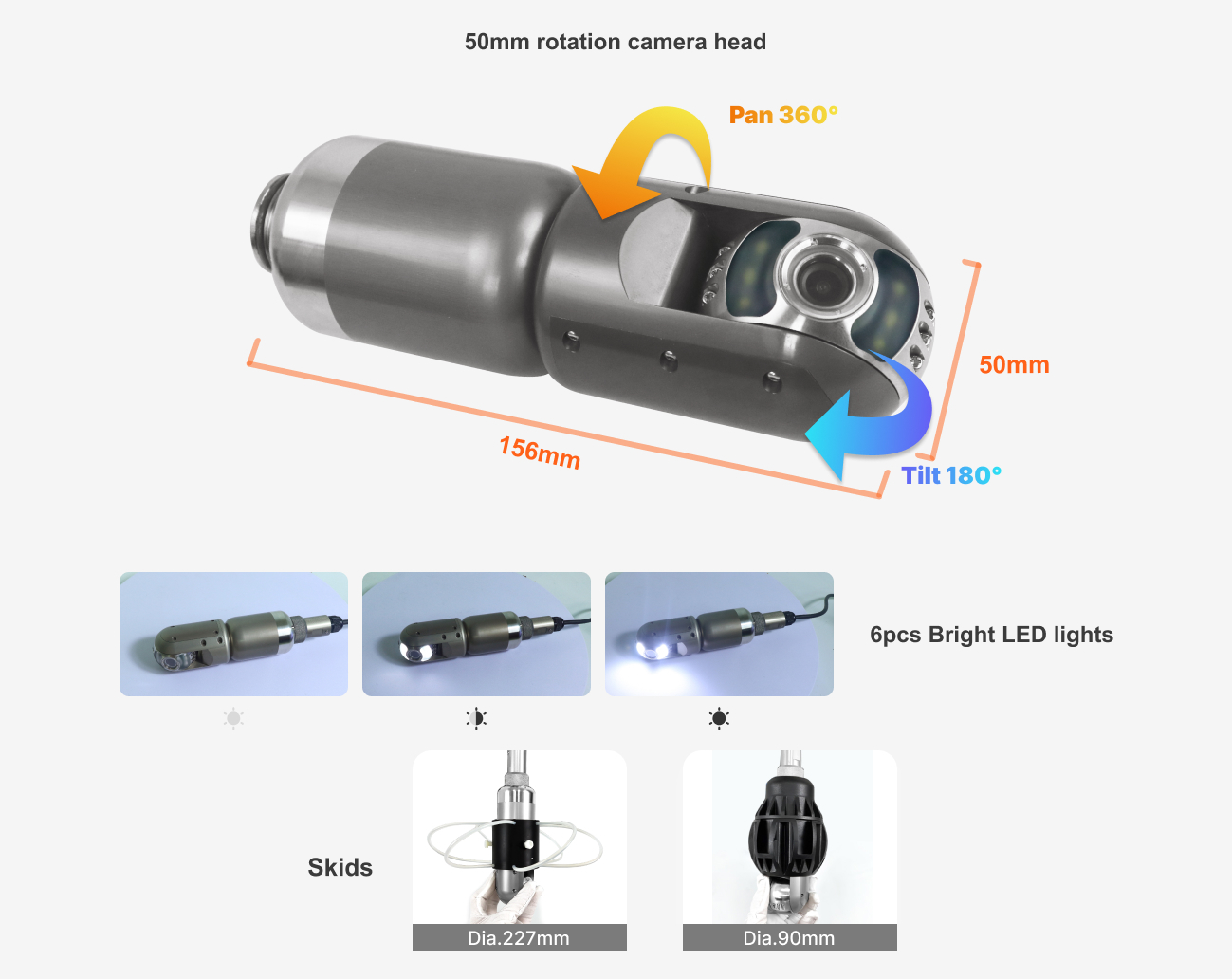

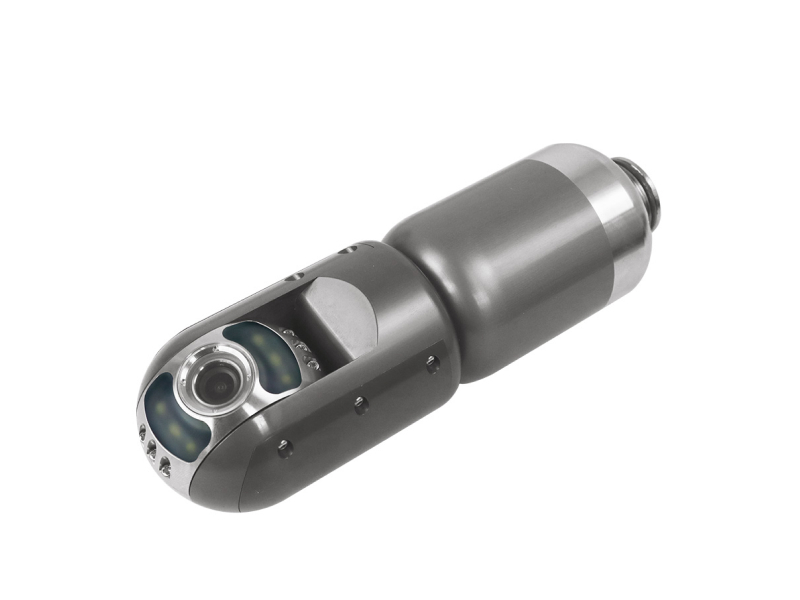

Main Part 1: 50mm Pan 360 degree Tilt 180 degree rotation camera head
|
Camera size |
50mm x 156mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Focusing |
/ |
|
Rotation range |
/ |
|
Light |
6pcs high light LED lighting adjustable (down view and side view) |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
/ |

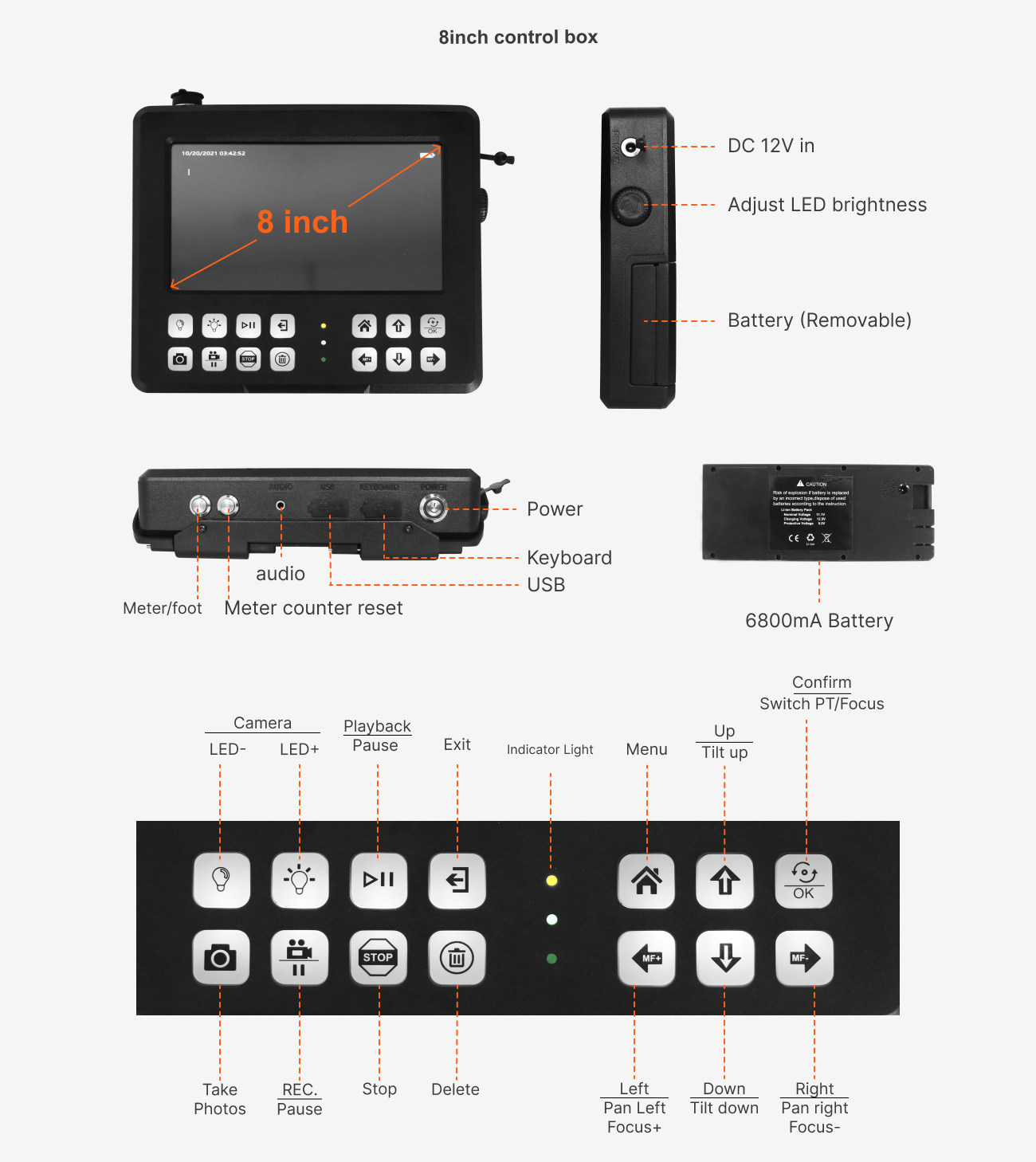

Main Part 2: DVR control unit
|
Screen Size |
8"HD IPS LCD Screen, 1920*1080 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
/ |
|
Meter counter |
Digital meter counter |
|
Battery |
6800mA rechargeable Li-ion Battery Pack/ Battery level indicator |
|
On-screen |
Depth encoder |
|
Built in WIFI transmitter |

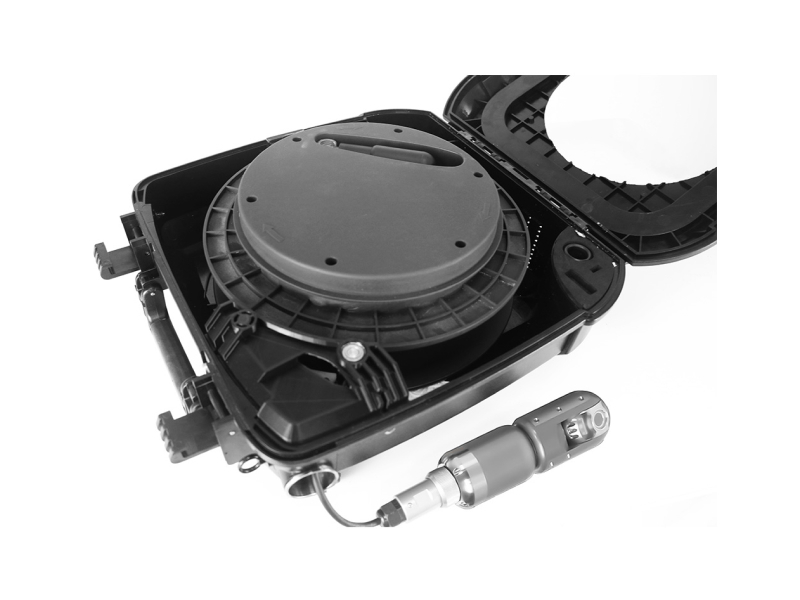

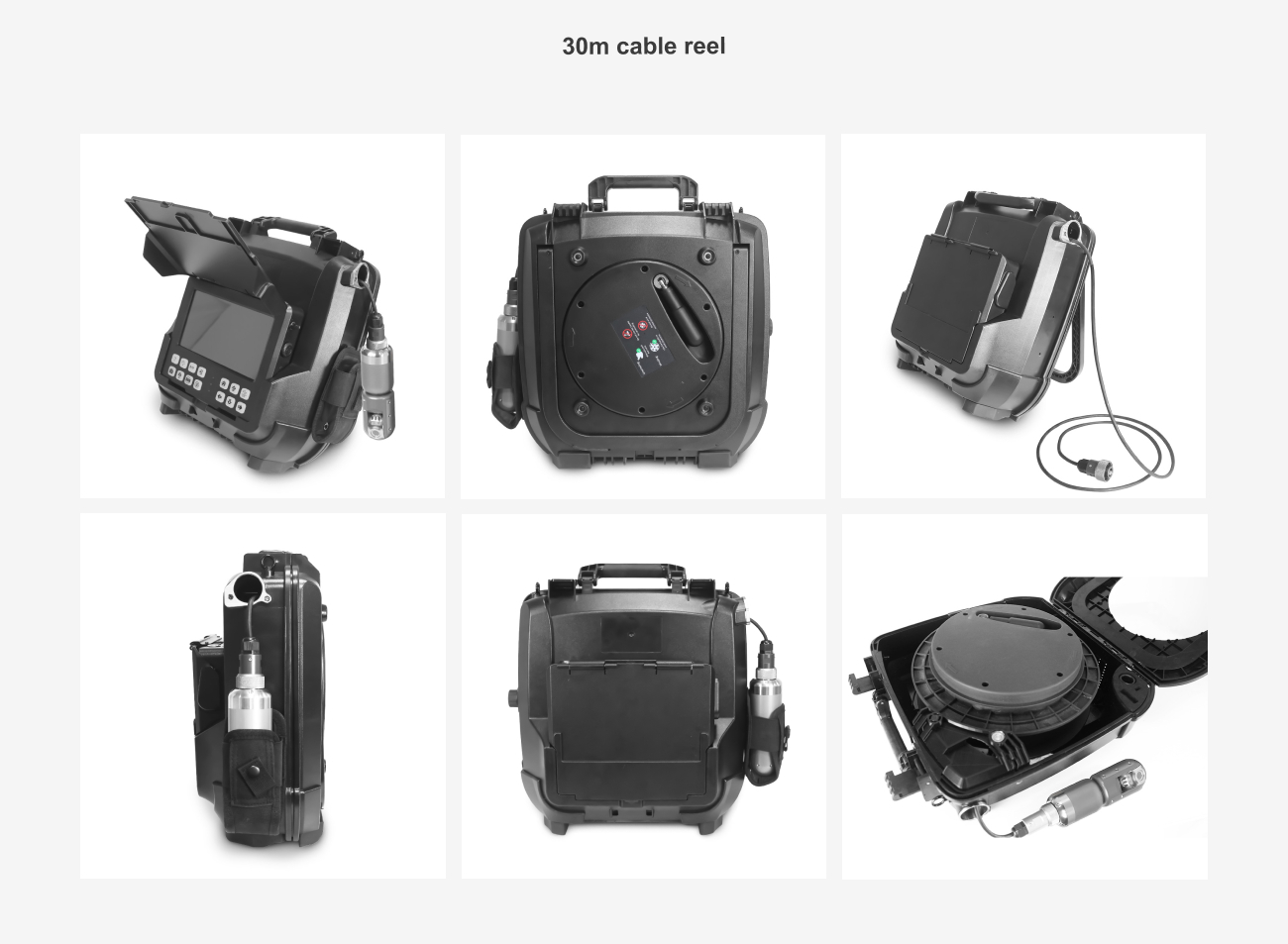

Main Part 3: Cable reel
|
Meter counter |
Digital meter counter |
|
Material |
/ |
|
Cable diameter |
5mm |
|
Cable length |
30m |
|
Electric winding |
/ |
|
Winding speed |
/ |
|
Power supply |
/ |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
