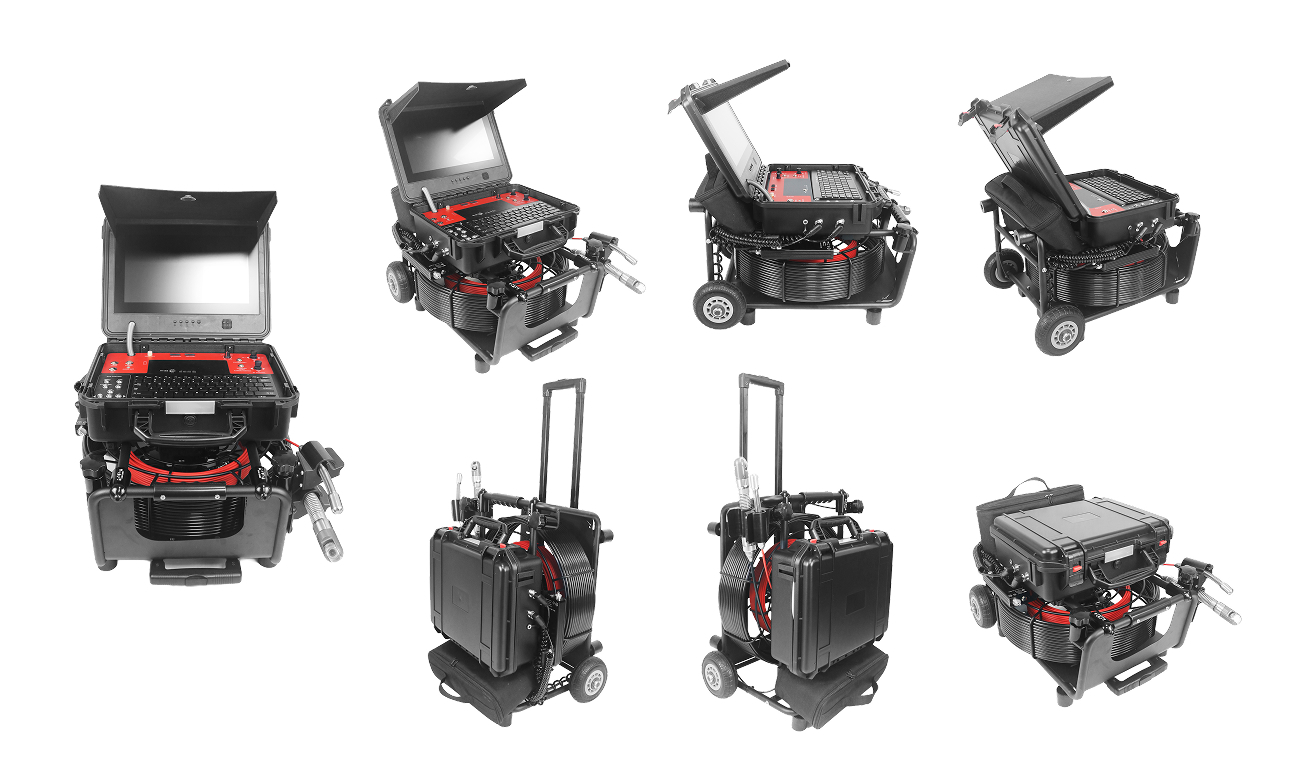

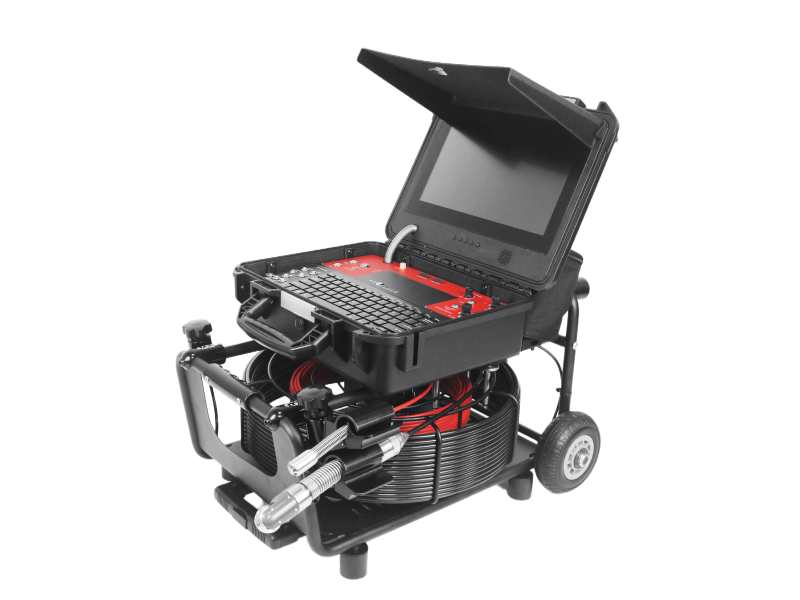

Dual Cable reel Dual Camera Head 33mm Pan Tilt & 23mm Pipe Camera System
这款双摄像头检测系统配备双电缆卷盘，可同时支持 33 毫米云台摄像头和 23 毫米纤细管道摄像头，实现快速切换，并可延伸至各种管径的检测范围。33 毫米云台摄像头提供全方位方向控制，实现全景检测；23 毫米探头则可深入狭窄管道，其明亮的 LED 照明和坚固的结构使其成为管道、市政和工业诊断的理想之选。
Product Detail
双电缆卷筒可容纳一个用于定向检测的 33 毫米云台摄像机头和一个用于狭窄管线内部检测的 23 毫米管道摄像机，从而实现广域导航和狭小空间成像之间的快速切换。远程云台控制、可调节 LED 照明和深度标记电缆简化了管道和排水沟的检测流程，缩短了服务时间，提高了缺陷检测和报告的准确性。
| 33mm 360° Tilt 180° rotation camera head & 23mm camera head |
| 1/3 CMOS, 2.0MP pilex FHD , waterproof IP68 |
| Dual cable reel (7mm & 5.2mm) 20m-50m option |
| 13 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |
|

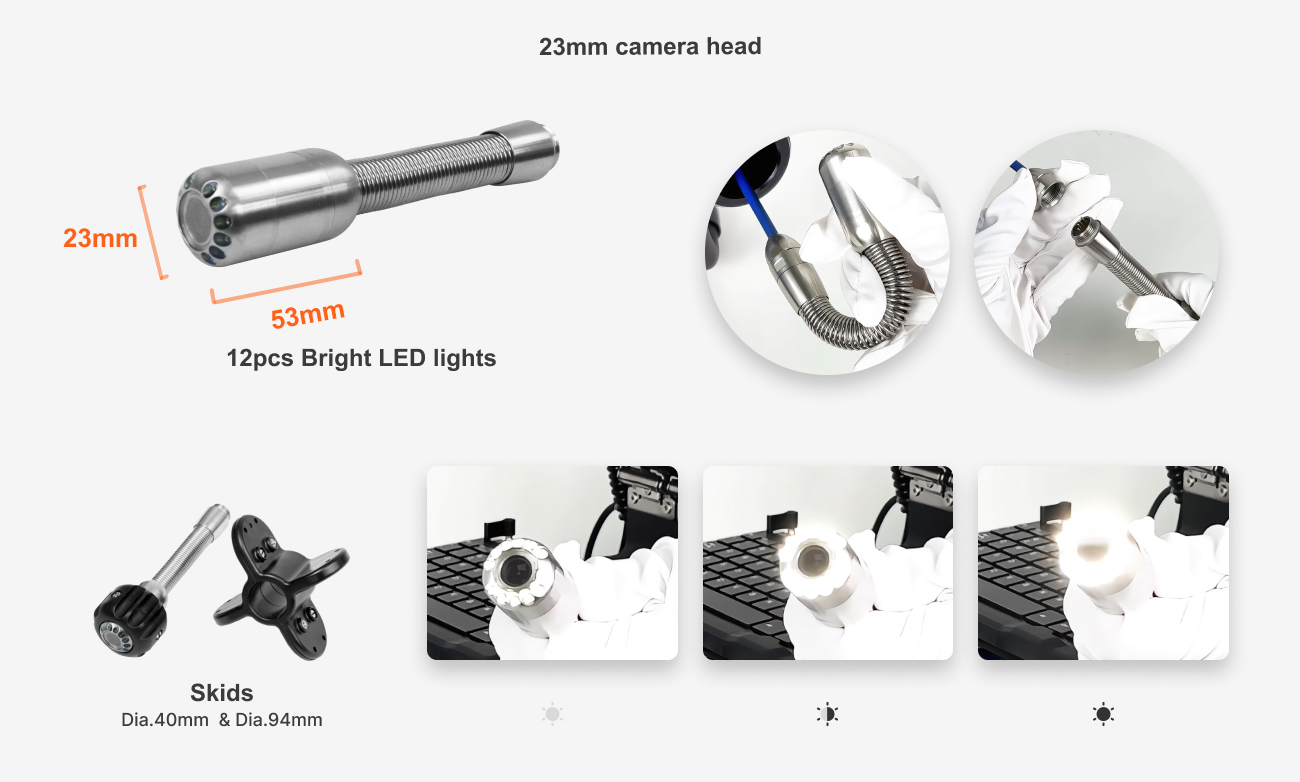

Camera size |
23mm x 53mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Light |
12pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Lens window sapphire glass & stainless stee |
|

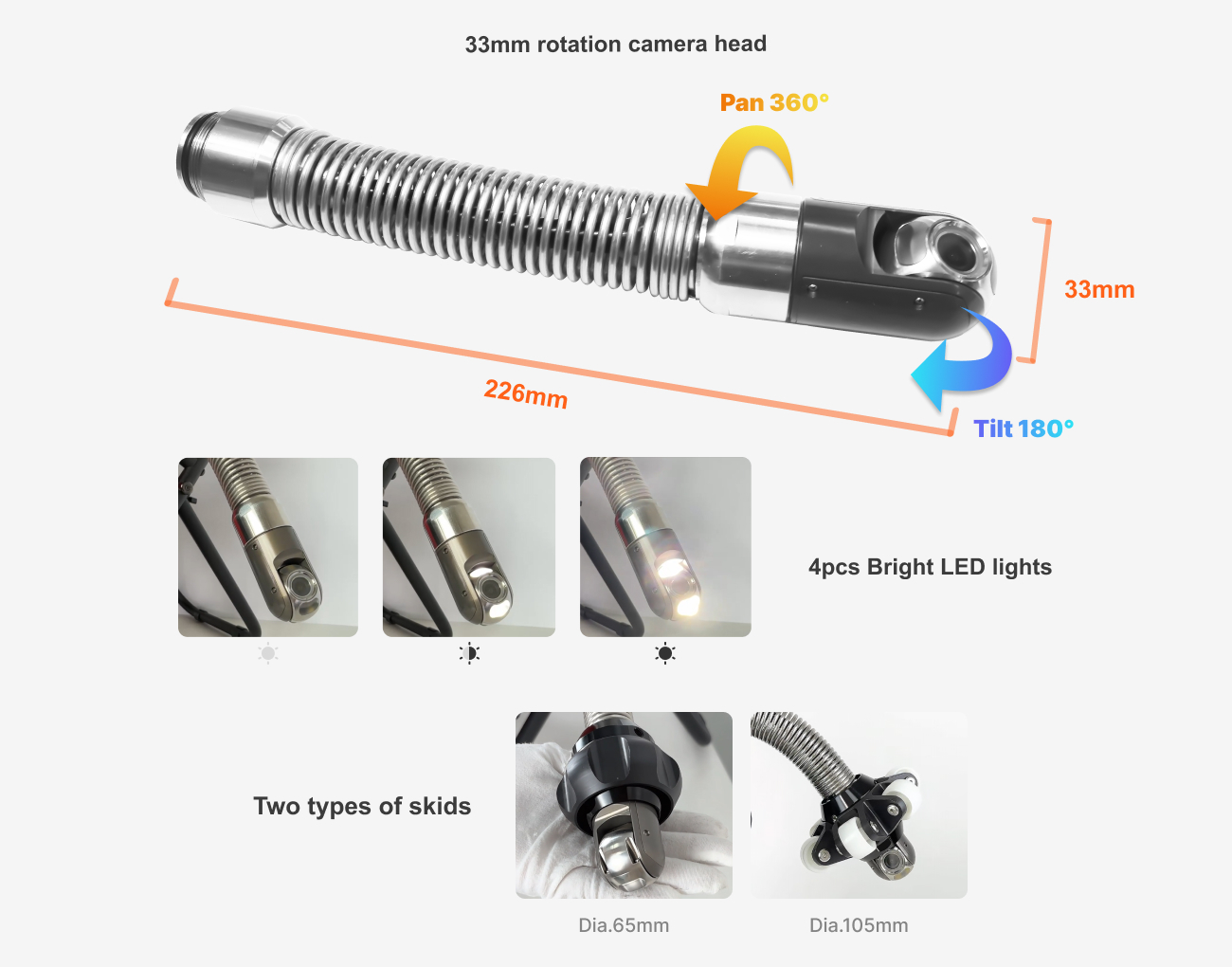

Camera size |
33mm x 226mm |
|
Camera pixel |
roof keys & waterproof panel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Light |
4pcs high light LED lighting adjustable |
|
Connector |
Detachable with aviation plug type connection to Cable Reel |
|
Material |
Lens window sapphire glass & stainless steel |
|
Self-leveling |
|

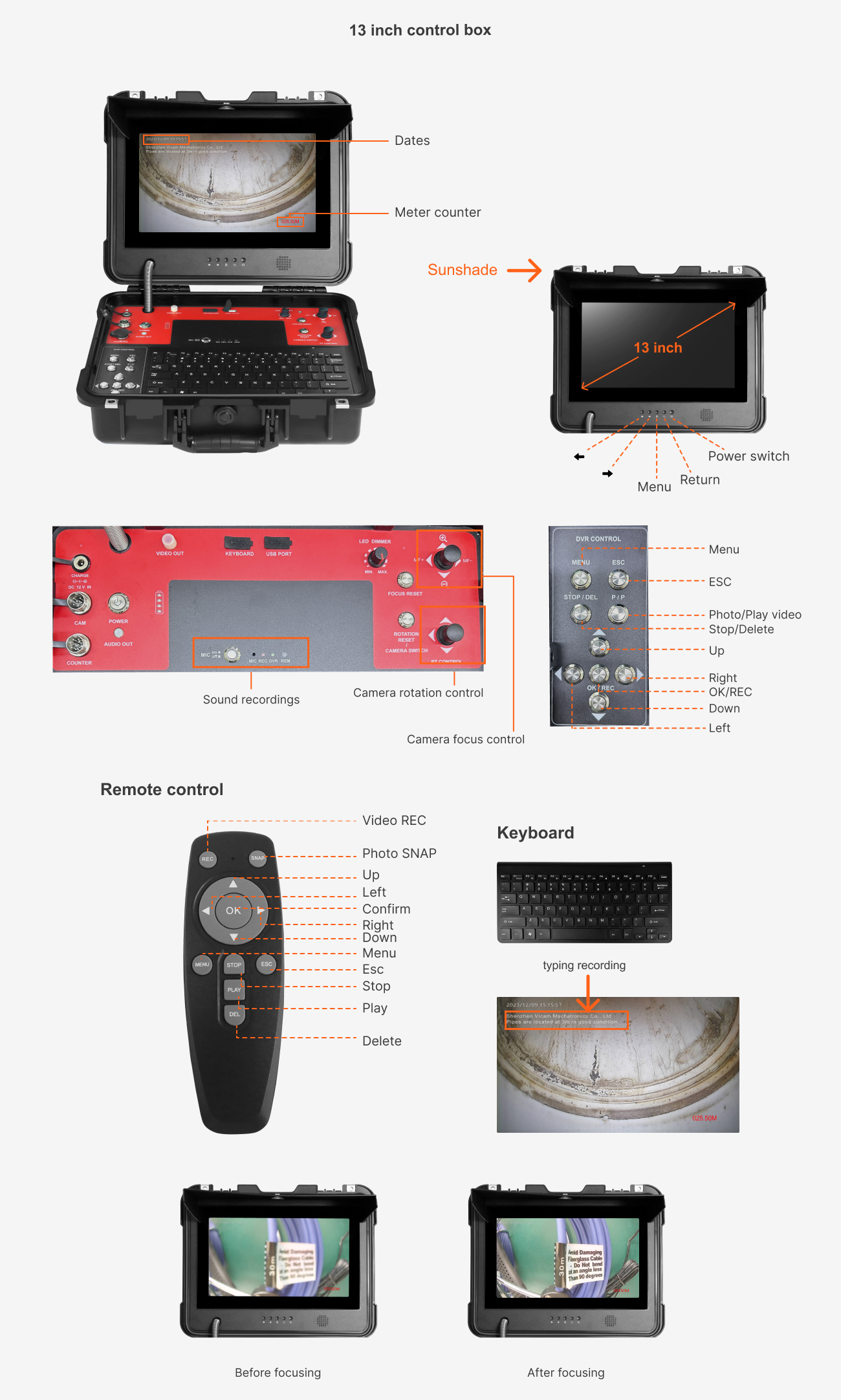

Screen Size |
13"HD IPS LCD Screen, 1280X720 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
Digital meter counter function, display on the screen |
|
Battery |
8800mA rechargeable Li-ion Battery Pack |
|
Battery |
Battery level indicator |
|
Meter counter |
Digital meter counter (only for outer cable reel) |
|

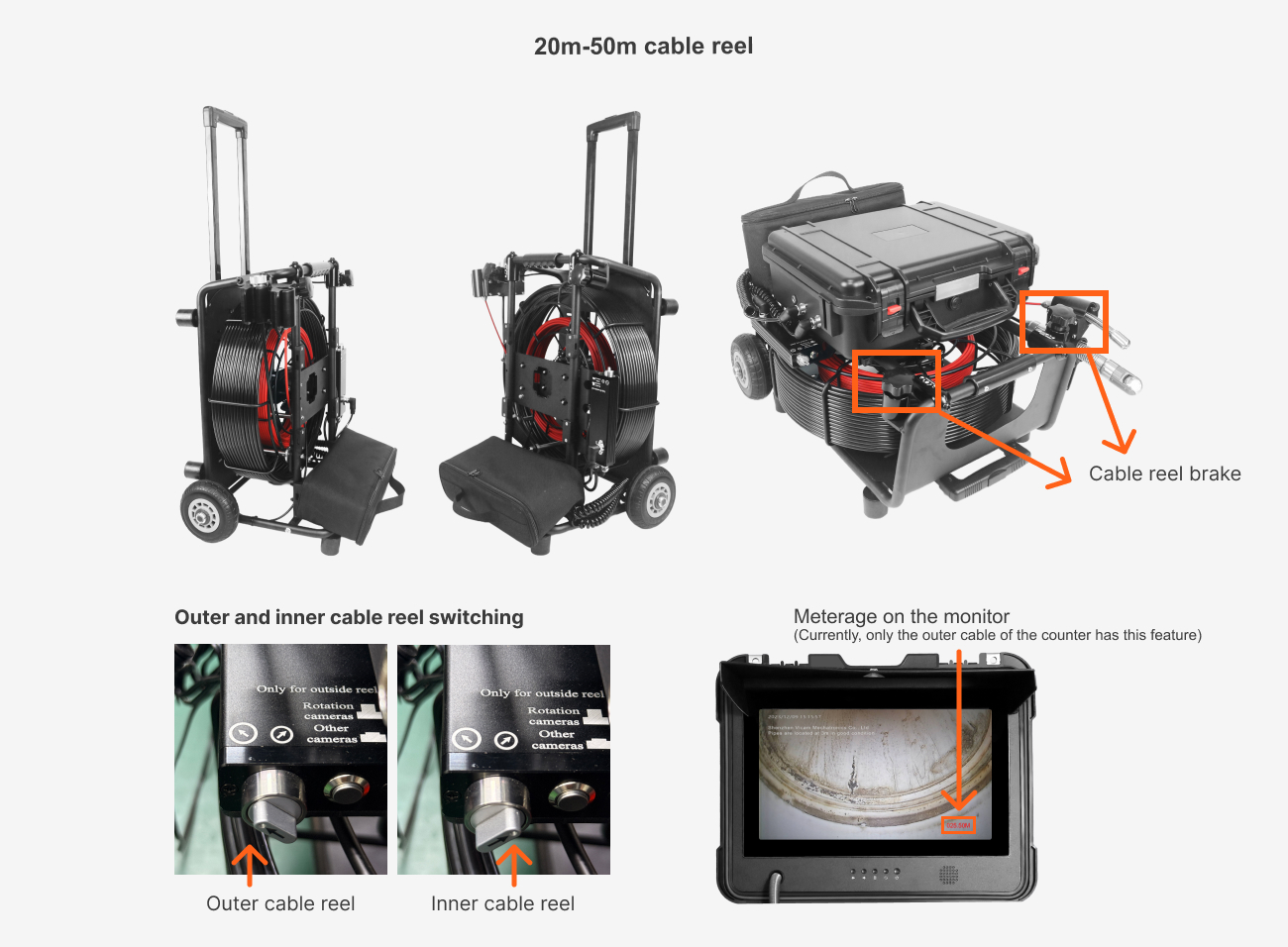

Material |
Fiberglass push rod cable |
|
Cable diameter |
7mm (outer cable reel) 5.2mm (inner cable reel) |
|
Cable length |
20m-50m(outer cable reel) 20m-40m(inner cable reel) |
|
Reel size |
40cmx40cm(outer cable reel) 30cmx30cm(inner cable reel) |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
