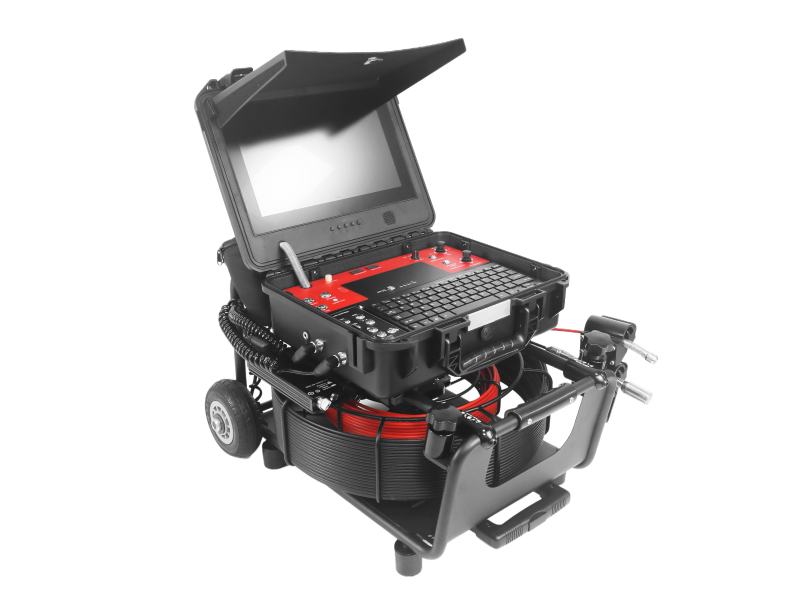

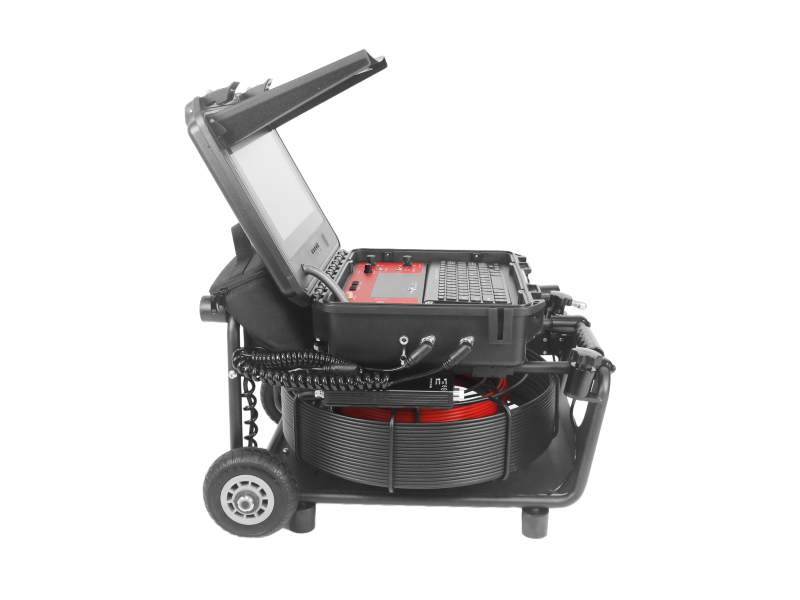

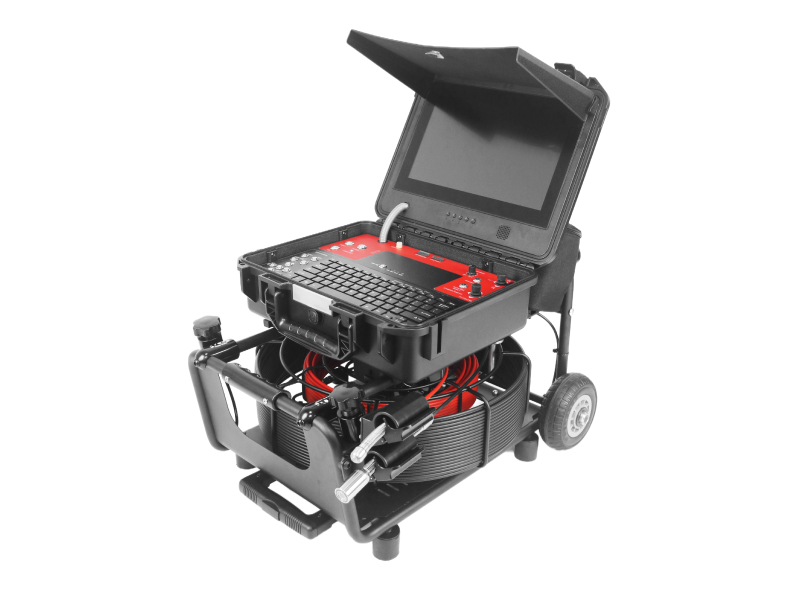

Dual Cable reel Dual Camera Head 17mm & 23mm Self-leveling Pipe Camera System
The Dual Cable Reel Dual Camera Head 17mm & 23mm Self-leveling Pipe Camera System is a professional inspection kit featuring two interchangeable camera heads (17mm and 23mm) and a dual cable reel for extended reach and tidy cable management. Its self-leveling heads keep the image upright while rugged construction and integrated illumination provide stable, reliable video for inspecting small to medium-diameter pipes.
Product Detail
Dual cable reel equipped with interchangeable 17mm and 23mm camera heads and self-leveling functionality maintains correct image orientation during deployment while integrated controls simplify cable management and head swaps. Suitable for inspecting a range of pipe diameters, it shortens diagnostic workflows and minimizes repeat visits by providing steady, upright footage for reliable condition assessment.

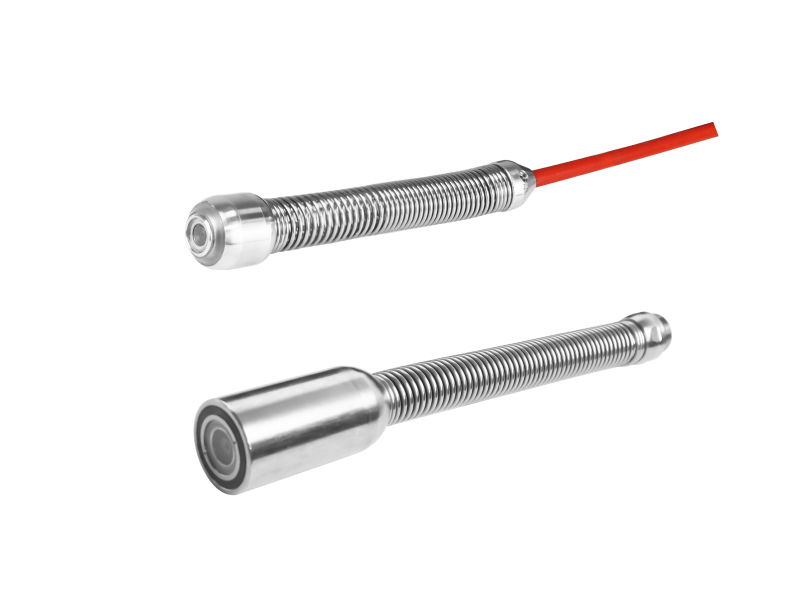

| 17mm camera head & 23mm self-leveling camera head |
| 1/3 CMOS, 2.0MP pilex HD , waterproof IP68 |

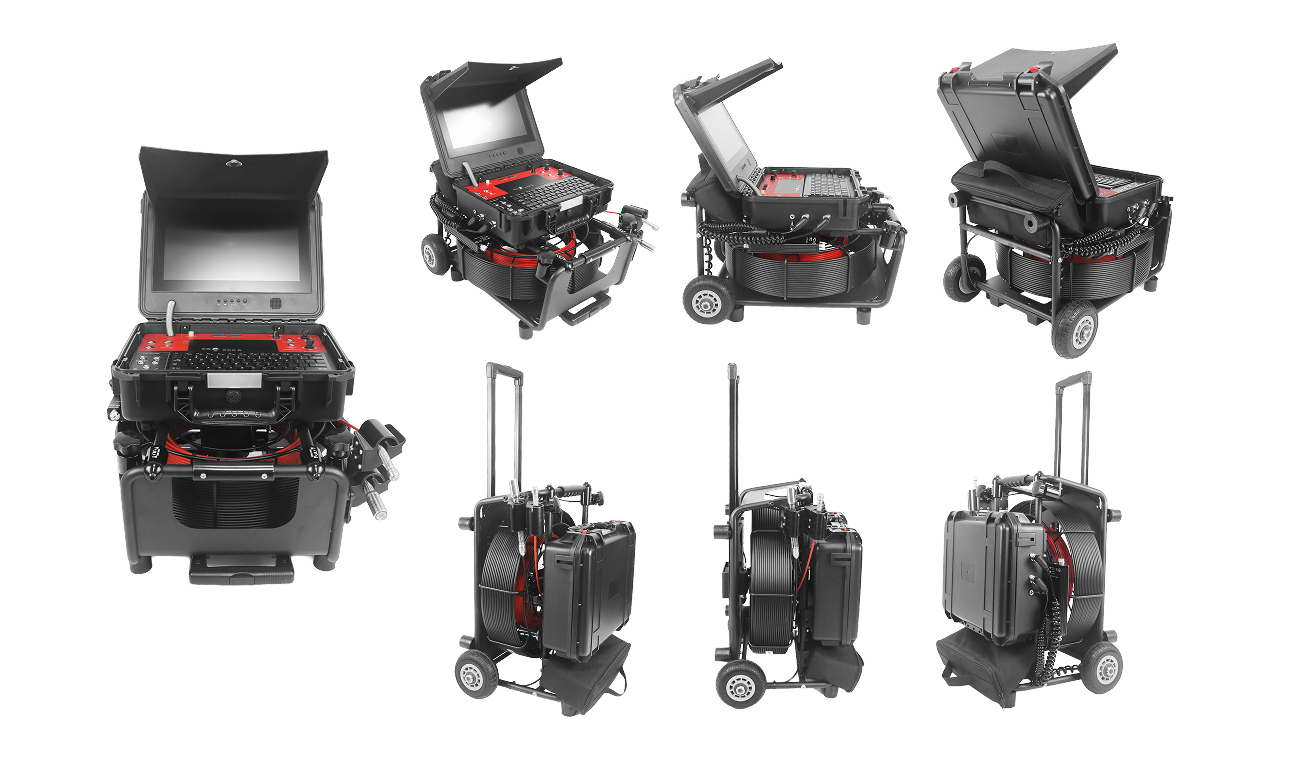

| Dual cable reel (7mm & 5.2mm) 20m-50m option |

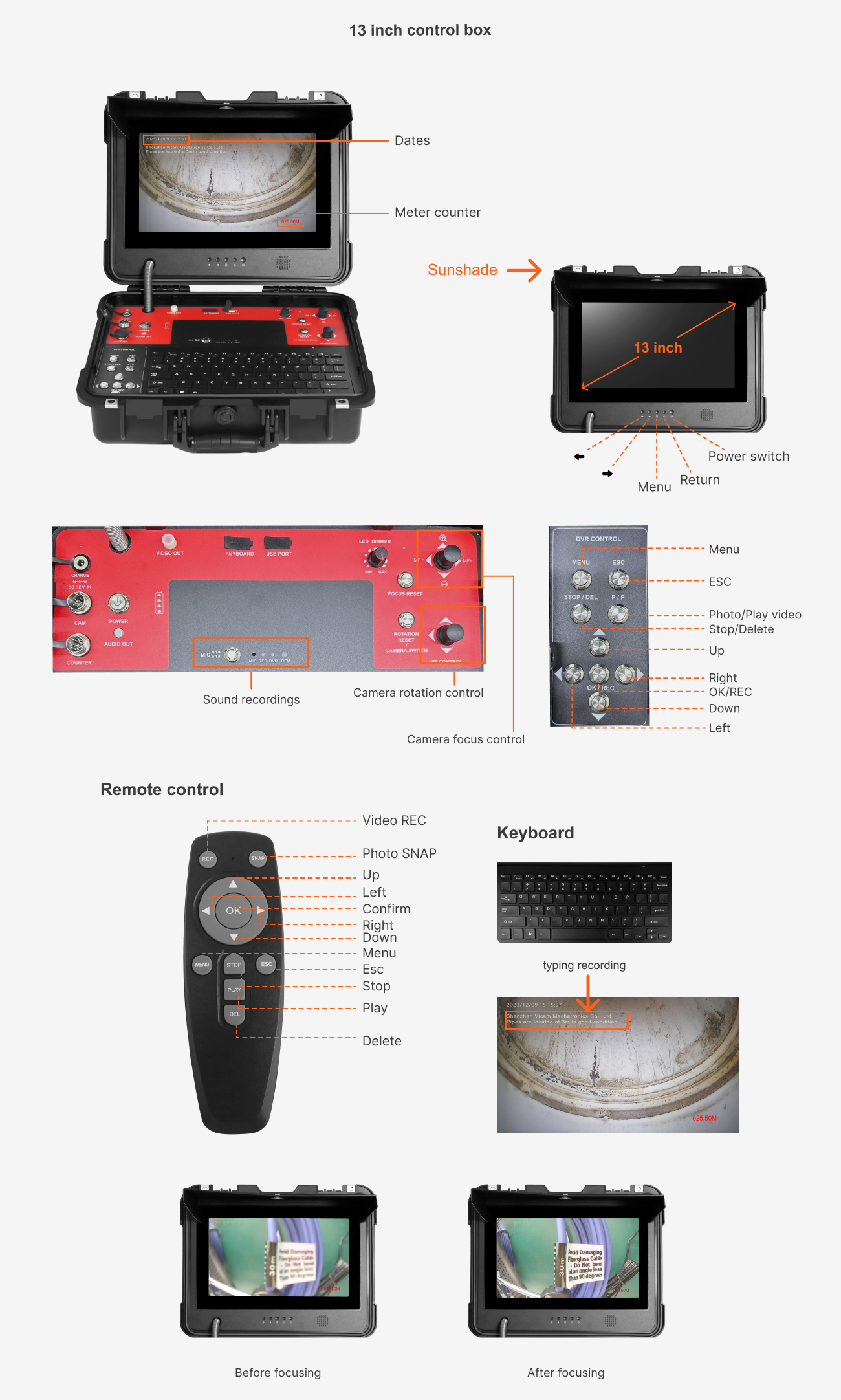

| 13 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |
|

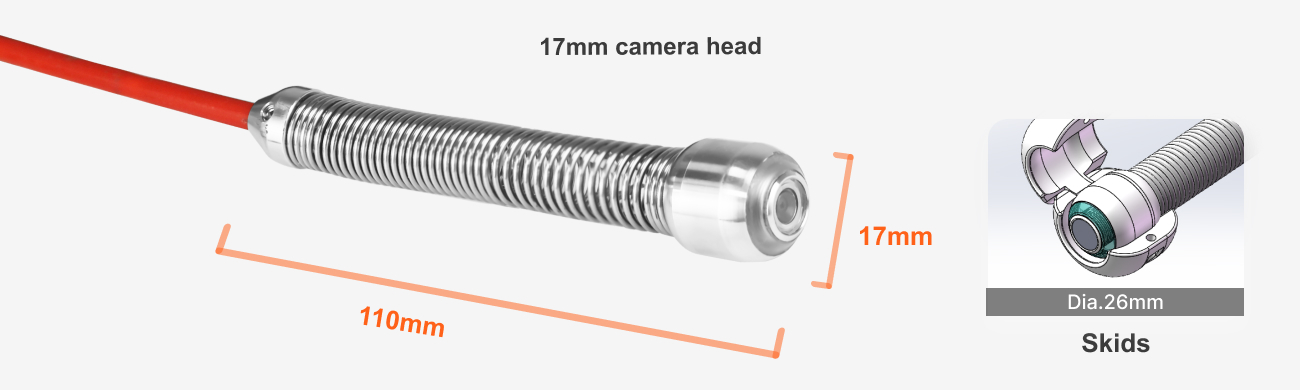

Camera size |
17 x 17.4mm |
|
Camera pixel |
Sensor 1/3" CMOS, 1.3MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 90° |
|
Light |
6pcs high light LED lighting adjustable |
|
Connector |
Connected to the cable reel, cannot be removed |
|
Material |
Lens window sapphire glass & stainless steel |
|

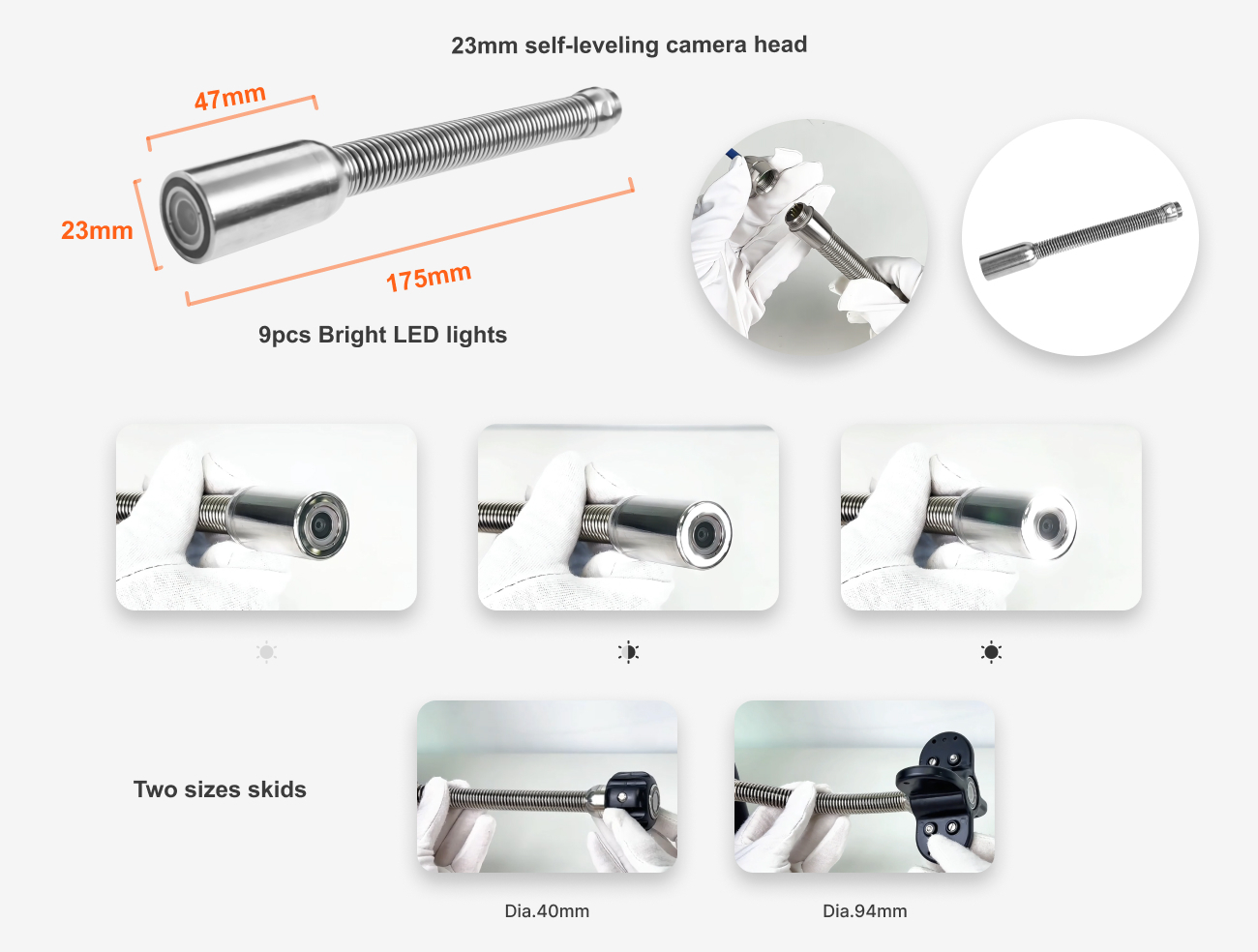

Camera size |
23mm x 47mm |
|
Camera pixel |
Sensor 1/3" CMOS, 2.0MP pixel |
|
Waterproof level |
Waterproof IP68 |
|
Camera range |
View range 120° |
|
Light |
12pcs high light LED lighting adjustable |
|
Connector |
Detachable with pins type connection to Cable Reel |
|
Material |
Lens window sapphire glass & stainless steel |
|
Self-leveling |
The image is always upwards, no matter which direction the camera is facing. |
|
Screen Size |
13"HD IPS LCD Screen, 1280X720 resolution |
|
Waterproof level |
Waterproof keys & waterproof panel |
|
Function |
Video, auido and photography function DVR |
|
Keyboard |
USB wireless Keyboard real time typewriting |
|
Meter counter |
Digital meter counter function, display on the screen |
|
Battery |
8800mA rechargeable Li-ion Battery Pack |
|
Battery |
Battery level indicator |
|

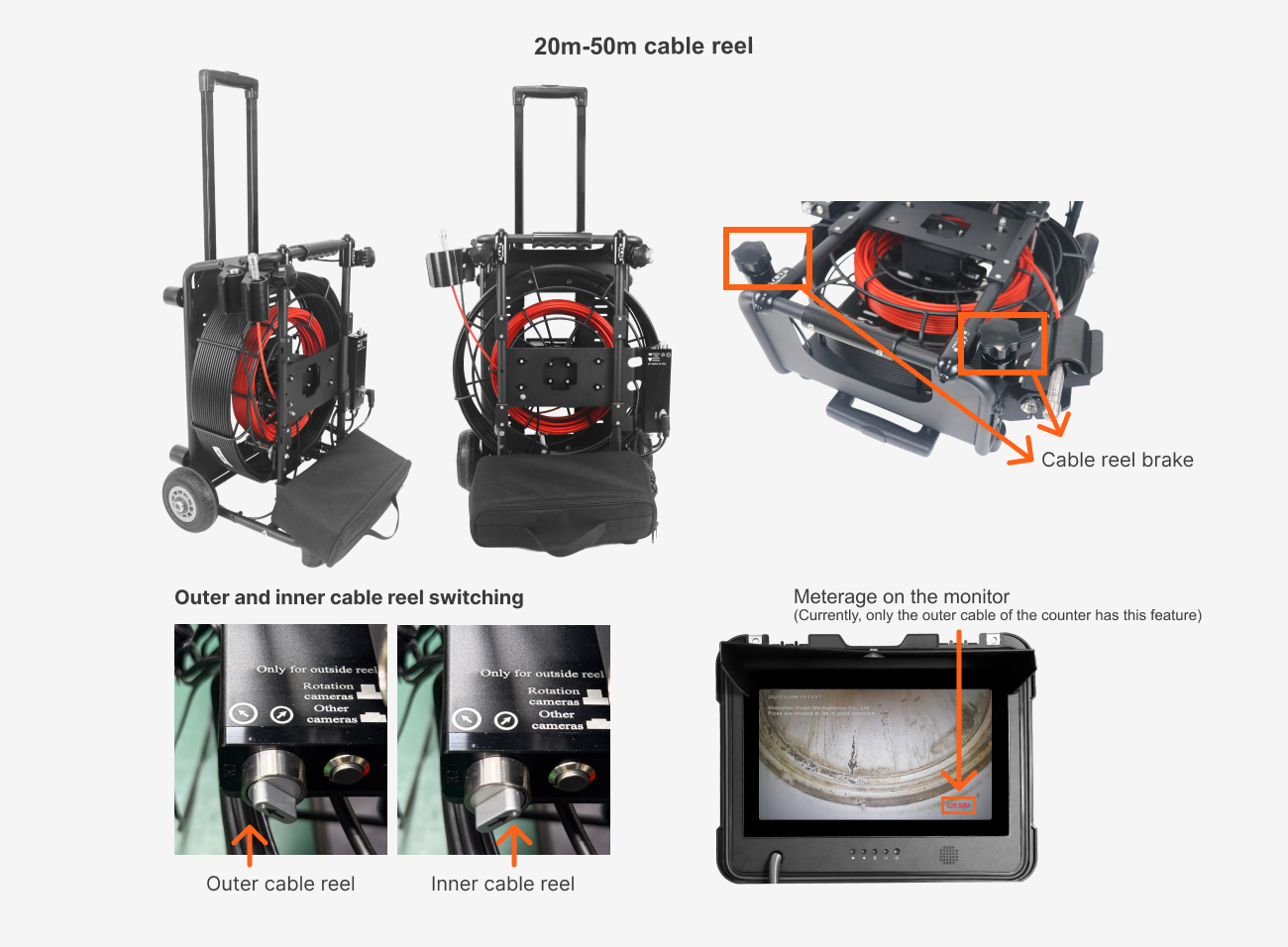

Meter counter |
Digital meter counter (only for outer cable reel) |
|
Material |
Fiberglass push rod cable |
|
Cable diameter |
7mm (outer cable reel) 5.2mm (inner cable reel) |
|
Cable length |
40cmx40cm(outer cable reel) 30cmx30cm(inner cable reel) |
|
Reel size |
20m-50m(outer cable reel) 20m-40m(inner cable reel) |
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
